Nissan Patrol (Y62) | 2010-2024 | Fuse Box Diagrams and Locations

Nissan Patrol (Y61) | 1997-2015

View Nissan Patrol fuse box diagrams for 2010–2024 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the sixth-generation Nissan Patrol (Model Code: Y62), available from 2010, and includes fuse box diagrams for Nissan Patrol 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 and 2024, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

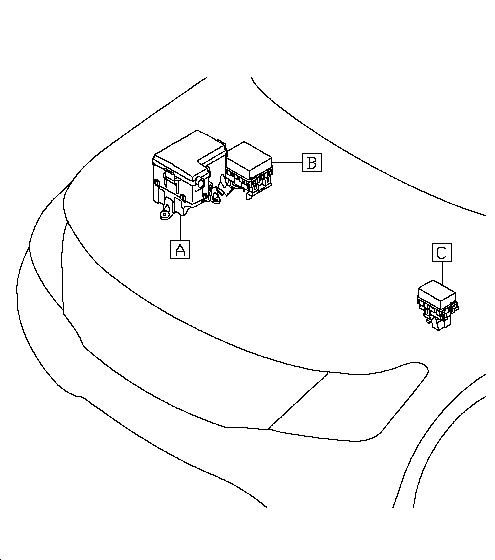

Fuse Box Location

There are several fuse boxes in the engine compartment; refer to the image below for their exact locations.

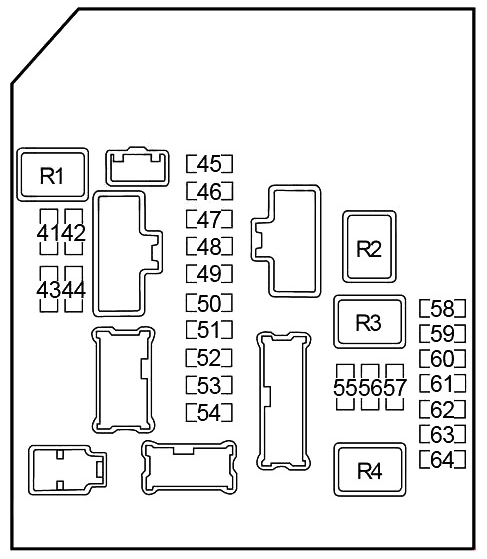

Fuse Box Diagram A (1)

Fuses

Assignment of the fuses in the engine compartment fuse box A (1)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
41	15A	Rear Window Defogger Relay
42	15A	Rear Window Defogger Relay
43	20A	Engine Control Module (ECM), NATS Antenna Amplifier, ECM Relay (Mass Air Flow Sensor, Evap Canister Purge Volume Control Solenoid Valve, Variable Valve Event and Lift (VVEL) Control Module, Intake Valve Timing Control Solenoid Valve, Air Fuel Ratio (A/F) Sensor, Heated Oxygen Sensor, Fuel Return Valve, EVAP Canister Vent Control Valve, Injector Relay (2014-2017))
44	10A	Steering Lock Relay
45	30A	Front Wiper Relay
46	10A	Trailer Tail Lamp Relay, Rear Combination Lamp LH, Tail Lamp RH/LH, License Plate Lamp
47	10A	Glove Box Lamp, Climate Controlled Seat Switch, Rear A/C Control, Around View Monitor Control Unit, Heated Steering Wheel Switch, 4WD Switch Assembly, A/T Shift Selector, Multifunction Switch, Front Heated Seat Switch, Second Heated Seat Switch LH/RH, Clock, Second Seat Power Unlock Switch LH/RH, Electric Brake, AC 120V Outlet Main Switch, Console Power Socket (Cup Holder), Snow Mode / Tow Mode / Vdc Off Switch Assembly, Headlamp Aiming Switch, Door Mirror Remote Control Switch, Combination Switch (Spiral Cable), Hazard Switch, Trip Reset and Illumination Control Switch, Trip Computer Switch, Automatic Back Door Main Switch, Triple Switch, Twin Switch, Rear Combination Lamp RH, Mood Lamp Front Door Grip, Mood Lamp Rear Door Grip, Map Lamp, Telematics Switch
48	—	Not Used
49	10A	A/C Relay
50	15A	Front Fog Lamp
51	10A	Right Headlamp (High Beam)
52	10A	Left Headlamp (High Beam)
53	15A	Left Headlamp (Low Beam)
54	15A	Right Headlamp (Low Beam)
55	10A	Back-Up Lamp Relay, Trailer Power Relay, Transmission Control Module (TCM)
56	10A	Transfer Control Unit
57	10A	ABS, Stop Lamp Relay, Yaw Rate / Side / Decel G Sensor
58	—	Not Used
59	—	Not Used
60	15A	2010-2013: Injector Relay
61	15A	Ignition Coils, Condenser
62	10A	Engine Control Module (ECM)
63	—	Not Used
64	20A	Throttle Control Motor Relay

Relays

Assignment of the relays in the engine compartment fuse box A (1)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Rear Window Defogger
R2	Ignition №3
R3	Ignition №2
R4	Ignition

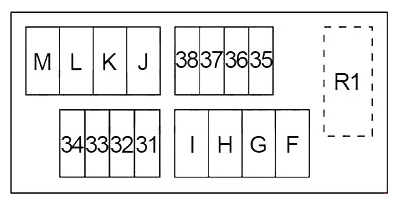

Fuse Box Diagram A (2)

Fuses

Assignment of the fuses in the engine compartment fuse box A (2)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
31	15A	Horn Relay
32	10A	Alternator
33	10A	Accelerator Pedal Actuator
34	10A	Transfer Control Unit
35	15A	AV Control Unit, Front Display Unit, Video Distributor, Headrest Display Unit LH/RH, Telematics Control Module (TCU (2014-2017))
36	10A	Vehicle Security Horn Relay
37	10A	IPDM (Ignition Relay №2 (Air Levelizer Control Module), Ignition Relay №3 (Warning Buzzer, Twin Switch (Warning Systems Switch), Intelligent Cruise Control (ICC) Brake Hold Relay, Intelligent Cruise Control (ICC) Sensor, Accelerator Pedal Actuator, Advanced Driver Assistance Systems (ADAS) Control Unit, Side Radar LH/RH, Lane Camera Unit))
38	10A	Transmission Control Module (TCM)
F	40A	Electric Brake, Fuse: “T”, “V”, “79”, “84”, “85”, “86”
G	40A	Ignition Relay №1 (Fuse: “1”, “2”, “3”, “4”, “16”), Fuse: “12”, “81”, “82”, “83”, “U”
H	40A	IPDM
I	30A	Air Compressor Relay
J	30A	Transfer Control Unit
K	50A	Body Control Module (BCM), Circuit Breaker (Automatic Drive Positioner Control Unit, Driver Seat Control Unit, Lumbar Support Switch)
L	30A	ABS
M	50A	ABS

Relays

Assignment of the relays in the engine compartment fuse box A (2)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Horn

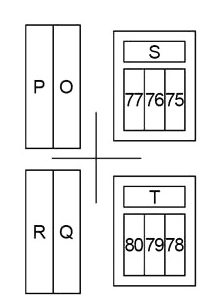

Fuse Box Diagram A (Additional)

Fuses

Assignment of the relays in the engine compartment fuse box A (Additional)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
P	50A	Ignition Relay (Fuse: “71”, “72”, “73”, “74”)
O	50A	Variable Valve Event and Lift (VVEL) Actuator Motor Relay
R	50A	Fuse: “T”, “79”
Q	50A	2010-2013: Fuse: “S”, “75”, “76”, “77” 2014-2017: Fuse: “S”, “75”, “76”, “77”, “87”, “88”, “89”, “90”
75	15A	Wiper Deicer Relay
76	10A	Heated Steering Wheel Relay
77	30A	Pre-Crash Seat Belt Control Unit
S	30A	Second Row Seats (Power Unlock Relay LH/RH, Up Relay 2 LH/RH, Down Relay 2 LH/RH)
78	—	Not Used
79	30A	Inverter Unit
80	10A	Wiper Deicer Relay, Door Mirror
T	30A	Automatic Back Door Control Module

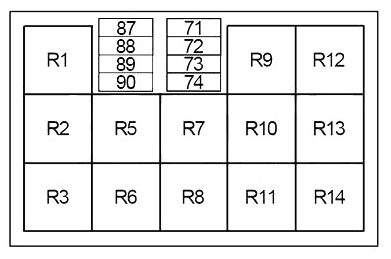

Fuse Box Diagram B

Fuses

Assignment of the fuses in the engine compartment fuse box B

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
71	30A	Engine Control Module (ECM)
72	10A	Electrically Controlled Cooling Fan Coupling
73	15A	Fuel Pump Control Module
74	10A	ABS
87	15A	Injector Relay
88	10A	Daytime Running Light Relay
89	10A	Daytime Running Light Relay
90	10A	Daytime Running Light Relay

Relays

Assignment of the relays in the engine compartment fuse box B

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Remote Engine Start
R2	Not Used
R3	2010-2013: Vehicle Security Horn 2014-2017: Daytime Running Light
R4	Not Used
R5	Not Used
R6	Back-Up Lamp
R7	Heated Steering Wheel
R8	Intelligent Cruise Control (ICC) Brake Hold
R9	Wiper Deicer
R10	Rear A/C
R11	Stop Lamp
R12	Air Compressor
R13	Ignition
R14	Variable Valve Event and Lift (VVEL) Actuator Motor

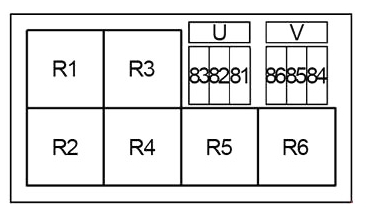

Fuse Box Diagram C

Fuses

Assignment of the fuses in the engine compartment fuse box C

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
81	30A / 15A	Pre-Crash Seat Belt Control Unit Climate Controlled Seat Relay
82	15A	Climate Controlled Seat Relay Left
83	15A	Climate Controlled Seat Relay Right
84	10A	Trailer Tail Lamp Relay
85	10A	Back-Up Lamp Relay
86	15A	Trailer Turn Signal Lamp (LH) Relay, Trailer Turn Signal Lamp (RH) Relay
U	30A	Headlamp Washer Relay
V	30A	Trailer Power Relay

Relays

Assignment of the relays in the engine compartment fuse box C

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Climate Controlled Seat
R2	Trailer Turn Signal Lamp (RH)
R3	Headlamp Washer
R4	Trailer Turn Signal Lamp (LH)
R5	Trailer Tail Lamp
R6	Trailer Power

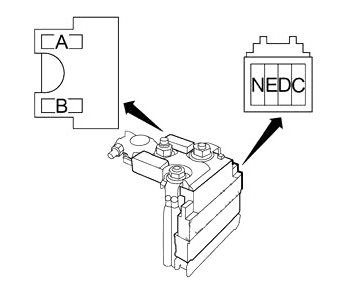

Fuse Box Diagram (On Battery)

This fuse box is positioned on the main battery positive (+).

High Voltage Fuses

Assignment of the high-voltage fuses in the engine compartment battery fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
A	140A	Alternator, Fuse: “C”, “D”, “E”
B	80A	Fuse: “O”, “P”, “Q”, “R”
C	100A	Ignition Relay (Front Wiper High Relay, Fuse: “55”, “56”, “57”, “60”, “61”, “62”), Fuse: “41”, “42”, “43”, “44”, “64”
D	80A	Accessory Relay (Fuse: “18”, “19”, “20”), Ignition Relay №2 (Fuse: “13”, “14”, “15”), Blower Relay (Fuse: “21”, “22”), Fuse: “5”, “6”, “7”, “8”, “9”, “10”, “11”
E	80A	Fuse: “31”, “32”, “33”, “34”, “35”, “36”, “37”, “38”, “F”, “G”, “H”, “I”, “J”, “K”, “L”, “M”
N	60A	Headlamp High Relay (Fuse: “51”, “52”), Headlamp Low Relay (Fuse: “53”, “54”), Tail Lamp Relay (Fuse: “46”, “47”), Front Fog Lamp Relay (Fuse: “50”), Fuse: “45”, “49”

Passenger Compartment

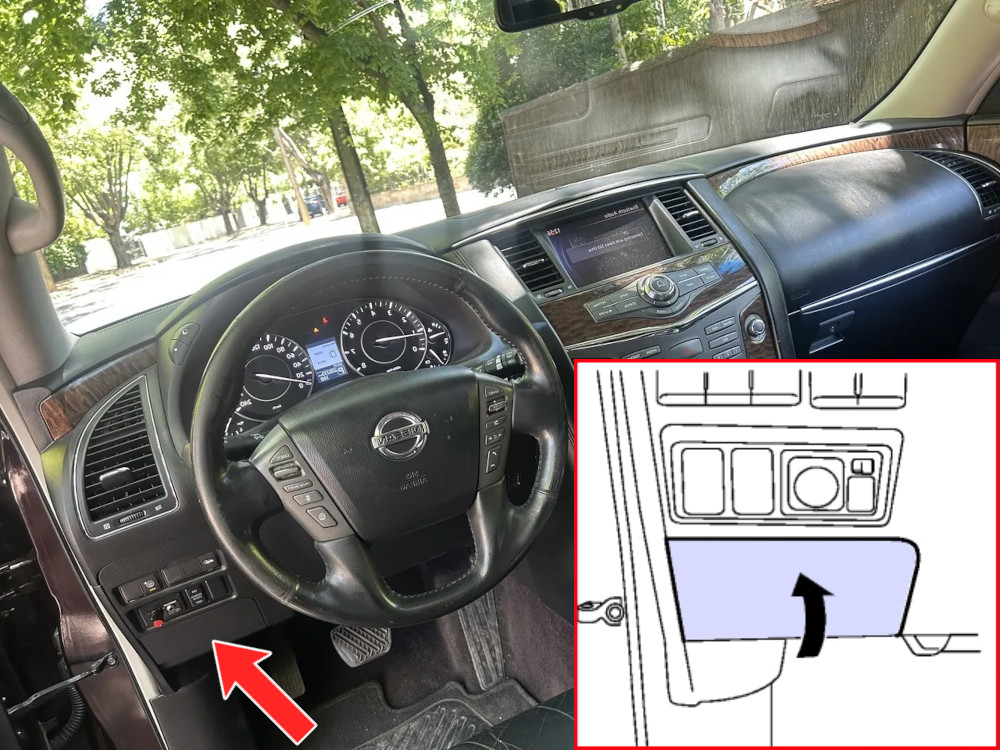

Fuse Box Location

The fuse box is situated beneath the steering wheel on the driver’s side, under the lid.

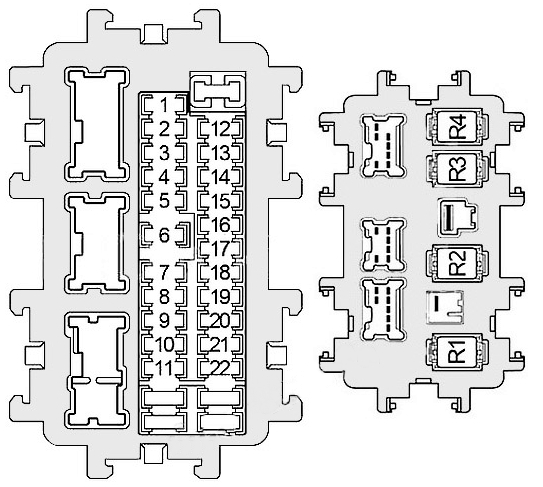

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	10A	Combination Switch
2	10A	Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
3	10A	Intelligent Cruise Control (ICC) Brake Switch, Automatic Speed Control Device (ASCD) Brake Switch, Stop Lamp Switch, Headlamp Aiming Motor LH/RH, Data Link Connector, Steering Angle Sensor, Combination Meter, Heated Steering Wheel Switch, Low Tire Pressure Warning Control Unit, Power Steering Control Unit, CAN Gateway, Triple Switch (APS Switch), Adaptive Front Lighting System (AFS) Control Unit, AC 120V Outlet Main Switch, Climate Controlled Seat Relay
4	10A	Rear A/C Control, Around View Monitor Control Unit, A/C Auto Amplifier, Ionizer, AV Control Unit, Rear A/C Relay, Exhaust Gas / Outside Door Detecting Sensor, Automatic Back Door Control Module, Auto Anti-Dazzling Inside Mirror, Sonar Control Unit (2014-2017), Telematics Control Module (TCU (2014-2017))
5	15A	BOSE Amplifier
6	10A	Data Link Connector, Clock, Second Seat Power Unlock Switch LH/RH, Intelligent Key Warning Buzzer, Pre-crash Seat Belt Control Unit, Lights Rain Sensor, Auto Anti-dazzling Inside Mirror, Combination Meter (2014-2017)
7	10A	Stop Lamp Switch, Body Control Module (BCM), Intelligent Cruise Control (ICC) Brake Hold Relay, Electric Brake
8	15A	BOSE Amplifier
9	10A	Around View Monitor Control Unit, A/C Auto Amplifier, Automatic Back Door Control Module, Reclining Switch LH/RH, Fold Down Switch LH/RH, Automatic Back Door Warning Buzzer
10	10A	Push-Button Ignition Switch, Seat memory Switch, Body Control Module (BCM)
11	10A	Combination Meter (2010-2013), CAN Gateway
12	20A	Accessory Relay №2
13	10A	4WD Switch, Snow Mode / Tow Mode / VDC off Switch Assembly
14	15A	Second Heated Seat Switch LH/RH
15	15A	Front Heated Seat Switch LH/RH
16	20A	Rear Blower Relay
17	—	Not Used
18	20A	2010-2013: Console Power Socket
19	10A	Door Mirror Remote Control Switch (2010-2013), Sonar Control Unit (2010-2013), Around View Monitor Control Unit, A/C Auto Amplifier, Multifunction Switch, AV Control Unit, Front Display Unit, Video Distributor, Power Window Main Switch (2014-2017), BOSE Amplifier (2014-2017), Telematics Control Module (TCU (2014-2017)), Telematics Switch (2014-2017)
20	20A	Front Power Socket, Luggage Room Power Socket, Accessory Relay №2
21	15A	Front Blower Motor
22	15A	Front Blower Motor

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Ignition
R2	Ignition №2
R3	Accessory
R4	Blower
