Discover Nissan Qashqai / Qashqai+2 fuse box diagrams for 2007–2013 models with fuse locations, panel layouts, and detailed fuse and relay assignments. This article covers the first-generation Nissan Qashqai / Qashqai+2 (Model Codes: J10, NJ10) , available from 2007 to 2013 , and includes fuse box diagrams for Nissan Qashqai / Qashqai+2 2007, 2008, 2009, 2010, 2011, 2012 and 2013 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

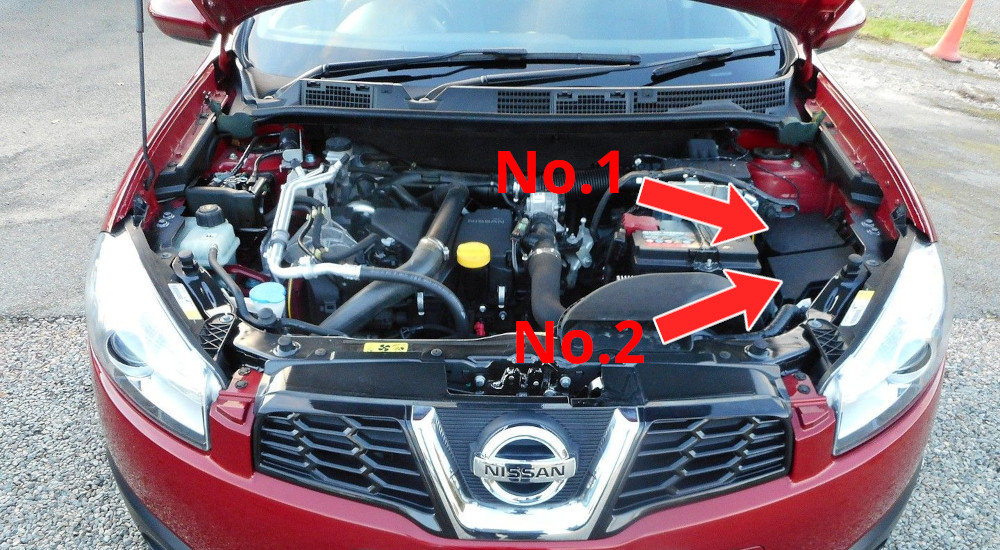

The fuse boxes is located in the engine compartment on the driver’s side, near the main battery.

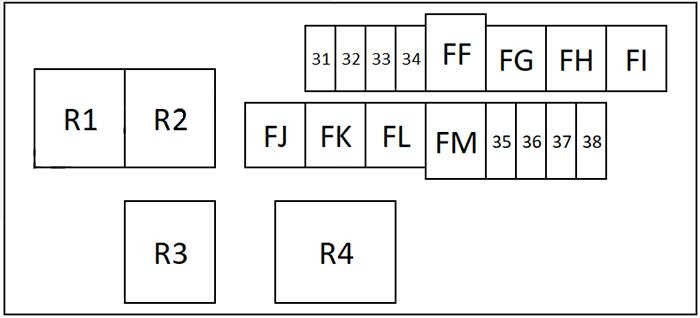

Assignment of the fuses in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description FF 60A Power steering FG 30A Headlamp washers FH 30A ABS FI 40A ABS FJ 40A Not used FK 40A Ignition switch FL 30A Not used FM 50A Engine coolant blower motor F31 20A Engine coolant pump motor relay F32 10A Four wheel drive system F33 10A Attemator F34 10A Horn F35 30A Auxiliary heater F36 10A Not used F37 30A Auxiliary heater F38 30A Auxiliary heater
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box No.1
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Engine coolant pump motor relay R2 Horn relay R3 Headlamp washer pump relay R4 Not used
This content requires JavaScript and a valid membership to view.

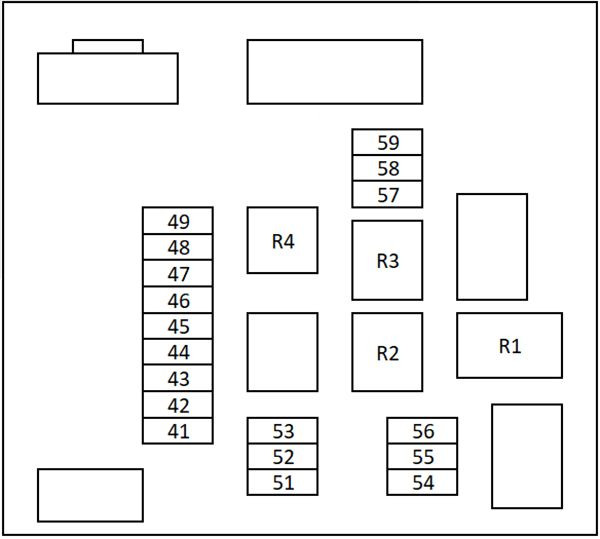

Assignment of the fuses in the engine compartment fuse box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description F41 15A Defrost the tailgate, heater mirrors F42 15A Defrost the tailgate, heater mirrors F43 15A Front fog lamps F44 30A Wind screen wipers F45 15A Headlamp low beam, right F46 15A Headlamp low beam, left F47 10A Head lamp high beam, right F48 10A Head lamp high beam, left F49 10A Lamp tail lights F51 15A transmission F52 20A Engine management F53 10A A/C compressor clutch F54 10A Reversing lamps F55 10A Transmission F56 10A Engine management F57 15A Engine management F58 10A Engine management F59 10A ABS
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box No.2
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Heated rear window relay R2 Not used R3 Not used R4 Ignition main circuits relay
This content requires JavaScript and a valid membership to view.

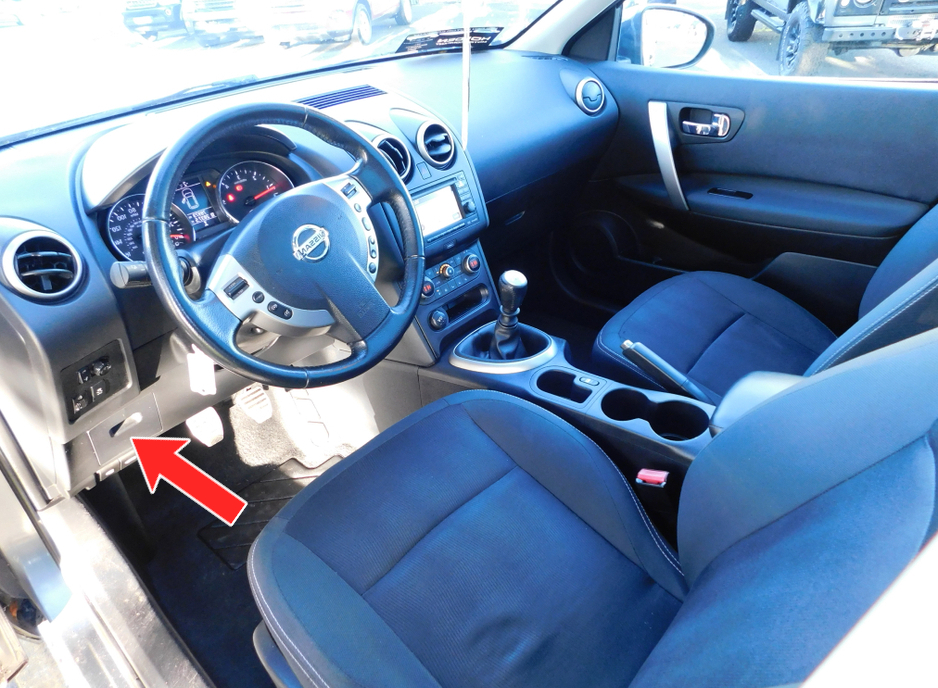

The fuse box is situated beneath the steering wheel, on the left side (or the right side in RHD vehicles), behind the cover.

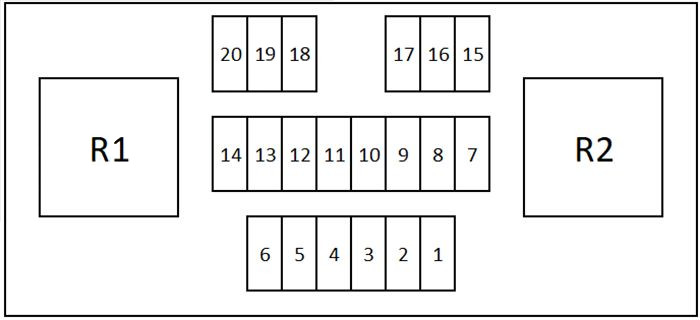

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps. Description F1 10A Heated seats F2 10A Air bags F3 20A Steering column function control module F4 10A Electrics F5 10A Interior electrical control unit F6 10A Heated door mirrors F7 15A 12 V socket (rear) F8 10A Electrics F9 10A Interior electrical control unit F10 20A Not used F11 10A BPP switch F12 15A Audio system F13 15A Transmission control module (TCM) F14 – Not used F15 15A AC/heater blower motor F16 15A AC/heater blower motor F17 10A Not used F18 – Not used F19 15A Cigarette lighter/charging socket F20 10A Audio system, electric exterior mirrors
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Ignition auxiliary circuits relay R2 Heater blower relay
This content requires JavaScript and a valid membership to view.
