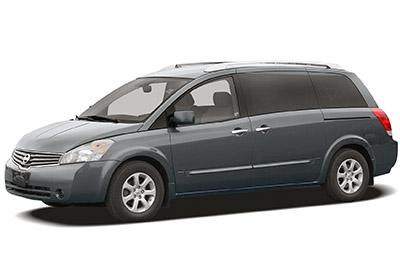

Nissan Quest (V42) | 2004-2009

Access Nissan Quest fuse box diagrams for 2004–2009 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the third-generation Nissan Quest (Model Code: V42), available from 2004 to 2009, and includes fuse box diagrams for Nissan Quest 2004, 2005, 2006, 2007, 2008 and 2009, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

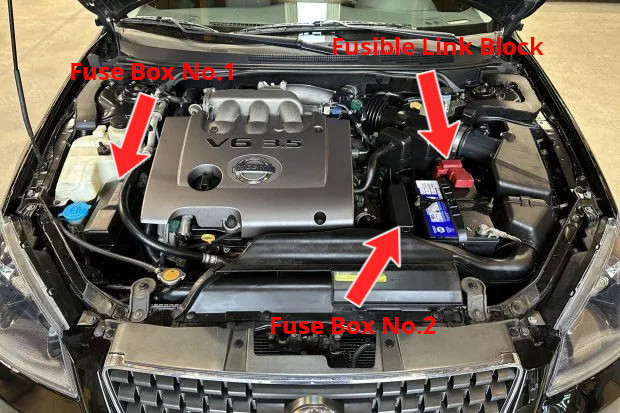

Fuse Box Locations

There are three (3) fuse boxes in the engine compartment: the first is on the passenger side near the windshield washer reservoir, the second is located near the main battery, and the fusible link block is on the battery positive (+) terminal.

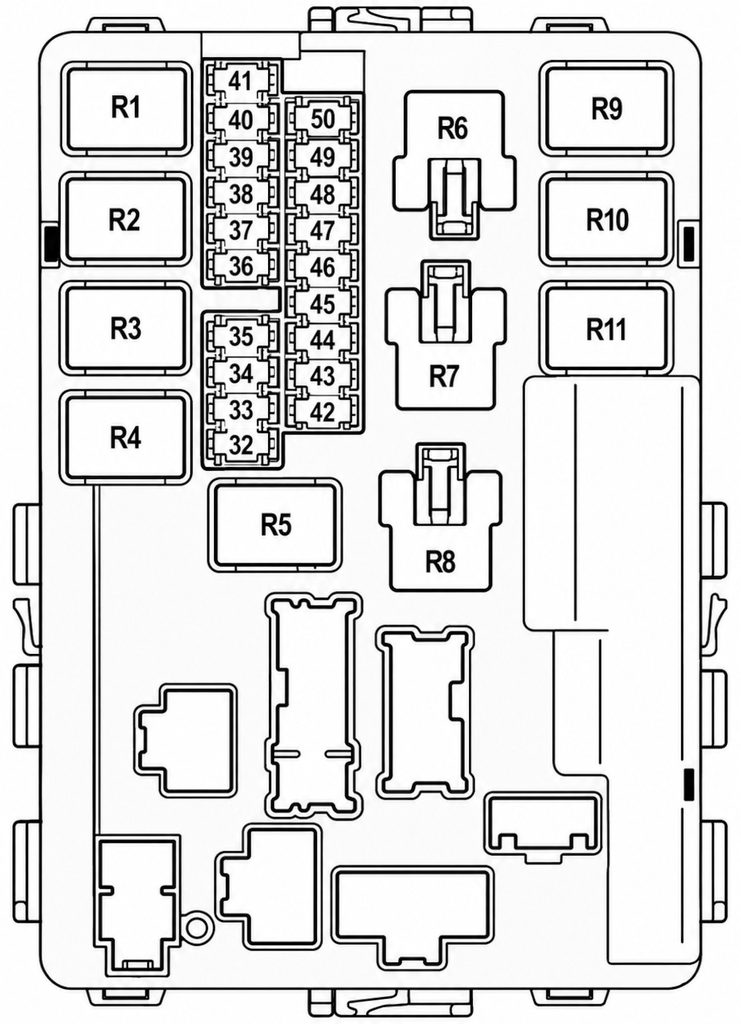

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
3220ARear Window Defogger Relay
3310AAir Conditioner Relay
3415AIPDM E/R CPU
3515AEngine Control Module (ECM), ECM Relay, NATS Antenna Amplifier
3615AHeadlamp Low (right), Diode 3
3720ARear Window Defogger Relay
3810AHeadlamp High (left), Daytime Running Lights Control Unit
3930AFront Wiper Relay
4010AHeadlamp High (right), Daytime Running Lights Relay, Diode 3
4115ATail Lamp Relay, Cornering Lamp Relay, IPDM E/R CPU
4210AHeater Pump Relay
4315AFront Fog Lamp Relay
4415AThrottle Control Motor Relay
4515AHeadlamp Low (left), Daytime Running Lights
4615AAir Flow Sensor, Heater Oxygen Sensor
4710ACombination Switch (Front Wiper and Washer, Rear Wiper and Washer)
4810ATransmission Control Module (TCM), Revolution Sensor, Turbine Revolution Sensor, A/T PV IGN Relay
4910AABS
5015AFuel Pump Relay

Relays

Assignment of the relays in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Engine Control Module
R2Headlamp High
R3Headlamp Low
R4Starter
R5Ignition
R6Cooling Fan (No.1)
R7Cooling Fan (No.3)
R8Cooling Fan (No.2)
R9Throttle Control Motor
R10Fuel Pump
R11Front Fog Lamp

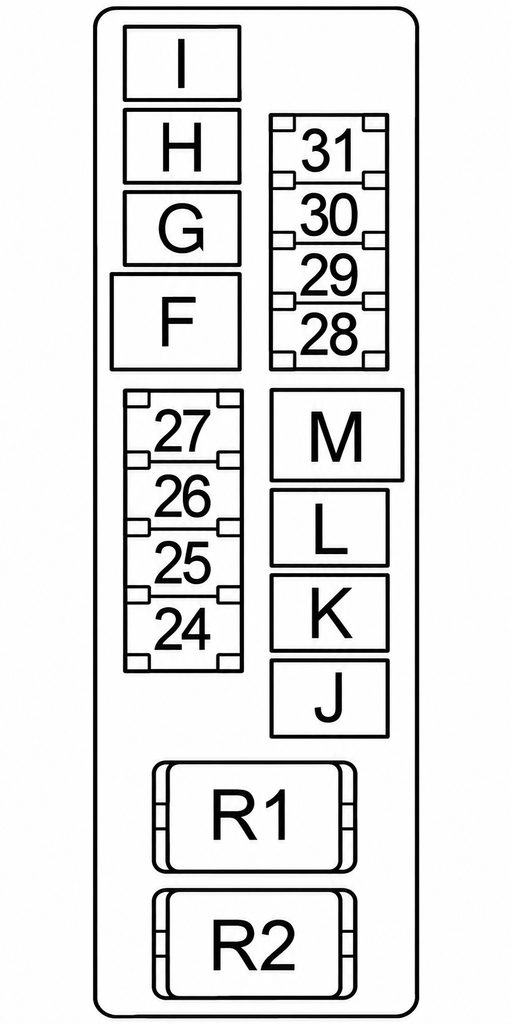

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsFuse TypeDescription
2420AMiniTrailer Tow Power Supply
2515AMiniHorn Relay
2610AMiniGenerator
2715AMiniHeated Seat Relay
2820AMiniFront Blower Motor Relay
2915AMiniDaytime Running Lights
3020AMiniFront Blower Motor Relay
3120AMiniAudio, BOSE Amplifier, Satellite Radio Tuner
F40AFMX/JCaseABS
G40AMPFCooling Fan Relay 2
H40AMPFCooling Fan Relay 1, Cooling Fan Relay 3
I40AMPFCircuit Breaker 1 (Slide Door Auto Closure System, Power Seat)
J50AMPFBody Control Module (BCM)
K40AMPFIgnition Switch
L40AMPFABS
M40AFMX/JCaseCircuit Breaker 2 (Adjustable Pedal System, Automatic Drive Positioner, Slide Door Auto Closure System, Power Seat)

Relays

Assignment of the relays in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Horn
R2Front Blower Motor

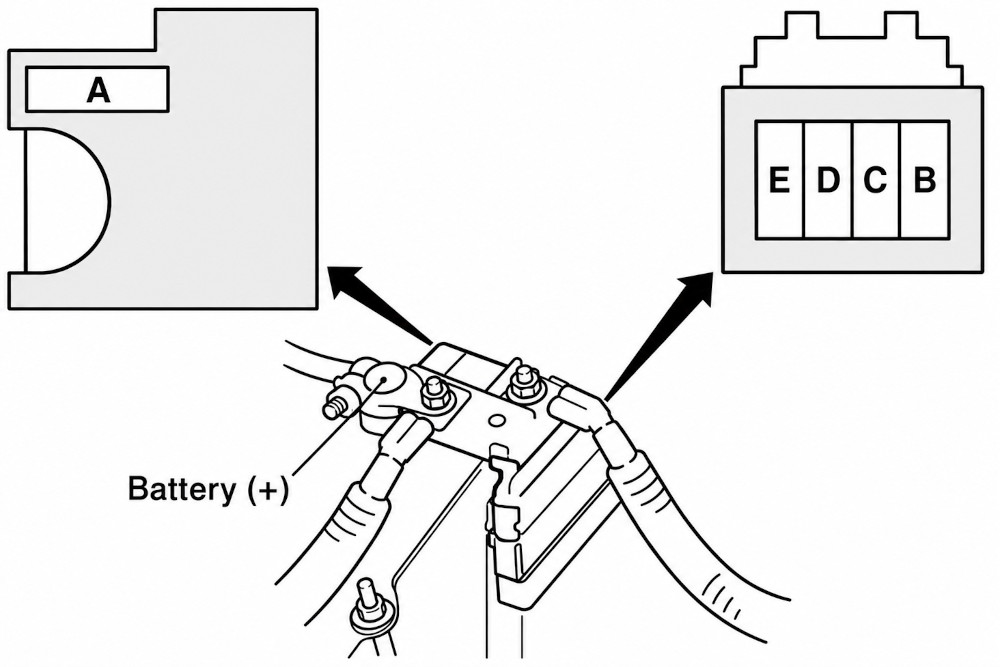

Fusible Link Block

High Voltage Fuses

Assignment of the high-voltage fuses in the engine compartment fusible link block

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A140AGenerator, Fuses D, E
B80AAccessory Relay (Fuses 4, 5, 6), Rear Blower Motor Relay (Fuses 10, 11), Fuses 3, 17, 18, 19, 20, 21, 22
C60AIgnition Relay (Fuses 42, 46, 47, 48, 49, 50), Fuses 33, 34, 35, 37
D80AHeadlamp High Relay (Fuses 38, 40), Headlamp Low Relay (Fuses 36, 45), Fuses 32, 39, 41, 43, 44
E100AFuses F, G, H, J, 24, 25, 26, 27

Passenger Compartment

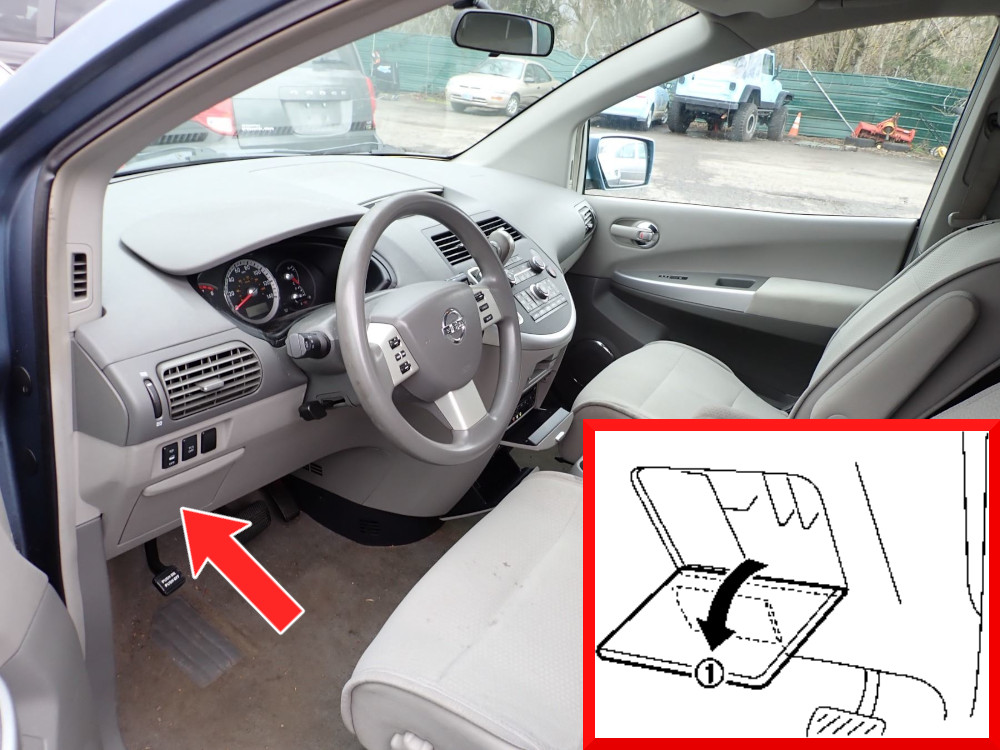

Fuse Box Location

The fuse box can be found behind the storage compartment on the left side of the steering wheel.

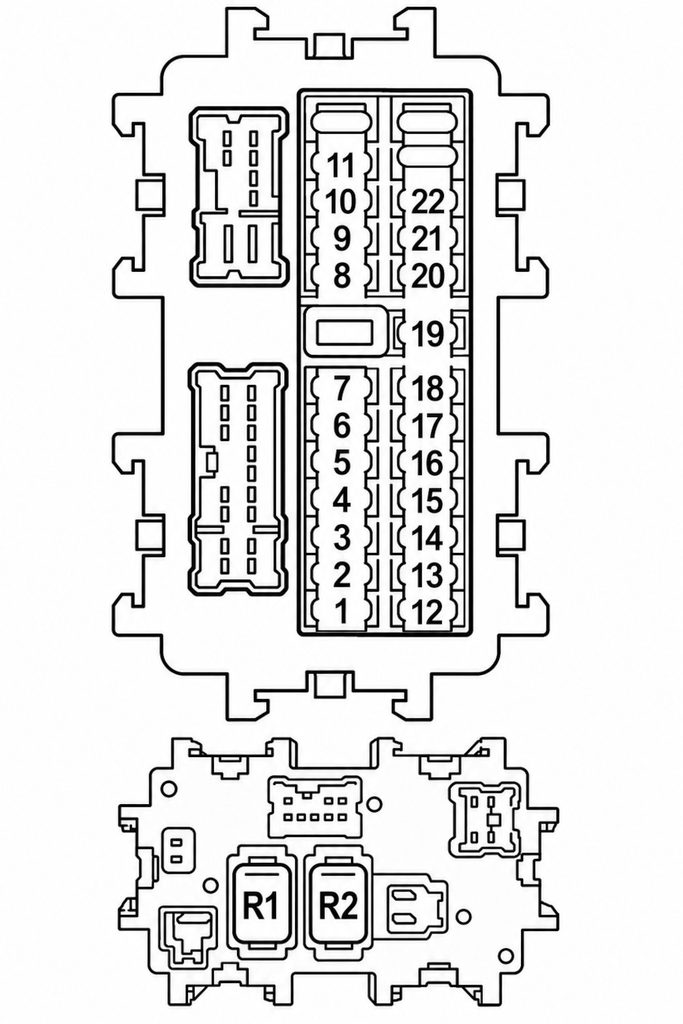

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110APedal Adjusting Control Unit, Stop Lamp Switch
210AFront Blower Motor Relay, Front Air Control
315ABody Control Module (BCM), Auto Anti-Dazzling Inside Mirror
410AAudio, AV Switch, Display Unit, Display Control Unit, Navi Control Unit, DVD Player, Satellite Radio Tuner, Body Control Module (BCM)
515AFront Power Socket 2, Rear Power Socket (2nd Row)
610ADoor Mirror Remote Control Switch
7–Not Used
810ADoor Mirror
910ADriver Seat Control Unit, Diode 1
1015ARear Blower Motor
1115ARear Blower Motor
1210AAutomatic Speed Control Device (ASCD) Brake Switch, Data Link Connector, Combination Meter, Heated Seat Relay, Park Neutral Position Switch, Display Unit, Steering Angle Sensor, Display Control Unit, Navi Control Unit, Back Door Control Unit, Sliding Door Control Unit RH/LH, Sonar Control Unit, Daytime Running Lights, Hands Free Telephone
1310AAir Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
1410ACombination Meter, Park Neutral Position Switch, Auto Dimming Inside Mirror
15–Not Used
1610AInjectors, Body Control Module (BCM), Engine Control Module (ECM)
1710ANavi Control Unit, Back Door Control Unit, Sliding Door Control Unit RH/LH, Driver Seat Control Unit, Seat Memory Switch, Auto Drive Positioner Control Unit
1815ASubwoofer
1915ATransmission Control Module (TCM), A/V Switch, Display Unit, Steering Angle Sensor, Combination Meter, Front Electronic Controlled Engine Mount, Display Control Unit, Key Switch, Front Air Control
2010AStop Lamp Switch
2115AFront Power Socket 1, Rear Power Socket (Cargo)
2215AFuel Lid Opener Relay, DVD Player

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Blower
R2Accessory
