Locate Nissan Quest fuse box diagrams for 1999–2002 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the second-generation Nissan Quest (Model Code: V41), available from 1999 to 2002, and includes fuse box diagrams for Nissan Quest 1999, 2000, 2001 and 2002, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

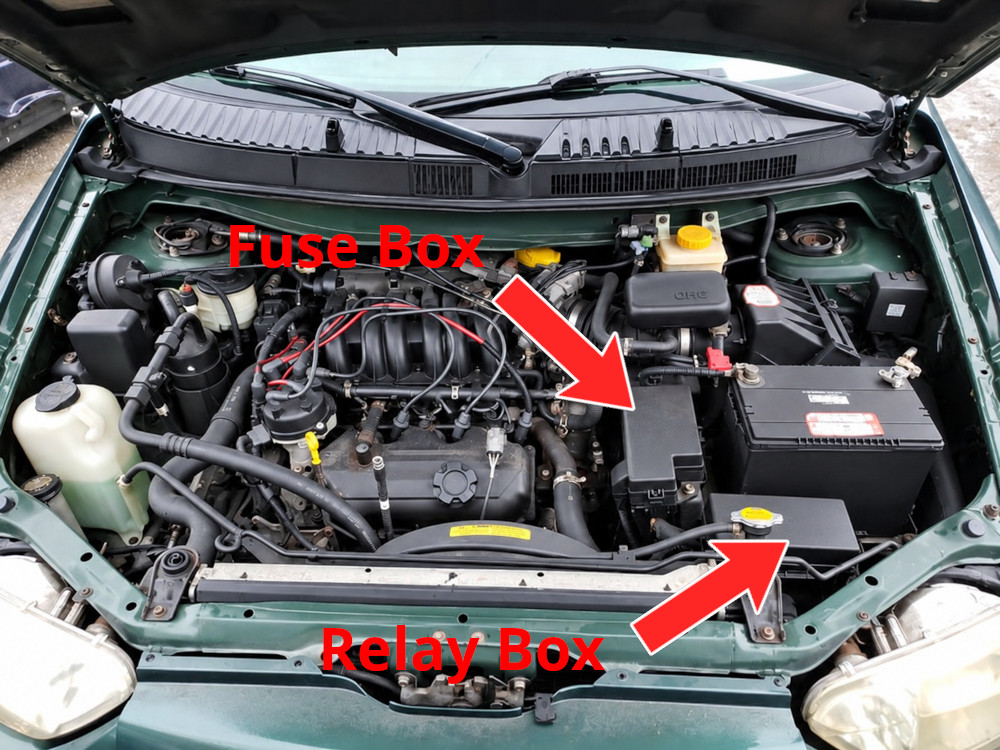

Fuse/Relay Box Location

In the engine compartment, the fuse box and relay box are both located near the main battery.

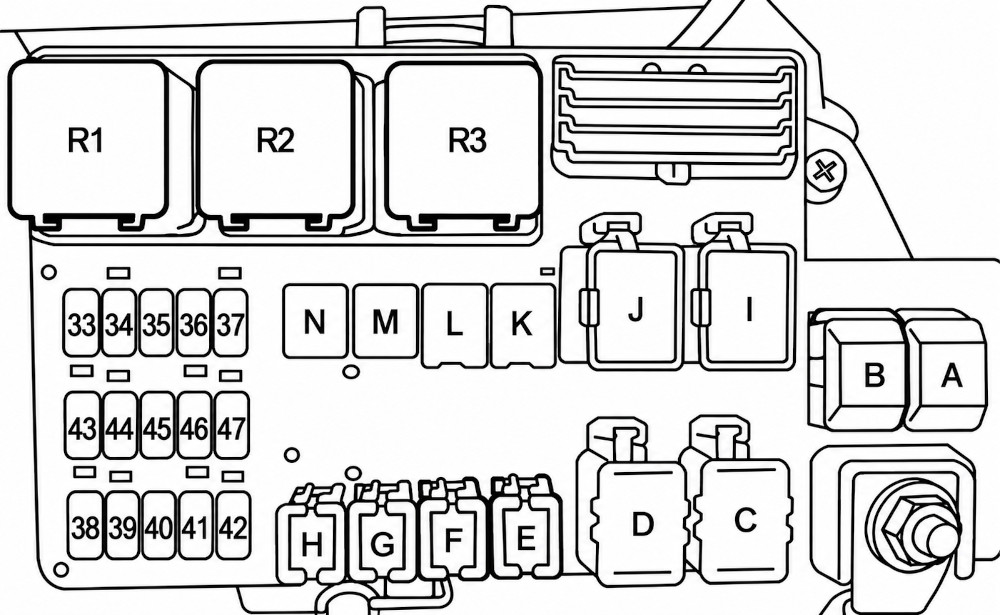

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Fuse Type	Description
33	10A	Mini	Injectors, Engine Control Module (ECM)
34	10A	Mini	Engine Control Module (ECM) Relay, Data Link Connector
35	10A	Mini	Generator
36	15A	Mini	Headlamp (right)
37	15A	Mini	Headlamp (left)
38	7.5A	Mini	Front Fog Lamp Relay
39	7.5A	Mini	SECU, Vehicle Security Relay
40	–		Not Used
41	20A	Mini	ABS Solenoid Valve Relay
42	15A	Mini	Horn Relay
43	15A	Mini	Fuel Pump Relay
44	7.5A	Mini	Radiator Fan Sensing
45	–		Not Used
46	–		Not Used
47	–		Not Used
A	100A	FLM	Ignition Relay (Fuse: “26”, “27”, “29”, “30”), Accessory Relay (Fuse: “5”, “6”, “7”, “8”, “9”), Tail Lmap Relay (Fuse: “17”, “18”, “19”) Fuse: “2”, “20”, “21”, “22”, “23”
B	140A	FLM	Generator, Fuse: “A”, “C”, “F”, “G”, “38”, “39”, “41”, “42”
C	65A	FLM	Front Blower Motor Relay (Fuse: “28”, “31”)
D	–		Not Used
E	–		Not Used
F	30A	FMX/JCase	Circuit Breaker 1 (SECU, Power Window Relay), Circuit Breaker 2 (Power Seat)
G	40A	FMX/JCase	ABS Motor Relay
H	–		Not Used
I	45A	FLM	Rear Window Defogger Relay (Fuse: “14”, “15”, “16”), Fuse: “24”, “25”
J	75A	FLM	Cooling Fan Relay
K	30A	FMX/JCase	Ignition Switch
L	20A	FMX/JCase	Cooling Fan Relay
M	–		Not Used
N	–		Not Used

Relays

Assignment of the relays in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Cooling Fan Relay 1
R2	Cooling Fan Relay 2
R3	Cooling Fan Relay 3

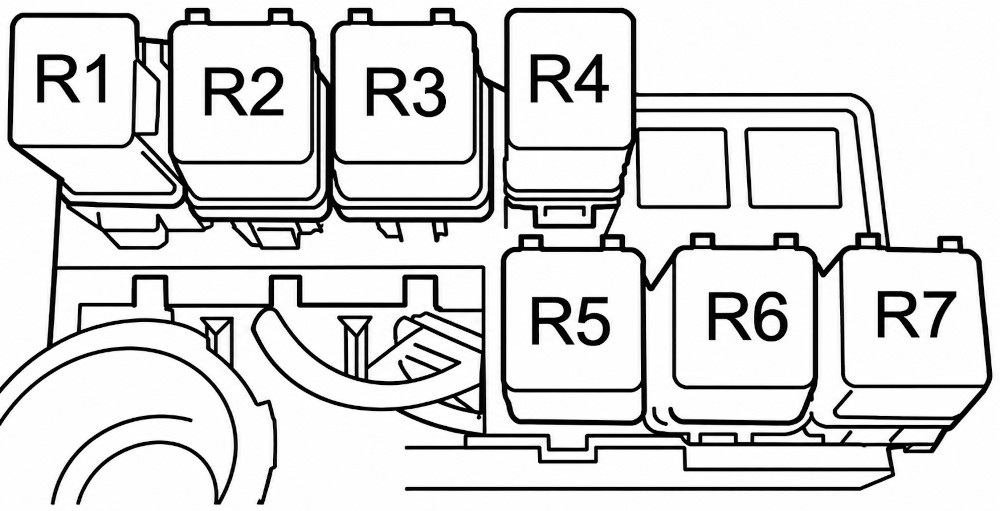

Relay Box Diagram

Relays

Assignment of the relays in the engine compartment relay box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Park/Neutral Position
R2	Fuel Pump
R3	Bulb Check
R4	1999-2000: ASCD Hold; 2001-2002: Fog Lamp
R5	Vehicle Security
R6	Horn
R7	Air Conditioner

Passenger Compartment

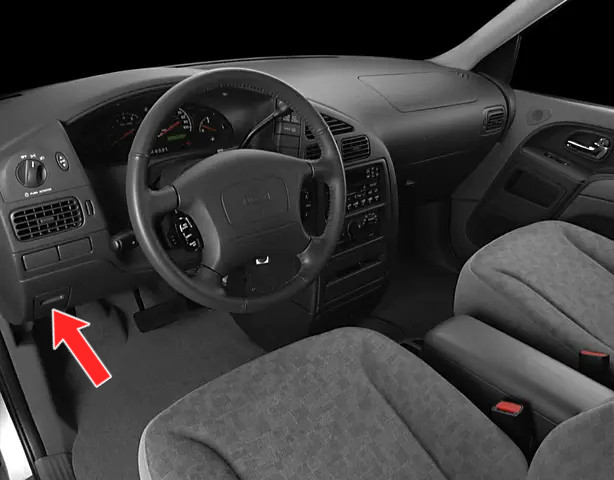

Fuse Box Location

The fuse box can be found behind the cover on the driver’s side of the dashboard.

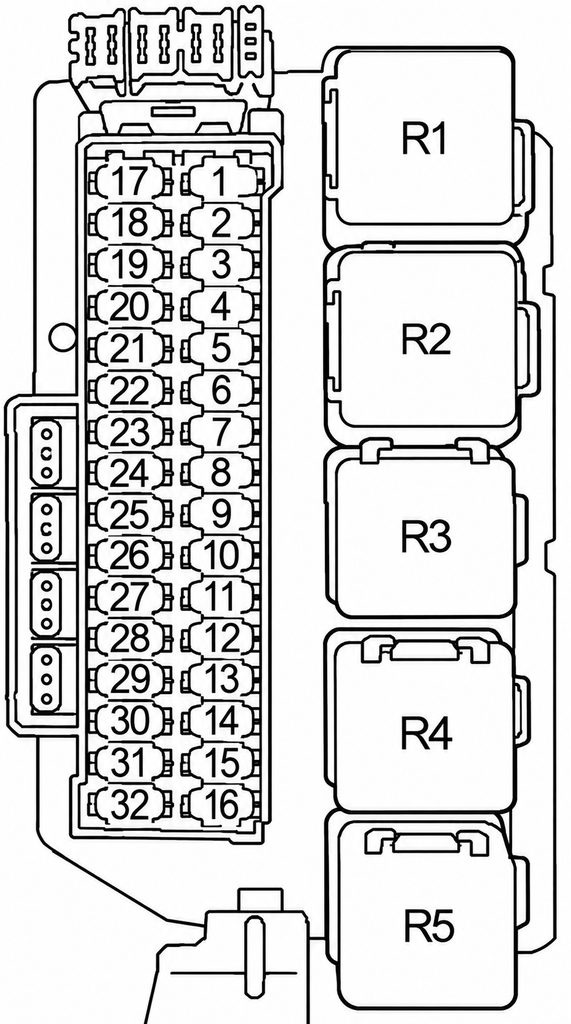

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	7.5A	Front Heated Seats
2	10A	Transmission Control Module (TCM), Rear Wiper Motor, EATC Unit
3	10A	Air Bag Diagnosis Sensor Unit
4	10A	IACV-AAC Valve, Vacuum Cut Valve Bypass Valve, Engine Control Module (ECM), Data Link Connector, Map/Baro Switch Solenoid Valve, Throttle Position Sensor, EVAP Canister Vent Control Valve
5	7.5A	Door Mirror Remote Control Switch, SECU
6	20A	Cigarette Lighter
7	20A	Rear Power Point
8	20A	Front Wiper Motor, Front Washer Motor, Front Wiper Amplifier
9	10A	Rear Wiper Motor, Rear Washer Motor
10	7.5A / 15A	1999-2000 (7.5A): Audio; 2001-2002 (15A): Audio, Video Monitor, Subwoofer Amplifier
11	20A	1999-2000: Subwoofer Amplifier; 2001-2002: Rear Power Point (Console Mounted)
12	7.5A	Headlamp Control Unit, Engine Control Module (ECM)
13	7.5A	Air Conditioner Control Unit, Air Conditioner Relay, EATC Unit, Air Mix and Mode Door, IACC-FICD Solenoid Valve
14	20A	Rear Window Defogger
15	20A	Rear Window Defogger
16	10A	Rear Window Defogger Switch, Mirror Heaters
17	10A	Front Side Marker Lamps, Front Combination Lamp, Combination Switch
18	7.5A	Illumination Lamps
19	10A	Rear Combination Lamp, Trailer License Lamp
20	10A	Audio, CD Changer, Rear Audio Remote Control Unit, FES Control Panel
21	15A	Interior Lamps, Memory Seat and Mirror Control Unit, Sunroof Motor
22	20A	Stop Lamp Switch, Trailer Tow Control Unit
23	10A	Hazard Switch, Security Indicator Lamp
24	15A	Rear Blower Motor
25	15A	Rear Blower Motor
26	7.5A	Heated Oxygen Sensor
27	10A	Hazard Switch
28	20A	Front Blower Motor, Front Blower Speed Control Unit
29	10A	Data Link Connector, Combination Meter, ASCD Brake Switch, Air Conditioner Relay, Cooling Fan Relay, Rear Blower Motor Relay, Memory Seat and Mirror Control Unit, ASCD Control Unit
30	10A	ABS Actuator and Electric Unit, Park/Neutral Position Switch, Headlamp Control Unit, SECU, Transmission Control Module (TCM)
31	20A	Front Blower Motor, Front Blower Speed Control Unit
32	–	Not Used

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Tail Lamp
R2	Ignition
R3	Accessory
R4	Rear Window Defogger
R5	Blower

FAQ

Where are the cigar lighter / power outlet fuses in the Nissan Quest?

They are located in the instrument panel fuse box:
Fuse #6 – Cigarette lighter
Fuse #7 – Rear power point
Fuse #11 – Rear console power point (2001–2002)
