Discover Nissan Teana fuse box diagrams for 2003–2008 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the first-generation Nissan Teana (Model Code: J31), available from 2003 to 2008, and includes fuse box diagrams for Nissan Teana 2003, 2004, 2005, 2006, 2007 and 2008, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

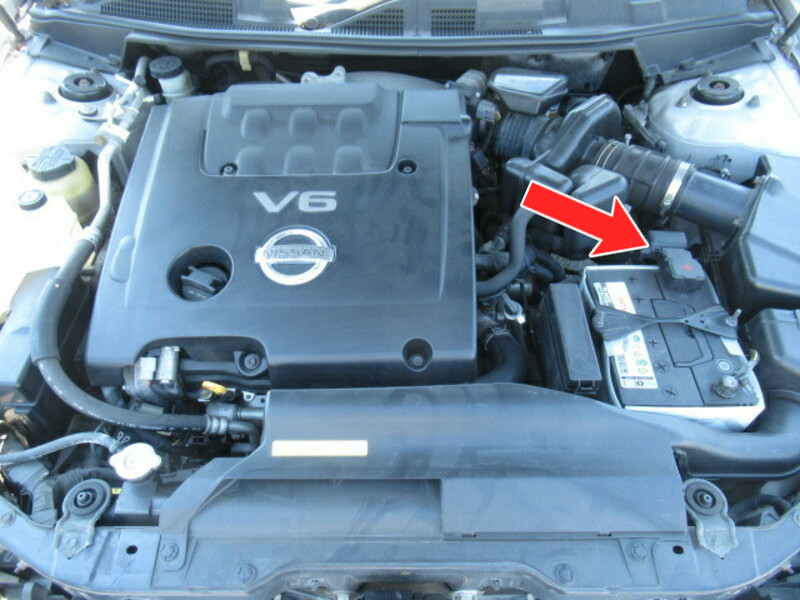

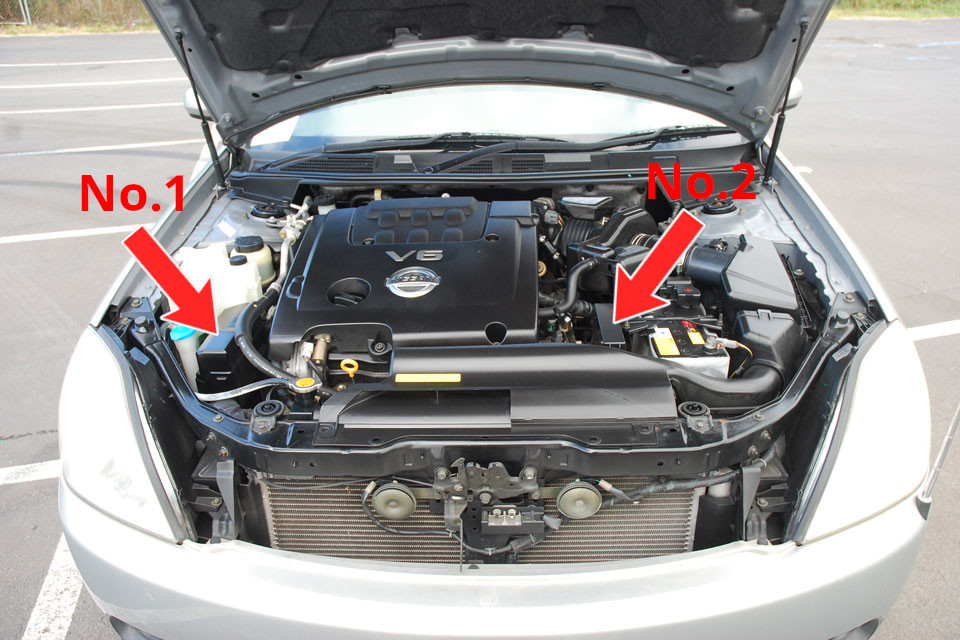

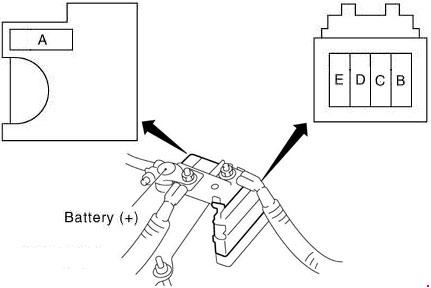

As shown in the image, there are two fuse boxes in the engine compartment: one on the passenger side near the screen-wash reservoir, and the other beside the main battery.

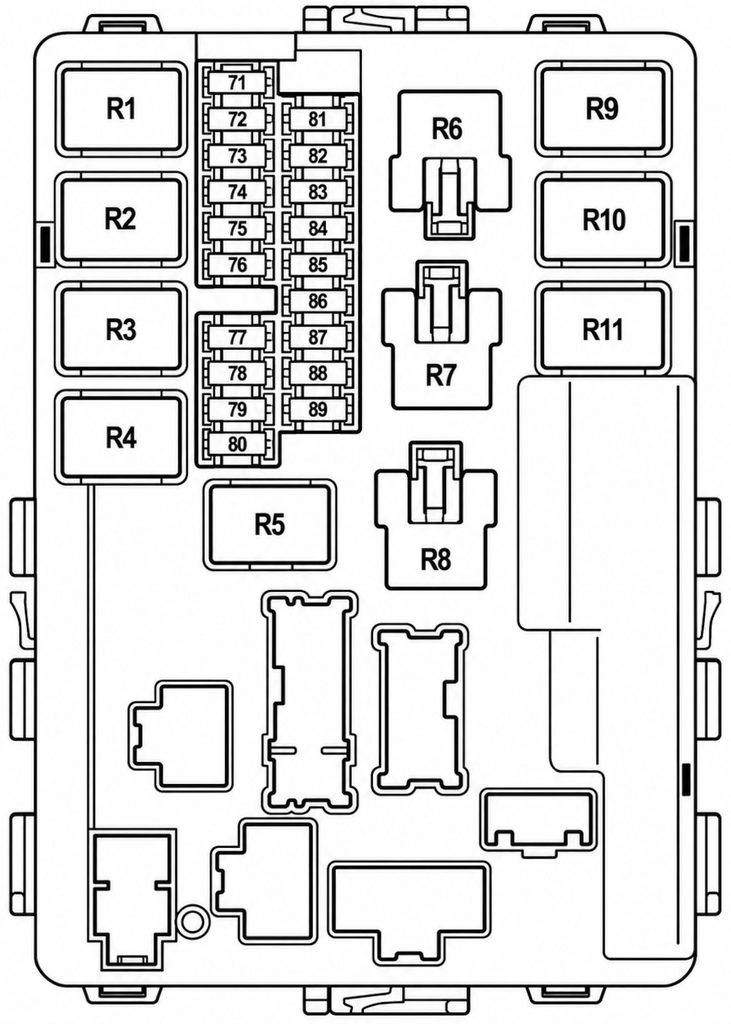

Fuse Box Diagram (No.1)
IPDM E/R
Fuses
Assignment of the fuses in the engine compartment fuse box (No.1)
Fuse Data
Full access is available to registered users — log in or register.
Main Relay ECM Power Supply for Back-Up Nissan Anti-Theft System
78
15A
IPDM E/R
79
10A
A/C Relay
80
–
Not Used
81
15A
Fuel Pump Relay
82
10A
Anti-Lock Brake System Vehicle Dynamics Control System
83
10A
Main Power Supply and Ground Circuit Vehicle Speed Sensor A/T (Revolution Sensor) A/T Fluid Temperature Sensor and TCM Power Supply Power Train Sensor Secondary Speed Sensor CVT (Revolution Sensor) Starting System Transmission Control Module (Power Supply) Power Supply Routing
84
10A
Front Wiper and Washer
85
15A
Heated Oxygen Sensor 1 and 2 Heated Oxygen Sensor 2 Heater Heated Oxygen Sensor 2 Heater Bank 1 and 2 Heated Oxygen Sensor 1 Heater Heated Oxygen Sensor 1 Heater Bank 1 and 2
86
15A
Headlamp low LH
87
15A
Throttle Control Motor Relay
88
15A
Front Fog Lamp Relay
89
10A
Engine Control Unit
Relays
Assignment of the relays in the engine compartment fuse box (No.1)
Fuse Data
Full access is available to registered users — log in or register.
Anti-Lock Brake System Vehicle Dynamics Control System
3
30A
Anti-Lock Brake System
4
50A
Power Window Power Door Lock Remote Keyless Entry System Intelligent Key System Nissan Anti-Theft System Trunk Lid Opener Sunroof Rear Window Defogger Automatic Drive Positioner Power Seat Headlamp Auto Light Control Headlamp Aiming Control System Front/Rear Fog Lamp Turn Signal and Hazard Warning Lamp Combination Switch Parking Lamps License and Tail Lamps Interior Room Lamp Illumination Warning Chime/Lamps Headlamp Washer Vehicle Information and Integrated Switch System Front Wiper and Washer
5
–
Not Used
6
10A
Charging System
7
10A
Horn
8
10A
Adaptive Front Lighting System
9
15A
Audio Audio Visual Communication Line Vehicle Information and Integrated Switch System
10
10A
Rear Window Defogger Mirror Defogger
11
–
Not Used
12
–
Not Used
13
40A
Ignition Switch
14
40A
Cooling Fan Relay
15
40A
Cooling Fan Relay
16
50A
Vehicle Dynamics Control System
Relays

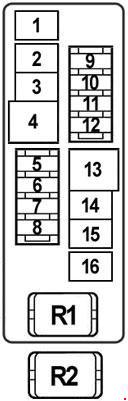

Assignment of the relays in the engine compartment fuse box (No.2)
Fuse Data
Full access is available to registered users — log in or register.
