Browse Nissan Teana fuse box diagrams for 2008–2014 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the second-generation Nissan Teana (Model Code: J32), available from 2008 to 2014, and includes fuse box diagrams for Nissan Teana 2008, 2009, 2010, 2011, 2012, 2013 and 2014, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

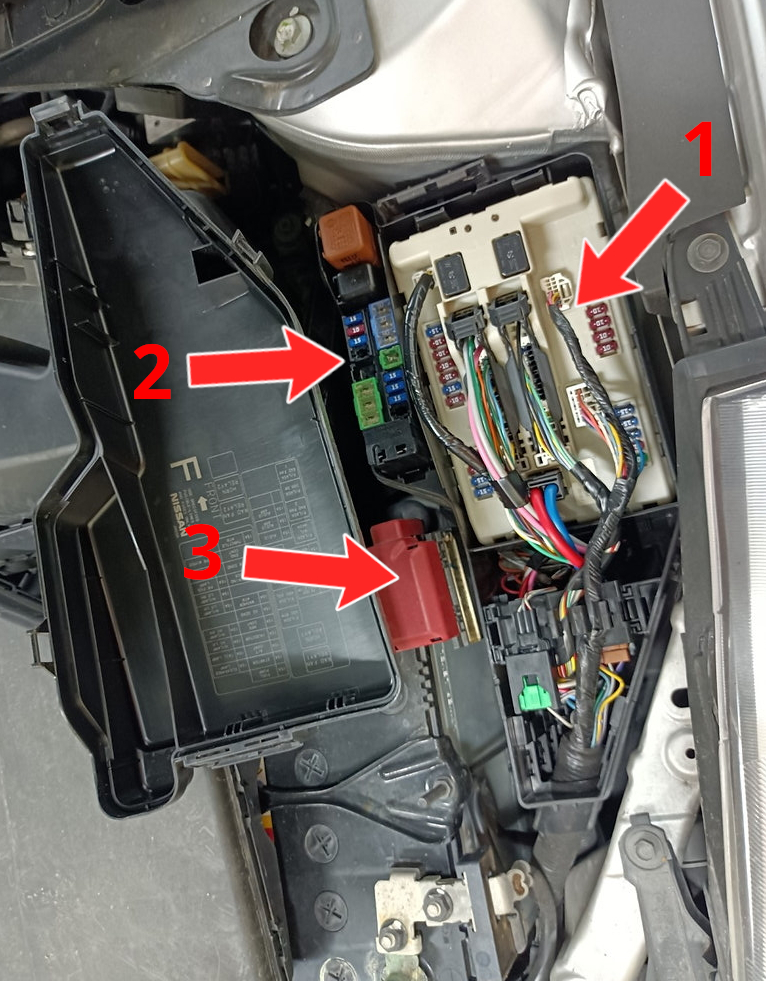

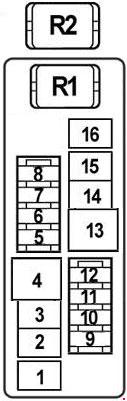

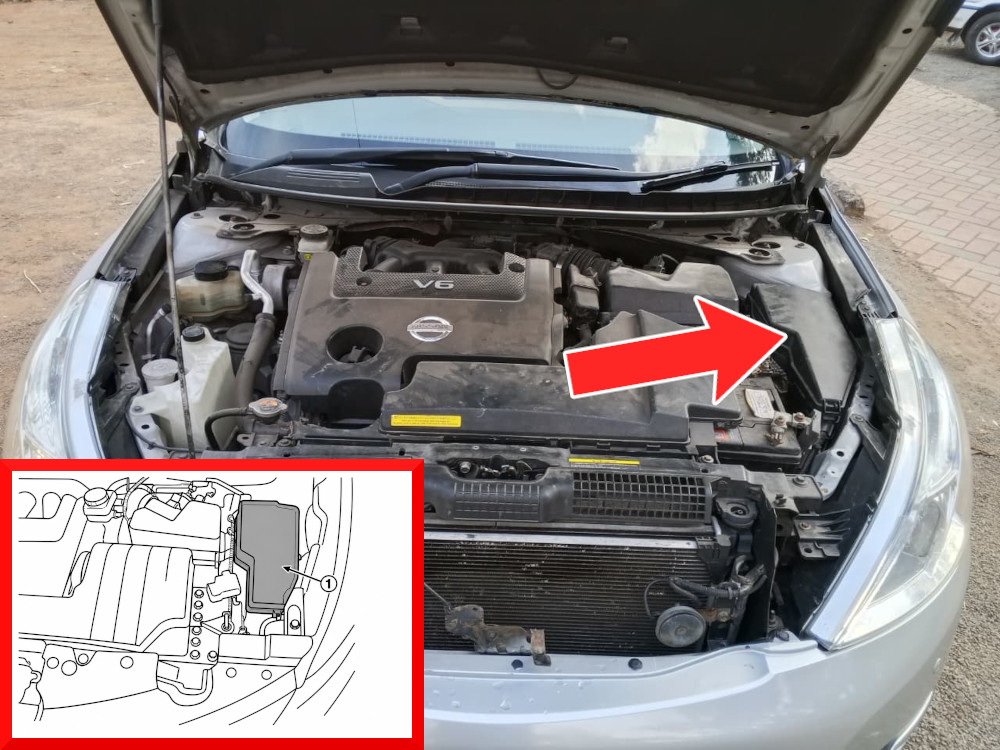

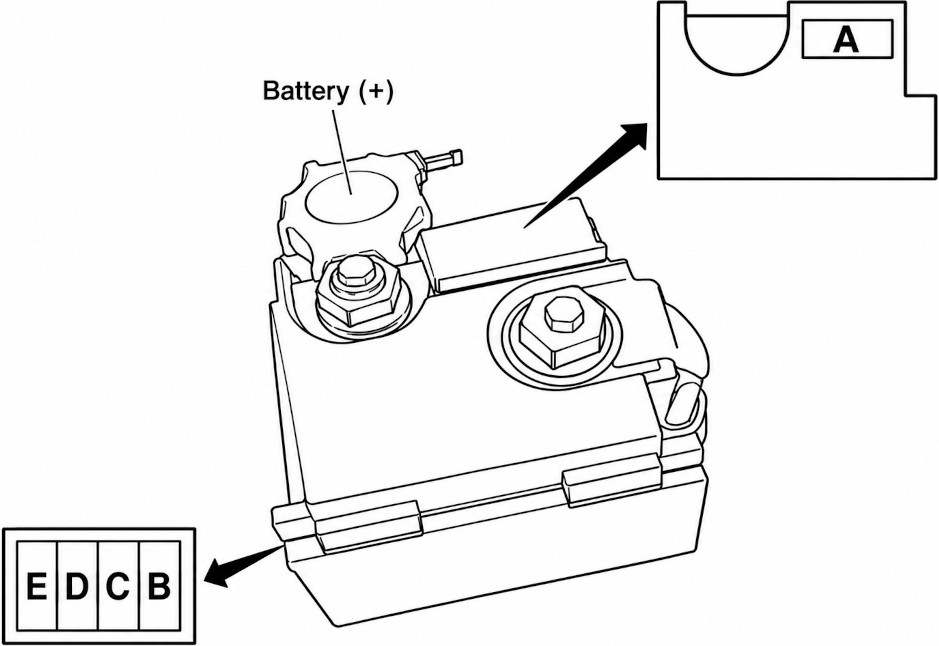

Fuel pump relay Fuel level sensor unit and fuel pump Condenser
2
10A
Cooling fan relay-2 and 3 Park/neutral position switch
3
10A
Secondary speed sensor TCM Primary speed sensor
4
10A
Fuel injector No.1, 2, 3, 4, 5, 6. ECM
5
10A
Yaw rate sensor ABS actuator and electronic unit (control unit)
6
15A
Air fuel ratio (A/F) sensor 1 (Bank 1, 2) H02S2 (Bank 1, 2)
7
10A
Washer pump
8
10A
Steering lock relay Steering lock unit
9
10A
A/C relay Compressor
10
15A
Vias control solenoid valve 1 and 2 Intake valve timing control solenoid valve (bankl) Condenser Ignition coil No.1, 2, 3, 4, 5, 6 (with power transistor) ECM Mass air flow sensor Evap canister purge volume control solenoid valve
11
15A
Throttle control motor relay ECM
12
10A
Headlamp aiming motor LH/RH Front combination lamp LH/RH – Parking lamp
13
10A
Rear combination lamp RH/LH – Tail lamp Rear sunshade switch (Rear) Rear control switch Rear heated/ventilated seat switch LH/RH License plate lamp LH/RH Mood lamp rear door grip (LH) VDC off switch Headlamp aiming switch Glove box lamp A/C display Trunk lid opener switch Combination switch (spiral cable) Hazard switch Audio unit Control device illumination A/C control Multifunction switch Audio display unit AV control unit Front heated/ventilated seat switch (driver side/passenger side) Rear sunshade switch (front) DVD player Auto levelizer control unit Navi control unit Map lamp Door mirror remote control switch Mood lamp front door grip (passenger side) Mood lamp rear door grip (RH)
14
10A
Headlamp high LH
15
10A
Headlamp high RH
16
15A
Front combination lamp LH – Headlamp LO (LH)
17
15A
Front combination lamp RH – Headlamp LO (RH)
18
15A
Front fog lamp relay Front fog lamp LH/RH
19
–
Not used
20
30A
Front wiper relay Front wiper high relay Front wiper motor
Relays

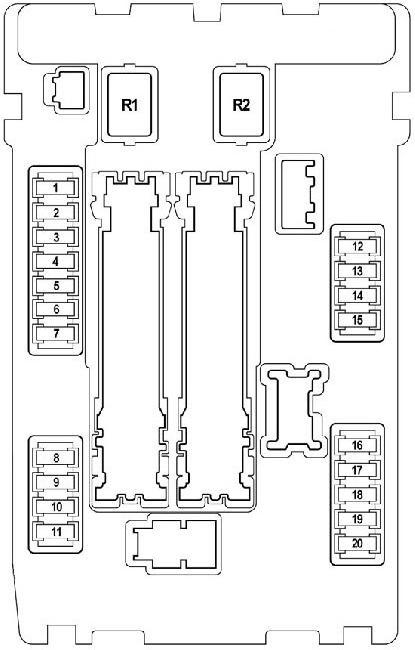

Assignment of the relays in the engine compartment fuse box (No.1)
Fuse Data
Full access is available to registered users — log in or register.

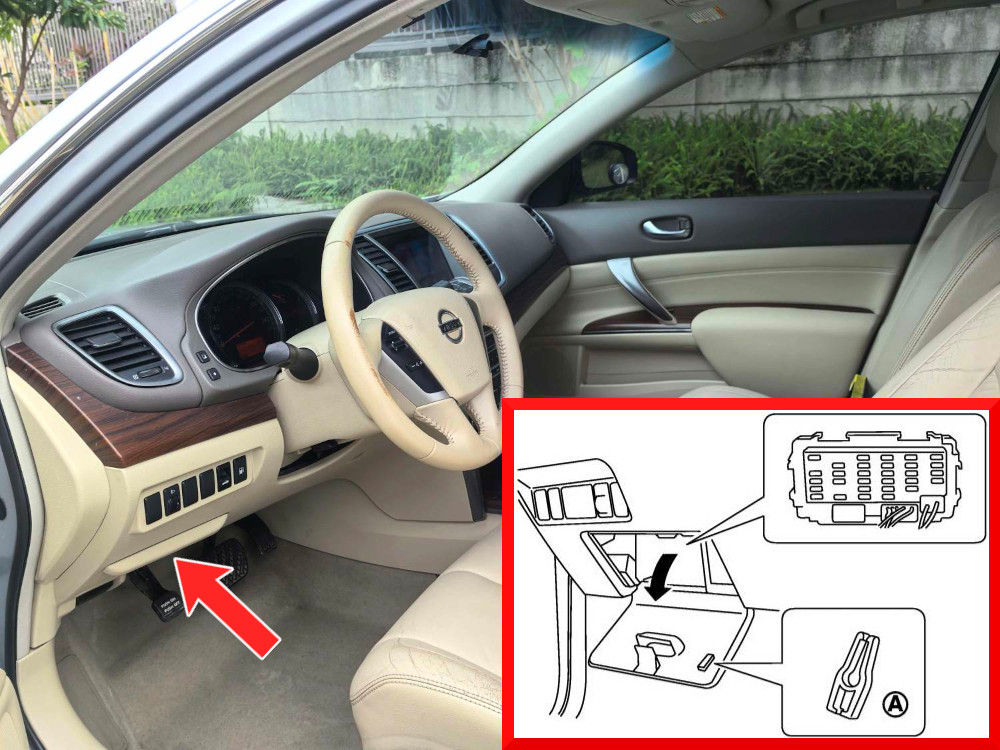

Front heated seat switch (driver side/passenger side)
2
10A
Air bag diagnosis sensor unit
3
10A
ASCD brake switch Stop lamp switch Headlamp aiming motor LH/RH Electronic controlled engine mount control solenoid valve Data link connector A/C display Steering angle sensor A/C auto amp. Power steering control unit A/C control BCM Ionizer Front heated/ventilated seat switch (driver side/passenger side) Gas sensor Auto levelizer control unit Rear sunshade unit Front ventilation seat control unit (driver side/passenger side) Rear heated/ventilation seat control unit LH/RH
4
10A
Combination meter AV control unit Back-up lamp relay Park / neutral position switch
5
10A
Fuel lid opener relay
6
10A
Intelligent key warning buzzer Data link connector A/C auto amp Key slot
7
10A
BCM Stop lamp switch
8
–
Not used
9
10A
Key slot Push-button ignition switch
10
10A
BCM Seat memory switch
11
10A
TCM Combination meter
12
–
Spare fuse
13
–
Spare fuse
14
–
Not used
15
10A
Door mirrors defogger A/C auto amp.
16
–
Not used
17
20A
Condenser
18
–
Not used
19
–
Not used
20
15A
Cigarette ligher socket
21
10A
Audio unit Display unit A/C auto amp. BCM Multifunction switch Audio display unit AV control unit DVD player Bose amp. Camera control unit Navi control unit Rear control switch Door mirror remote control switch
22
15A
Power socket
23
15A
Blower relay
24
15A
Blower relay
25
–
Spare fuse
26
–
Not used
Relays

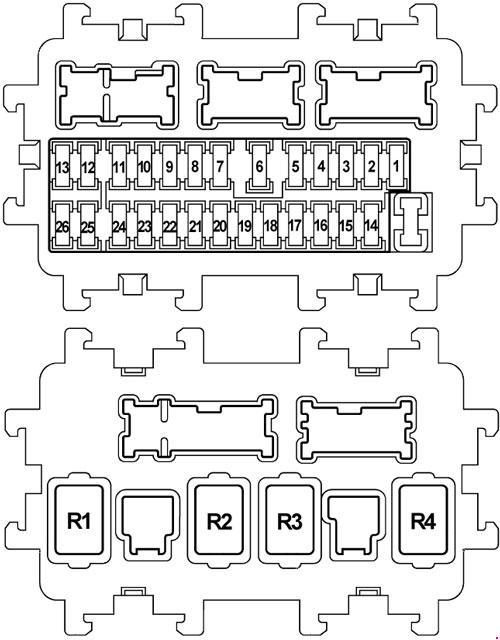

Assignment of the relays in the passenger compartment fuse box
