Nissan Teana (J33) | 2014-2019

Explore Nissan Teana fuse box diagrams for 2014–2019 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the third-generation Nissan Teana (Model Code: J33), available from 2014 to 2019, and includes fuse box diagrams for Nissan Teana 2014, 2015, 2016, 2017, 2018 and 2019, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Location

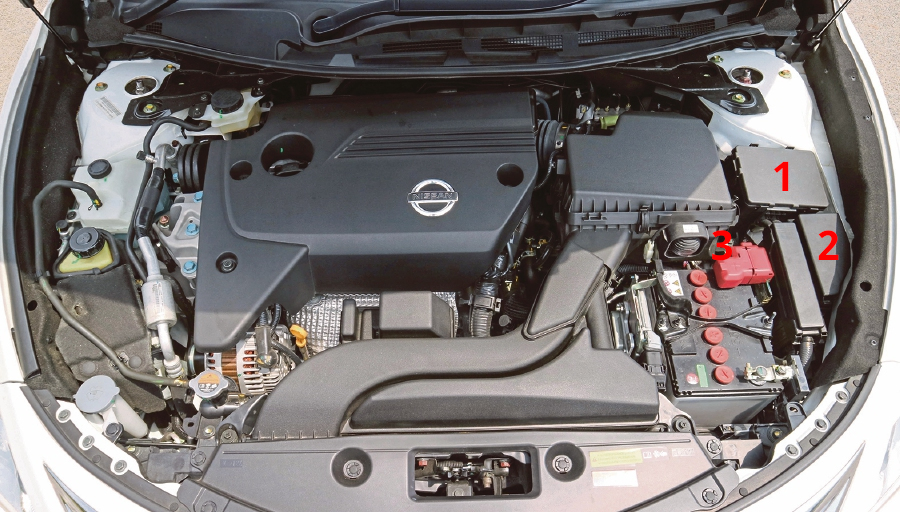

All fuse boxes are situated in the engine compartment on the driver’s side near the main battery, while the high-voltage fuses (3) are located on the battery positive (+) terminal.

Fuse Box Diagram (No.1)

Fuses

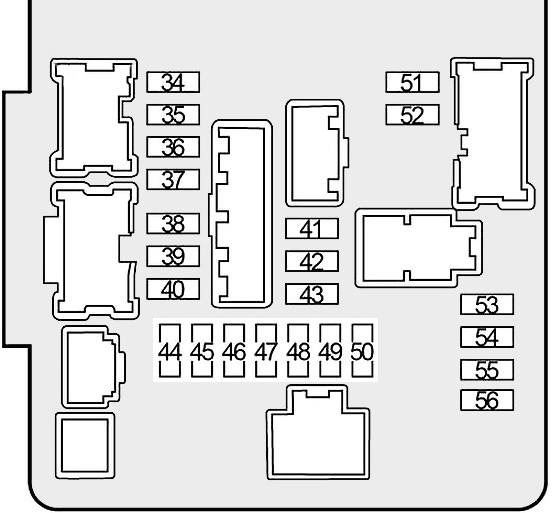

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
3410AHigh beam headlights, auto light system, DRL system
3510AHigh beam headlights, auto light system, DRL system
3615ALow beam headlights, auto light system, DRL system
3715ALow beam headlights, auto light system, DRL system
3810AEngine control unit (ECM)
3910AEngine control module (ECM)
4015AEngine control module (ECM)
4130AWindshield wiper relay (front)
4215AFog light relay
4310AAuto light system, DRL system
4415AEngine control module (ECM)
4510AEngine control module (ECM)
4610ABCM (body control module), CVT control system, engine control system, Intelligent Key, NVIS, start system
4715AFuel pump relay
4810AEngine control module (ECM)
4910ABrake control system, electronic power steering control
5010ABCM, driver assistance systems, windshield wiper and washer
5110AParking lights, license plate light, rear lights
5210AAuto light system, parking lights, license plate light, rear lights
5310AAir conditioning relay
54—Not Used
5515AThrottle relay
5610AEngine control module (ECM)

Fuse Box Diagram (No.2)

Fuses

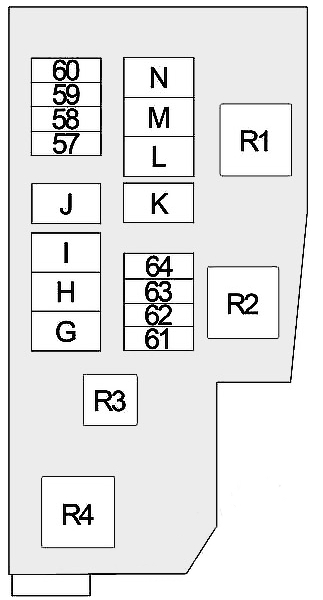

Assignment of the fuses in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
57—Not Used
58—Not Used
5910ABCM (body control module), Intelligent Key system
6010ACVT control system
61—Not Used
6210ACharging system
6315ASignal, Intelligent Key, anti-theft system
64—Not Used
G40ABrake control system
H40ABrake control system
I40AAuto light system, reverse lamp, basic audio system, BCM (body control module), CVT lever lock system, side mirrors, DRL, multimedia, fog lights, windshield wiper and washer, headlights, lighting, Intelligent Key, interior lighting, sunroof, navigation, NVIS, dimensions, license plate light, rear lights, power distribution system, central locking, power driver’s seat, power windows, rear window defroster, tire pressure monitoring system, turn signals and hazard lights, trunk lock, anti-theft system, audible warning
J—Not Used
K—Not Used
L40AEngine control module (ECM)
M40AIgnition relay 2 (fuses 28–32)
N40AEngine control module (ECM)

Relays

Assignment of the relays in the engine compartment fuse box No.2

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Cooling Fan 3
R2Stop Lamp
R3Horn
R4Cooling fan

Fuse Box Diagram (No.3)

High-Voltage Fuses

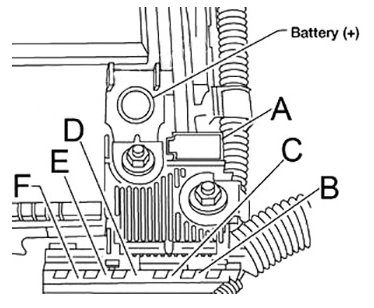

Assignment of the high-voltage fuses in the engine compartment fuse box No.3

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A250AGenerator, starter, fuses B, C, D
B100AFuses 59, 60, 62, 63, G, H, I, L, M, N
C80AHigh beam relay (prev. 34, 35), low beam relay (prev. 36, 37), parking light relay (prev. 51, 52), windshield wiper relay, prev. 41, 42, 43
D100AElectronic power steering control unit
E80AECM relay (prev. 38, 39, 40), ignition relay 1 (air conditioning relay, fan relay 1, prev. 44, 45, 46, 47, 48, 49, 50), prev. 53, 55, 56
F100AAccessory relay 1 (prev. 19, 20, 21), prev. 1, 2, 3, 4, 9, 10, 12, 13, 14, 15, 16, 25

Passenger Compartment

Fuse Box Location

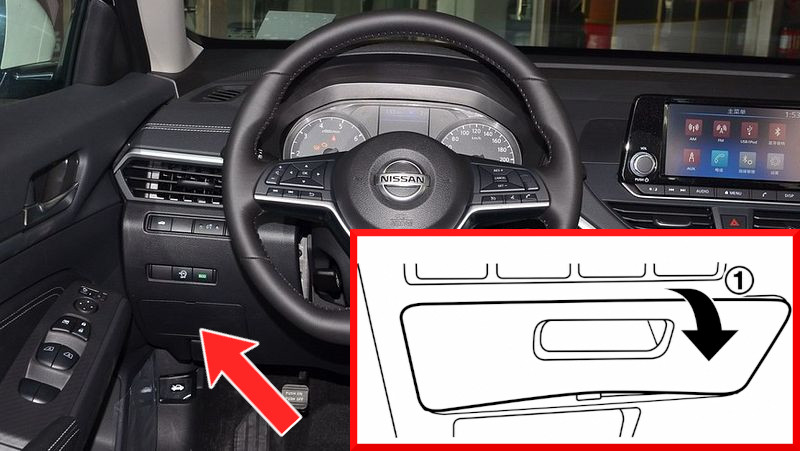

The fuse box is situated beneath the steering wheel on the driver’s side, behind the storage compartment.

Fuse Box Diagram

Fuses

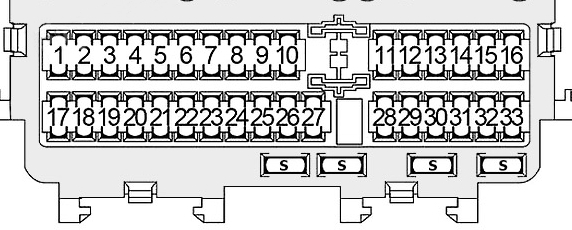

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110AAutomatic lighting system, reverse light, body control unit, continuously variable transmission control system, daytime running lights, exterior rearview mirror, engine control system, fog lights, windshield wiper and washer, Homelink universal transceiver, headlights, lighting, intelligent lock control system, interior rearview mirror, interior lighting, night vision system (NVIS), sunroof, parking lights, license plate lights, rear lights, power distribution system, power door locks, power windows, rear window defroster, tire pressure monitoring system, turn signals and hazard warning lights, vehicle security system, audible warning system
210AHeated steering wheel
315ABody control unit, intelligent lock control system, power door locks, power windows, vehicle security system
415ABody control module, intelligent lock control system, power door lock system, power windows, vehicle security system
510ANot Used
6—Not Used
7—Not Used
8—Not Used
95ABody control module, exterior rearview mirror, night vision system (NVIS), intelligent lock control system, power distribution system, tire pressure monitoring system
1010AReversing light, body control module, brake control system, CVT selector lock, engine control system, intelligent key control system, power distribution system, brake light, intelligent key control system, night vision system, power distribution system
11—Not Used
1215ABOSE audio system: audio system with display, navigation system
1310ACVT control system, daytime running lights, fog lights, headlights, lighting, intelligent key control system, combination instrument, night vision system, parking lights, license plate lights, rear lights, SRS airbag control system, tire pressure monitoring system, turn signals and emergency warning lights, car security system, audible signal
145AAir conditioning control
1520ABASE audio system, audio system with display, navigation system, driver assistance system
165ABody equipment control module, power distribution system
1715AAir conditioning control, power distribution system, body equipment control module
18—Not Used
1915APower distribution system
2020APower socket
2120APower socket
2210ARear window heater, body control module
2315ARear window heater, body control module
2415ARear window heater, body control module
255ARelay 2 for accessories
265ANot Used
2715AAir conditioning control, power distribution system, body control unit
2815ASeat heating
295AContinuously variable transmission control system, driver assistance system, engine control system, navigation system
3010AAir conditioning control, compass, steering wheel heating, Homelink universal transceiver, interior rearview mirror, power distribution system, rear window heating, engine control unit, power distribution system
315ABrake control system, charging system, continuously variable transmission control system, daytime running lights, electronic steering control system, engine control system, front fog lights, headlights, lighting, instrument cluster, parking lights, license plate lights, rear lights, SRS airbag control system, tire pressure monitoring system, turn signals and hazard warning lights, horn
3210ASRS airbag control system
33—Not Used
S – Spare Fuses

Relay Box Diagram

Relays

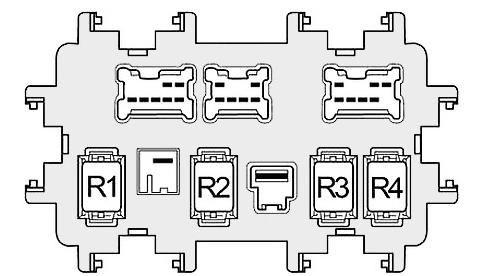

Assignment of the relays in the passenger compartment relay box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Ignition 2
R2Blower Motor
R3Rear Window Defogger
R4Accessory 1
