Nissan Titan (A60) | 2010-2015 | Fuse Box Diagrams and Locations

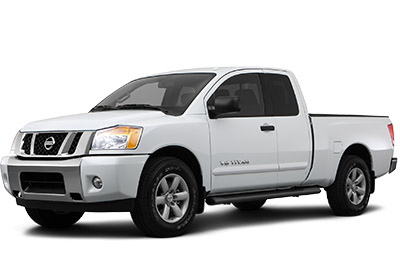

Locate Nissan Titan fuse box diagrams for 2010–2015 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the first-generation facelifted Nissan Titan (Model Code: A60), available from 2010 to 2015, and includes fuse box diagrams for Nissan Titan 2010, 2011, 2012, 2013, 2014 and 2015, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

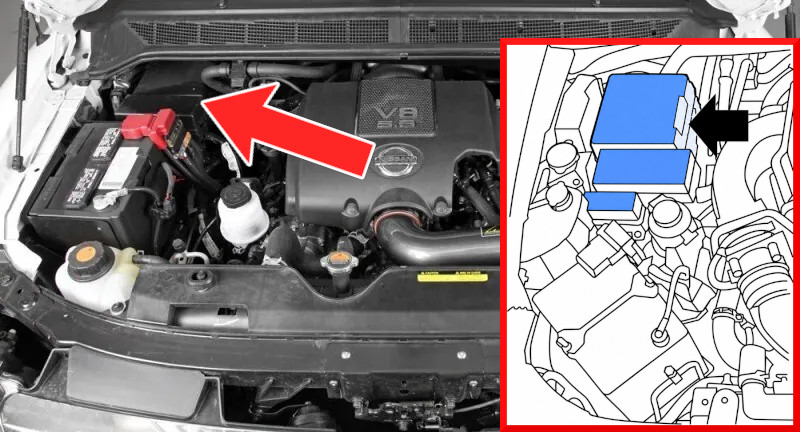

The fuse and relay boxes are located in the engine compartment on the passenger side, near the main battery. To access them, press the tab and lift the fuse box cover off.

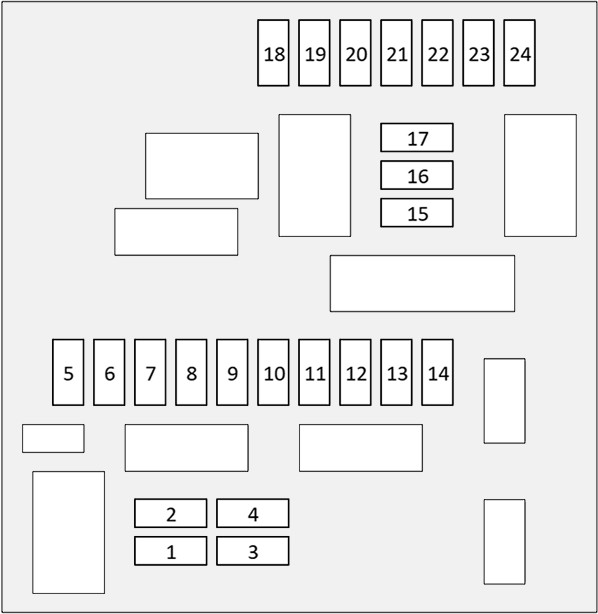

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box (No.1)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	15A	RR DEF	Rear window defogger
2	15A	RR DEF	Rear window defogger
3	10A	DTRL RELAY SUPPLY	Daytime running light (DLR)
4	10A	TRAILER TOW	Trailer
5	15A	HEATED MIRROR	Mirror heater
6	30A	FR WIPER	Front wipers
7	10A	TAIL	Tail lights, License plate lamps, Switch illumination
8	10A	A/C CLUTCH	A/C magnetic clutch
9	10A	CLEARANCE L	Front Combination Lamps
10	15A	FR FOG LAMP	Front fog lights
11	15A	H/LAMP LO LH	Left-hand headlight low beam
12	15A	H/LAMP LO RH	Right-hand headlight low beam
13	10A	H/LAMP HI LH	Left-hand headlight high beam
14	10A	H/LAMP HI RH	Right-hand headlight high beam
15	15A	INJECTOR	Fuel injectors
16	10A	TRAILER TOW REV LAMP	Back-Up lamp, Trailer tow
17	15A	OXIGEN SENS IGN	Air flow sensor, Heated oxygen sensor
18	15A	FUEL PUMP	Fuel pump
19	10A	A/T ECU IGN	Automatic transmission controller
20	10A	ABS ECU IGN	Anti-lock braking system
21	10A	REV LAMP IGN	Backup lights
22	30A	SPARE	Spare fuse
23	20A	ETC	Electronic throttle control
24	20A	EGI	Engine control module (ECM), ECM Relay, NVIS

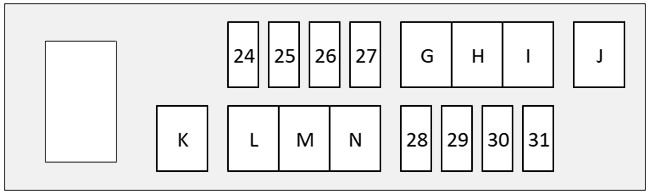

Fuse Box Diagram (No.2)

Fuses

Assignment of the fuses in the engine compartment fuse box (No.2)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
24	20A	FR BLWR	AC blower motor
25	15A	HORN	Horn
26	10A	T/F RLY	4WD transfer case shift
27	20A	FR BLWR	AC blower motor
28	20A	ARR SOCKET	Auxiliary power outlet
29	10A	RR LEVEL SUS	Rear Level Suspension
30	10A	ALT	Battery and charging system
31	20A	RADIO	Radio and audio system
G	50A	F/L BCM/PWR WDW	Power windows
H	50A	F/L RR SUSP	Rear Suspension
I	50A	F/L ABS MTR	Anti-lock braking system
J	30A/40A	F/L ABS SOL	Anti-lock braking system solenoid
K	30A	F/L TRAILER TOW	Trailer lights
L	40A	F/L ELEG BRAKE	Anti-lock braking system
M	40A	F/L RAD FAN	Radiator fan
N	40A	F/L IGN SW	Ignition switch

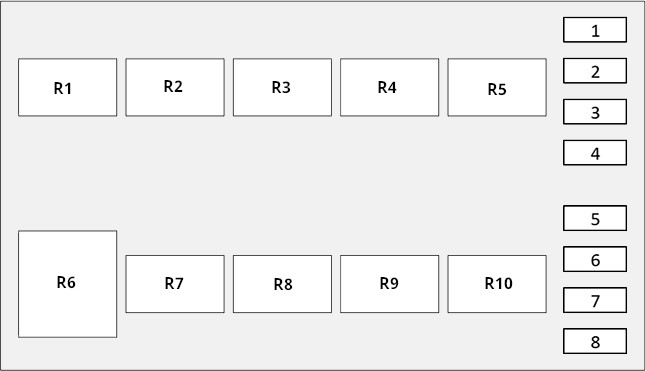

Fuse Box Diagram (No.3)

Fuses

Assignment of the fuses in the engine compartment fuse box (No.3)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	15A	TTOW TURN	Trailer lights
2	10A	IGN	Ignition
3	20A	T/F CONT	4WD transfer case shift
4	20A	T/F CONT	4WD transfer case shift
5	10A	I-KEY	I-KEY
6	10A	HT STRG	Heated steering wheel
7		SPARE	Spare fuse
8		SPARE	Spare fuse

Relays

Assignment of the relays in the engine compartment fuse box (No.3)

Fuse Data

Full access is available to registered users — log in or register.

No.	Short-Code	Description
R1	TRAILER TURN RH	Trailer lights
R2	TRAILER TURN LH	Trailer lights
R3	T/F SSOF 2	ACC BRAKE, 4WD transfer shut off
R4	T/F 2	4WD transfer case shift
R5	T/F SSOF 1	4WD transfer shut off
R6	TRAILER TOW NO. 2	Trailer
R7	VDC	Vehicle dynamics control solenoid
R8	DTRL	Daytime running lights
R9	T/F 1	4WD transfer case shift
R10	POWER SOCKET	Cigar lighter / power outlet

Passenger Compartment

Fuse Box Location

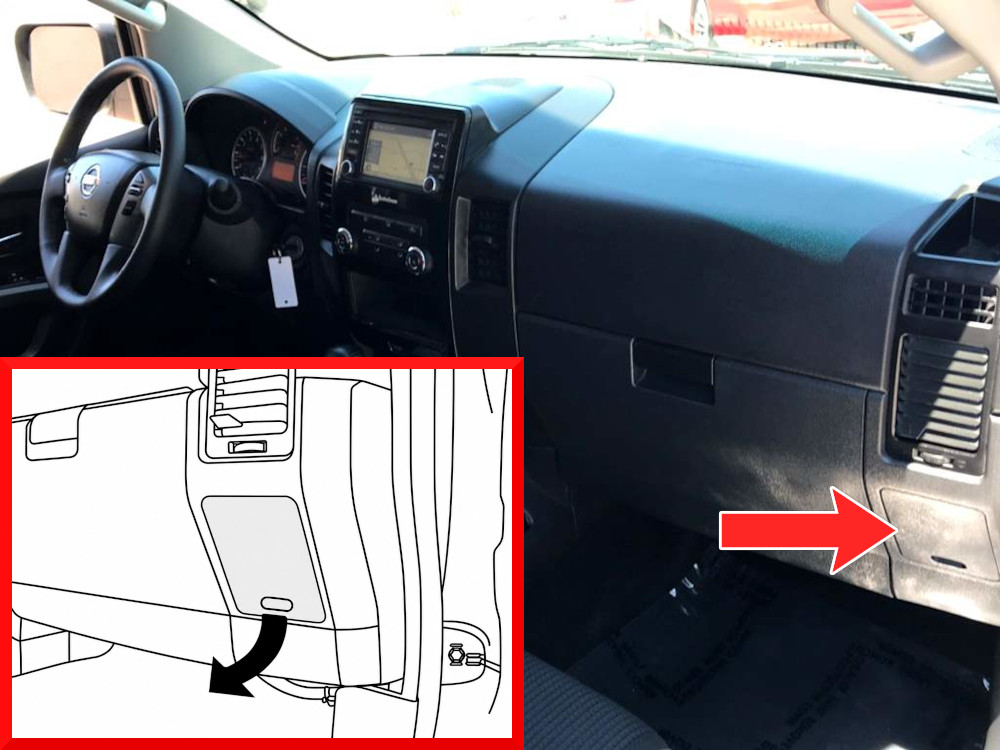

The fuse box is located in the passenger compartment, to the right of the glove compartment on the passenger side (you’ll see the lid, making it easy to access).

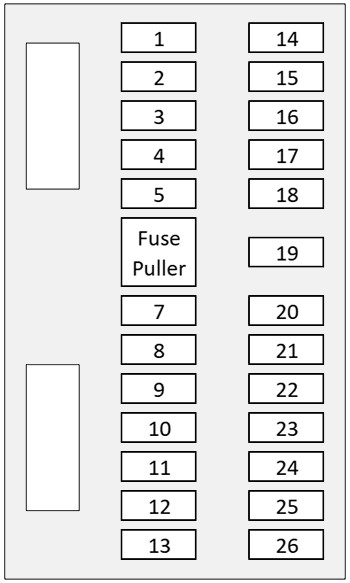

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	15A	SPARE	Spare fuse
2	15A	REAR BLOWER	Rear air conditioning system
3	15A	REAR BLOWER	Rear air conditioning system
4	10A	WASHER	Windshield washer
5	10A	HVAC	AC blower motor
7	15A/20A	C/LIGHTER	Cigar lighter / power outlet
8	15A	POWER SOCKET CONSOLE	Power outlet (Console)
9	10A	MIRROR	Power control mirror
10	10A	AUDIO	Audio system
11	10A	A/T CONT	Automatic transmission controller
12	10A	AUTO DRPO	Auto Drop (Power Window)
13	10A	REAR HEAT SEAT	Rear seat heater
14	10A	SPARE	Spare fuse
15	20A	SPARE	Spare fuse
16	15A	INTERIOR LAMP	Dome light and interior light
17	10A	STOP LAMP	Stop lights
18	10A	ADAPTIVE CRUISE CONT /CARGO L	ADAPTIVE CRUISE CONT /CARGO L
19	10A	ELECTRONIC PARTS	Auto Anti-Dazzling Inside Mirror, Combination Meter, Data Link Connector, Differential Lock Control Unit, Front Air Control, Tire Pressure Monitoring System
20	15A/20A	POWER SOCKET CPM	Power outlet
21	15A	WOOFER /AMP	Audio Amplifier, Satellite Radio Tuner, Woofer
22	10A	FRONT HEAT SEAT	Front Heated Seat
23	10A	ADAPTIVE CRUISE CONT / RR DIFF	Adaptive Cruise Control / Rear Differential (Lock/Actuator)
24	10A	METER	Instrument cluster, Auto Anti-Dazzling Inside Mirror
25	10A	A/BAG	Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
26	10A	ELECTRONIC PARTS	ASCD Brake Switch, Heated Seat Relay, Data Link Connector, Stop Lamp Swicth, Sonar System, Automatic Transmission Control System, Audio
