View Nissan Titan fuse box diagrams for 2016–2024 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the second-generation Nissan Titan (Model Code: A61) , available from 2016 to 2024 , and includes fuse box diagrams for Nissan Titan 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 and 2024 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

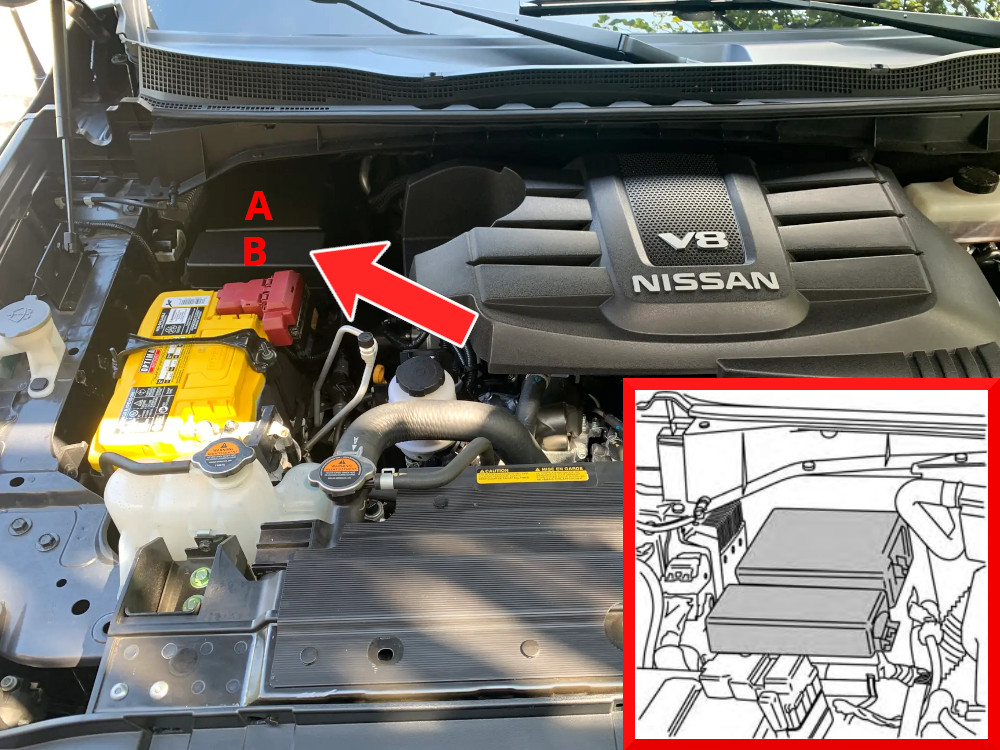

The fuse box A and B is situated in the engine compartment on the passenger side, beside the main battery. To access it, press the tab and lift off the cover.

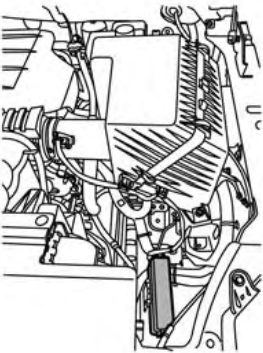

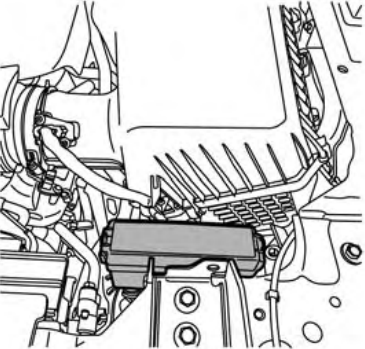

XD and non-XD models have slightly different fuse box locations, but both are positioned at the front of the engine compartment, between the air intake box and the headlight.
XD Model
non-XD Model

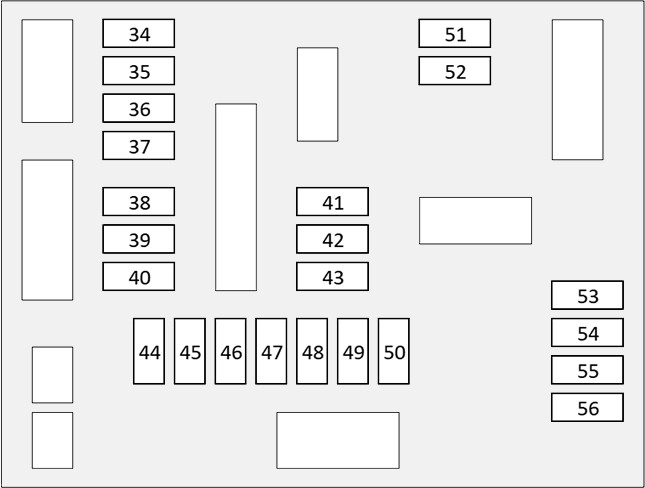

Assignment of the fuses in the engine compartment fuse box (A)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Short-Code Description 34 20A FUEL PUMP Fuel pump 35 15A FR FOG Front fog lights 36 15A THROTTLE MTR Electronic throttle control 15A ESCL Steering lock 37 15A INJECTOR Fuel injectors 38 15A H/L LO RH Right-hand headlight low beam 39 15A H/L LO LH Left-hand headlight low beam 40 15A IGN COIL Ignition coil 41 30A FR WIP Front wipers 42 10A CLEARANCE LH Lleft front/side parking lights 43 10A CLEARANCE RH Right front/side parking lights 44 10A H/L HI RH Right-hand headlight high beam 45 10A H/L HI LH Left-hand headlight high beam 46 10A ABS ECU Anti-lock braking system 47 10A A/T ECU Automatic transmission controller 48 10A REVERSE LAMP Backup lights 51 10A A/C CLUTCH A/C magnetic clutch 52 10A TRAILER Trailer 53 20A RR DEF Rear window defogger 55 15A THROTTLE MTR Electronic throttle control 56 20A ECCS Air conditioning system
This content requires JavaScript and a valid membership to view.

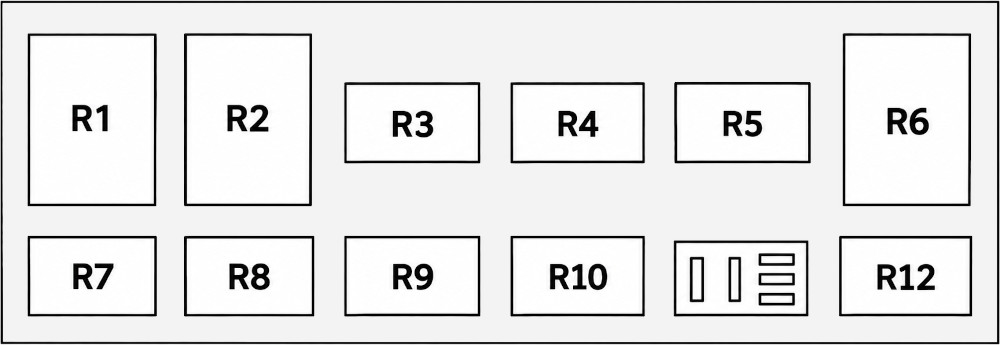

Assignment of the relays in the engine compartment fuse box (B)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 VVEL MOTOR R2 (TRAILER TOW NO. 2) Trailer R3 (VDC) Vehicle dynamics control solenoid R4 (TRAILER TURN LH) Trailer lights R5 AUTO DIFF R6 INJ 2, FUEL PUMP R7 (INJ 1) Fuel injectors R8 (DTRL) Daytime running lights R9 TRANS CONT R10 (TRAILER TURN RH) Trailer lights R12 (STOP LAMP, INVERTER) Stop lights; Power outlet (DC/AC inverter)
This content requires JavaScript and a valid membership to view.

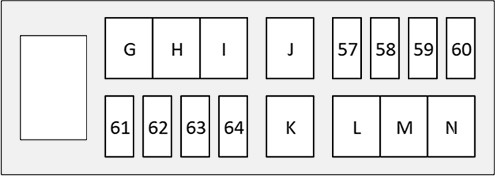

Assignment of the fuses in the engine compartment fuse box (C)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Short-Code Description 57 15A HORN Horn 58 10A ALTNTR Battery and charging system 59 30A INJ 1 Fuel injectors (bank 1) 60 15A FUEL PUMP Fuel pump 61 10A FR LAMP RH Right-hand headlight 62 15A TOW TURN Trailer turn signals 63 10A ENG FAN Electric cooling fan 64 15A INJ 2 Fuel injectors (bank 2) H 40A IGN PWR Ignition system power I 40A IGN SW Ignition switch J 30A ELEC BRAKE Electronic brake system M 30A ADD Additional power supply N 50A VEL Vehicle electronic load (main supply)
This content requires JavaScript and a valid membership to view.

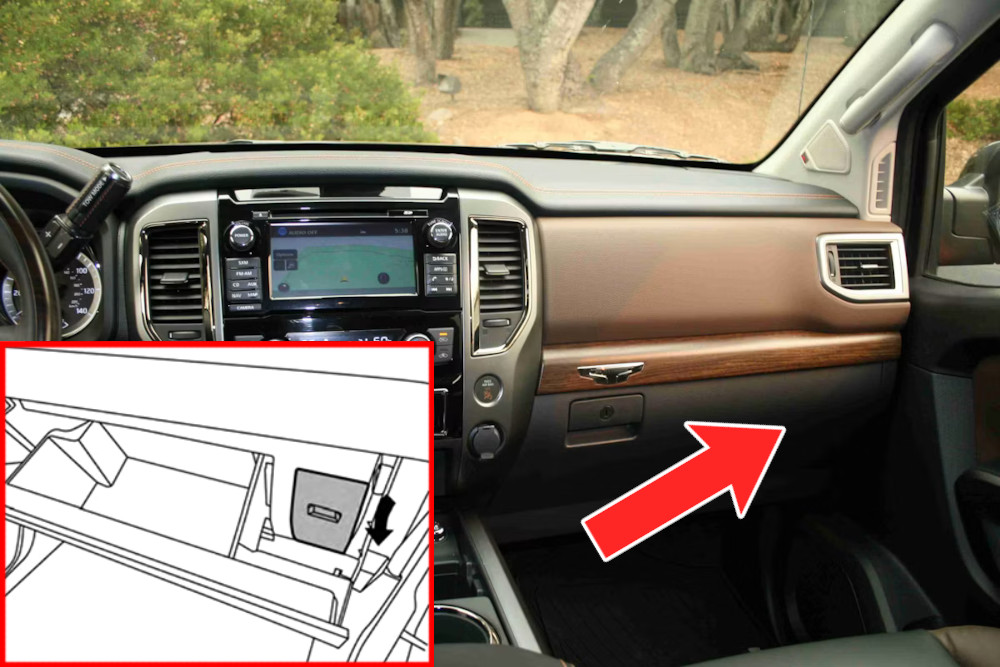

The fuse box is situated in the glove compartment beneath the lid.

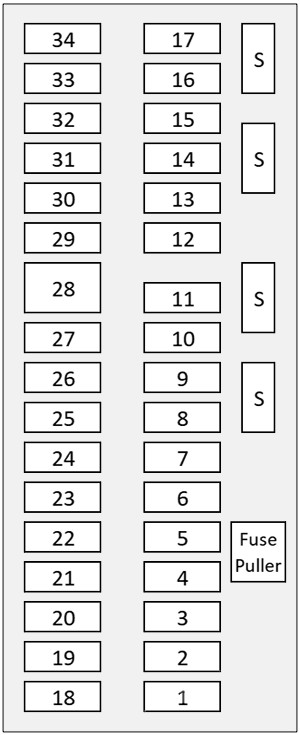

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Short-Code Description 1 15A BLOWER MOTOR AC blower motor 2 20A SPARE Spare fuse 3 10A DEALER OPT (ACC) DEALER OPT (ACC) 4 20A PWR SOCKET 2 PWR SOCKET 2 5 20A PWR SOCKET 1 PWR SOCKET 1 6 10A HEAT MIR HEAT MIR 7 15A RR DEF Rear window defogger 8 15A RR DEF Rear window defogger 9 5A ELEC PARTS (ACC) Protects several circuits 10 5A ILLUMINATION Illumination 11 15A BLOWER MTR AC blower motor 12 15A HEATED SEAT Seat heater 13 5A ELEC PARTS (IGN SIG) ELEC PARTS (IGN SIG) 14 10A ELEC PARTS (IGN PWR) ELEC PARTS (IGN PWR) 15 5A METER(IGN) Instrument cluster 16 10A AIR BAG Airbag 17 10A WASH PUMP WASH PUMP 18 10A ROOM LAMP Dome light and interior light 19 10A A/T CONT Automatic transmission controller 20 15A DOOR LOCK FR Power door lock system 21 15A DOOR LOCK RR Power door lock system 22 10A DEALER OPT (BAT) DEALER OPT (BAT) 23 10A ELEC PARTS (BAT) ELEC PARTS (BAT) 24 20A CNSL PWR SOCKET CNSL PWR SOCKET 25 10A CARGO LAMP Dome light and interior light 26 5A PUSH ENG START PUSH ENG START 27 10A STOP LAMP Stop lights 28 EXTENDED STORAGE SW 29 15A AUDIO AMP Audio system 30 15A AUDIO AMP Audio system 31 10A METER (BAT) Instrument cluster 32 5A ELEC PARTS (BAT CUT) ELEC PARTS (BAT CUT) 33 20A AUDIO Audio system 34 5A BCM SIGNAL BCM SIGNAL
This content requires JavaScript and a valid membership to view.
