Nissan Titan (A60) | 2004-2009 | Fuse Box Diagrams and Locations

Check Nissan Titan fuse box diagrams for 2004–2009 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the first-generation pre-facelift Nissan Titan (Model Code: A60), available from 2003 to 2009, and includes fuse box diagrams for Nissan Titan 2004, 2005, 2006, 2007, 2008 and 2009, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

All fuse boxes are located on the passenger side near the battery in the engine compartment.

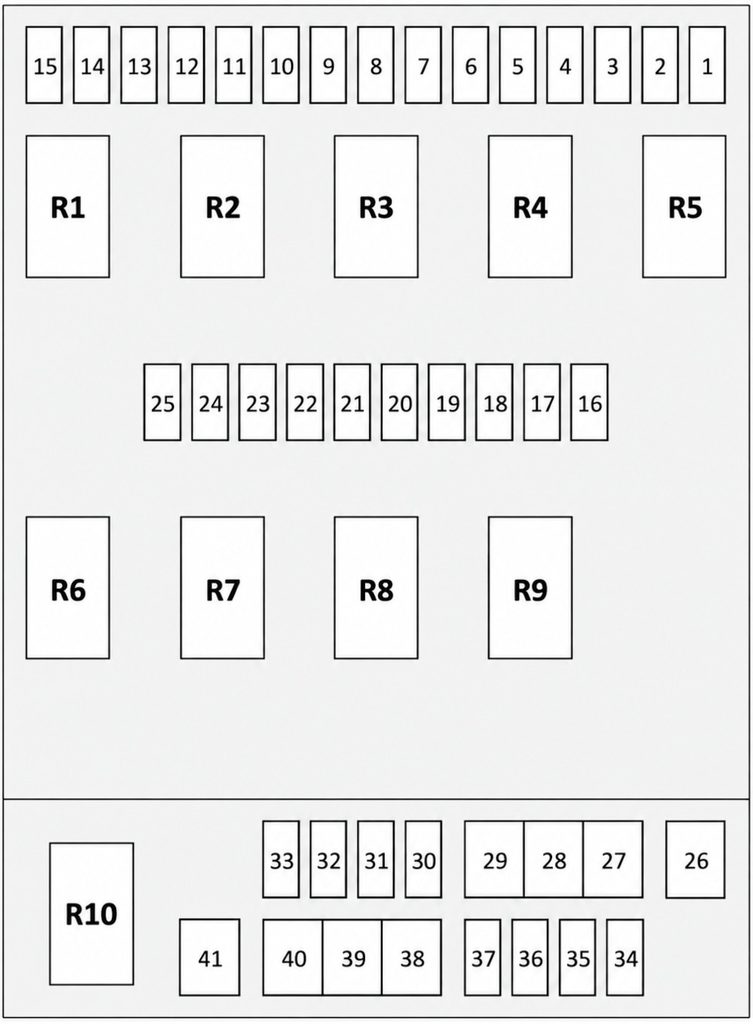

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	20A	FR FOG LAMP	Front fog lights
2	15A	INJECTOR	Fuel injectors
3	15A	O2 SENSOR	Oxygen sensor
4	20A	EGI	EGI
5	20A	ETC	Electronic throttle control
6	10A	REVERSE LAMP	Backup lights
7	10A	ABS ECU	Anti-lock braking system
8	10A	A/T ECU	Automatic transmission controller
9	15A	FUEL PUMP	Fuel pump
10	15A	RR DEF	Rear window defogger
11	15A	RR DEF	Rear window defogger
12	10A	DTRL	Daytime running lights
14	15A	HEATER MIRROR	Mirror heater
15	15A	A/C COMP	Air conditioning compressor
16	15A	H/LAMP LO RH	Right-hand headlight low beam
17	15A	H/LAMP LO LH	Left-hand headlight low beam
18	30A	FR WIPER	Front wipers
19	10A	TTOW REV LAMP	Back-Up Lamp Relay (automatic transmission), Trailer Tow Relay 2
20	10A	TAIL LAMP	Tail Lights, License Plate Lamps, Switch Illumination, Trailer Tow Relay 1
21	10A	ILLUMINATION	Illumination
22	10A	H/LAMP HI LH	Left-hand headlight high beam
23	10A	H/LAMP HI RH	Right-hand headlight high beam
25	10A	TRAILER TOW	Trailer
26	30A	F/L ABS SOL	Anti-lock braking system solenoid
26	40A	F/L ABS SOL	Anti-lock braking system solenoid
27	50A	F/L ABS MTR	Anti-lock braking system
28	50A	F/L RR SUSP	F/L RR SUSP
29	50A	F/L BCM/PWR WDW	Power windows
30	20A	FR BLWR	AC blower motor
31	10A	T/F RLY	4WD transfer case shift
32	15A	HORN	Horn
33	20A	FR BLWR	AC blower motor
34	20A	RADIO	Radio and audio system
35	10A	ALT	Battery and charging system
36	10A	RR LEVEL	RR LEVEL SUS
37	15A	ARR SOCKET	Auxiliary power outlet
38	40A	F/L IGN SW	Ignition switch
39	40A	F/L RAD FAN	Radiator fan
40	40A	F/L ELEG BRAKE	Anti-lock braking system
41	30A	F/L TRAILER TOW	Trailer lights

Relays

Assignment of the relays in the engine compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Starter system
R2	Mirror heater
R3	Radiator fan high speed
R4	Radiator fan low speed
R5	Ignition
R6	Rear window defogger
R7	(ECM) Engine control unit
R8	Headlights low beam
R9	Front fog lights
R10	Horn

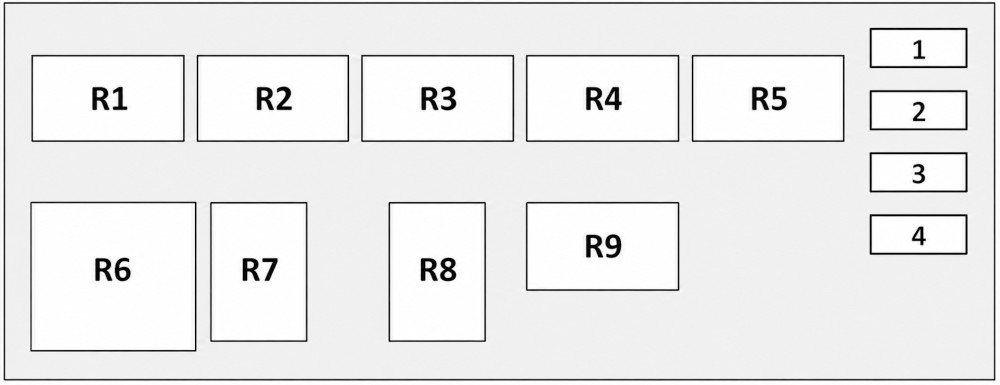

Relay Box Diagram

Fuses

Assignment of the fuses in the engine compartment relay box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	15A	TTOW TURN	Trailer lights
2	10A	IGN	Ignition
3	20A	T/F CONT	4WD transfer case shift
4	20A	T/F CONT	4WD transfer case shift

Relays

Assignment of the relays in the engine compartment relay box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Trailer lights (Right)
R2	Trailer lights (Left)
R3	ACC BRAKE / (T/F SSOF 2) 4WD transfer shut off
R4	(T/F 2) 4WD transfer case shift
R5	(T/F SSOF 1) 4WD transfer shut off
R6	(TRAILER TOW NO. 2) Trailer
R7	(VDC) Vehicle dynamics control solenoid
R8	Daytime running lights
R9	(T/F 1) 4WD transfer case shift

Passenger Compartment

Fuse Box Location

The fuse box is situated in a visible location on the passenger side, near the glove box. To access it, pull off the cover.

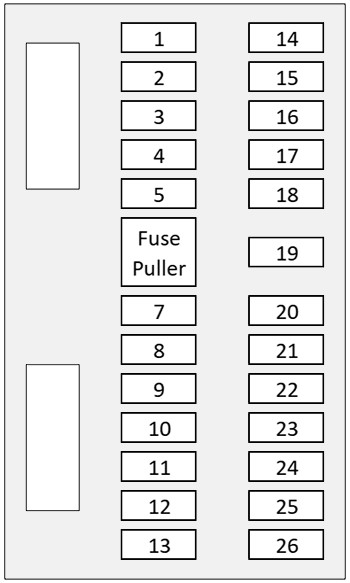

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Short-Code	Description
1	15A	SPARE	Spare Fuse
2	15A	REAR BLOWER	Electronic air conditioning control unit, electric drive for changing the air flow direction flap
3	15A	REAR BLOWER	Electronic air conditioning control unit, electric drive for changing the air flow direction flap
4	10A	WASHER	Washer
5	10A	HVAC	Air Control, Blower Motor Relay
7	15A	C/LIGHTER	Cigarette lighter
8	15A	POWER SOCKET CONSOLE	Power Socket
9	10A	MIRROR	Door Mirror Remote Control Switch
10	10A	AUDIO	Audio, BCM (Body Control Module), Satellite Radio Tuner
11	10A	A/T CONT	Automatic Transmission Control Module
12	10A	AUTO DRPO	Auto Drop (Power Window)
13	10A	REAR HEAT SEAT	Rear seat heater
14	10A	SPARE	Spare Fuse
15	20A	SAPRE	Spare Fuse
16	15A	INTERIOR LAMP	Cabin / Dome Light.
17	10A	STOP LAMP	Stop Lamp Relay, Stop Lamp Switch
18	10A	ADAPTIVE CRUISE CONT /CARGO L	Adaptive Cruise Control / Cargo L
19	10A	ELECTRONIC PARTS	Auto Anti-Dazzling Inside Mirror, Combination Meter, Data Link Connector, Differential Lock Control Unit, Front Air Control, Tire Pressure Monitoring System
20	15A	POWER SOCKET CPM	Power Socket
21	15A	WOOFER /AMP	Audio Amplifier, Satellite Radio Tuner, Woofer
22	10A	FRONT HEAT SEAT	Front Heated Seat Relay
23	10A	ADAPTIVE CRUISE CONT / RR DIFF	Adaptive Cruise Control / Rear Differential (Lock/Actuator)
24	10A	METER	Combination Meter, Auto Anti-Dazzling Inside Mirror
25	10A	A/BAG	Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
26	10A	ELECTRONIC PARTS	ASCD Brake Switch, Heated Seat Relay, Data Link Connector, Stop Lamp Swicth, Sonar System, Automatic Transmission Control System, Audio
