Nissan X-Trail (T32) | 2013-2021

Browse Nissan X-Trail fuse box diagrams for 2013–2021 models with fuse locations, panel layouts, and detailed fuse and relay assignment information. This article covers the third-generation Nissan X-Trail (Model Code: T32), available from 2013, and includes fuse box diagrams for Nissan X-Trail 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 and 2021, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays

Engine Compartment

Fuse Box Locations

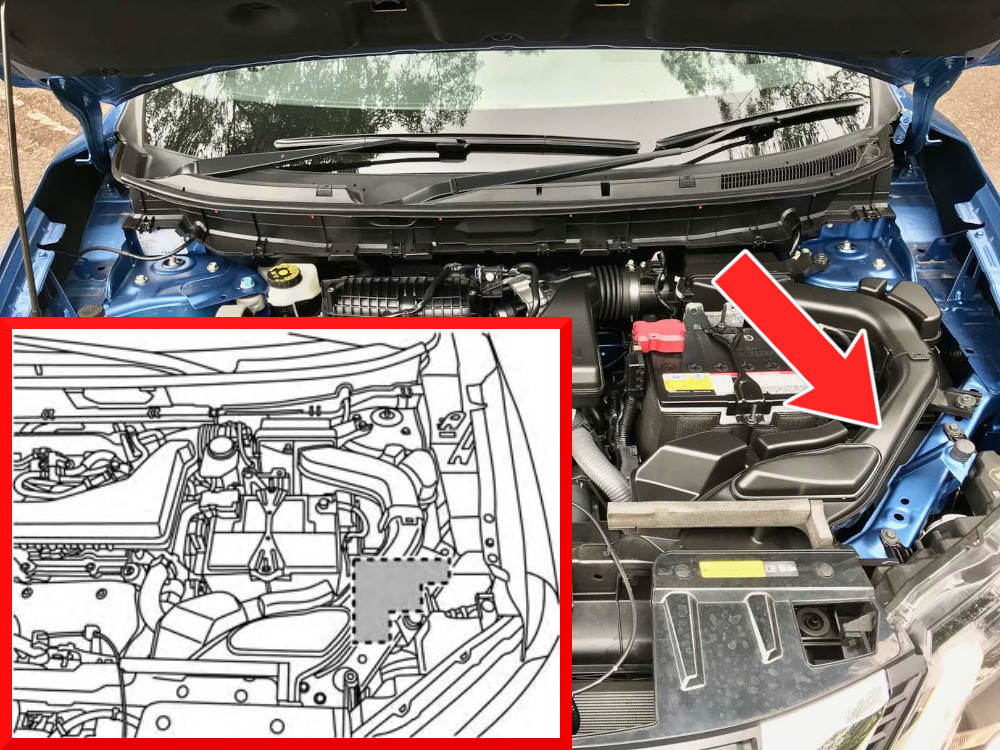

The fuse boxes is positioned on the driver’s side of the engine compartment, close to the main battery and beneath the air intake.

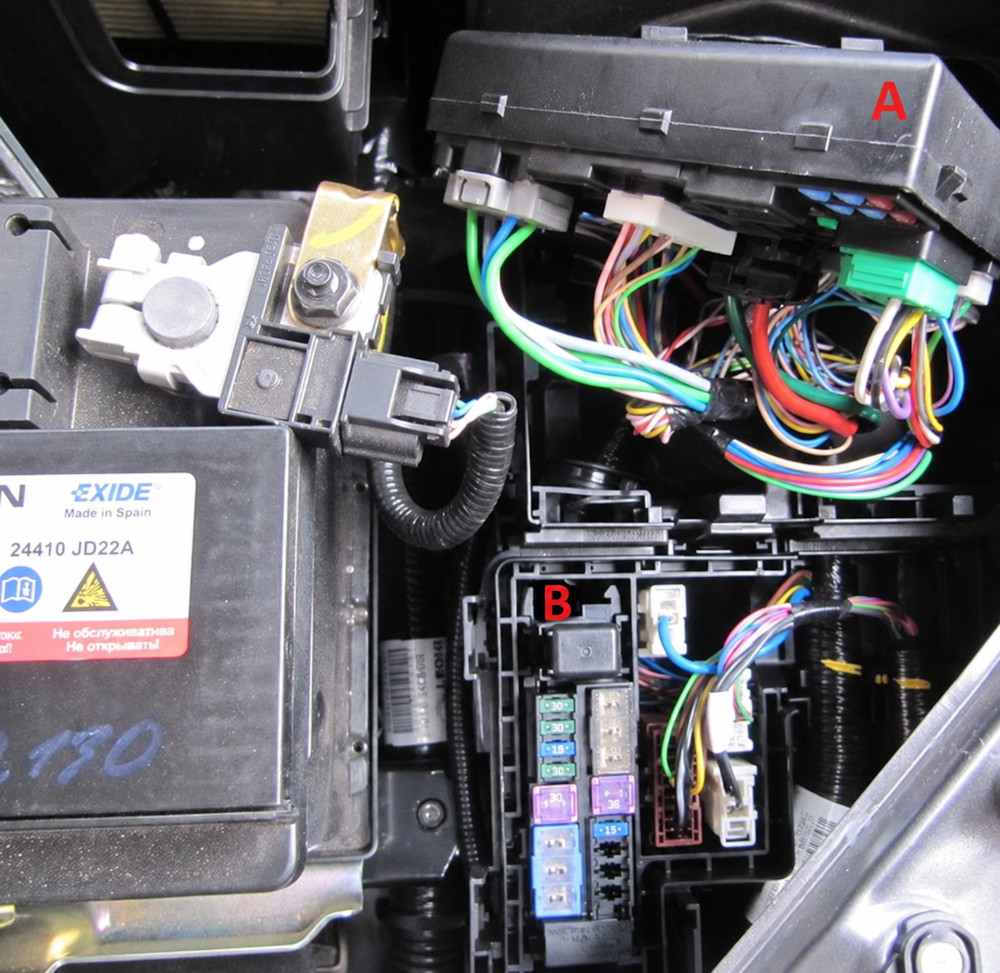

There is two fuses boxes:

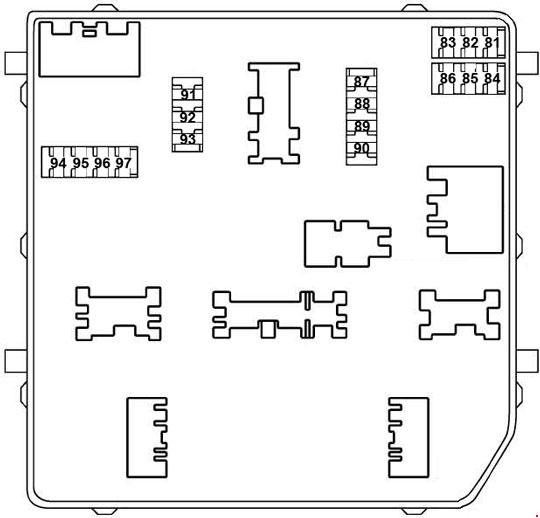

Fuse Box Diagram (A)

Fuses

Assignment of the fuses in the Engine Compartment Fuse Box A (IPDM E/R)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
8110AEngine Control Module
8215AEngine Control Module
8315AThrottle Control Motor Relay, Engine Control Module, EVAP Canister Purge Volume Control Solenoid Valve, Mass Air Flow Sensor, Condenser, Ignition Coil No.1 to No.4 (with Power Transistor), Fuel Injector Relay, Intake/Exhaust Valve Timing Control Solenoid Valve, High Pressure Fuel Pump Relay, Fuel Injector No.1 and No.4, IPDM E/R (intelligent Power Distribution Module Engine Room), Fuel Flow Actuator, Air Fuel Ratio (A/F) Sensor, Engine Coolant Bypass Valve Control Solenoid Valve, Fuel Heater And Water In Fuel Level Sensor
8410AEngine Control Module, Exhaust Valve Timing Control Solenoid Valve, Intake Valve Timing Intermediate Lock Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Intake Manifold Runner Control Valve
8515AAir Fuel Ratio (A/F) Sensor 1, Heated Oxygen Sensor 2, Turbocharger Boost Control Solenoid Valve, Engine Control Module, Glow Control Unit
8615AFuel Injector No.1 to No.4, Condenser, Ignition Coil No.1 to No.4 (with Power Transistor), IPDM E/R (Intelligent Power Distribution Module Engine Room), Fuse No. Q (Cooling Fan Relay 1 (Cooling Fan Motor 2, Cooling Fan Relay 2, Resistor (R9M))
8715AA/C Relay (Compressor)
88–Not Used
89–Not Used
9030AFront Wiper Relay (Front Wiper Motor)
9120AFuel Pump Relay (Engine Control Module, Fuel Pump Control Unit, Fuel Level Sensor Unit, Fuel Pump)
92–Not Used
9310AEngine Control Module, Transmission Control Module, Transmission Range Switch, IPDM E/R (Intelligent Power Distribution Module Engine Room), Neutral Position Switch, Primary Speed Sensor, Secondary Speed Sensor, Input Speed Sensor, Reverse / Neutral Position Switch, Fuse No.57 (with Stop / Start System)
94–Not Used
955ASteering Lock Unit
9610AEngine Restart Relay
9710ACompressor, Front Combination Lamp RH, Front Combination Lamp LH, Transmission Range Switch, Neutral Position Switch, Back-up Lamp Switch, Reverse / Neutral Position Switch

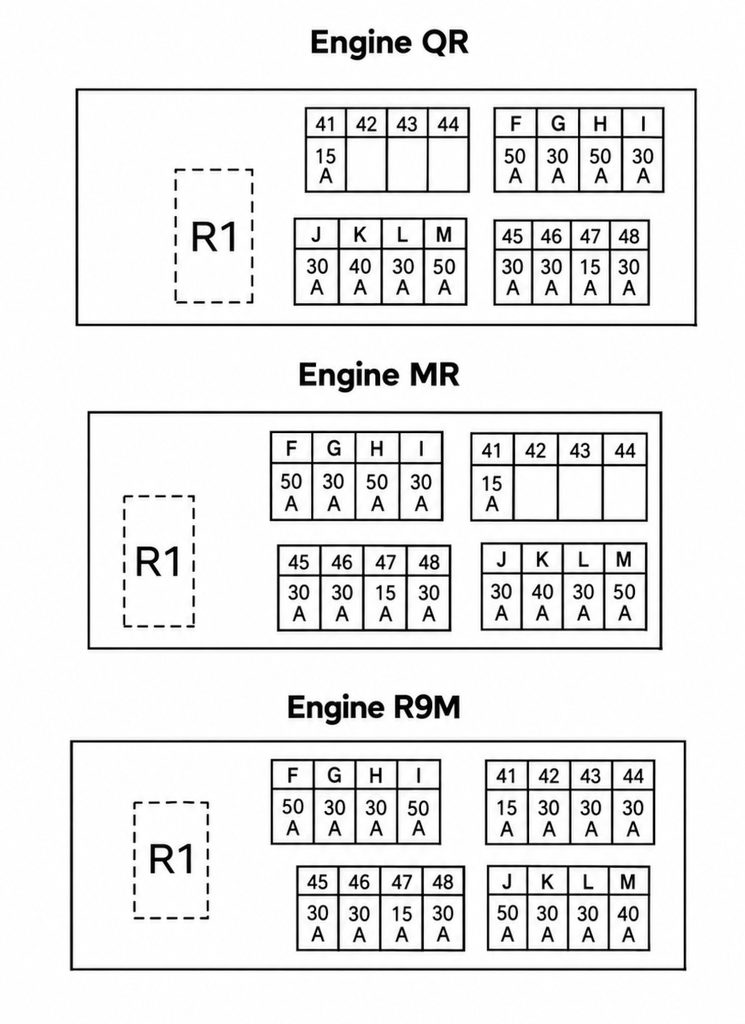

Fuse Box Diagram (B)

For Engines with codes: QR, MR and R9M

Fuses

Assignment of the fuses in the Engine Compartment Fuse Box B

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
4115AHorn Relay 1
4230AR9M: PTC Relay 2
4330AR9M: PTC Relay 3
4430AR9M: PTC Relay 1
4530AElectric Parking Brake Control Unit
4630AOption Connector 9
4715AHorn Relay 2
4830AElectric Parking Brake Control Unit
F50AESP Control Unit
R9M: Power Window Relay, Power Window Main Switch, Sunroof Motor Assembly, Sunshade Motor Assembly, Power Window Relay, Lumbar Support Switch, Lumbar Support Switch, Power Window Main Switch, Power Seat Switch (Driver Side), Power Seat Switch (Passenger Side)
G30AABS Actuator and Control Unit
H30A / 50AESP Control Unit (50A)
R9M: Cooling Fan Relay 2 (30A)
I30A / 50AHeadlamp Washer Relay (30A)
R9M: ESP Control Unit (50A)
J30A / 50AAutomatic Back Door Control Unit (30A)
R9M: ESP Control Unit (50A)
K30A / 40AABS Actuator and Control Unit (40A)
R9M: Cooling Fan Relay 2 (30A)
L30AStarter Control Relay, Fuse Block (J/B), Ignition Relay
M40A / 50APower Window Relay, Power Window Main Switch, Sunroof Motor Assembly, Sunshade Motor Assembly, Power Window Relay, Lumbar Support Switch, Lumbar Support Switch, Power Window Main Switch, Power Seat Switch (Driver Side), Power Seat Switch (Passenger Side) (50A)
R9M: ABS Actuator and Control Unit (40A)

Relays

Assignment of the relays in the Engine Compartment Fuse Box B

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Horn Relay

Under the Bumper

Relay Box Location

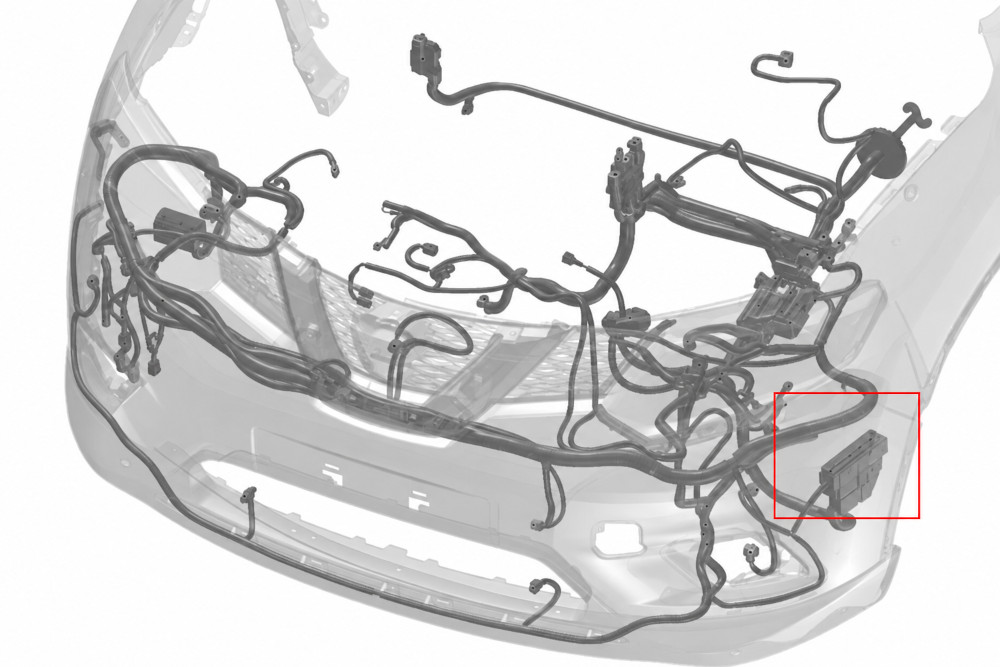

The relays box can be found beneath the bumper on the driver’s side.

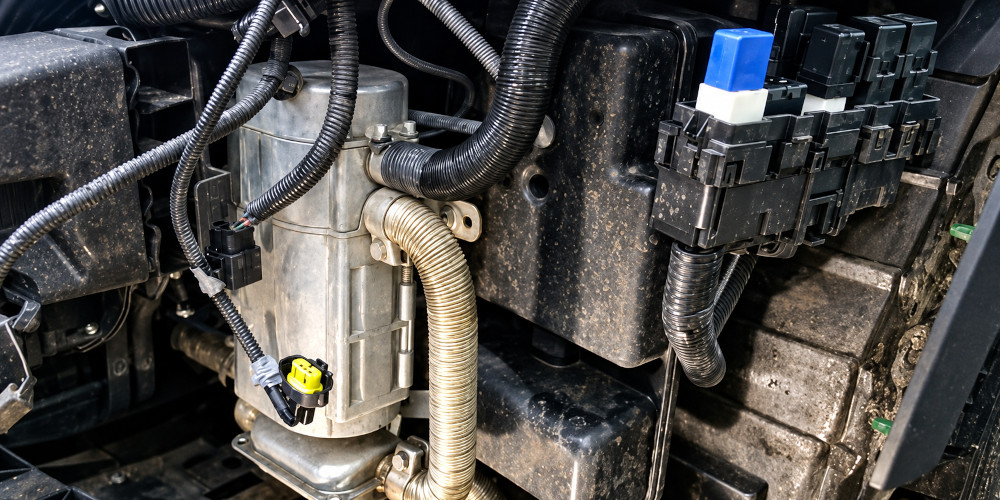

Actual relays box picture.

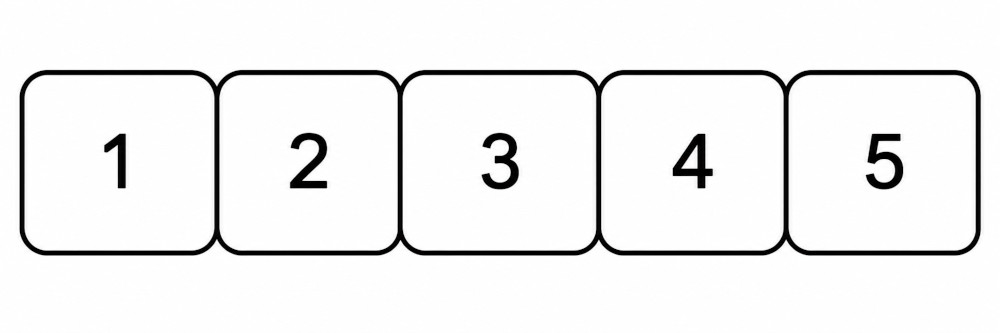

Relay Box Diagram

Relays

Assignment of the relays beneath the bumper

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1H/LAMP Washer or DC/DC (30A/30A)
2Heated Screen (40A/40A)
3Anti-Theft Horn or Head Lamp Wash
4Heated Front Screen
5Heated Front Screen

Battery Fuses

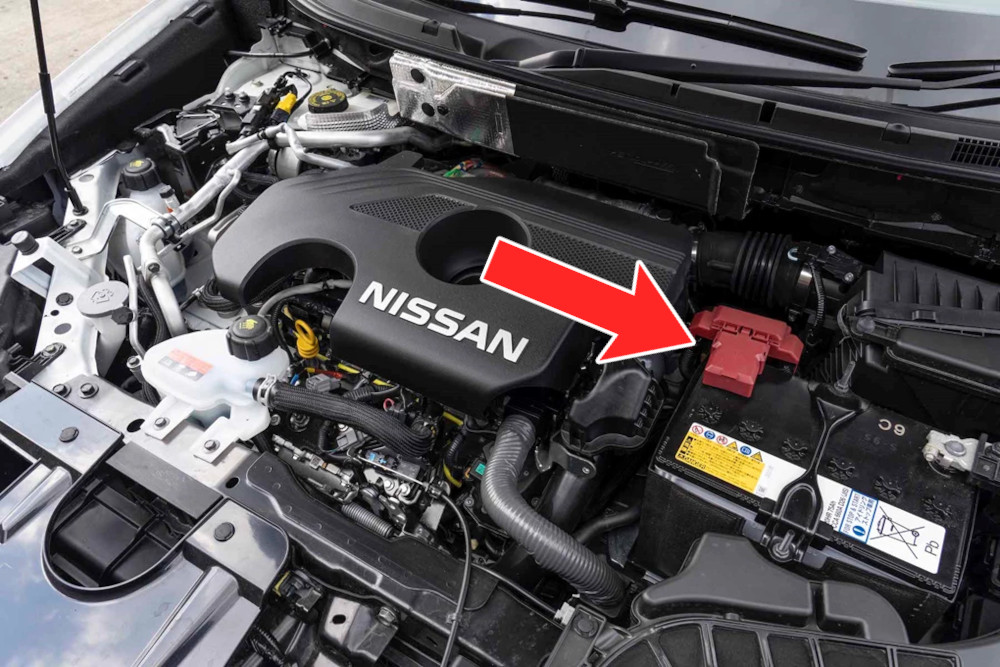

Fuse Box Location

High-voltage fuses are connected directly to the battery positive (+).

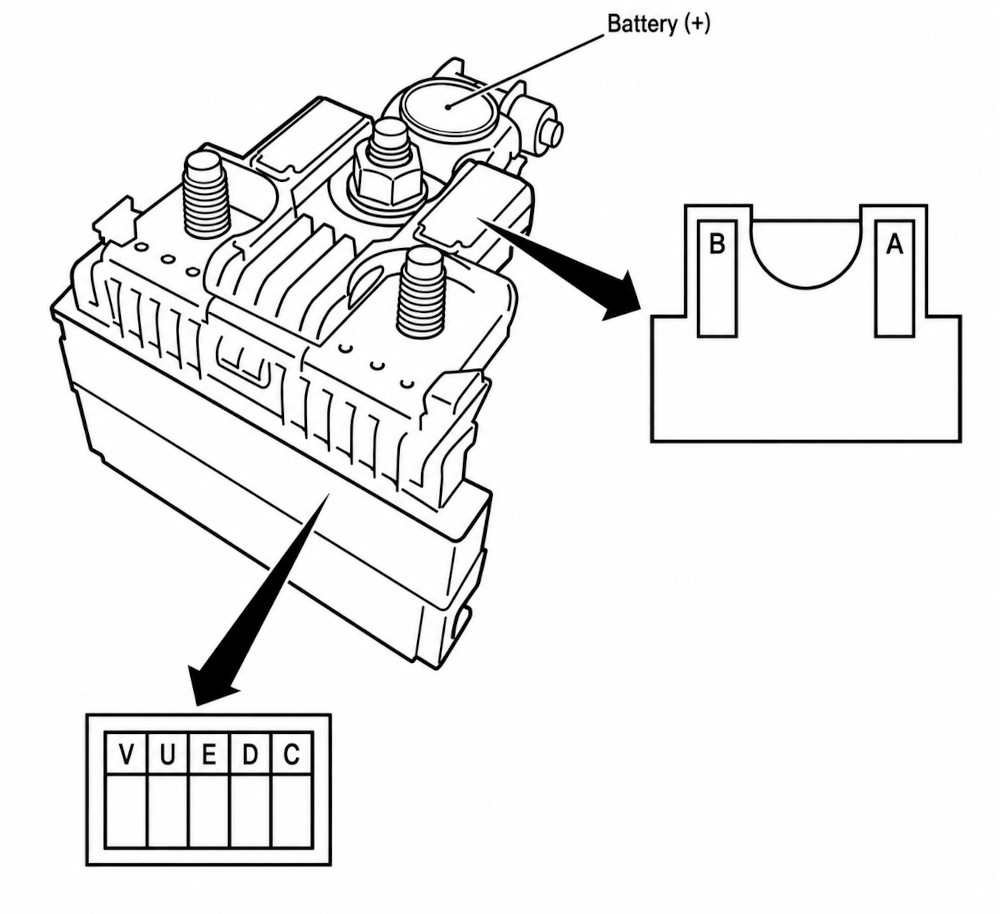

Fuse Box Diagram

High-Voltage Fuses

Assignment of the high-voltage fuses on the battery

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A450AAlternator, Starter Motor (QR, MR), Engine Restart Bypass Relay, Fuse No. F (ESP)
B100A / 450AAlternator, Starter Motor, Engine Restart Bypass Relay, Fuse No. F (ESP)
C100AMR, R9M: Fuse Block (J/B) – (Accessory Relay, BCM, Fuse No.: 7, 25), Blower Relay (Fuse No.: 17, 27)
D80A / 100AIPDM E/R (80A)
IPDM E/R, Thermoplunger Control Unit (R9M) (100A)
E50A / 100AFuse Block (FI 16) (50A)
QR: Fuse Block (J/B) – (Accessory Relay, BCM, Fuse No.: 7, 25), Blower Relay (Fuse No.: 17, 27) (100A)
U100AFuse Block (FI 16), Ignition Relay
V100AESP

Passenger Compartment

Fuse Box Location

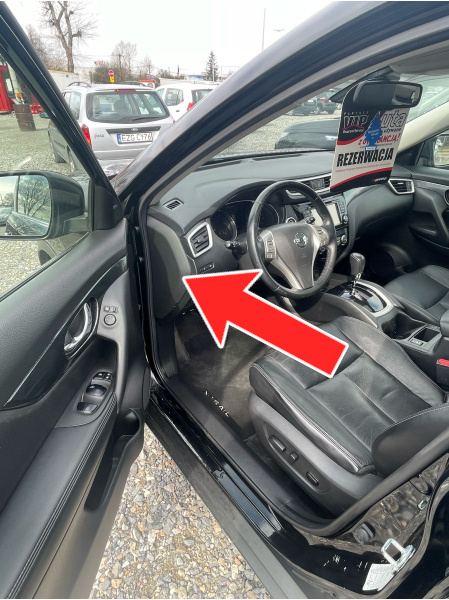

Left-hand drive vehicles

The fuse box sits behind the cover at the edge of the instrument panel on the driver’s side.

Right-hand drive vehicles

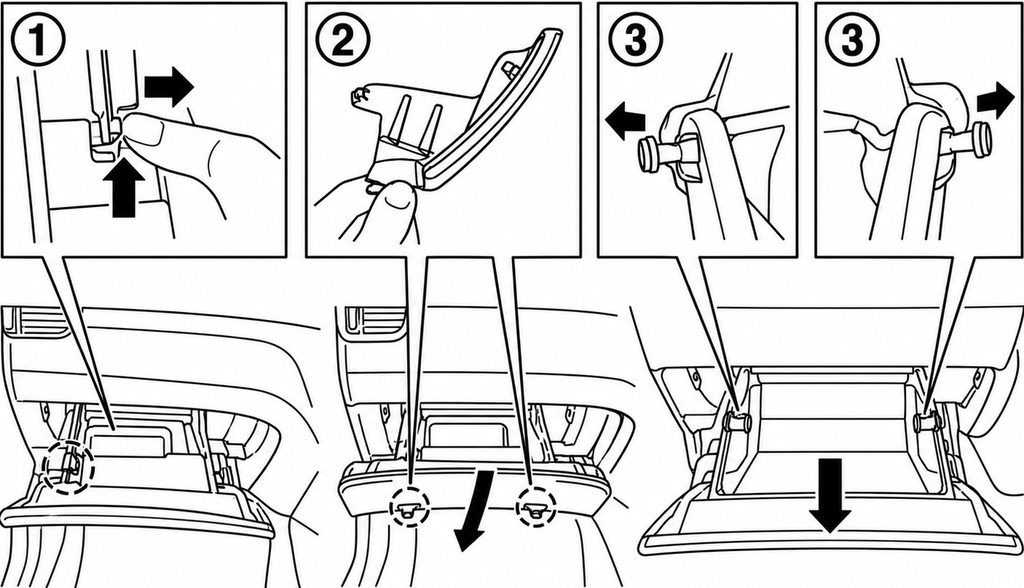

For right-hand-drive vehicles, the fuse box is situated behind the glove box.

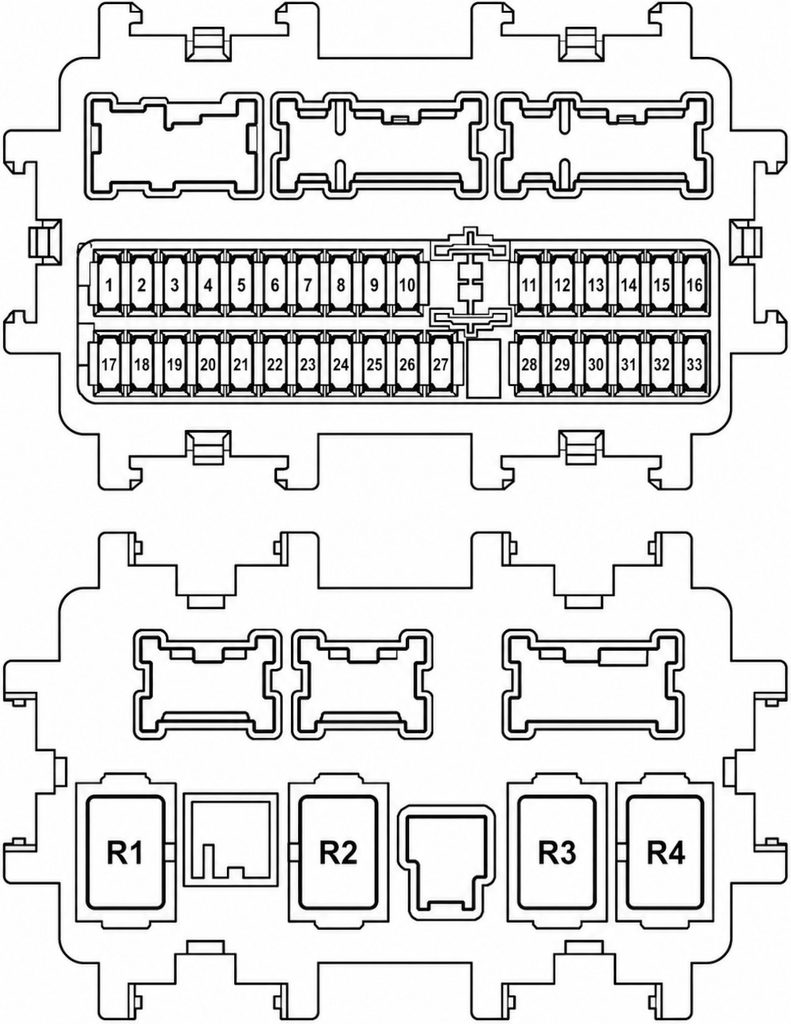

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115ATurn Lamp, Hazard Lamp (Body Control Module (BCM))
25A4WD Control Unit
320ACentral Locking (Body Control Module (BCM))
415ARear wiper (Body Control Module (BCM))
520ACentral Locking (Body Control Module (BCM))
610A4WD Control Unit, Data Link Connector, Electric Parking Brake Control Unit
710ABody Control Module (BCM)
85AClutch Interlock Switch
95ANATS Antenna Amplifier
1010AStop Lamp Switch, Body Control Module (BCM)
1120AAudio Unit
1210ASubwoofer (Option Connector 8)
1310ACombination Meter
145ABody Control Module (BCM), Sensor Cancel Switch, Siren Control Unit
1520AAudio Unit, Navi Control Unit, Around View Monitor Control Unit
1620AAudio Unit, Navi Control Unit, Around View Monitor Control Unit
1715ABlower Motor, A/C Amp., Power Transistor (auto A/C)
1810ASpare
1920ACigar lighter
2010AA/C Amp., A/C Auto Amp., Brake Pedal Position Switch, A/C Control, Door Mirror Remote Control Switch, Stop Lamp Switch (R9M)
2110AABS Actuator and Control Unit
2210ADoor Mirror (Driver Side), Door Mirror (Passenger Side)
2315ACondenser (Rear Windows Defogger)
2415ACondenser (Rear Windows Defogger)
2520AInterior Room Lamp Relay (Body Control Module (BCM)), Option Connector 8
265AAudio Unit, Navi Control Unit, Headlight Range Control
2715ABlower, A/C, Engine Restart Bypass Relay
2815AFront Heated Seat Switch LH, Front Heated Seat Switch RH
2910ADC/DC Converter (Ignition Relay – Fuse No.: 54, 55, 56, 57)
3010ASonar Control Unit, Steering Angle Sensor, Stop Lamp Switch, 4WD Control Unit, EPS Control Unit, Data Link Connector, Audio Unit, Navi Control Unit, Around View Monitor Control Unit, Electric Parking Brake Control Module, Chassis Control Module, Auto Anti-dazzling Inside Mirror, Option Connector (8), Combination Switch (spiral Cable), Fuel Heater Relay, Distance Sensor, Front Camera Unit, PTC Relays-1/2/3, Ignition Relay (with Stop / Start System)
315ACombination Meter, Diode 1 (with Stop / Start System)
3210AAir Bag Diagnosis Sensor Unit
3315ACombination Switch, Pump Control Unit

Relays

Assignment of the relays in the passenger compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Ignition
R2Blower
R3Rear Windows Defogger
R4Accessory

Passenger Compartment (Start-Stop)

This fuse box is primarily found in vehicles equipped with a start-stop system.

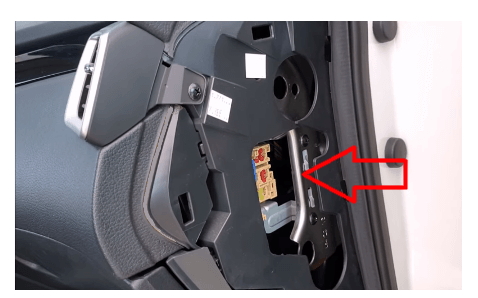

Fuse Box Location

The fuse box is positioned along the right side of the dashboard.

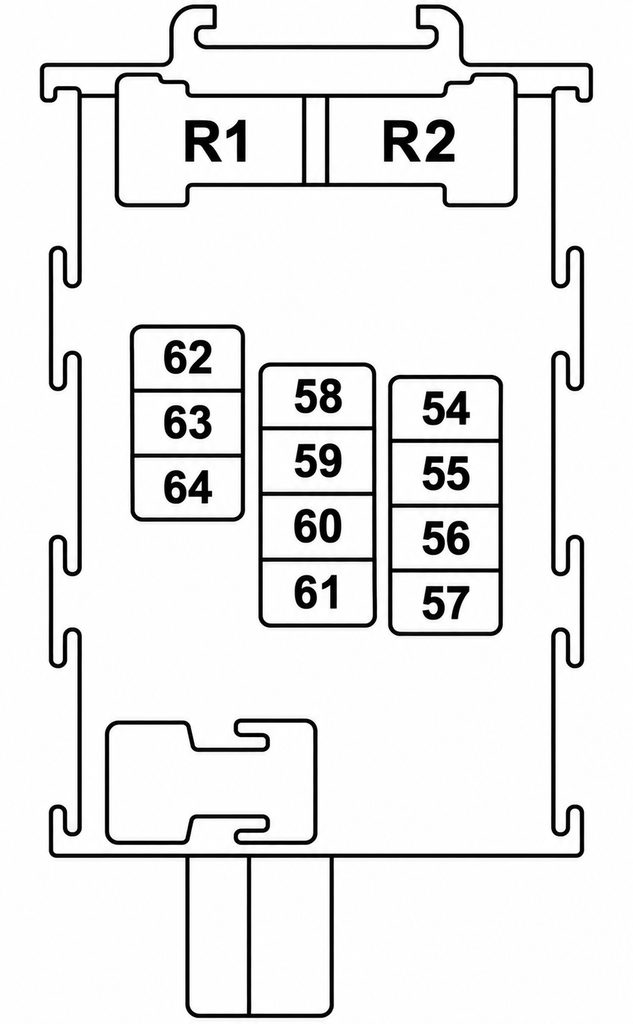

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment (With Start/Stop system)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
5410ASteering Angle Sensor
5510ADiode 2
5610AAround View Monitor Control Unit, Distance Sensor, Front Camera Unit, Audio Unit
5710AEngine Control Module, Transmission Control Module, Transmission Range Switch, IPDM E/R (Intelligent Power Distribution Module Engine Room), Neutral Position Switch, Primary Speed Sensor, Secondary Speed Sensor, Input Speed Sensor, Transmission Range Switch, Back-up Lamp Switch
58—Not Used
5910AA/C
6010AABS Actuator and Control Unit
61—Not Used
62—Not Used
6320AAudio Unit, Navi Control Unit, Around View Monitor Control Unit
64—Not Used

Relays

Assignment of the relays in the passenger compartment (With Start/Stop system)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Accessory
R2Ignition
