Toyota RAV4 Fuse Box Locations and Diagrams (1998-2000)

The first-generation Toyota RAV4 (Model Code: XA10), facelifted and produced from 1998 to 2000, represents one of the earliest examples of a compact crossover SUV. Known for its blend of car-like handling, available all-wheel drive, and practical interior space, this version of the RAV4 remains a beloved choice among enthusiasts and daily drivers alike.

In this article, you will find fuse box diagrams for the Toyota RAV4, covering model years 1998, 1999, and 2000. These diagrams help vehicle owners and technicians identify fuse and relay functions to support troubleshooting and maintenance tasks.

What’s Included:

Fuse Box Diagrams – Accurate visuals to help locate and identify each fuse and relay.
Fuse Panel Locations – Guidance on where to find fuse boxes inside the cabin and engine bay.
Fuse Assignments – Clear breakdowns of fuse roles and circuit responsibilities.

Whether you’re resolving an electrical issue, replacing a blown fuse, or working on an accessory system, this guide is a valuable resource for maintaining the Toyota RAV4 (1998–2000).

What’s Included

Passenger Compartment

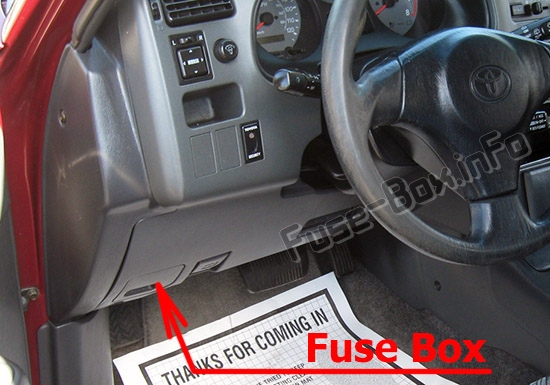

Fuse box location

It is located in the left side of the instrument panel, behind the cover.

The location of the fuses in the passenger compartment: Toyota RAV4 (XA10; 1998-2000)

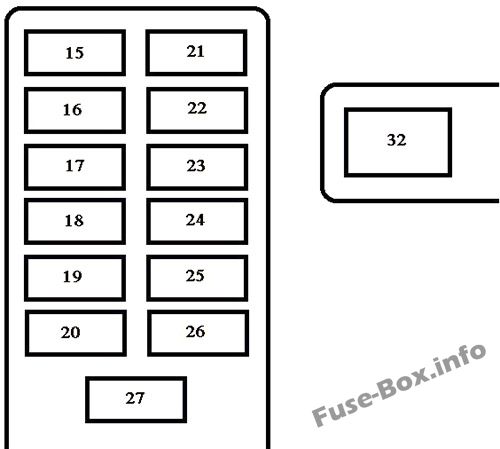

Fuse box diagram

Instrument panel

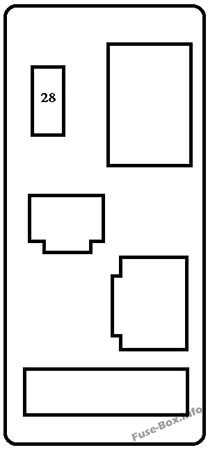

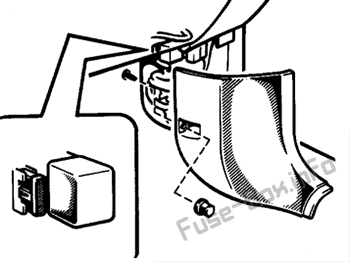

Passenger’s side kick panel

Assignment of the fuses in the Passenger Compartment

№	Name	Ampere rating [A]	Functions
15	PWR OUTLET	10	Power outlet
16	CIG	15	Cigarette lighter, clock, car audio system, power rear view mirrors, electronically controlled automatic transmission system
17	SRS- ACC	10	SRS airbag system, seat belt pretensioners
18	WIPER	20	Windshield wipers and washer, rear window wiper and washer
19	ECU- IG	10	Electronically controlled automatic transmission system, rear window defogger, center differential lock system, electric moon roof, multiport fuel injection system/sequential multiport fuel injection system, electric cooling fan, anti- lock brake system, cruise control system
20	TURN & GAUGE	10	Turn signal lights, gauges and meters, back- up lights, service reminder indicators, air conditioning system, daytime running light system
21	STOP	10	Stoplights, high mounted stoplight, electronically controlled automatic transmission system, anti- lock brake system
22	TAIL	15	Gauges and meters, emergency flashers, cigarette lighter, center differential lock system, clock, rear window defogger, air conditioning system, electronically controlled automatic transmission system, car audio system, tail lights, license plate lights, parking lights, instrument panel light control, side marker lights
23	OBD	10	On- board diagnosis system
24	SRS-B	10	SRS airbag warning light
25	HORN	10	Horn
27	AM1	10	“CIG”, “PWR OUTLET”, “SRS- ACC”, “WIPER”, “ECU- IG” and TURN & GAUGE’ fuses
28	A/C	10	Air conditioning system
32	PWR	30	Power door lock system, electric moon roof, power windows

Engine Compartment

Fuse box location

Fuse box diagram

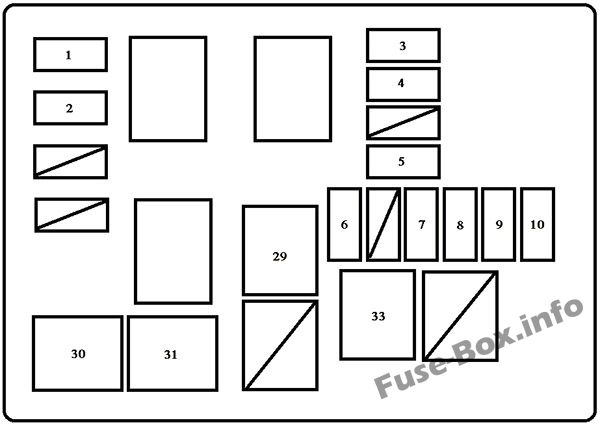

Without Daytime Running Light System

With Daytime Running Light System

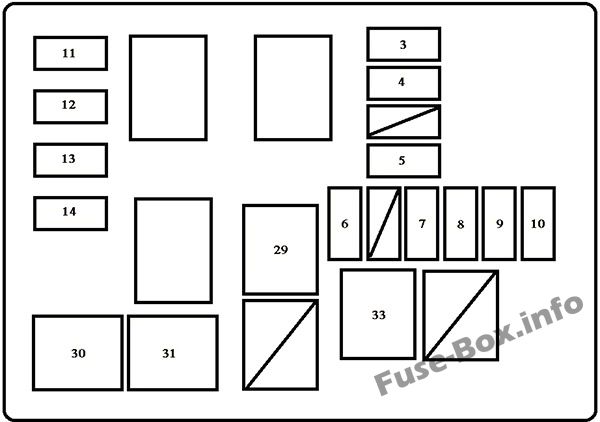

Under-hood fuse box diagram (w/DRL): Toyota RAV4 (1998, 1999, 2000)

Assignment of the fuses in the Engine Compartment

№	Name	Ampere rating [A]	Functions
1	H- LP (RH)	15	Right- hand headlight
2	H- LP (LH)	15	Left- hand headlight
3	SPARE	10	Spare fuse
4	SPARE	15	Spare fuse
5	AM2	5	Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, seat belt pretensioners, starting system, discharge warning light
6	ALT-S	5	Charging system
7	HAZ	10	Emergency flashers
8	EFI	20	Multiport fuel injection system/sequential multiport fuel injection system
9	DOME	15	Interior light, personal lights, clock, daytime running light system, gauge and meters, car audio system
10	IGN	20	Charging system
11	H- LP RH-H	10	Right- hand headlight (high beam)
12	H- LP LH-H	10	Left- hand headlight (high beam)
13	H- LP RH-L	10	Right- hand headlight (low beam)
14	H- LP LH-L	10	Left- hand headlight (low beam)
29	MAIN No. 1	30	Starting system, “HLP (RH)”, ”H- LP (LH)”, ”H- LP RH- H”, “H- LP LH- H”, “H- LP RH- L” and D H- LP LH- L” fuses
30	CDS FAN	30	Electric cooling fan
31	RDI FAN	30	Electric cooling fan
33	ABS	50	Anti- lock brake system

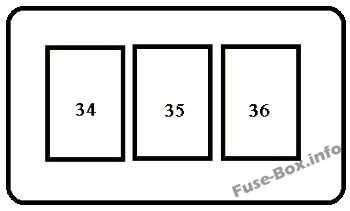

Fusible Link Block

№	Name	Ampere rating [A]	Functions
34	MAIN	80	“IGN”, “HAZ”, “DOME”, “ALT- S”, “MAIN No.1”, “AM2” and “EFI” fuses
35	ALT	100	“HTR”, “ABS”, “RDI FAN”, “CDS FAN”, ”CIG”, “SRS- ACC”, “WIPER”, “ECU- IG”, “TURN & GAUGE”, “DEFOG”, “TAIL”, “STOP”, “HORN”, “OBD”, “SRS- B”, “PWR OUTLET”, “PWR” and “AM1” fuses
36	HTR	50	Air conditioning system, “A/C” fuse

FAQ

Which fuses protect the cigar lighter and power outlets in the Toyota RAV4?

In the Toyota RAV4, both the cigarette lighter and auxiliary power outlets within the cabin are safeguarded by two fuses housed in the Instrument Panel Fuse Box:

Fuse #15 “PWR OUTLET” — Powers the 12 V auxiliary power outlet (power socket).
Fuse #16 “CIG” — Dedicated to the cigar lighter (cigarette socket).

If either the power outlet or lighter stops working, check these two fuses first and replace with the correct amperage rating.
