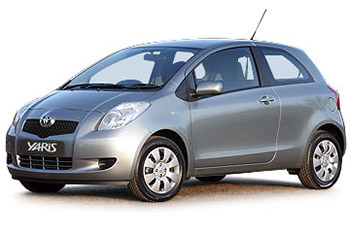

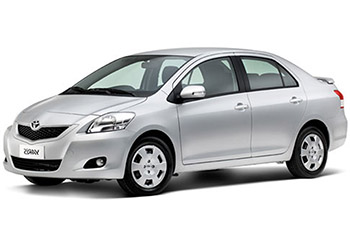

The second-generation Toyota Yaris (also known in various markets as the Vitz or Belta, Model Code: XP90) was produced from 2005 to 2013. This generation marked a significant evolution in design, efficiency, and space utilization, offering a compact footprint while maximizing interior room. Known for its reliability, fuel economy, and low maintenance costs, the XP90 remains a popular choice for drivers worldwide.
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
In this article, you will find fuse box diagrams for the Toyota Yaris, covering model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, and 2013. These diagrams are essential for identifying fuses and relays and understanding their specific functions within the vehicle’s electrical system.
What’s Included:
Fuse Box Diagrams – Detailed layouts showing the exact position and role of each fuse and relay.

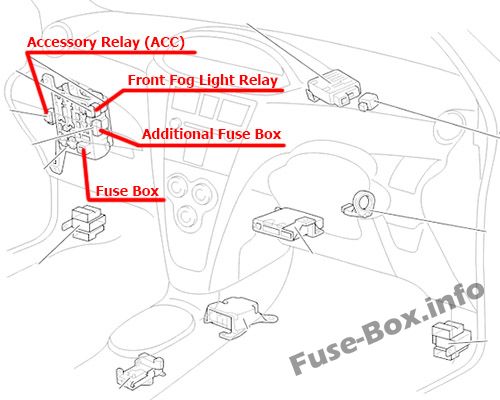

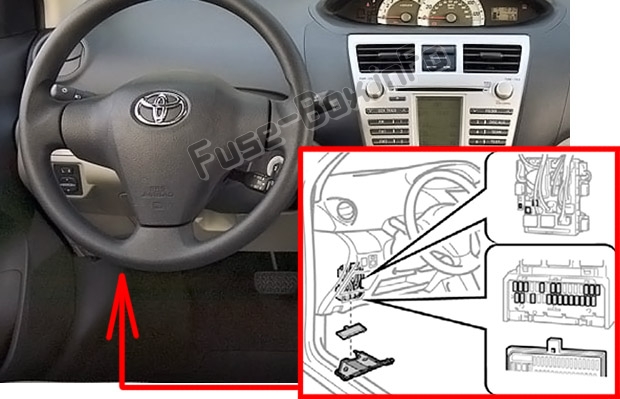

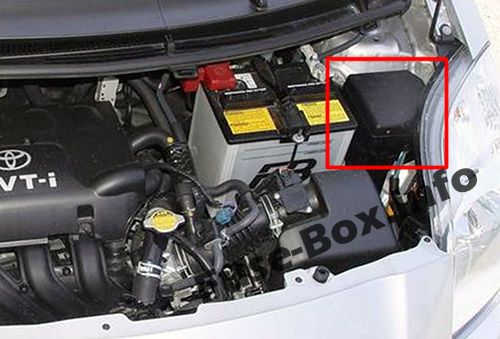

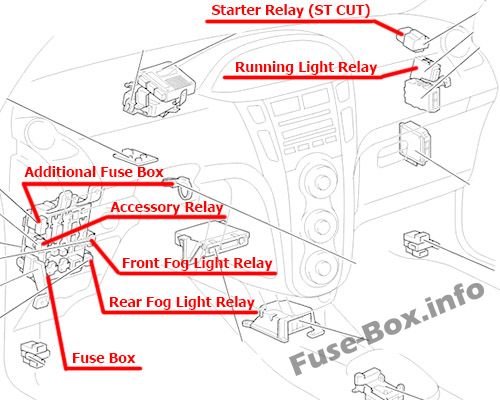

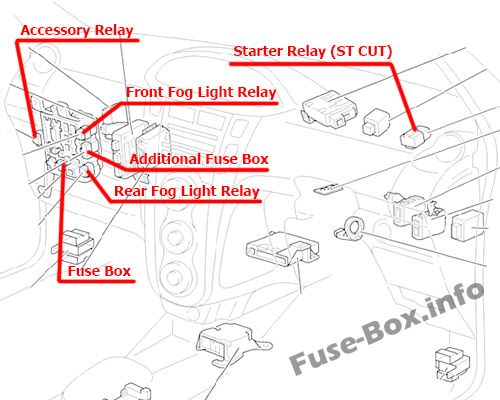

Fuse Panel Locations – Instructions on how to locate the fuse panels within the vehicle for quick access.
Fuse Assignments – Clear descriptions of what each fuse and relay controls, such as lights, horn, power windows, and engine systems.
Whether you’re replacing a blown fuse, troubleshooting an electrical problem, or performing preventive maintenance, this guide will help you keep your Toyota Yaris (2005–2013) in top operating condition by making sense of its fuse and relay configurations.
Side marker lights, parking lights tail lights, license plate lights, multiport fuel injection system/sequential multiport fuel injection system
1
PANEL2
7.5
Engine immobiliser system, entry & start system, front fog light, illumination, light reminder, multi-mode manual transmission, rear fog light, starting, steering lock, taillight, wireless door lock control
2
PANEL1
7.5
Illuminations, instrument panel light control, meter and gauge
3
A/C
7.5
Rear window defogger, air conditioning system
4
D DOOR
20
Power window
5
RL DOOR
20
Rear passenger’s power window (left side)
6
RR DOOR
20
Rear passenger’s power window (right side)
7
–
–
–
8
CIG
15
Power outlet
9
ACC
7.5
Door lock system, outside rear view mirrors, audio system
10
–
–
–
11
ID/UP / MIR HTR
10
Multiport fuel injection system/sequential multiport fuel injection system
12
–
–
13
–
–
14
RR FOG
7.5
Rear fog lights
15
IGN
7.5
Multiport fuel injection system/sequential multiport fuel injection system, engine immobilizer system, SRS airbag system, front passenger occupant classification system
16
MET
7.5
Meter and gauge
17
P S-HTR
15
Seat heater
18
D S-HTR
15
Seat heater
19
WIP
20/25
Windshield wiper
20
RR WIP
15
Rear wiper
21
WSH
15
Windshield washer
22
ECU-IG
10
Daytime running light system, antilock brake system, electric power steering system, power windows, door lock system, theft deterrent system, electric cooling fan
23
GAUGE
10
Charging system, turn signal lights, emergency flashers, buck-up lights, instrument panel light control, shift lock system, rear window defogger, air conditioning system, automatic transmission system
24
OBD2
7.5
On-board diagnosis system
25
STOP
10
Stop lights, high mounted stoplight, multiport fuel injection system/sequential multiport fuel injection system, shift lock system, antilock brake system
26
–
–
–
27
D/L
25
Door lock system
28
FR FOG
15
Front fog lights
29
–
–
–
30
TAIL
10
Side marker lights, parking lights tail lights, license plate lights, multiport fuel injection system/sequential multiport fuel injection system
31
AM1
25
Multiport fuel injection system/sequential multiport fuel injection system

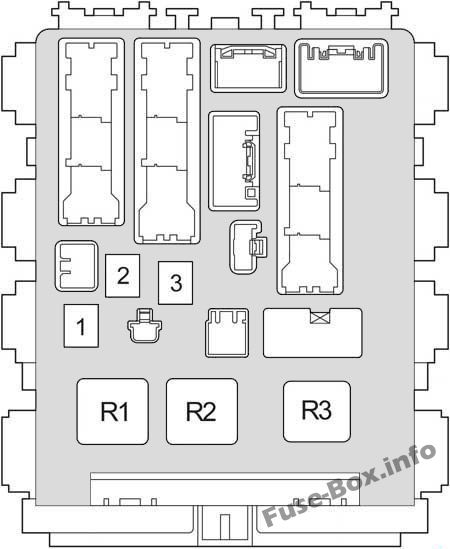

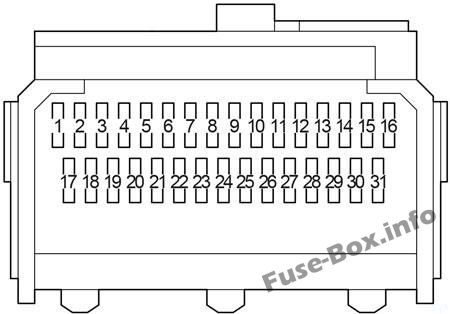

Front Side fuse box
Fuse Data
Full access is available to registered users — log in or register.
Diesel: Multiport fuel injection system/sequential multiport fuel injection system (TMMF Made From Nov. 2008 Production)
5
–
30
Spare fuse
6
–
10
Spare fuse
7
–
15
Spare fuse
8
–
–
9
–
10
–
11
FR DEF
20
12
ABS2/VSC2
30
Anti-lock brake system, vehicle stability control system
13
H-LP MAIN
30
with DRL: “H-LP LH/H-LP LO LH”, “H-LP LH/H-LP LO LH”, “H-LP HI LH”, “H-LP HI RH”
14
ST
30
Starting system
15
S-LOCK
20
Steering lock system
16
DOME
15
Interior light, personal lights, theft deterrent system, audio system, wireless remote control system
17
ECU-B
7.5
Engine immobilizer system, daytime running light system, front passenger occupant classification system, power windows, door lock system, theft deterrent system, meter and gauge
18
ALT-S
7.5
Charging system
19
ETCS
10
Multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system
20
HAZ
10
Turn signal lights, emergency flashers
21
AMT
50
Multi-mode manual transmission
21
BBC
40
Stop & Start system
22
H-LP RH / H-LP LO RH
10
Right-hand headlight
23
H-LP LH / H-LP LO LH
10
Left-hand headlight
24
EFI2
10
Gasoline: Multiport fuel injection system/sequential multiport fuel injection system
24
ECD2
10
Diesel: Multiport fuel injection system/sequential multiport fuel injection system
25
ECD3
7.5
Diesel: Multiport fuel injection system/sequential multiport fuel injection system
26
HTR SUB2
40
435W Type: PTC heater
26
HTR SUB1
50
600W Type: PTC heater
27
EPS
50
Electric power steering system
28
ABS1/VSC1
50
Anti-lock brake system, vehicle stability control system
29
HTR
40
Air conditioning system
30
RDI
30
Electric cooling fan
31
HTR SUB1
30
435W Type: PTC heater
31
HTR SUB2
30
600W Type: PTC heater
32
H-LP CLN / PWR HTR
30
Power heater, headlight cleaner
32
HTR SUB3
30
600W Type: PTC heater

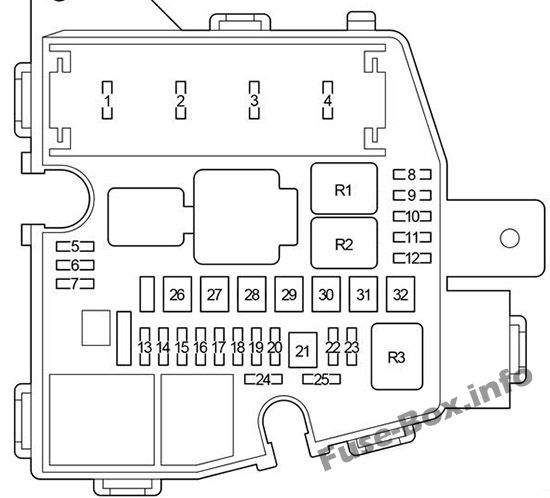

Relay
R1
Starter (ST)
R2
Electric cooling fan (FAN NO.2)
R3
PTC heater (HTR SUB1)
Relay Box

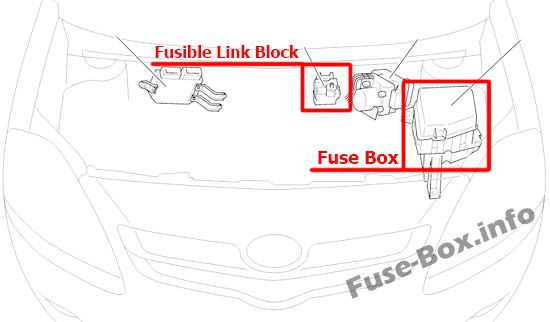

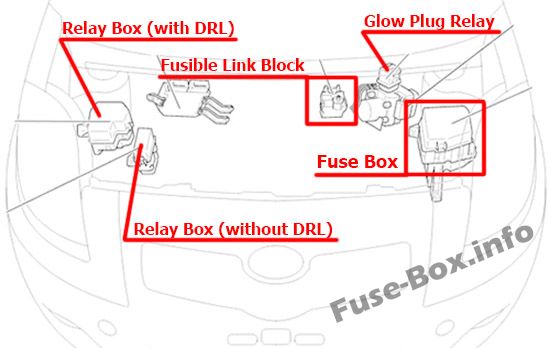

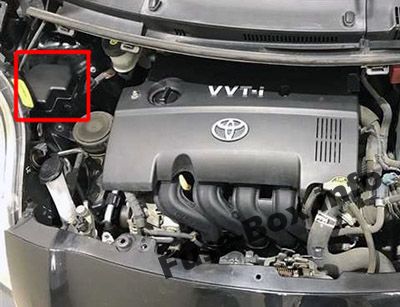

Relay box location

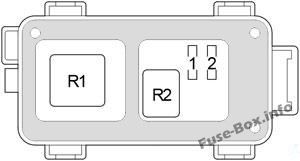

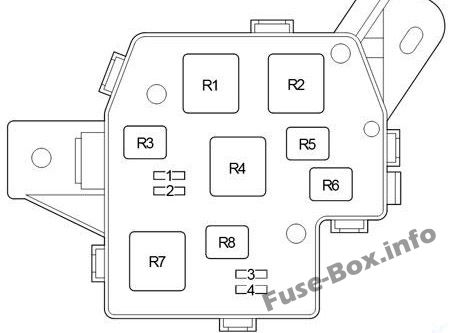

Relay box diagrams
With DRL

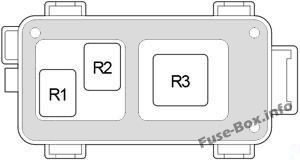

Engine Compartment Relay Box (with DRL)
Fuse Data
Full access is available to registered users — log in or register.
Which fuse protects the cigar lighter (power outlet) in the Toyota Yaris / Vitz / Belta?
In the Toyota Yaris, Vitz, or Belta, the cigar lighter (12 V power outlet) is safeguarded by fuse #8, labeled “CIG”, located in the Instrument Panel Fuse Box.
