Toyota Yaris / Echo / Vitz | 2012-2019 | Fuse Box Diagrams and Locations

The third-generation Toyota Yaris (also marketed in various regions as the Echo or Vitz, Model Code: XP130) was produced from 2012 to 2019. This generation introduced a more modern design, improved interior quality, and enhanced safety features, making it a standout in the subcompact car segment. With both petrol and hybrid variants, the XP130 offered versatility, efficiency, and practicality for urban and daily use.

In this article, you will find fuse box diagrams for the Toyota Yaris, covering model years 2012, 2013, 2014, 2015, 2016, 2017, 2018, and 2019. These diagrams provide crucial information for identifying the function of each fuse and relay, helping with diagnostics, maintenance, and fuse replacement tasks.

What’s Included:

Fuse Box Diagrams – Clear, easy-to-read layouts showing the location and designation of each fuse and relay.
Fuse Panel Locations – Guidance on where the fuse panels are located inside the vehicle (e.g., under the dashboard or hood).
Fuse Assignments – Descriptions of what each fuse and relay controls, from lights and wipers to the infotainment system and engine electronics.

Whether you’re troubleshooting an electrical issue, replacing a blown fuse, or performing routine maintenance, this comprehensive guide will help ensure your Toyota Yaris (2012–2019) continues to operate smoothly and reliably.

What’s Included

Fuse Box Overview

Left-hand drive vehicles

Right-hand drive vehicles

Passenger Compartment

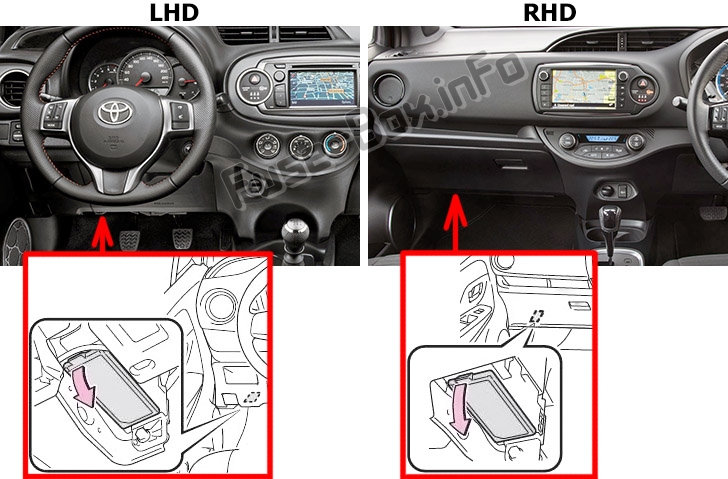

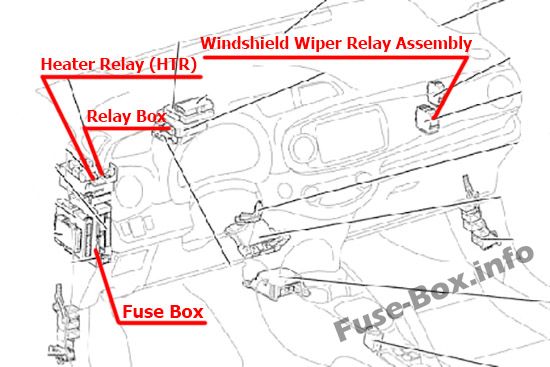

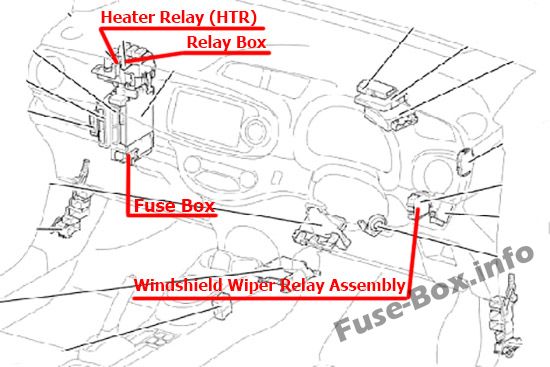

Fuse box location

The fuse box is located under the instrument panel (left-side), behind the cover.

The location of the fuses in the passenger compartment: Toyota Yaris / Vitz (XP140; 2011-2018)

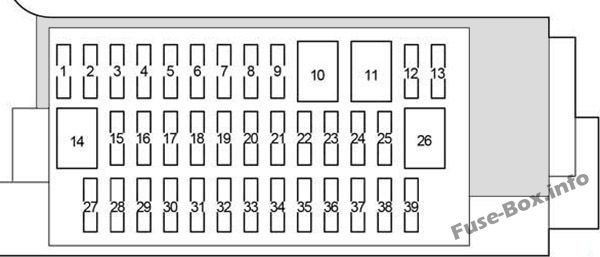

Fuse box diagram

Assignment of the fuses in the Passenger Compartment

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	–	–	–
2	–	–	–
3	–	–	–
4	S-HTR	15	Seat heater
5	–	–	–
6	–	–	–
7	ECU-B NO.3	7.5	Remote control mirror (with automatic retractable mirror)
8	–	–	–
9	–	–	–
10	–	–	–
11	–	–	–
12	D-D/L	25	Double locking
13	–	–	–
14	–	–	–
15	FOG FR	15	before Jan. 2013: Front fog lights from Jan. 2013 (TMCmade): Front fog lights (TMC – Toyota Motor Corporation)
15	FOG FR	7.5	from Jan. 2013 (TMMFmade): Front fog lights (TMMF – Toyota Motor Manufacturing France)
16	AM1	7.5	Starting system, engine switch
17	STOP	7.5	Multiport fuel injection system/sequential multiport fuel injection system, vehicle stability control system, stop lights, high mounted stoplight
18	FOG RR	7.5	Rear fog lights
19	–	–	–
20	OBD	7.5	On-board diagnosis system
21	D/L	25	Power door lock system, main body ECU
22	ACC	5	Main body ECU, outside rear view mirrors, audio system, shift lock control system
23	CIG	15	Power outlets
24	DOOR	20	Power windows
25	DOOR R/L	20	Power windows
26	P/W	30	Power windows
27	WIPER RR	15	Rear window wiper
28	WIPER	20	Windshield wiper
29	WASHER	15	Windshield washer
30	–	–	–
31	–	–	–
32	GAUGE	10	Back-up lights, shift lock control system, audio system, charging system, multiport fuel injection system/sequential multiport fuel injection system
33	A/C	7.5	Air conditioning system, rear window defogger, outside rear view mirror defoggers
34	ECU-IG NO.2	5	Vehicle stability control system
35	ECU-IG NO.1	5	Electric cooling fan, rear window defogger, vehicle stability control system, electric power steering system, main body ECU, wireless remote control system, tire pressure warning system
36	DOOR P	20	Power windows
37	DOOR R/R	20	Power windows
38	PANEL	5	Gauges and meters, instrument panel lights, switch illumination
39	TAIL NO.2	10	Parking lights, tail lights, license plate lights, side marker lights

Relay Box

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	DOME CUT
R2	before Jul. 2014: Front fog lights (FR FOG) from May 2015: (STP)

Engine Compartment

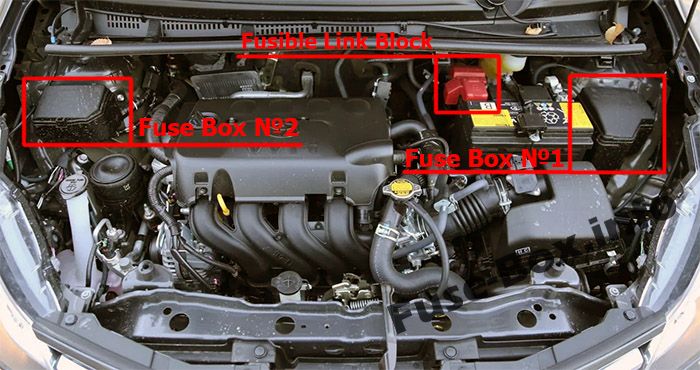

Fuse box location

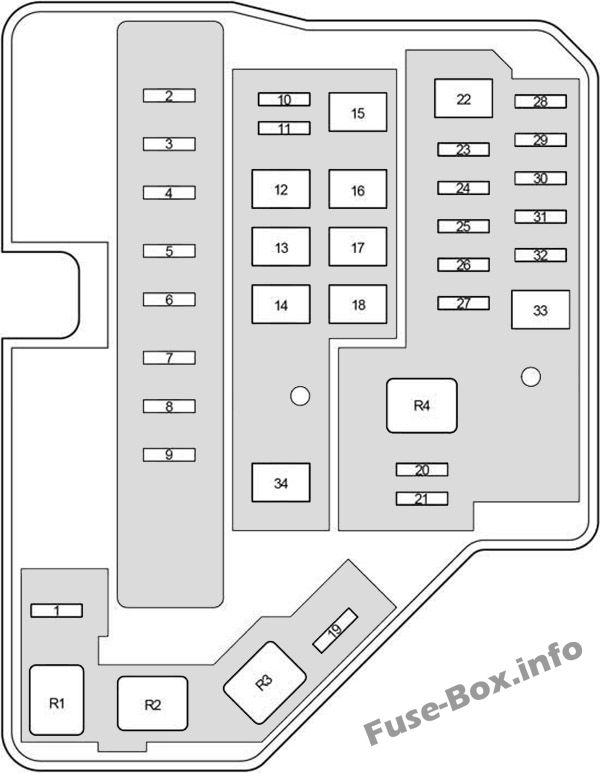

Fuse Box Diagram No.1

Under-hood fuse box #1 diagram: Toyota Yaris / Echo / Vitz (2011-2018)

Assignment of the fuses and relay in the Engine Compartment Fuse Box №1

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	ID/UP	7.5	Multiport fuel injection system/sequential multiport fuel injection system
2	EFI MAIN	20	Gasoline: Multiport fuel injection system/sequential multiport fuel injection system
2	ECD MAIN	30	Diesel: Multiport fuel injection system/sequential multiport fuel injection system
3	EFI NO.3	7.5	Multiport fuel injection system/sequential multiport fuel injection system
4	HORN	10	Horn
5	EFI NO.2	10	Multiport fuel injection system/sequential multiport fuel injection system
6	IG2	10	Multiport fuel injection system/sequential multiport fuel injection system, airbag system, stop lights, front passenger occupant classification system
7	IGN	15	Multiport fuel injection system/sequential multiport fuel injection system
8	MET	7.5	Gauges and meters
9	–	–	–
10	PTC HTR NO.3	30	from Jul. 2014 (TMMF): PTC heater (TMMF – Toyota Motor Manufacturing France)
11	PWR HTR	25	before Jul. 2014 (TMMF): PTC heater (TMMF – Toyota Motor Manufacturing France)
11	PTC HTR NO.2	30	from Jul. 2014 (TMMF): PTC heater (TMMF – Toyota Motor Manufacturing France)
12	EPS	50	Electric power steering system
13	ABS NO.2	30	Anti-lock brake system, vehicle stability control system
14	DEF	30	Rear window defogger, outside rear view mirror defoggers
15	HTR	40	Air conditioning system
16	PTC HTR NO.1	50	TMMF: PTC heater (TMMF – Toyota Motor Manufacturing France)
16	H-LP CLN	30
17	RDI FAN	30	Electric cooling fan
18	ABS NO.1	50	Anti-lock brake system, vehicle stability control system
19	MIR-HTR	10	Mirror heater, rear window defogger, cruise control, cvt and shift indicator, engine control
20	ECU-B NO.1	5	Multiport fuel injection system/sequential multiport fuel injection system, main body ECU
21	DOME	15	Interior light, personal lights, audio system, vehicle stability control system
22	BBC	40	Charging (1NR-FE), stop & start system
23	ST	30	Starting system
24	AMP	15	TMMF: Audio system, navigation system, parking assist (rear view monitor) (TMMF – Toyota Motor Manufacturing France)
25	D/L NO.2	25	before Jul. 2014: Double locking
24	PWR HTR	25	before Jul. 2014 (TMMF): Power heater (TMMF – Toyota Motor Manufacturing France)
26	D.C.C	30	DOME, ECU-B NO.1, ECU-B NO.2
27	STR LOCK	20	before Jul. 2014 (TMMF): Back door opener, engine immobiliser system, entry & start system, starting, steering lock, wireless door lock control (TMMF – Toyota Motor Manufacturing France)
28	ETCS	10	Multiport fuel injection system/sequential multiport fuel injection system
29	HAZ	10	Turn signal lights, emergency flashers
30	AM2	7.5	Multiport fuel injection system/sequential multiport fuel injection system, starting system
31	ECU-B NO.2	5	Gauges and meters, wireless remote control system, tire pressure warning system, front passenger occupant classification system
32	ALT-S	7.5	Charging system
33	R/I	50	EFI MAIN, EFI NO.2, EFI NO.3, IG2, IGN, MET, HORN
34	PTC	80	PTC heater, outside rear view mirror defoggers

Relay
R1			Electric cooling fan (FAN NO.2)
R2			Electric cooling fan (FAN NO.1)
R3			Rear window defogger (DEF)
R4			Starter (ST)

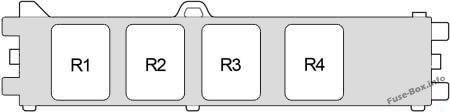

Fuse Box Diagram No.2

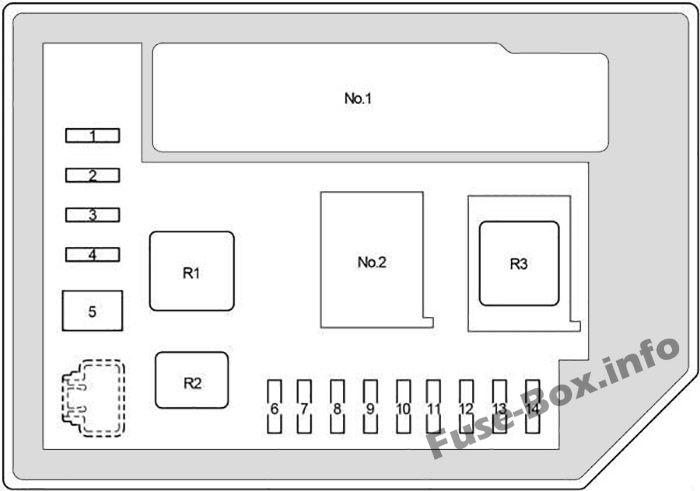

Under-hood fuse box #2 diagram: Toyota Yaris / Echo / Vitz (2011-2018)

Assignment of the fuses and relay in the Engine Compartment Fuse Box №2

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	ST NO.2	20	Cruise control (1NR-FE), CVT and shift indicator (1NR-FE), engine control (1NR-FE), starting
2	DRL	7.5	Daytime running light system
2	EU-DRL	15	Daytime running light system
3	ECD NO.4	10	Cooling fan, cruise control (1ND-TV), engine control (1ND-TV)
3	S-HORN	10	Multiport fuel injection system/sequential multiport fuel injection system
4	H-LP MAIN	7.5	before Jul. 2014: Air conditioner (except automatic a/c), automatic light control, headlight beam level control, light auto turn off system
4	H-LP MAIN	20	from Jul. 2014: Air conditioner (except automatic a/c), automatic light control, headlight, headlight beam level control, light auto turn off system
5	MMT	50	Multi-mode manual transmission
6	H-LP RH HI	10	Right-hand headlight (high beam)
7	H-LP LH HI	10	Left-hand headlight (high beam), gauges and meters
8	H-LP RH LO	10	Right-hand headlight (low beam)
9	H-LP LH LO	10	Left-hand headlight (low beam), front fog lights
10	–	–	–
11	–	–	–
12	–	–	–
13	–	–	–
14	–	–	–

Relay
R1			before Jul. 2014: Dimmer (DIM) from Jul. 2014: PTC heater (PTC HTR NO.l)
R2			Daytime running light system (DRL/S-HORN)
R3			Headlights (H-LP) Headlights (H-LP/US-DRL)

No.1:

Before Jul. 2014

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	Integration relay

From Jul. 2014

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	ECD NO.2
R2	PTC HTR NO.2
R3	PTC HTR NO.3
R4	ST NO.2

No.2:

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	–
R2	before Jut. 2014: (O/P MTR (with Stop & Start System)) from Jut. 2014: Dimmer (DIM (Projector Headlight))

Fuse Data

Full access is available to registered users — log in or register.

№	Relay
R1	before Jul. 2014: Multi-mode manual transmission (MMT) from Jut. 2014: Dimmer (DIM)

Fusible Link Block

Petrol

Diesel

Fuse Data

Full access is available to registered users — log in or register.

№	Name	Amp	Circuit
1	GLOW DC/DC	80	Multiport fuel injection system/sequential multiport fuel injection system
2	MAIN	80	“BBC”, “ST”, “AMP”, “D/L NO.2”, “D.C.C”, “STR LOCK”, “MIR-HTR”, “ETCS”, “HAZ”, “AM2”, “ALT-S”, “R/I”, “DRL” “EU-DRL”, “S-HORN”, “H-LP MAIN”, “H-LP RH HI”, “H-LP LH HI”, “H-LP RH LO”, “H-LP LH LO” fuses
3	ALT	120	“ID/UP”, “EPS”, “ABS NO.2”, “DEF”, “PTC”, “HTR”, “H-LP CLN”, “RDI FAN”, “ABS NO.1”, “TAIL NO.2”, “PANEL”, “DOOR R/R”, “DOOR P”, “ECU-IG NO.1”, “ECU-IG NO.2”, “A/C”, “GAUGE”, “WASHER”, “WIPER”, “WIPER RR”, “P/W”, “DOOR R/L”, “DOOR”, “CIG”, “ACC”, “D/L”, “OBD”, “STOP”, “AM1”, “FOG FR” fuses

FAQ

Which fuse protects the cigar lighter (12 V power outlet) in the Toyota Yaris / Echo / Vitz?

In the Toyota Yaris, Echo, or Vitz, the cigar lighter (power outlet) is safeguarded by fuse #23, labeled “CIG”, located in the Instrument Panel Fuse Box.
