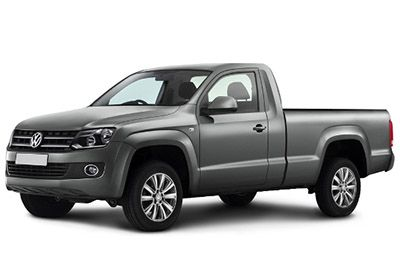

Volkswagen Amarok (2010-2016)

Looking for Volkswagen Amarok fuse box diagrams? This article covers the first-generation Volkswagen Amarok (Model Code: 2H) before the facelift, available from 2010, and includes fuse box diagrams for Volkswagen Amarok 2010, 2011, 2012, 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Passenger Compartment

Fuse Box (C)

Location

The fuse block is located under the instrument panel.

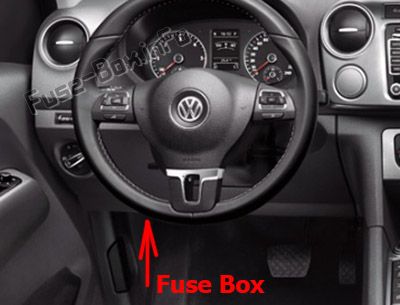

The location of the fuses in the passenger compartment: Volkswagen Amarok (2010-2017)

Diagram

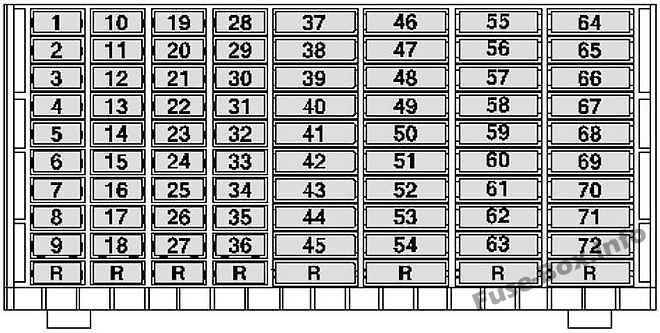

Instrument panel fuse box diagram: Volkswagen Amarok (2010-2017)
Fuses

Assignment of the fuses in the Fuse holder C

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
110ABS cintrol unik -J104-,
TCS and ESP button -E256-,
Driving program button -E598-
210Steering column electronics control unit -J527-
310Reversing switch -F41-
415Onboard supply control unit -J519-
55Air mass meter -G70-
65Trailer detector control unit -J345-
75Interface for external use
810Electronic ignition lock -D9-
910Airbagcontrol unit -J234-,
Front passenger side airbag deactivated warning lamp -K145-
105Engine control unit -J623-
1115Differentral lock control unit -J187-
1210Fuel pump 1 -V276-
135Exhaust flap valve -N220-,
Exhaust gas recirculation cooler change-over calve -N345-
1415Continued coolant circulation pump -V51-
155Engine control unit -J623-
1610Rear fog light warning lamp -K13-,
Rear left fog light bulb -L46-,
Rear right fog light bulb -L47-
175Right tail light bulb -M2-,
Right side light bulb -M3-
185Left side light bulb -M1-,
left tail light bulb -M4-
1915Onboard supply control unit -J519-
2015Onboard supply control unit -J519-
215Onboard supply control unit -J519-
22—Vacant
2315Engine control unit -J623-
2410Alarm horn -H12-
2510Heater element fon crancase breather -N79-
265Right day driving light bulb -L175-
275Left day driving light bulb -L174-
2815Number plate left light -X4,
Number plate right light -X5-
2910Left headlight range control motor -V48-
3010Left main beam bulb -L125-
31—Vacant
3210Right main beam bulb -L126-
335Mirror adjustment switch -E43-
3415Vacant
3515Lambda probe 1 upstream of catalytic converter -GX10-
365Engine control unit -J623-
37—Vacant
381512V socket -U5-
3925Trailer detector control unit -J345-
4025Trailer detector control unit -J345-
4125Trailer detector control unit -J345-
4215Diagnostic connection -U31-,
steering column electronics control unit -J527-,
Air conditioning system pressure switch -F129-,
Air quality sensor -G238-,
differential lock control unit -J187-,
transfer box control unit -J646-,
dash panel insert -K-,
High level brake light bulb -M25-,
Brake light switch -F-,
Display unit -K40-
4325Onboard supply control unit -J519-
4430Onboard supply control unit -J519-
4515Diagnostic connection -U31-,
Dash panel insert -K-,
Steering column electronics control unit -J527-,
Air conditioning system control unit -J301-,
Climatronic control unit -J255-,
Heater/heat output switch -E16-
4625Transfer boc control unit -J646-
4720Onboard supply control unit
4820Driver door control unit -J386-
4920Front passanger door control unit -J387-
5020Rear left door control unit -J388-
5120Rear right door control unit -J389-
5215Electric socket -U-
5320Left fog light bulb -L22-
5415Cigarette lighter -U1-
5515Right headlight range control motor -V49-
56—Vacant
5730Seat heating button, left -E653-,
Seat heating button, right – E654-,
Seat heating control unit -J882-
58—Vacant
592012V socket -UX3-
605Trailer detector unit -J345-,
Diagnostic connection -U31-,
Onboard supply control unit -J519-
615Trailer detector control unit -J345-,
Diagnostic connection -U31-
Onboard supply control unit -J519-
6220Auxiliary heater control unit -J364-,
Circulation pump -V55-
6310Load area illumination bulb -M53-
6430Heater/heat output switch -E16-,
Climatronic control unit -J255-,
Air conditioning system control unit -J301-
6515Engine control unit -J623-
6630Onboard supply control unit -J519-
6730Radio -R-,
Control unit with display for radio and navigation system -J503-
68—Vacant
6915Interface for external use
705Interface for external use
7125Interface for external use
7210Interface for external use

Engine Compartment

Fuse Box (A, B)

Location

The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle.

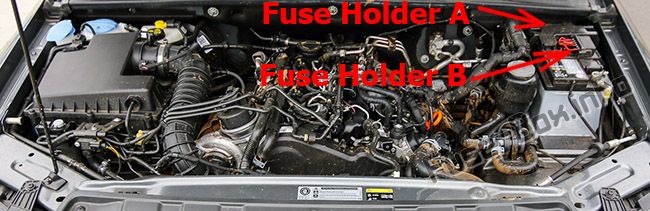

The location of the fuses in the engine compartment: Volkswagen Amarok (2010-2017)

Diagram

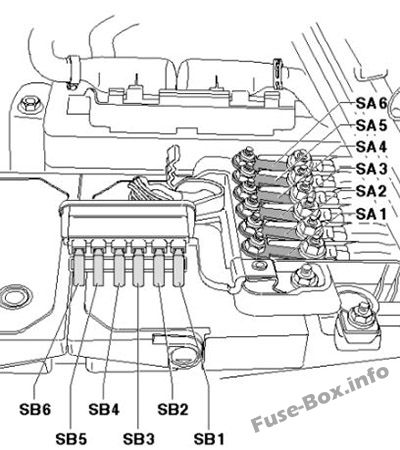

Under-hood fuse box diagram: Volkswagen Amarok (2010-2017)
High Voltage Fuses

Assignment of the high voltage fuses in the Fuse holders A and B

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1175Altemator -C-
SA2175Fuse 4 on fuse holder C -SC4-
Fuse 8 on fuse holder C -SC8-,
Fuse 11 on fuse holder C -SC11-,
Fuse 15 on fuse holder C -SC15-,
Fuse holder C -SC19 – SC24-,
Fuse holder C -SC43 – SC51,
Fuse holder SC62 -SC64-,
Fuse holder C -SC66 – SC67-
SA340Interface for external use
SA480/110Radiator fan -V7-
SA550Automatic glow period control unit J179-
SA680Fuse holder C -SC39 – SC41-
SB130ABS control unit J104-
SB230Fuel pump relay -J17-,
Fuel system pressurisation pump -G6-
SB310ABS control unit -J104-
SB45Onboard supply control unit -J519-
SB5—Vacant
SB6—Vacant

Relays

Diagram

Relays: Volkswagen Amarok (2010-2017)

Relays

Assignment of the Relays

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Auxiliary coolant heater relay -J493-
2Vacant
3Vacant
4Vacant
5Vacant
6Voltage supply relay 2 -J710- (53)
7Terminal 15 voltage supply relay -J329- (100)
8Coolant pump relay -J235-
9Vacant
10Vacant
11Vacant
12Voltage supply relay 1-J701- (53)
13Starter motor relay -J53- (53)
14Fuel pump relay -J17- (404)
14Terminal 30 voltage supply relay -J317- (404)
15Current supply relay -J16- (100)
16Terminal 58b relief relay -J374- (449)
20Main relay -J271- (643)
