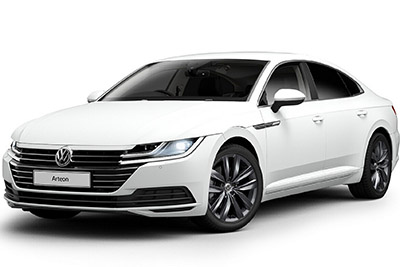

Volkswagen Arteon (2017-2023)

Looking for Volkswagen Arteon fuse box diagrams? This article covers the four-door fastback Volkswagen Arteon (Model Code: 3H7), available from 2017, and includes fuse box diagrams for Volkswagen Arteon 2017, 2018, 2019, 2020, 2021, 2022 and 2023, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

Fuse Box (B)

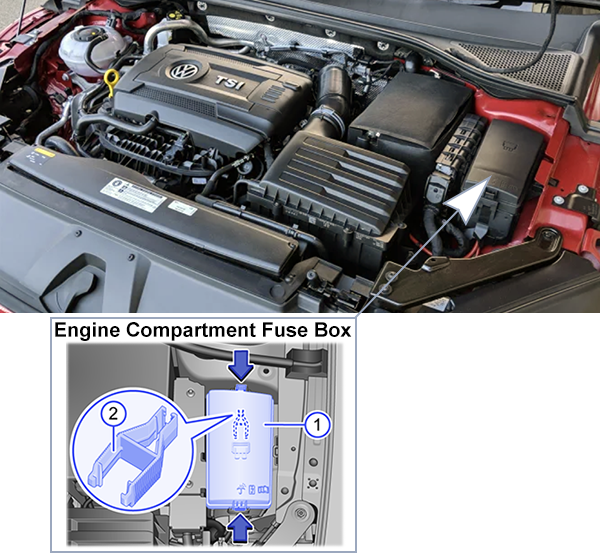

Fuse Box Location

Press the catches in the direction of the arrow to release the fuse box cover.

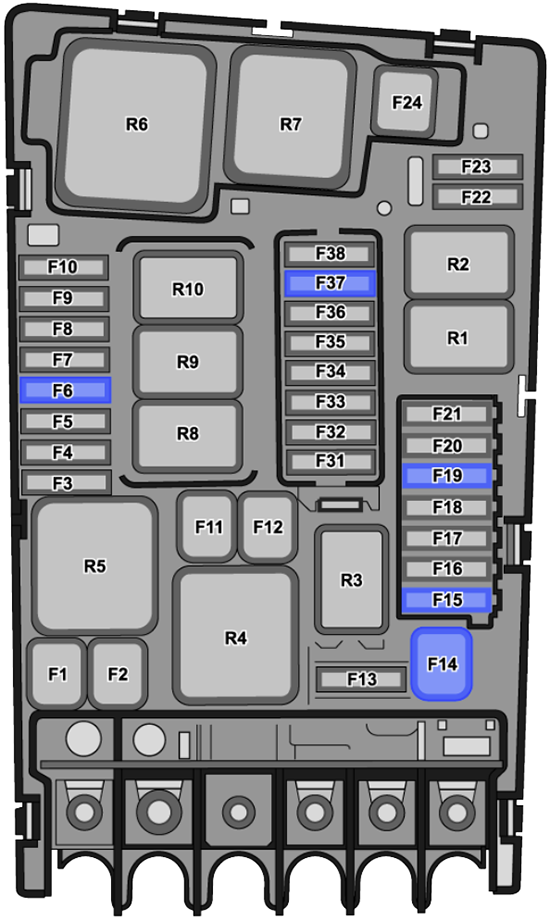

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB125AABS control unit
SB240AABS control unit, ABS hydraulic pump
60AVehicles with pedestrian protection: ABS control unit, ABS hydraulic pump
SB315APetrol / Hybrid: Engine/motor control unit
30ADiesel: Engine/motor control unit
SB410APetrol: Valve for oil pressure control, Turbocharger air recirculation valve, Intake manifold flap valve, Piston cooling jet control valve, Turbine changeover valve, Engine component current supply relay (from Jul 2018)
10AHybrid (from Nov 2020): EVAP Canister Purge Regulator Valve 1, Exhaust Camshaft Adjustment Valve 1, Intake Camshaft Adjustment Valve 1, Radiator fan (from Nov 2022)
5A / 7.5ADiesel: Low heat output relay (5A up to Jun 2018, 7.5A from Jul 2018)
5A / 7.5A / 10ARadiator fan (up to Oct 2022 for non-hybrid), High heat output relay, Oil level and oil temperature sender
SB510APetrol: Engine component current supply relay (up to Nov 2017)
10ADiesel: Fuel pressure regulating valve, Fuel metering valve, Turbine changeover valve
10AHybrid (from Nov 2020): Transmission Coolant Valve, Coolant Change-Over Valve 2, High Temperature Circuit Coolant Pump
SB65Aup to Mar 2017: Brake light switch
7.5Afrom Nov 2017: Brake light switch
SB710A / 15APetrol: Coolant shut-off valve, Control unit for fuel tank leak detection (US/CDN markets, from Nov 2017), Coolant Recirculation Pump (2.0L, from Nov 2020)
10A / 15ADiesel: Coolant valve for cylinder head, Valve for oil pressure control, Positive Crankcase Ventilation Heating Element (from Jul 2020), Engine Temperature Control Actuator (from Jul 2020), Piston Cooling Nozzle Control Valve (from Jul 2020)
10A / 15AHybrid (from Nov 2020): Low Temperature Circuit Coolant Pump
7.5A / 10A / 15AGeneral: Charge air cooling pump, Coolant valve for gearbox, Auxiliary pump for heating, Transmission Coolant Valve (from Jul 2020)
SB815Aup to Jul 2018: Lambda probe 1 before/after catalytic converter, Control unit for NOx sender 1 & 2
10A / 15Afrom Jul 2020: Lambda probe 1 before/after catalytic converter, Control unit for NOx sender 1 & 2, NOx Sensor 3, Particulate Sensor (15A for Hybrid models from Nov 2020)
SB910A / 20APetrol / Hybrid: Heater element for crankcase breather, Activated charcoal filter solenoid valve 1, Exhaust camshaft control valve 1, Camshaft control valve 1, Ignition Coils 1-4 with Power Output Stage (20A from Nov 2020)
5A / 10ADiesel: Automatic glow period control unit
5A / 10AExhaust flap control unit 1 & 2, Air mass meter, Auxiliary pump for heating
SB1015APetrol / Hybrid (from Nov 2020): Fuel pump control unit
20ADiesel (and General from Jul 2020): Fuel pump control unit
SB1140AAuxiliary air heater element
50AUS/CDN Markets: Auxiliary air heater element
SB1240AAuxiliary air heater element
SB1330AAuxiliary hydraulic pump 1 for gearbox oil
SB1440AHeated windscreen relay
SB1515AHorn relay
SB1620APetrol: Engine component current supply relay
10AHybrid (from Nov 2020): Electric Drive Power and Control Electronics
SB177.5AEngine/motor control unit, ABS control unit, Heated windscreen relay, Motronic Engine Control Module Power Supply Relay (from Jul 2020)
SB185Aup to Mar 2017: Battery monitor control unit, Data bus diagnostic interface
7.5Afrom Nov 2017: Battery monitor control unit, Data bus diagnostic interface
SB1930AWiper motor control unit
SB2010Aup to Jul 2018: Alarm horn
40Afrom Jul 2020: Brake Booster
SB2130Aup to Nov 2017: Heated windscreen relay 2
15Afrom Jul 2018: Mechatronic unit for dual clutch gearbox
SB225Aup to Jul 2018: Engine/motor control unit
7.5Afrom Jul 2020: Engine/motor control unit
SB2330AStarter
SB2440AAuxiliary air heater element (diesel)
SB25 – SB30–Not used
SB3110AHybrid (from Nov 2020): Tank Switch-Off Valve, Coolant Pump in Front Of Electric Drive Power and Control Electronics, High-Voltage Battery Coolant Pump
SB3230Afrom Jul 2020: Heated windscreen relay 2 (vehicles with battery in engine compartment)
7.5AHybrid (from Nov 2020): Heated windscreen relay 2 (vehicles with battery in engine compartment)
SB3315Aup to Mar 2017 & from Jul 2020: Mechatronic unit for dual clutch gearbox
30ANov 2017 to Jul 2018: Heated windscreen relay 2 (vehicles with battery in engine compartment)
SB3430Afrom Nov 2017: Heated windscreen relay 2 (vehicles with battery in luggage compartment)
SB3530AWiper motor control unit
30AHybrid (from Nov 2020): A/C Relay
SB3615Afrom Jul 2020: Left Front Headlamp
SB3720AAuxiliary heater control unit
SB3815Afrom Jul 2020: Right Front Headlamp

Relays

Assignment of the relays in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Starter Relay 1
R2Starter Relay 2
R3Horn Relay
R4High Heat Output Relay (diesel)
R5Motronic Engine Control Module Power Supply Relay / Main relay (petrol), Terminal 30 Power Supply Relay (diesel)
R6Automatic glow period control unit (diesel)
R7Low heat output relay (diesel)
R8Engine component current supply relay (2.0L petrol), A/C Relay (hybrid, from Jul 2020)
R9Heated windscreen relay
R10Heated windscreen relay 2

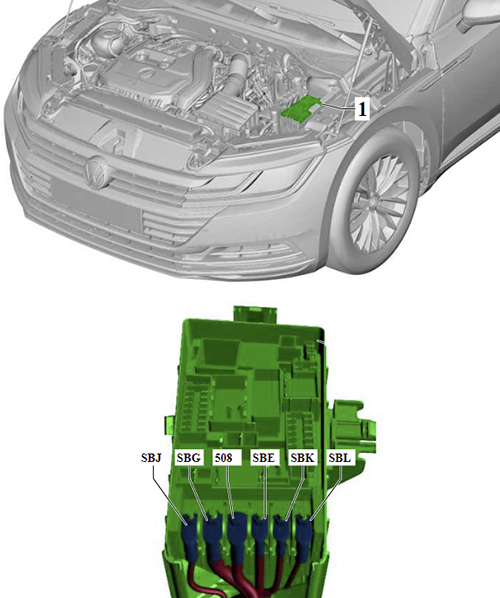

High Voltage Fuses

Assignment of the high voltage fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SBJ125ABattery in engine compartment: Fuse panel C (fuses 4-14, 22, 31, 38-42, 53), Terminal 15 voltage supply relay, Relay for power sockets
80ABattery in luggage compartment: Radiator fan
125AHybrid: Radiator fan
SBG400ABattery in engine / luggage compartment: Alternator
400AHybrid: Electric Drive Power and Control Electronics
508–Battery in engine compartment: Battery
–Battery in luggage compartment: Jump/Remote start connection
–Hybrid: Fuse 3 on Fuse Panel G, Remote start connection
SBE80ABattery in engine compartment: Power steering control unit
SBK80ABattery in engine compartment: Fuse panel C (fuses 1-3, 15-30, 43-46, 50-52)
80ABattery in luggage compartment / Hybrid: Power steering control unit
SBL50ABattery in engine compartment: Radiator fan
80AHybrid: Radiator fan
SBP50AHybrid: Dual-Clutch Transmission Mechatronic

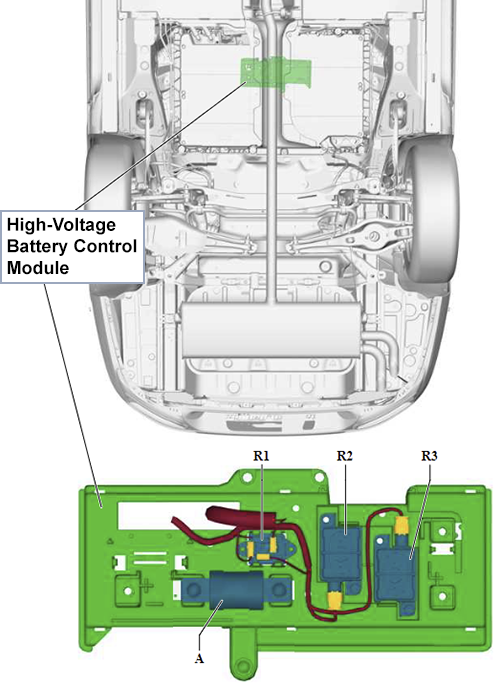

High-Voltage System

High-Voltage System Fuse No.3

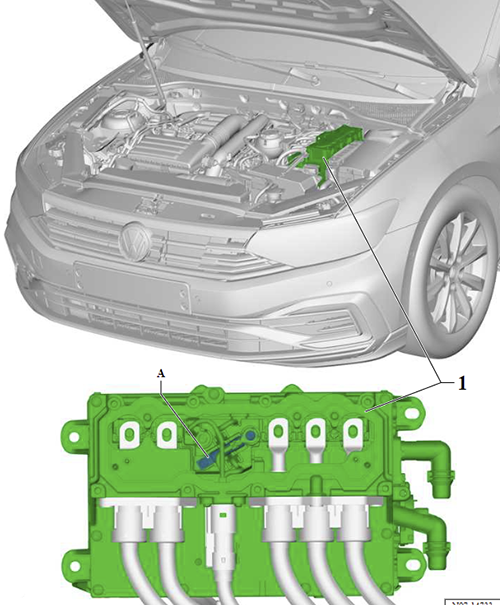

Location and Diagram

High Voltage Fuse

Assignment of the high voltage fuse S353 in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A80AHigh-voltage system fuse 3 -S353-
– Electric Drive Power and Control Electronics -JX1-

Passenger Compartment

Fuse Box (C)

Fuse Box Location

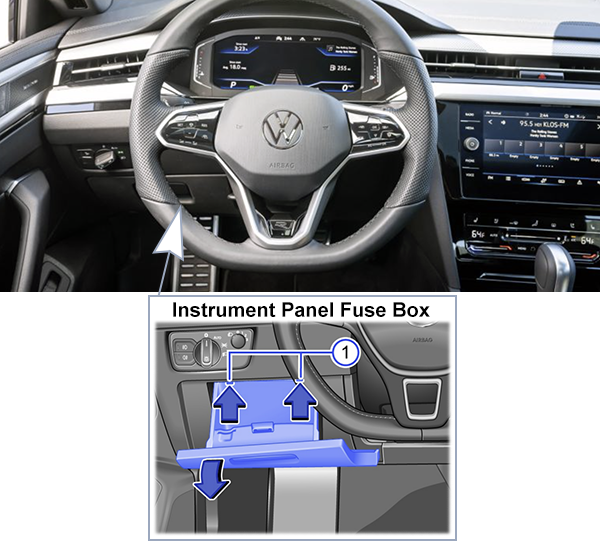

Left-Hand Drive
  1. Open and, if necessary, empty the storage compartment.
  2. Press the retaining tabs upward in the direction of the arrow and, at the same time, open the storage compartment further and remove it until the fuse panel is accessible.
  3. To install: Press the storage compartment into the instrument panel mounts until it locks into place on both sides and then close the compartment

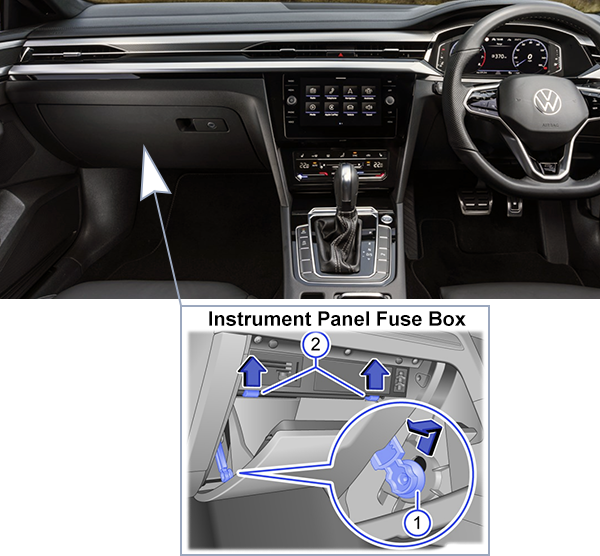

Right-Hand Drive
  1. Open the glove box, and empty it if necessary.
  2. Push the damper element up and into the opening in the bracket, before pulling it out sideways.
  3. Press the stop pin upward in the direction of the arrow.
  4. To install: move the storage compartment into position. Fit the damper element into the opening in the bracket and push it down until you hear it click into place. Push the storage compartment carefully forwards past the resistance of the stop pin.

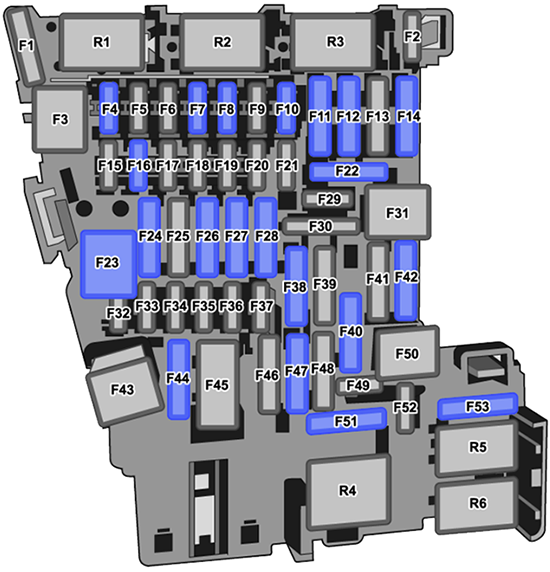

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment Fuse Box C

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC130A
up to Oct 2017		Control unit for reducing agent heater
20A
Nov 2017 to Jun 2018
30A
Jul 2018 to Jun 2021
30A
from Jul 2021		Diesel: Reducing agent heater control module
Top-Sport equipment: Control Modules 1 & 2 for Torque Vectoring
SC210ASteering column electronics control module
SC3–Not used
SC410A
Nov 2017 to Jun 2018		Onboard supply control unit
7.5A
from Jul 2018		Alarm horn
10A
US/CDN markets
SC55A
up to Jun 2018		Data bus diagnostic interface
7.5A
from Jul 2018 (US/CDN from Nov 2017)
SC65A
up to Jun 2018		Selector lever
7.5A
from Jul 2018
SC710AHeater and A/C controls, Rear A/C display control head, Auxiliary coolant heater radio frequency receiver, Heated rear window relay, Analogue clock, Tire pressure monitoring control module
from Jul 2020: A/C clutch relay
SC810A
up to Oct 2017		Rotary light switch, Electromechanical parking brake button, Rain/light recognition sensor, Diagnostic connection, Anti-theft alarm system sensor, Left/Right ambient lighting LEDs, Front interior lamp, Cornering lamp and headlamp range control module, Instrument panel contour illumination lamps 1 & 2, Left/Right front/rear door contour illumination lamps
7.5A
from Nov 2017
SC95A
up to Oct 2017		Steering column electronics control module
7.5A
from Nov 2017
SC107.5A
up to Jun 2018		Front information display control head, Windshield projection head-up display control module
10A
from Jul 2018
SC1140AVehicle electrical system control module (exterior lighting on the left side)
SC1220AInformation electronics control module 1
Korea models only up to Jun 2020: Control unit for navigation system
SC1325ALeft front seat belt
SC1440AFresh air blower control module
SC1510AElectronic steering column lock control module
SC167.5A
up to Oct 2022		Mobile communication 2-way signal amplifier, USB charging socket 1, Storage compartment with cell phone interface, USB hub / distributor
from Jul 2020: USB connection 1, TV Tuner
10A
from Nov 2022
SC177.5AInstrument cluster, Control module for emergency call module and communication unit
SC187.5APeripheral camera control module, Rear lid handle, Rear peripheral camera
SC197.5AAccess/start authorization control module
SC207.5A / 10ADiesel: Reducing agent metering system relay
15APetrol (1.5L from Nov 2017): Vacuum pump relay
SC2115AAll wheel drive control module
SC2215ATowing recognition control module
SC2330A
up to Oct 2017		Sunroof control module
20A
from Nov 2017
SC2440AVehicle electrical system control module (exterior lighting on the right side)
SC2530ALHD Vehicles: Driver door control module, Driver side rear door control module
30ARHD Vehicles: Front passenger door control module, Passenger side rear door control module
SC2630AVehicle electrical system control module (seat heating)
SC2730AVehicle electrical system control module (interior lighting)
SC2825ATowing recognition control module
SC295A
from Jul 2018		US/CDN markets: Remote start system relay
SC3010A
from Nov 2020		Hybrid: High-Voltage Battery 1, High-Voltage System Maintenance Connector
10A
from Nov 2017		US/CDN markets: Remote start system relay
SC3130A
from Jul 2018		Rear lid control module
SC3210A
up to Jun 2021		Driver assistance systems front camera, Control module for adaptive cruise control, Parking aid control module, Lane change assistance control modules 1 & 2
7.5A / 10A
from Jul 2021
SC335A
up to Oct 2017		Airbag control module
US/CDN markets (Jul 2020 to Nov 2020): Passenger occupant detection system control module
from Jul 2021: Airbag indicator lamp
7.5A
from Nov 2017
SC347.5AInterior rearview mirror, Sockets relay, Back-up lamp switch, Refrigerant circuit pressure sensor, Exterior air quality and humidity sensor, Switch module in instrument panel center, Center console switch module 1, Structure borne sound control module, Electromechanical parking brake button
SC3510A
up to Jun 2018		Diagnostic connection
7.5A
from Jul 2018
SC365A
up to Oct 2017		up to Jun 2020: Front right headlight
7.5A
Nov 2017 to Jun 2020
SC375A
up to Oct 2017		up to Jun 2020: Front left headlight
7.5A
Nov 2017 to Jun 2020
SC3825ATowing recognition control module
SC3930ALHD Vehicles: Front passenger door control module, Passenger side rear door control module
30ARHD Vehicles: Driver door control module, Driver side rear door control module
SC4020A12 V Sockets 1-3 (Supplied by terminal 15 from the factory, can be supplied by terminal 30 instead. Disconnect equipment when engine is off to prevent battery drain.)
SC4125ARight front seat belt
SC4240AVehicle electrical system control module (central locking system)
SC4340ADigital sound system control module
SC4415ATowing recognition control module
SC4515ADriver seat adjustment control module, Left front seat cushion fan 1, Left front seat backrest fan 1, Driver seat adjustment control head
SC4630A
up to Jun 2020		DC/AC converter with socket, 12 V – 230 V
7.5A
from Jul 2020		USB charging socket 1
SC477.5A
Jul 2020 to Oct 2022		Rear window wiper motor (Sportback)
15A
from Nov 2022
SC487.5A
from Nov 2020		Hybrid: Engine sound generator control module
7.5A
from Nov 2020		US/CDN: Passenger occupant detection system control module
SC495A
up to Oct 2017		Clutch position sensor, Starter relays 1 & 2
7.5A
from Nov 2017
SC5040A
up to Jun 2018		Rear lid control module
SC5125ARear A/C display control head (rear seat heating)
SC5215AElectronic damping control module
SC5330AHeated rear window relay

Relays

Assignment of the relays in the passenger compartment Fuse Box C

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Diesel: Reducing agent metering system relay
Petrol (1.5L gasoline, from Nov 2017): Vacuum pump relay (1.5L gasoline, from Nov 2017)
R2A/C clutch relay (diesel, from Jul 2020)
R3Not used
R4Terminal 15 power supply relay
R5Rear window defogger relay
R6Sockets relay

Individual Fuses

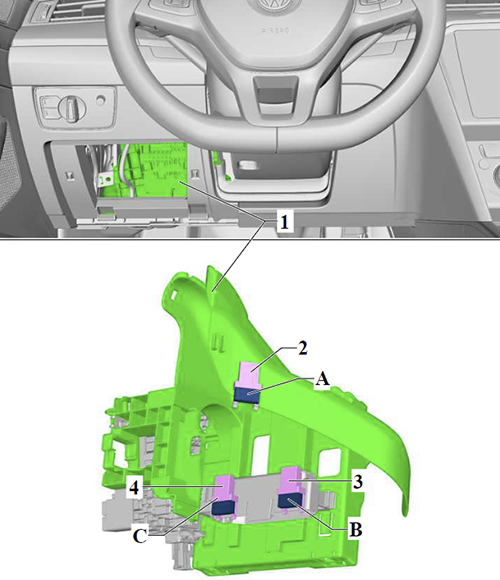

Location and Diagram (LHD)

Left-hand drive vehicles.

Fuses

Assignment of the single fuses in the passenger compartment (LHD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A15ARight front seat adjustment control head, Right front seat cushion fan 1, Right front seat backrest fan 1
B5A
up to Oct 2018		Remote starting system relay
–from Nov 2018: Not used
C7.5A
up to 2019		USB charging socket 1
30A
from 2020		Converter with socket, 12 V – 230 V

Relays

Assignment of the relays in the passenger compartment single fuses carrier (LHD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Remote start system relay

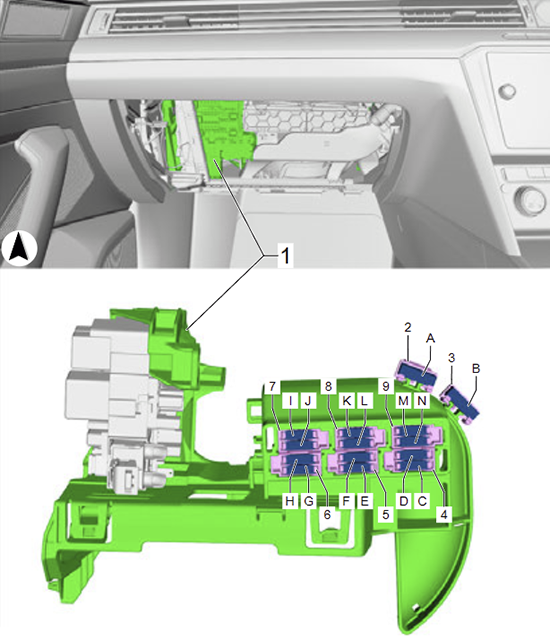

Location and Diagram (RHD)

Right-hand drive vehicles.

Fuses

Assignment of the single fuses in the passenger compartment (RHD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A15AFront passenger seat adjustment control head, Right front seat cushion fan 1, Right front seat backrest fan 1
B – G–Not used
H7.5Aup to 2019: USB charging socket 1
from 2020: Converter with Socket, 12 V – 230 V
I – N–Not used

Luggage Compartment

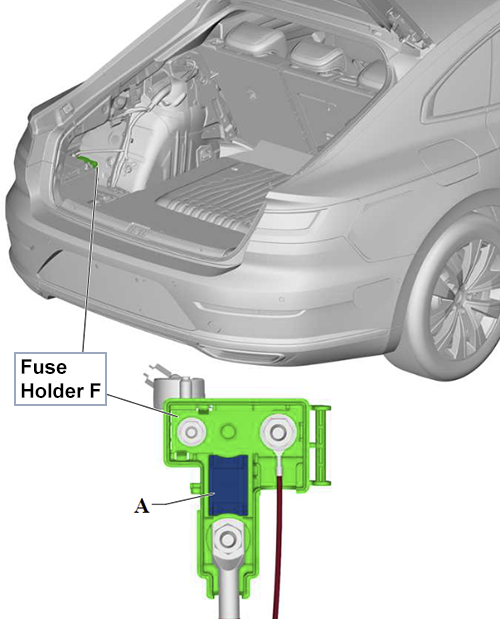

Fuse Box (F) Hybrid

Location and Diagram

High Voltage Fuse

Assignment of the high voltage fuse in the luggage compartment fuse box F

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A175AMotronic Engine Control Module Power Supply Relay, Fuse panel B (fuses 13-21, 33-38, G, J, K)

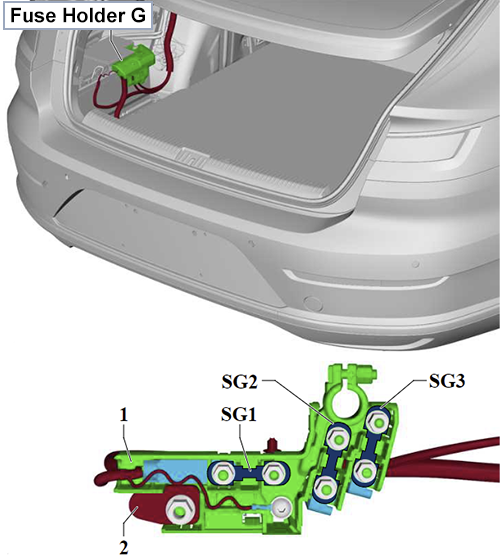

Fuse Box (G)

Location and Diagram

For models with battery in luggage compartment.

High Voltage Fuses

Assignment of the high voltage fuses in the luggage compartment fuse box G

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SG180AFuse holder C -SC-
– Fuse 1 on fuse holder C -SC1- to fuse 3 on fuse holder C -SC3-
– Fuse 15 on fuse holder C -SC15- to fuse 30 on fuse holder C -SC30-
– Fuse 43 on fuse holder C -SC43- to fuse 46 on fuse holder C -SC46-
– Fuse 50 on fuse holder C -SC50- to fuse 52 on fuse holder C -SC52-
SG2125AFuse holder C -SC-
– Fuse 4 on fuse holder C -SC4- to fuse 14 on fuse holder C -SC14-
– Fuse 22 on fuse holder C -SC22-
– Fuse 31 on fuse holder C -SC31-
– Fuse 38 on fuse holder C -SC38- to fuse 42 on fuse holder C -SC42-
– Fuse 53 on fuse holder C -SC53-
– Terminal 15 voltage supply relay -J329-
– Relay for power sockets -J807-
SG3125AFuse holder D -SD-
– Fuse 3 on fuse holder D -SD3-
– Fuse 5 on fuse holder D -SD5-
– Fuse 7 on fuse holder D -SD7-

Undercarriage

High-Voltage Battery Control Module

Location and Diagram

High Voltage Fuses

Assignment of the high voltage fuses in the undercarriage

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A350AHigh-voltage system fuse 1 -S350-
High-Voltage Battery 1 -AX2-
R1High-voltage battery pre-load protection -J1044-
R2High-voltage battery power output protection 1 -J1057
R3High-voltage battery power output protection 2 -J1058

Scroll to Top
