Volkswagen Golf (2020-2026)

Looking for Volkswagen Golf fuse box diagrams? This article covers the eighth-generation Volkswagen Golf (Model Codes: CD1, CG5), produced from 2019, and includes fuse box diagrams for Volkswagen Golf (MK8) 2019, 2020, 2021, 2022, 2023, 2024, 2025 and 2026, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment (-SA-, -SB-)

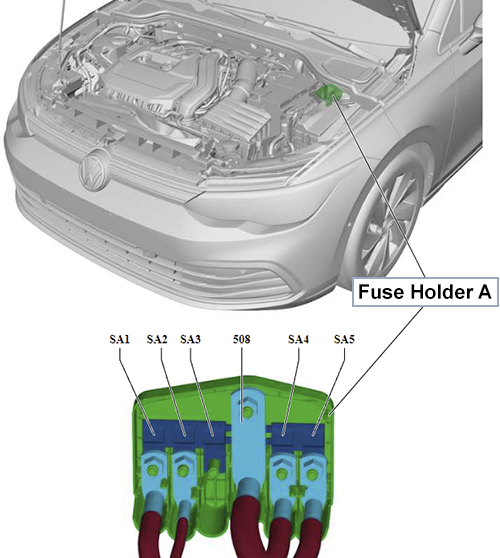

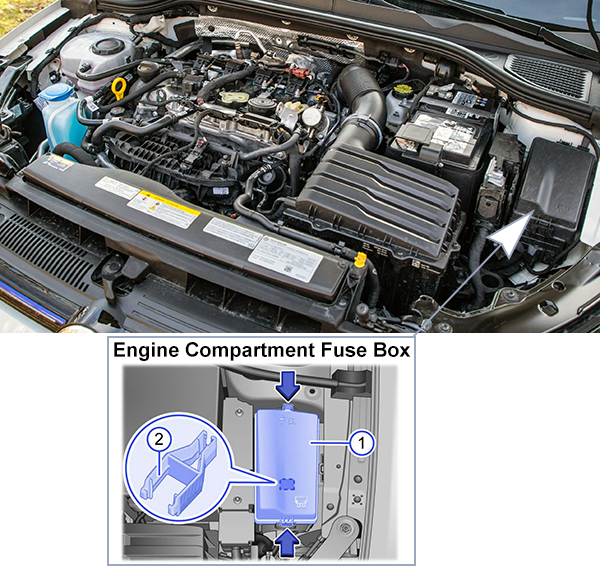

Fuse Box Location

Press the catches in the direction of the arrow, to release the fuse box cover (1).

Fuse Box Diagram (-SA-)

High Voltage Fuses

Assignment of the high voltage fuses in engine compartment (-SA-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150AFuse Panel B -SB-
SA250ARadiator Fan -VX57-
SA3––
508–Battery -A-
SA4125AFuse Panel C -SC-
SA5125AFuse Panel C -SC-

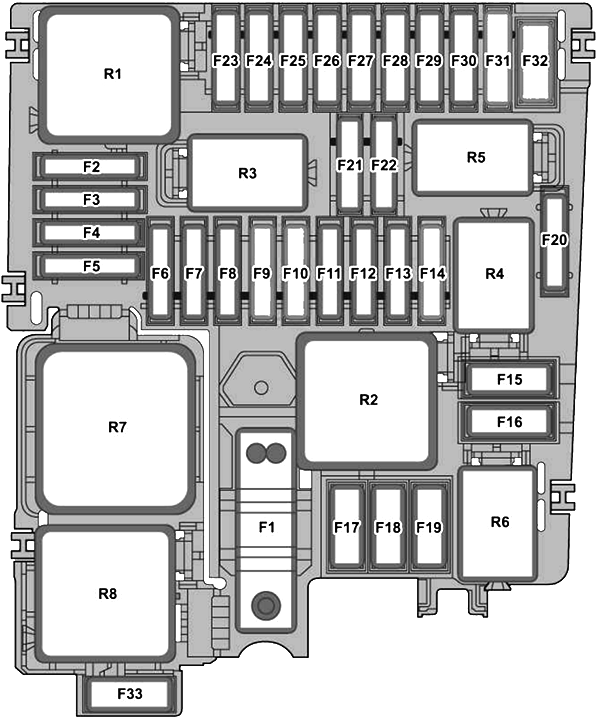

Fuse Box Diagram (-SB-)

Fuses

Assignment of the fuses in engine compartment (-SB-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB180APower Steering Control Module
SB27.5AMotronic Engine Control Module Power Supply Relay (gasoline), Terminal 30 Power Supply Relay (diesel), Engine/Motor Control Module, ABS Control Module
SB3–up to Jun 2020:
Not Assigned
20A
7.5A		from Jul 2020:
Gas Shut-Off Valve Relay (natural gas), Fuel Pump Relay (1.6L engine), Engine Component Power Supply Relay (2.0L gasoline)
SB415ALeft Front Headlamp
SB515ARight Front Headlamp
SB6––
SB730ATransmission Fluid Auxiliary Hydraulic Pump 1 (depending on equipment)
SB840ABrake Booster
SB915AHorn Relay
SB1030AWiper Motor Control Module
SB11––
SB1215A / 30A (depending on equipment)Dual-Clutch Transmission Mechatronic, Transmission Control Module (from Jul 2020)
SB1325AABS Control Module
SB1420AAuxiliary Heater Control Module
SB1540AABS Control Module
SB16––
SB1740Aup to Jun 2021:
Auxiliary Heater Heating Element (diesel)
40A / 50A (depending on equipment)from Jul 2021:
Auxiliary Heater Heating Element (diesel), Secondary Air Injection Pump Motor (gasoline, USA)
SB1840AAuxiliary Heater Heating Element (diesel)
SB19––
SB20–up to Jun 2020:
Not Assigned
15Afrom Jul 2020:
Differential locks control module
SB217.5AEngine/Motor Control Module
SB2230AStarter
SB2315AEngine/Motor Control Module
SB247.5A (diesel)
10A (gasoline / 1.5L)		up to Jun 2020:
Radiator Fan, Oil Level Thermal Sensor, EVAP Canister Purge Regulator Valve 1 (gasoline), Exhaust Camshaft Adjustment Valve 1 (gasoline), Intake Camshaft Adjustment Valve 1 (gasoline), Oil Pressure Regulation Valve (gasoline), Piston Cooling Nozzle Control Valve (gasoline), Fuel Pressure Regulator Valve (diesel), Reducing Agent Metering System Relay (diesel), Automatic Glow Time Control Module (diesel), Starter Generator (48V), Cylinder 2 and 3 Intake/Exhaust Cam Actuators (1.5L)

from Jul 2020:
Adds: Secondary Air Injection Pump Relay (2.0L / Top-Sport), Gas Tank Pressure Sensor (natural gas, changed to Gas Tank Valve in Jul 2021), Ignition Coils 1-4 (1.6L), Intake Manifold Runner Control Valve (2.0L / Top-Sport), Turbocharger Recirculation Valve (2.0L / Top-Sport), Piston Cooling Nozzle Control Valve (2.0L), Oil Pressure Regulation Valve (2.0L), Camshaft Adjustment Valve 1 (Top-Sport), Gas Shut-Off Valve Relay (natural gas), Wastegate Bypass Regulator Valve (diesel, from Jul 2021)
SB25–up to Jun 2020:
Not Assigned
10AJul 2020 to Oct 2022:
Fuel Injection Valves 1-4 (natural gas / 1.6L), Cam Adjustment Actuators 1-8 (2.0L / Top-Sport)
10A
7.5A (gasoline)		from Nov 2022:
Fuel Injection Valves 1-4 (natural gas / 1.6L), Cam Adjustment Actuators 1-8 (2.0L / Top-Sport), Particulate Sensor (diesel), NOx Sensor Control Modules 1-3 (diesel)
SB2610Aup to Jun 2021:
Charge Air Cooling Pump (gasoline, natural gas), Engine Temperature Control Actuator (diesel), Coolant Regulation Valve (diesel), Piston Cooling Nozzle Control Valve (diesel), Positive Crankcase Ventilation Heating Element (diesel), Heater Support Pump (diesel), Oil Pressure Regulation Valve (diesel)
Added Jul 2020: EVAP Canister Purge Regulator Valve 1 (2.0L), Exhaust Camshaft Adjustment Valve 1 (2.0L), Camshaft Adjustment Valve 1 (2.0L), Transmission Coolant Valve (2.0L / Top-Sport), Coolant Recirculation Pump (2.0L / Top-Sport), Exhaust Door Control Units 1 and 2 (2.0L / Top-Sport)
10Afrom Jul 2021:
Includes all above plus: EGR Cooler Switch-Over Valve (diesel), Fuel Tank Leak Detection Module (USA), Secondary Air Injection Solenoid Valve (gasoline, USA)
SB27up to Oct 2022:
10A / 15A
from Nov 2022:
7.5A / 10A / 15A		Oxygen Sensor 1 Before/After Catalytic Converter (gasoline), NOx Sensor Control Modules 1-3 (diesel), Particulate Sensor (diesel)
*Note: Diesel emissions sensors moved to SB25 depending on equipment in Nov 2022.
SB2820AIgnition Coils 1-4 with Power Output Stage (1.5L, 1.6L, 1.4L), EVAP Canister Purge Regulator Valve 1 (1.6L, 1.4L), Intake Camshaft Adjustment Valve 1 (1.6L, 1.4L), Exhaust Camshaft Adjustment Valve 1 (1.4L), Oil Pressure Regulation Valve (1.4L)
SB2915A / 20A (depending on equipment)Fuel Pump Control Module, Fuel Pump Relay (1.6L)
SB30––
SB317.5ABrake Light Sensor
SB3240AWindshield Defroster
SB3340AAuxiliary Heater Heating Element (diesel)

Relays

Assignment of the relays in engine compartment (-SB-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Motronic Engine Control Module Power Supply Relay (gasoline) / Terminal 30 Power Supply Relay (diesel)
R2High Heat Output Relay (diesel, 1.0L gasoline from Jul 2020, auxiliary heater from Jul 2020) / Secondary air injection pump relay (2.0L gasoline from Jul 2020)
R3Horn Relay
R4Starter Relay 1
R5Starter Relay 2
R6up to Jun 2020:
Not Assigned
from Jul 2020:
Fuel Pump Relay (1.6L gasoline), Engine Component Power Supply Relay (2.0L gasoline), Gas shut-off valve relay (natural gas)
R7Automatic glow time control module
R8Low Heat Output Relay

Passenger Compartment (-SC-)

Fuse Box Location

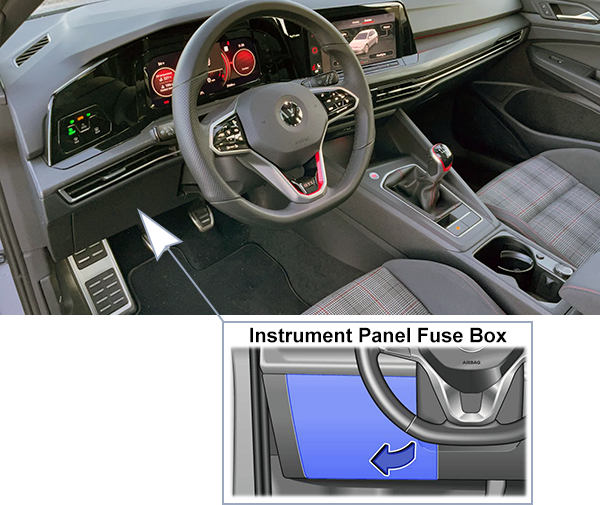

Left-Hand Drive

For left-hand drive vehicles: Reach behind the cover and pull it off in the direction of the arrow.

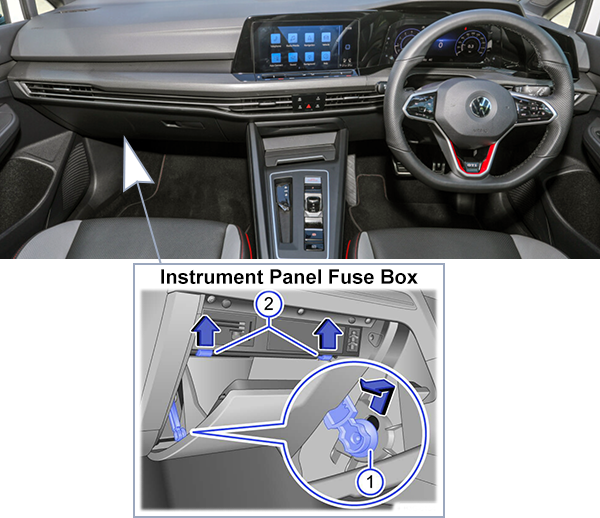

Right-Hand Drive

For right-hand drive vehicles: Push the damper element up and into the opening in the bracket, before pulling it out side-ways (1). Push the catches up in the direction of the arrow while at the same time opening the storage compartment further (2).

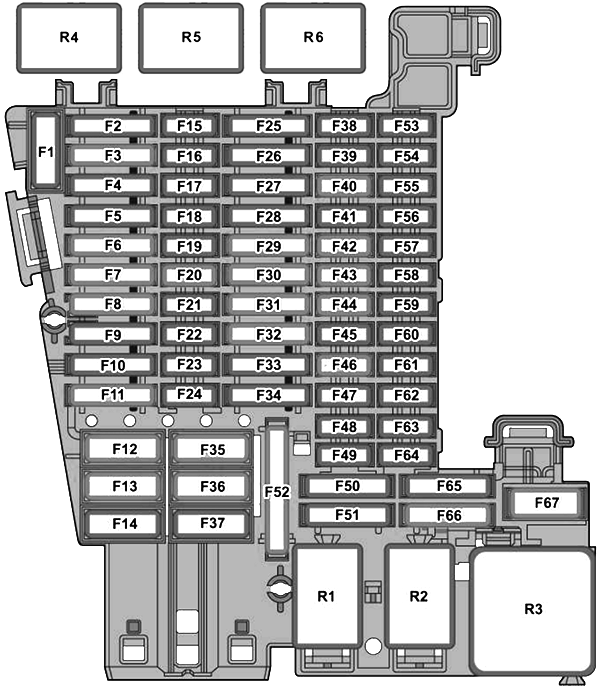

Fuse Box Diagram

Fuses

Assignment of the fuses in passenger compartment (-SC-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1 – SC2––
SC325ATowing Recognition Control Module
SC420A (diesel)
30A (Top-Sport)		Reducing Agent Heater Control Module (diesel)
from Jul 2021: Control Module 1 and 2 for Torque Vectoring (Top-Sport)
SC57.5A
25A		up to Jun 2020: Parking Lock Actuator (7.5A)
from Jul 2020: Parking Lock Actuator (25A)
SC630AVehicle Electrical System Control Module – interior lighting
SC730AHeating and Air Conditioning Control Module – seat heating
SC820ASunroof Control Module (depending on equipment)
SC930ADoor Control Modules (Driver, Front Passenger), Rear Window Regulator Motors (Driver Side, Passenger Side)
SC10––
SC1115ATowing Recognition Control Module
SC1240AVehicle Electrical System Control Module – exterior lighting (right-side)
SC1340AVehicle Electrical System Control Module – central locking
SC1430ADigital Sound System Control Module
SC15––
SC167.5AAirbag Control Module
SC1710A
40A		up to Oct 2022: Reducing Agent Metering System Relay (diesel, 10A)
from Nov 2022: Reducing Agent Metering System Relay (diesel, 40A)
SC187.5AAccess/Start Authorization Control Module, Exterior Door Handles (Driver, Front Passenger), Burglary Protection Control Modules 2-5, Electronic Steering Column Lock Control Module
SC197.5AInstrument Cluster, Control Module for Emergency Call Module and Communication Unit
SC207.5AInternet Access Control Module, USB Connection 1, Telephone Baseplate, Transceiving Stabilization Control Module
from Jul 2020: adds TV Tuner, Chip Card Reader Control Module
from Nov 2022: adds USB Charging Socket 1
SC217.5ALane Change Assistance Control Module 1 and 2, Exterior Rearview Mirrors (Driver, Front Passenger), Rear Lid Handle
SC22 – SC23––
SC2415Afrom Jul 2020: All Wheel Drive Control Module
SC2525AFront Seat Belts (Left, Right)
SC2630ADoor Control Modules (Driver, Front Passenger), Rear Window Regulator Motors (Driver Side, Passenger Side)
SC2725AFront Seat Belts (Right, Left)
SC28––
SC2915ATowing Recognition Control Module
SC3020A
30A		up to Jun 2020: Information Electronics Control Module 1 (20A)
from Jul 2020: Information Electronics Control Module 1 (30A)
SC3125ATowing Recognition Control Module
SC3225ARear A/C Display Control Head – rear seat heating
SC33 – SC34––
SC3540AVehicle Electrical System Control Module – exterior lighting (left-side)
SC3640AFresh Air Blower Control Module
SC37 – SC38––
SC3910ASteering Column Electronics Control Module
SC407.5AAlarm Horn
SC417.5AData Bus on Board Diagnostic Interface
SC427.5ASelector mechanism, Selector Lever Transmission Range Display
SC4310AVehicle Interior Temperature Sensor, Parking Heater Radio Receiver, Heating and Air Conditioning Control Module, Rear A/C Display Control Head, Rear Window Defogger Relay
SC447.5AParking brake button, Diagnostic Connection, Front Roof Module, Anti-Theft Alarm System Sensor, Illumination Control Head, Cornering Lamp and Headlamp Range Control Module, Rain/Light Recognition Sensor
SC457.5ASteering Column Electronics Control Module
SC467.5AWindshield Projection Head Up Display Control Module, Front Information Display Control Head
SC4715A
10A		up to Jun 2020: Electronic Damping Control Module (15A)
from Jul 2020: Electronic Damping Control Module (10A)
SC487.5AUSB Charging Socket 1
SC49 – SC51––
SC5220A12 V Socket, 12 V Socket 3
SC53 – SC57––
SC587.5ADriver Assistance Systems Front Camera, Parking Aid Control Module, Control Module for Adaptive Cruise Control
SC597.5AParking brake button, Automatic Dimming Interior Rearview Mirror, Air Quality Sensor, Refrigerant Circuit Pressure Sensor, Back-up lamp switch, Sockets Relay
from Jul 2020: adds Structure borne sound control module
SC607.5ADiagnostic Connection
SC617.5AStarter Relay 1, Starter Relay 2
SC62 – SC63––
SC647.5Afrom Jul 2020: Front Passenger Seat Occupant Detection Sensor (USA)
SC6510Afrom Jul 2020: Engine sound generator control module
SC6615ARear Window Wiper Motor
SC6730ARear Window Defogger Relay

Relays

Assignment of the relays in passenger compartment (-SC-)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Sockets Relay
R2Terminal 15 Power Supply Relay
R3Rear Window Defogger Relay
R4Reducing agent metering system relay (diesel)
R5–
R6–

Passenger Compartment (Single Fuses)

Left-Hand Drive

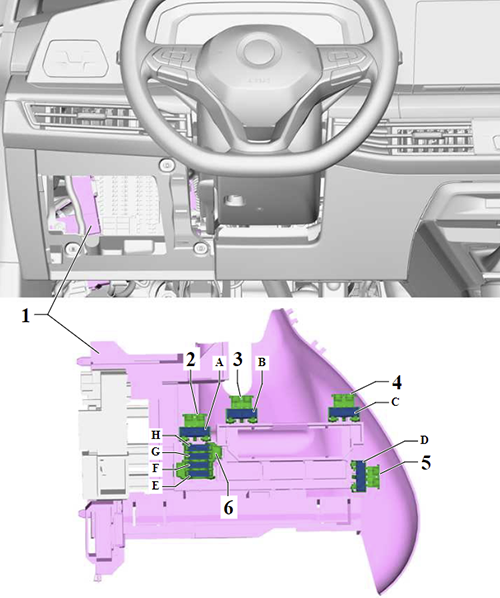

Location and Diagram (From August 2019)

Fuses

Assignment of individual fuses in the passenger compartment (from August 2019)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A15ADriver Power Seat Adjustment Circuit Breaker 1 -S44-
– Driver Seat Adjustment Control Module -J810-
B––
C––
D––
E––
F––
G––
H––

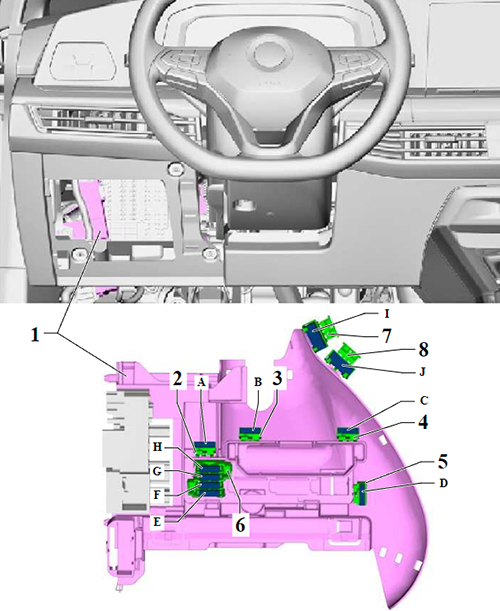

Location and Diagram (From July 2020)

Fuses

Assignment of individual fuses in the passenger compartment (from July 2020)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A15ADriver Power Seat Adjustment Circuit Breaker 1 -S44-
– Driver Seat Adjustment Control Module -J810-
B––
C––
D––
E––
F––
G––
H––
I15ADriver Power Seat Adjustment Circuit Breaker 1 -S44-
– Driver Seat Backrest Blower Fan -V388-
– Driver Seat Cushion Blower Fan -V390-
J15AFront Passenger Power Seat Adjustment Circuit Breaker 1 -S46-
– Front Passenger Seat Backrest Blower Fan -V389-
– Front Passenger Seat Cushion Blower Fan -V391-

Location and Diagram (From February 2021)

Fuses

Assignment of individual fuses in the passenger compartment (from February 2021)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A15ADriver Power Seat Adjustment Circuit Breaker 1 (Driver Seat Adjustment Control Module)
B – C––
D15ADriver Power Seat Adjustment Circuit Breaker 1: Driver Seat Backrest and Cushion Blower Fan, Driver Seat Adjustment Control Head (USA)
E15AFront Passenger Seat Backrest Blower Fan (seat ventilation), Front Passenger Seat Cushion Blower Fan, Front Passenger Seat Adjustment Control Head (USA)
F––
G10ADriving assistance and special purpose vehicles:
Fuse 1 on Relay and Fuse Panel SRSE: Special Purpose Vehicle Control Module, Diagnostic Connection 2, Wheelchair Lift Coupling Point, Two-Way Radio Coupling Point, Left and Right Front Door Coupling Point, Coupling Point for Event Data Recorder, Special Signal Control Head Coupling Point
H – J––
K40ADriving assistance and special purpose vehicles:
Fuse 1 on Relay and Fuse Panel SRSC: Wheelchair Lift Coupling Point, Special Purpose Vehicle Control Module
L40ADriving assistance and special purpose vehicles:
Fuse 2 on Relay and Fuse Panel SRSC: Special Purpose Vehicle Control Module, Fuse 16 on Relay and Fuse Panel SRSH
M – P––

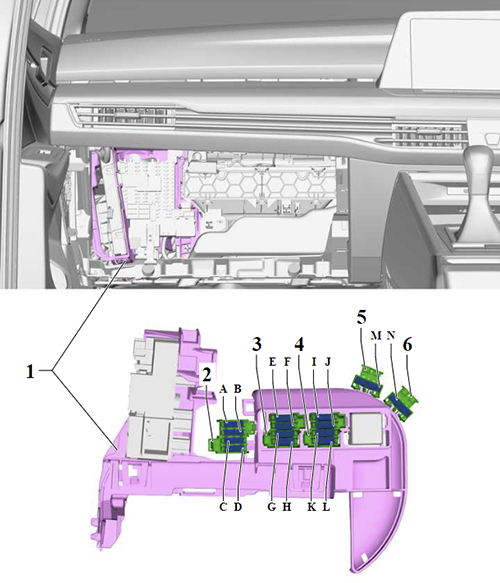

Right-Hand Drive

Location and Diagram

Fuses

Assignment of individual fuses in the passenger compartment (Right-hand drive vehicles)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A – L––
M15Aup to Jun 2020:
Driver Power Seat Adjustment Circuit Breaker 1 (Driver Seat Adjustment Control Module)
from Jul 2020:
Driver Power Seat Adjustment Circuit Breaker 1 (Driver Seat Adjustment Control Module, Driver Seat Backrest Blower Fan, Driver Seat Cushion Blower Fan)
N–up to Jun 2020:
Not Assigned
15Afrom Jul 2020:
Front Passenger Power Seat Adjustment Circuit Breaker 1 (Front Passenger Seat Backrest Blower Fan, Front Passenger Seat Cushion Blower Fan)
