Volkswagen LT (1996-2006)

Looking for Volkswagen LT fuse box diagrams? This article covers the second-generation Volkswagen Transporter LT (Model Code: 2D), produced from 1996 to 2006, and includes fuse box diagrams for Volkswagen LT 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Dashboard

Fuse Box Location

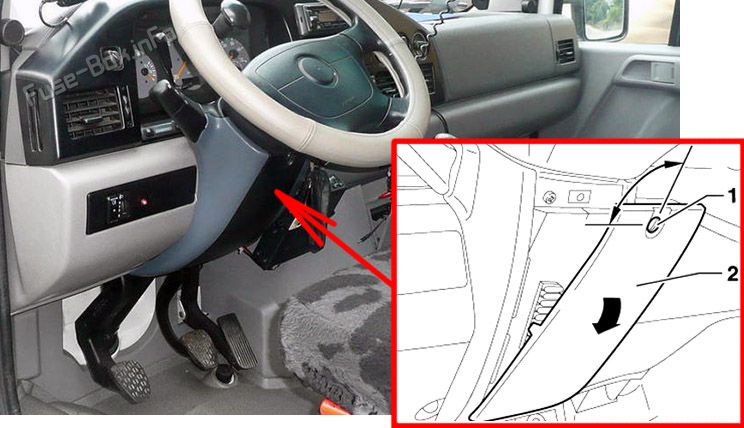

The fuse box is located behind an access panel in the steering column. Use a coin or a large screwdriver to give slotted head bolt 1 a 90° clockwise turn. Open and detach cover 2 of relay plate with fuse carrier.

Location of the fuses in the passenger compartment: Volkswagen LT (1996-2006)

Fuse Box Diagram

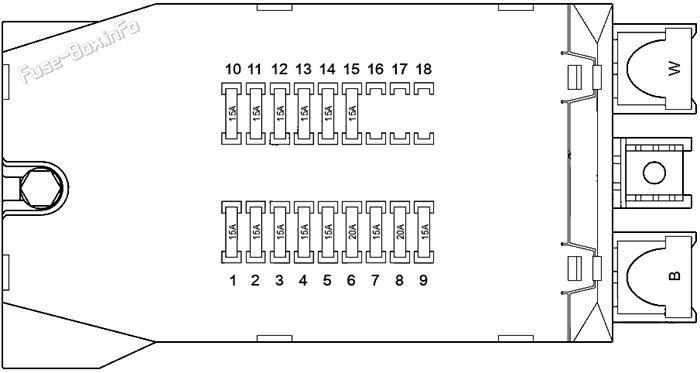

Instrument panel fuse box diagram: Volkswagen LT (1996-2006)

Fuses

Assignment of the fuses in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115ARight side and tail lights
215ARight main beam (56a)
315ALeft main beam (56a), warning light
415AReversing lights
515ABrake light
620AWindow wash/wipe system
715AHorn (15), self-diagnosis (15), terminal 15 relief relay, fresh air and recirculating air flap two-way valve, dash panel insert, heated rear window
820AInterior lights, cigarette lighter, radio system (30), self-diagnosis (30)
915AAnalogue clock, hazard warning system, parking light
1015AInstrument lighting, number plate lighting (58)
1115ALeft side and tail lights (58L)
1215ARight dipped beam (56b)
1315ALeft dipped beam (56b)
1415AFog light, rear fog light
1515ARadio system (15)
16–Free for optional equipment
17–Free for optional equipment
18–Free for optional equipment

Relays

Assignment of the relays in the instrument panel

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.Description
BHazard warning light relay
WWiper motor relay

Under Driver Seat

The auxiliary relay carriers and fuse carriers are not positioned according to a specific pattern but according to equipment fitted to vehicle.

Relay Box Location

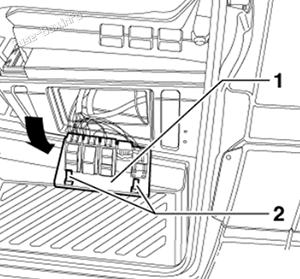

  1. Fold down auxiliary relay carrier
  2. Slide down catches
    Relay carrier under driver seat: Volkswagen LT (1996-2006)

    Auxiliary Relay Box

    Fuses

    Assignment of the fuses under the driver seat

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.AmpsDescription
    S17115ABattery isolation relay fuse
    S4130AHeated rear window single fuse
    S16015AHeated passenger’s seat fuse
    S15915AHeated driver’s seat fuse
    S16110ATrailer operation turn signal relay fuse
    S18810ARoof mounted turn signals fuse
    S18715ADifferential lock fuse
    S14715ARelief relay fuse
    S3725APower window fuse (driver’s side)
    S17025AFuse for electric windows (front passenger side)
    S9730AFresh air blower fuse
    S2325AHeater fuse (Additional air heater B1LC/D1LC / B3LC/D3LC)
    S5360AABS hydraulic pump fuse/valves
    S18615ATilt device fuse
    S13615AAir conditioning system fuse
    S8120AFuel pump fuse (Engine codes: AGL)
    S4220ARadiator fan fuse
    S25415AOptional equipment fuse (Additional exterior and interior installations)
    S21915APower take-off fuse
    S21915APower take-off/speed regulation fuse (Engine codes: AHD)
    S8210AContinued circulation of coolant pump fuse (Engine codes: AHD, AGX, AGK)
    S5350AABS return flow pump fuse (ABS control unit)
    S10625ARotating light fuse
    S15020AHeadlight washer system fuse
    S19015ATerminal 30 voltage supply fuse (Heated rear window delay relay, magnetic coupling control unit, battery split charge relay)
    S14810AMirror adjustment /heater fuse
    S6420ASocket fuse
    S1247.5AABS control unit fuse
    S12410AABS control unit fuse
    S2207.5ADaylight driving lights fuse (from May 1997)
    S17215ADaylight driving light fuse (left dipped beam)
    S17415ADaylight driving light fuse (left side and tail lights) (up to April 1997)
    S17515ADaylight driving light fuse (right side and tail lights) (up to April 1997)
    S4915ASiren fuse
    S5425AABS valves fuse
    S5110AWarm air blower 1st and 2nd speeds fuse
    S11825AWarm air blower and coolant shut-off valve fuse
    S5225ACentral locking fuse
    S29030AFuel filter heating fuse
    S17515ADaylight driving light fuse (side and tail lights) (from May 1997)
    S17315ADaylight driving light fuse (right dipped beam)

    Auxiliary relay carrier on the flap under the driver’s seat

    Relays

    Assignment of the relays on the flap under the driver’s seat

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    Description
    Terminal 15 relief relay
    Terminal D+ relief relay
    Fuel pump relay (Engine codes: AGL)
    Fresh air blower relay
    Air conditioning system switch-off relay
    Magnetic coupling relay
    Headlight washer system relay
    Horn relay
    Terminal 30 voltage supply relay (Engine codes: AHD, AGX)
    Daylight driving light relay (dipped beam)
    Daylight driving light relay (left dipped beam) (from May 1997)
    Daylight driving light relay (right dipped beam) (from May 1997)
    Daylight driving relay (side and tail lights)
    Magnetic coupling control unit (Engine codes: AGL)

    Auxiliary relay carrier and control units under driver’s seat at rear

    Relays

    Assignment of the relays units under driver’s seat at rear

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    Description
    Battery split charge relay
    Trailer operation turn signal relay
    Roof mounted turn signals relay
    Daylight driving lights switch-on relay
    Rotating light relay
    Airbag/seat belt tensioner control unit
    CCS control unit (Engine codes: AGL)
    Coolant shortage indicator control unit (Discontinued from August 1998)
    Rotating light and siren system control unit
    Central locking control unit
    Diesel direct injection system control unit
    Motronic control unit (Engine codes: AGL 105 KW)
    Fuel filter heater relay
    Tilt device relay
    Magnetic coupling cut-out relay, air conditioning system
    Radiator fan relay
    Delay relay

    Engine Compartment

    Relay carrier on right in engine compartment

    Relays

    Assignment of the relays in the engine compartment

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    Description
    Radiator fan 4th speed relay
    Automatic intermittent wash/wipe and Hazard warning light relay control unit

    Relay carrier on left in engine compartment

    Relays

    Assignment of the relays in the engine compartment

    Fuse Data
    Full access is available to registered users — log in or register.
    Log in or register

    No.AmpsDescription
    S3980AStrip fuse for glow plugs (Engine codes: AHD, AGX, AGK)
    Glow plug relay (Engine codes: AHD, AGX)
    Glow plug relay (Engine codes: AGK)
    ABS with EDL control unit
    Immobilizer control unit
