Looking for Volkswagen Passat fuse box diagrams? This article covers the Volkswagen Passat (Model Code: B7), produced from 2010 to 2015, and includes fuse box diagrams for Volkswagen Passat (B7) 2010, 2011, 2012, 2013, 2014 and 2015, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.

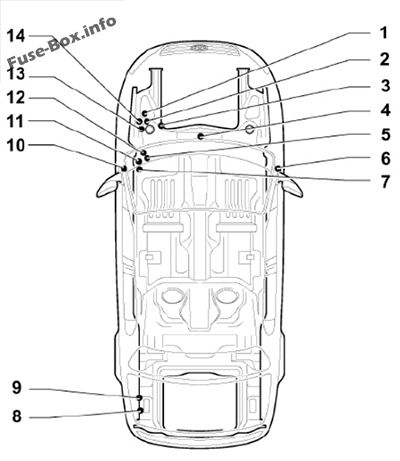

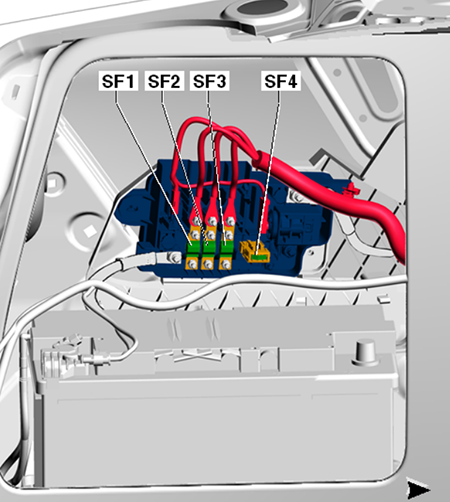

1 – Pre-Fuse box (Fuse holder A -SA-); 2 – Relay carrier under electronics box; 3 – Terminal 30 wiring junction; 4 – Heated windscreen relay; In plenum chamber next to engine control unit; 5 – Fuses on left under dash panel; 6 – Fuse holder on the right side edge of the instrument panel (Fuse holder D -SD-); 7 – Relays on onboard supply control unit; 8 – Fuses in the luggage compartment (Fuse holder F -SF-); There are additional fuses above the vehicle battery behind the panel on the left side of the luggage Compartment. 9 – Fuse 2 (30) -S205- (60 A); 10 – Fuse holder on the left side edge of the instrument panel (Fuse holder C -SC-); 11 – Relay carrier 1 on left under dash panel; 12 – Relay carrier 2 on left under dash panel; 13 – Relay carrier under electronics box; 14 – Fuse box in the Engine compartment (Fuse holder B -SB-)[/ads_col][/ads_row].
Dashboard (Left)

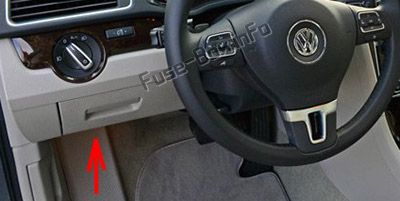

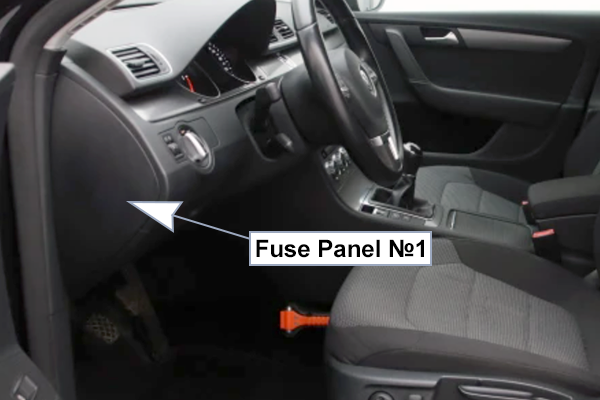

Fuse Box Location

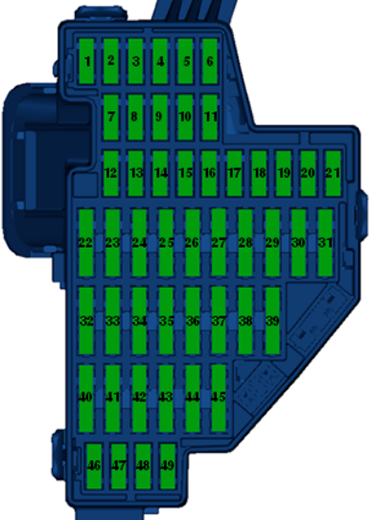

Fuse Box Diagram
Fuses
Assignment of the fuses in the Instrument Panel (Left)
Fuse Data
Full access is available to registered users — log in or register.
High-pressure sender -G65- Air quality sensor -G238- Oil level and oil temperature sender -G266- Fresh air blower relay -J13- DC./AC converter with socket, 12 V – 230 V -U13- Automatic anti-dazzle interior mirror -Y7- Heated rear left seat switch with regulator -E128- Heated rear right seat switch with regulator -E129-
2
5
Light switch -E1- TCS and ESP button -E256- Auto-hold button -E540- ABS control unit -J104- Power steering control unit -J500- Control unit for electromechanical parking brake -J540-
3
10
Current supply relay -J16- Heater element for crankcase breather -N79- Gas injection valve 1-N366- Gas injection valve 2 -N367- Gas injection valve 3 -N368- Gas injection valve 4 -N369-
4
10
Rear roller blind switch -E149- Start/Stop operation button -E693- Electronically controlled damping control unit -J250- Adaptive cruise control unit -J428- Parking aid control unit -J446- Trailer detector control unit -J345- Park assist steering control unit -J791- Front camera for driver assist systems -R242- Diagnostic connection -U31-
5
10
Headlight range control regulator -E102- Left headlight range control motor -V48- Right headlight range control motor -V49- Front left headlight (Only right-hand drive models) -MX1-
6
10
All-wheel drive control unit -J492-
7
5
Control unit in dash panel insert -J285- Data bus diagnostic interface -J533-
8
10
Front right headlight -MX2- (Only right-hand drive models)
9
10
Airbag control unit -J234- Front passenger side airbag deactivated warning lamp -K145-
10
10
Air mass meter -G70- Voltage stabiliser -J532- Fuel pump control unit -J538- Engine control unit -J623- Terminal 50 voltage supply relay -J682- Voltage supply relay 2 -J710- Starter relay 1 -J906- Starter relay 2 -J907-
11
5
Warning buzzer pedal switch on front passenger side -F349- (Only applicable to special vehicles)
12
20
Convenience system central control unit -J393- Front passenger door control unit (Only CC) -J387- Rear passenger side door control unit (Only CC) -J927-
13
10
Light switch -E1-Selector lever -E313- ABS control unit -J 104- Handbrake warning lamp -K139- Diagnostic connection -U31- ABS control unit -J104- T38/15
Rain and light sensor -G397- Heated rear window relay -J9- Heated windscreen relay -J47- Climatronic control unit -J255- Air conditioning system control unit -J301- Reversing camera system control unit -J772- Control unit for terminal control and engine start -J942- Remote control receiver for auxiliary coolant heater -R149- Tyre Pressure Monitoring System control unit -J502-
16
10
Electronic ignition lock -D9- Electronic steering column lock control unit -J764- Control unit for terminal control and engine start -J942-
17
15
Driver door control unit (Only CC) -J386- Rear driver side door control unit (Only CC) -J926- Not used (from May 2012)
18
3A
Onboard supply control unit -J519- Voltage stabiliser -J532- Engine control unit -J623- Voltage supply relay 2 -J710-
19
–
Not used
20
–
Not used
21
10
Rear roller blind control unit -J262-
22
20
Control unit for electromechanical parking brake -J540-
23
15
Trailer detector control unit -J345- Electronically controlled damping control unit (Only right-hand drive models) -J250-
24
20
Control unit for electromechanical parking brake -J540-
25
5 (Only models with emergency call module) 15 (Only models with trailer socket) 30 (Only right-hand drive models)
Emergency assistance call button -E276- Trailer detector control unit -J345- Sunroof roller blind control unit (Only right-hand drive models) -J394-
26
20
Onboard supply control unit -J519-
27
15 (Only models with a petrol engine) 20 (Only models with a diesel engine)
Fuel pump control unit (Only models with a petrol engine) -J538- Fuel pump relay (Only models with a diesel engine) -J17- Electric fuel pump 2 relay (Only models with a diesel engine) -J49-
28
30
Driver door control unit (Only left-hand drive models) -J386- Rear driver side door control unit (Only left-hand drive models) -J926- Front passenger door control unit (Only right-hand drive models) -J387- Rear passenger side door control unit (Only right-hand drive models) -J927-
29
20
Heated rear seats control unit -J786-
30
20 (Only saloon) 30 (Only estate)
Sliding sunroof adjustment control unit -J245-
31
30
DC/AC converter with socket, 12 V-230 V -U13-
32
30
Heated rear window relay -J9-
33
30
Headlight washer system relay -J39-
34
25
Heated front seats control unit -J774-
35
15 (Only right-hand drive models)
Rear lid control unit (Only right-hand drive models) -J605- Driver seat lumbar support adjustment switch (Only left-hand drive models) -E176- (from May 2012)
36
15
Driver seat lumbar support adjustment switch -E176- Trailer voltage supply relay -J941- (from May 2012)
Trailer detector control unit (Only left-hand drive models) -J345- Rear lid control unit 2 (Only right-hand drive models) -J756-
38
40 (Only models with auxiliary heating)
Fresh air blower relay (Only models with Climatic) -J13- Fresh air blower control unit (Only models with Climatronic) -J126-
39
5
Selector lever -E313- Reversing light switch -F4- Mechatronic unit for dual clutch gearbox -J743-
40
20
Onboard supply control unit -J519- Rear window wiper motor -V12- Windscreen and rear window washer pump -V59-
41
20
Onboard supply control unit -J519- Cigarette lighter -U1- Rear cigarette lighter -U9-
42
15
12 V socket -U5-
43
20
Auxiliary heater control unit -J364- (Only models with second battery)
44
30
Driver door control unit (Only right-hand drive models) -J386- Rear driver side door control unit (Only right-hand drive models) -J926- Front passenger door control unit (Only left-hand drive models) -J387- Rear passenger side door control unit (Only left-hand drive models) -J927-
45
20
Auxiliary heater operation relay -J485- (Only models with second battery)
46
–
Not used
47
5 (Only models with start/stop system)
Analogue clock -Y- TV tuner -R78- Mobile telephone operating electronics control unit -J412- Control unit for navigation system (Only models with equipment for Korea) -J856-
48
5
Control unit in dash panel insert -J285- (Only models with start/stop system)
49
–
Not used
Dashboard (Right)

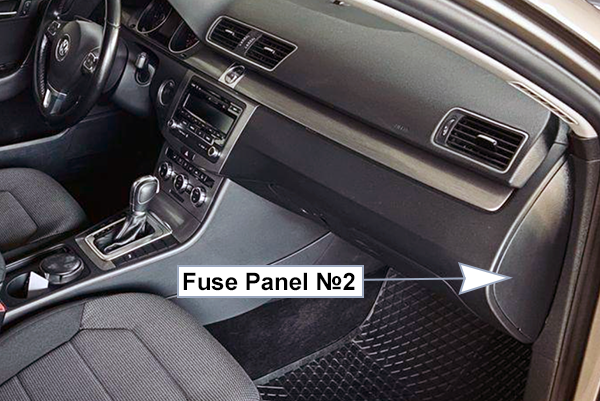

Fuse Box Location

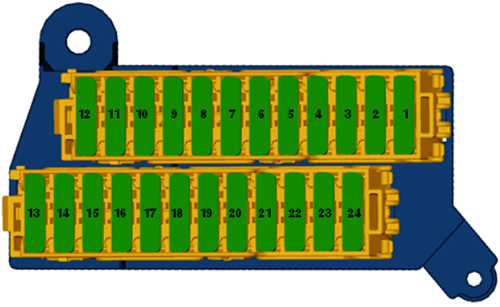

Fuse Box Diagram
Fuses
Assignment of the fuses in the Instrument Panel (Right)
Fuse Data
Full access is available to registered users — log in or register.
Fuse 12 on fuse holder C -SC12- to fuse 17 on fuse holder C -SC17- Fuse 22 on fuse holder C -SC22- to fuse 27 on fuse holder C -SC27- Fuse 28 on fuse holder C -SC28- Fuse 44 on fuse holder C -SC44- Fuse 46 on fuse holder C -SC46-
SA5
80
Fuse 29 on fuse holder C -SC29- to fuse 31 on fuse holder C -SC31-
SA6
70
Fuse 32 on fuse holder C -SC32- to fuse 37 on fuse holder C -SC37-
SA7
60
Second battery charging circuit relay -J713- High heat output relay -J360- Fuse 38 on fuse holder C -SC38- Fuse 43 on fuse holder C -SC43- Fuse 45 on fuse holder C -SC45-
SA8
40
ABS control unit -J104-

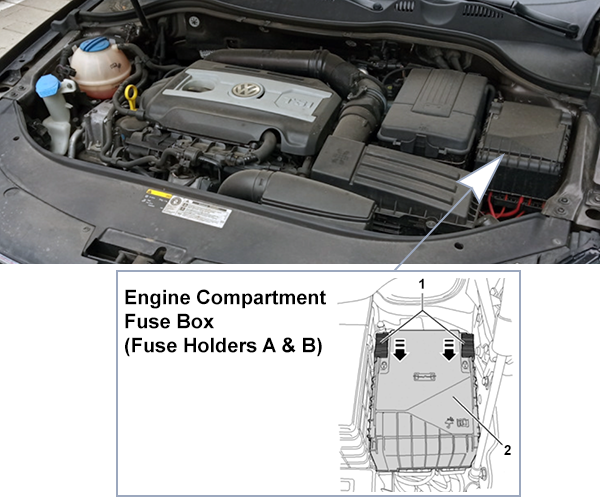

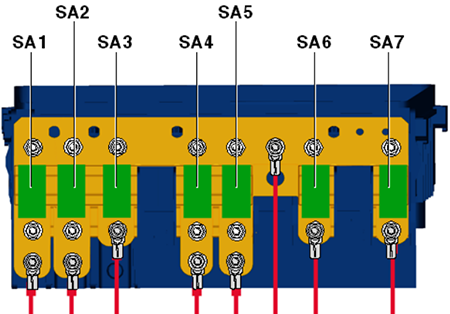

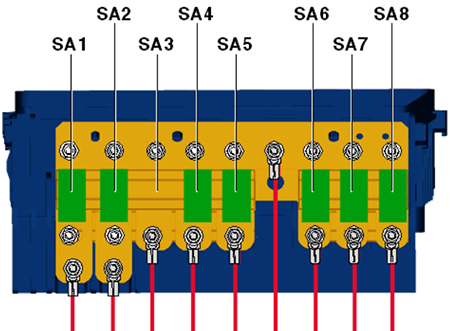

Pre-Fuse Box Diagram (Version 2)

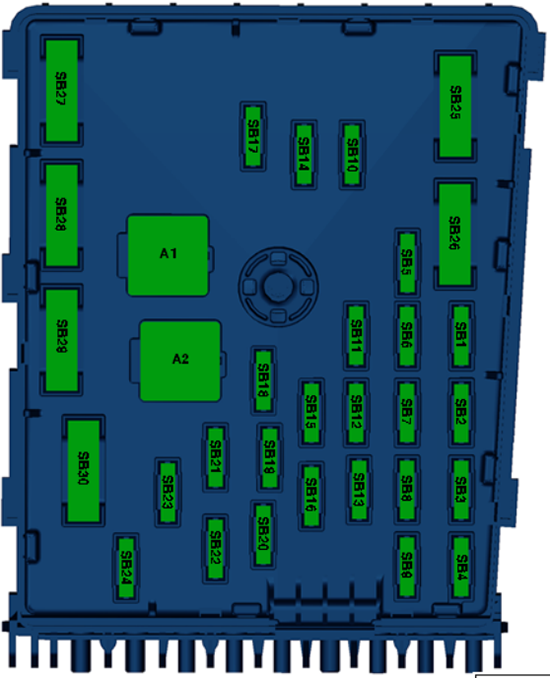

High Voltage Fuses
Assignment of the high voltage fuses in the engine compartment Version 2 fuse box (SA)
Fuse Data
Full access is available to registered users — log in or register.
Battery monitoring control unit -J367- Onboard supply control unit -J519-
SB6
15 / 40
Mechatronic unit for dual clutch gearbox (Only models with diesel engines) (Only for petrol engine with forced induction) -J743- Low heat output relay (for CNG models only) (Only for petrol engine without forced induction) -J359-
SB7
15 (Only models with radio), (Only models with start/stop system) 20 (Only models with navigation system), (Only models with start/stop system) 30 (Only models with start/stop system)
Radio -R- Control unit with display for radio and navigation -J503- Voltage stabiliser (Only models with start/stop system) -J532-
SB8
30
Mechatronic unit for dual clutch gearbox -J743-
SB9
5
Steering column electronics control unit -J527-
SB10
20
Ignition coil 1 with output stage -N70- Ignition coil 2 with output stage -N 127- Ignition coil 3 with output stage -N291- Ignition coil 4 with output stage -N292- Fuel pressure regulating valve -N276- Fuel metering valve -N290-
SB11
5
Control unit in dash panel insert -J285-
SB12
5
TV tuner -R78- Mobile telephone operating electronics control unit -J412- Analogue clock -Y- Control unit for navigation system (Only models with equipment for Korea) -J856-
SB13
10
Motronic current supply relay -J271- Terminal 30 voltage supply relay -J317- Engine control unit -J623-
SB14
25 (Only models with a petrol engine) 30 (Only models with diesel engines)
Engine control unit -j623- Engine control unit -j623-
SB15
5
Data bus diagnostic interface -J533-
SB16
10 / 15
Charge pressure control solenoid valve (Only models with diesel engines) -N75- Exhaust gas recirculation cooler changeover valve -N345- Magnetic clutch for supercharger (Only models with a petrol engine) -N421- Continued coolant circulation relay (Only models with a petrol engine) -J151- Continued coolant circulation pump (Only models with a petrol engine) -V51- Coolant circulation pump 2 -V178-
SB17
10 40 (Only models with auxiliary air heater)
Fuel pressure regulating valve -N276- Fuel tank shut-off valve 1-N361- Fuel tank shut-off valve 2 -N362- Fuel tank shut-off valve 3 -N363- Coolant circulation pump -V50- Low heat output relay (Only models with auxiliary air heater) -J359-
SB18
10 (Only models without reducing agent metering system) 30 (Only models with reducing agent metering system)
Fuel quality sender -G446- High-pressure valve for gas mode -N372-
SB19
30
Amplifier -R12- Special vehicle control unit (Only applicable to special vehicles) -J608-
Brake light switch -F- Clutch position sender -G476- Low heat output relay -J359- High heat output relay -J360- Engine component current supply relay -J757- Fuel pressure regulating valve -N276-
SB21
20
Auxiliary heater control unit -J364-
SB22
30
Wiper motor control unit -J400-
SB23
10
Brake light switch -F- Air mass meter -G70- Clutch position sender -G476- Fuel pump relay -J17- Automatic glow period control unit -J179- Radiator fan control unit -J293- Additional coolant pump relay -J496- Charge pressure control solenoid valve -N75- Activated charcoal filter solenoid valve 1-N80- Camshaft control valve 1-N205- Turbocharger air recirculation valve -N249- Intake manifold flap valve -N316- Valve for oil pressure control -N428-
SB24
10 (Only models with diesel engines), (Only models without reducing agent metering system) 15
Lambda probe heater -Z19- Lambda probe 1 heater after catalytic converter -Z29- NOx sender 2 control unit (Only models with reducing agent metering system) -J881-
SB25
40
Onboard supply control unit -J519-
SB26
40
Onboard supply control unit -J519-
SB27
60
Heated windscreen relay -J47-
SB28
50
Automatic glow period control unit (Only models with diesel engines) -J179-
SB29
50
Fuse 38 on fuse holder C (Only models with air conditioning system/Climatronic) -SC38- Fuse 40 on fuse holder C -SC40- to fuse 42 on fuse holder C -SC42 -X- contact relief relay -J59-
SB30
40
Terminal 15 voltage supply relay -J329- Fuse 1 on fuse holder C -SCI- to fuse 11 on fuse holder C -SC11- Fuse 20 on fuse holder C -SC20- Fuse 21 on fuse holder C -SC21- Fuse 39 on fuse holder C -SC39- Fuse 18 on fuse holder C (Only models with start/stop system) -SC18-

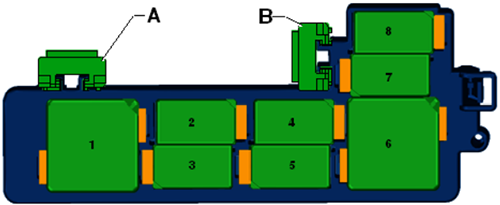

Relays

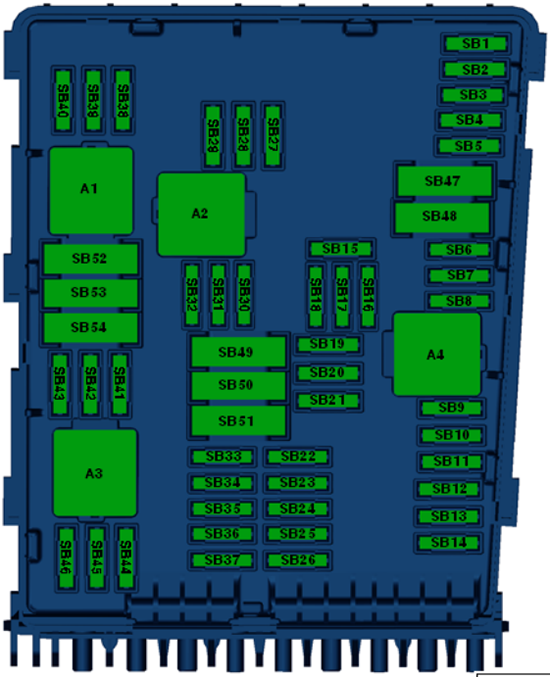

Assignment of the relays in the Engine compartment, type 1
Fuse Data
Full access is available to registered users — log in or register.
15 (Only models with radio), (Only models with start/stop system) 20 (Only models with navigation system), (Only models with start/stop system) 30 (Only models with start/stop system)
Radio -R- Control unit with display for radio and navigation -J503- Voltage stabiliser (Only models with start/stop system) -J532-
SB20
5
Analogue clock -Y- TV tuner -R78- Mobile telephone operating electronics control unit -J412- Control unit for navigation system -J856- (Only models with equipment for Korea)
SB21
–
Not used
SB22
–
Not used
SB23
–
Not used
SB24
5
Data bus diagnostic interface -J533-
SB25
–
Not used
SB26
10
Motronic current supply relay -J271- Engine control unit -J623-
SB27
–
Not used
SB28
–
Not used
SB29
–
Not used
SB30
20
Auxiliary heater control unit -J364-
SB31
30
Wiper motor control unit -J400-
SB32
–
Not used
SB33
–
Not used
SB34
–
Not used
SB35
20 40 (Only for countries with hot climate)
Auxiliary heater operation relay -J485- Low heat output relay (Only for countries with hot climate) -J359-
SB36
–
Not used
SB37
–
Not used
SB38
–
Not used
SB39
–
Not used
SB40
–
Not used
SB41
–
Not used
SB42
–
Not used
SB43
–
Not used
SB44
–
Not used
SB45
–
Not used
SB46
–
Not used
SB47
40
Onboard supply control unit -J519-
SB48
40
Onboard supply control unit -J519-
SB49
50
Terminal 15 voltage supply relay -J329- Fuse 6 on fuse holder C -SC6- to fuse 11 on fuse holder C -SC11- Fuse 20 on fuse holder C -SC20- Fuse 21 on fuse holder C -SC21- Fuse 39 on fuse holder C -SC39- Fuse 18 on fuse holder C (Only models with start/stop system) -SC18-
SB50
–
Not used
SB51
60
High heat output relay -J360- (Only for countries with hot climate)
SB52
60
Heated windscreen relay -J47-
SB53
50
X-contact relief relay -J59-
SB54
50
Automatic glow period control unit -J179- (Only for countries with hot climate)

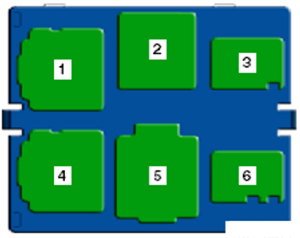

Relays
Assignment of the relays in the Engine compartment, type 2
Fuse Data
Full access is available to registered users — log in or register.
Onboard supply control unit -J519- Battery monitor control unit -J367-
