Volkswagen Sharan 2010-2023

Looking for Volkswagen Sharan fuse box diagrams? This article covers the second-generation Volkswagen Sharan (Model Code: 7N), produced from 2010 to 2023, and includes fuse box diagrams for Volkswagen Sharan (7N) 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

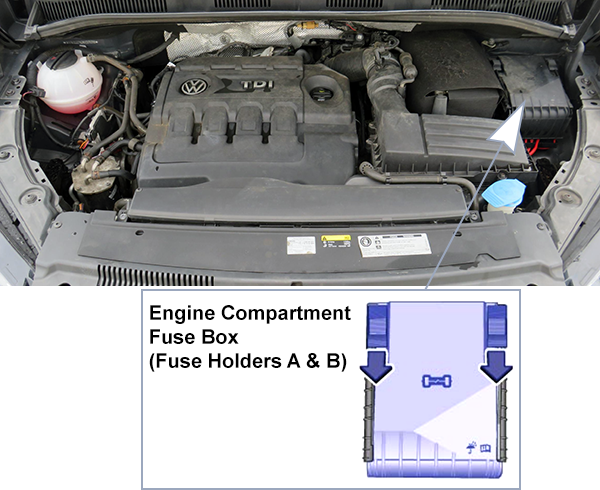

Fuse Box Location

Fuse Box Diagram (A)

High Voltage Fuses

Assignment of the high voltage fuses in the engine compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1150A/200A2010-2014:
Alternator
400A2015-2023:
Alternator
SA280APower steering control unit
SA380ARadiator fan control unit
SA480AFuse holder D
SA5100AFuse holder C 20-pin jumper
508–Terminal 30 wiring junction
SA650AFleated windscreen relay
SA770AHigh heat output relay
SA860AThermal fuse 2 (rear right sliding door)
Driver seat adjustment thermal fuse 1
Front passenger seat adjustment thermal fuse 1

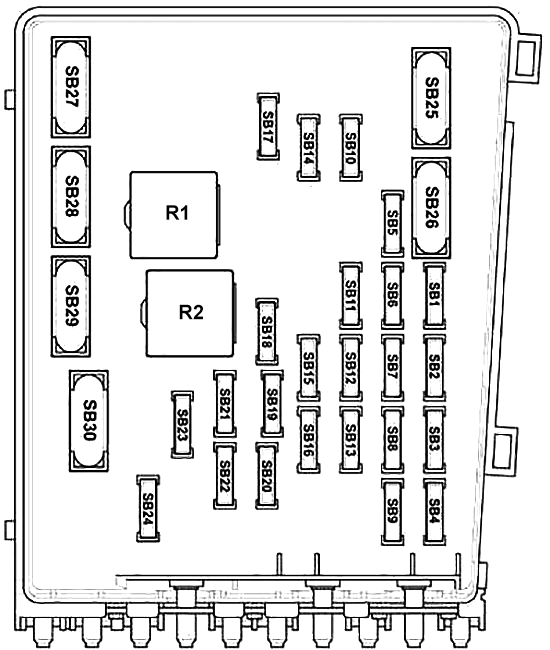

Fuse Box Diagram (B)

Fuses

Assignment of the fuses in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
F130A2010-2014:
Voltage stabiliser
30A/20A2015-2023:
Added Control unit 1 for information electronics
Display unit for front information display and operating unit control unit
F230AOnboard supply control unit (T52b/42)
# Terminal 30 power
F330A2010-2014:
ABS control unit
Wiper motor control unit
30A/20A2015-2023:
Added Headlight washer system relay
Headlight washer system pump
F430AOnboard supply control unit (T52a/1)
# terminal 30, left light supply
F55AOnboard supply control unit (T52a/24)
# terminal 30, reference
Battery monitor control unit
F630AOnboard supply control unit (T52c/42)
# terminal 30, right light supply
F725ADual tone horn relay
Heated windscreen relay
F830ADigital sound package amplifier
F920A2010-2014:
Control unit with display for radio and navigation
–2015-2023:
not assigned
F1030AEngine/motor control unit
F115AData bus diagnostic interface
F1215AMechatronic unit for dual clutch gearbox
F135AEngine/motor control unit
Main relay
Fuses on fuse holder B: 10, 14, 16, 18, 20, 23, 24
F1410A/30A2010-2014:
Pump for reducing agent
Ignition coils 1-4 with output stage
15A/30A2015-2023:
Ignition coils 1-4 with output stage
Coolant shut-off valve
Coolant valve for gearbox
F15–not assigned
F1630A/15A2010-2014:
Control unit for reducing-agent heater
Lambda probe
Lambda probe after catalytic converter
Magnetic clutch for supercharger
2015-2023:
Lambda probe 1 after catalytic converter
Lambda probe 1 before catalytic converter
Activated charcoal filter solenoid valve 1
Camshaft control valve 1
Fuel pressure regulating valve
Fuel metering valve
Exhaust camshaft control valve 1
Coolant circulation pump 2
Vacuum pump for brakes
Brake servo pressure sensor
F1715A/20A2010-2014:
Fuel pressure regulating valve
15A2015-2023:
Ignition coils 1-4 with output stage
F1830A2010-2014:
Fuel pump control unit
Vacuum pump for brakes
2015-2023:
Added Brake servo pressure sensor
F1930A2010-2014:
Wiper motor control unit
40A2015-2023:
Added ABS control unit
F2015A2010-2014:
Additional coolant pump relay
Lambda probe
Control unit for NOx sender
Air mass meter
5A2015-2023:
Brake light switch
Clutch position sender
Additional coolant pump relay
F2120AAuxiliary heater control unit
F2220A/30A2010-2014:
Rear fresh air blower
Headlight washer system relay
Headlight washer system pump
2015-2023:
Headlight washer system relay
Headlight washer system pump
Wiper motor control unit
F2315A2010-2014:
Charge pressure control solenoid valve
Heater element for crankcase breather
Automatic glow period control unit
Exhaust gas recirculation cooler changeover valve
Fuel metering valve
Fuel pressure regulating valve
Coolant circulation pump 2
Additional coolant pump relay
Clutch position sender
Brake light switch
15A/10A2015-2023:
Brake light switch
Air mass meter
Additional coolant pump relay
Coolant circulation pump
Charge pressure control solenoid valve
Heater element for crankcase breather
Turbocharger air recirculation valve
Intake manifold flap valve
Valve for oil pressure control
Coolant valve for cylinder head
Piston cooling jet control valve
Charge air cooling pump
Auxiliary pump for heating
F2410A2010-2014:
Engine component current supply relay
Fuses on fuse holder B: 17, 28
Radiator fan control unit
Turbocharger air recirculation valve
Activated charcoal filter solenoid valve 1
Camshaft control valve 1
Charge pressure control solenoid valve
Low heat output relay
High heat output relay
10A/20A2015-2023:
Engine component current supply relay
Fuses on fuse holder B: 17, 28
Lambda probe 1 before catalytic converter
Radiator fan control unit
Low heat output relay
High heat output relay
Control unit for NOx sender
Relay for reducing agent metering system
Activated charcoal filter solenoid valve 1
Camshaft control valve 1
Exhaust camshaft control valve 1
Valve for oil pressure control
Injector 2 for cylinders 1-4
Exhaust cam actuators A for cylinder 1-4
Exhaust cam actuators B for cylinder 1-4
F2540AABS control unit
F2640AFresh air blower control unit
Low heat output relay
F2750ATerminal 15 voltage supply relay 2
F2850AAutomatic glow period control unit
F2940AFuses on fuse holder C: 17, 36, 37, 38, 39, 40, 41, 58
F3050ATerminal 75 voltage supply relay 1

Relays

Assignment of the relays in the engine compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Engine component current supply relay -J757- (Engine code CCZA only)
Connection bridge (Only models with a diesel engine)
R2Main relay -J271- (Only models with a petrol engine)
Terminal 30 voltage supply relay -J317- (Only models with a diesel engine)

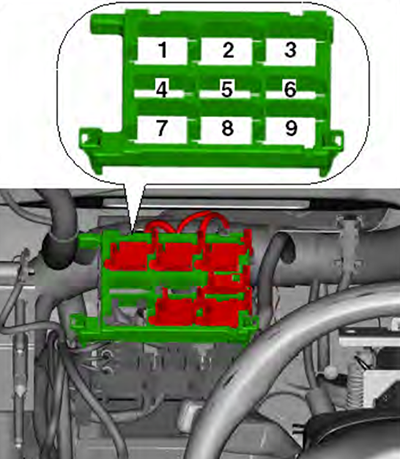

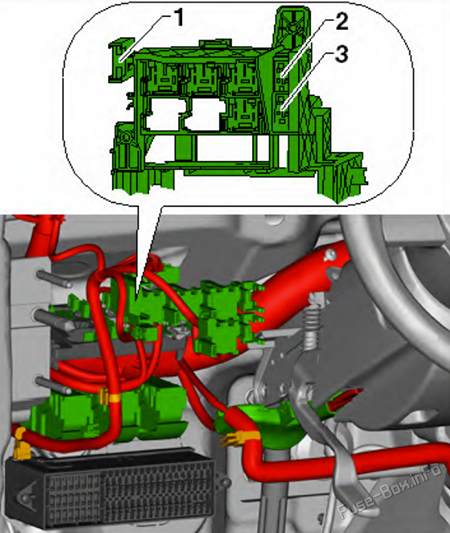

Relays Under E-Box

Diagram

Relays

Assignment of the relays in the engine compartment under E-Box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Starter relay 1 -J906- (Only models with start/stop system)
2Automatic glow period control unit -J179- (Only models with a diesel engine)
3From May 2010:
–
From May 2012:
Dual tone horn relay -J4-
4From May 2010:
–
From May 2012:
Headlight washer system relay -J39-
5Starter relay 2 -J907- (Only models with start/stop system)
Terminal 50 voltage supply relay -J682- (Only models with no start/stop system but with Kessy)
6From May 2010:
–
From May 2012:
Additional coolant pump relay -J496-

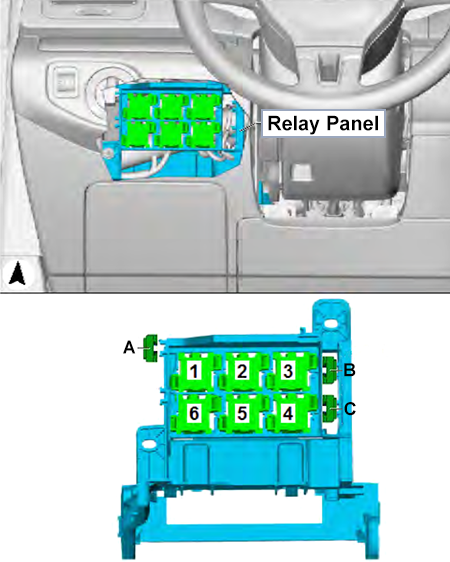

From Nov 2016:
–

Passenger Compartment

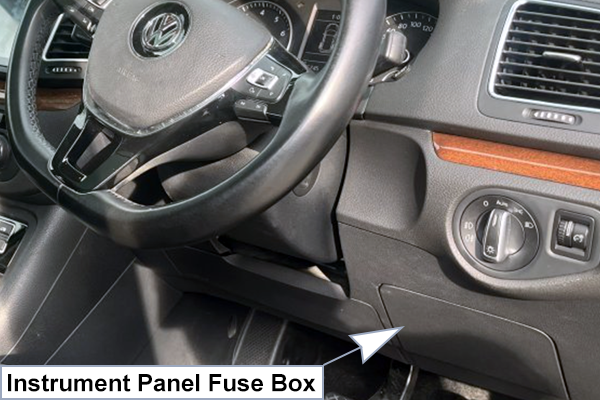

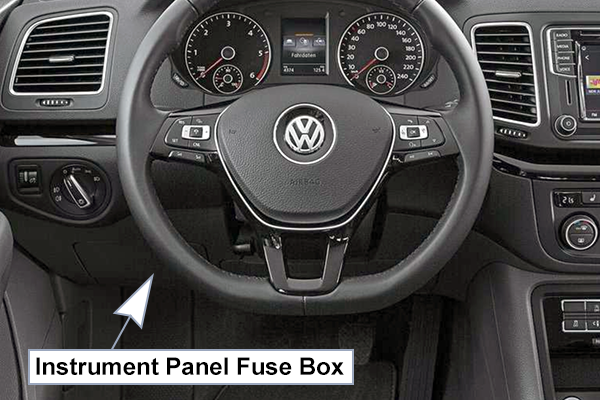

Fuse Box Location

Left-Hand Drive

Right-Hand Drive

Fuse Box Diagram (C)

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1––
2–2010-2014:
–
7.5A2015-2022:
USB connection 1
3–2010-2014:
–
7.5A2015-2022:
Left washer jet heater element
Right washer jet heater element
410ADC/AC converter with socket, 12V-230V
Voltage stabiliser
Starter relay 1
Starter relay 2
510AElectronically controlled damping control unit
6–2010-2014:
–
10A2015-2022:
Blind Spot Monitor control unit 1
Blind Spot Monitor control unit 2
7 – 8––
97.5AWarning lamp for airbag deactivated on front passenger side
Airbag control unit
105A2010-2014:
Taximeter
Mirror taximeter
Taxi alarm remote control, control unit
2015-2022:
Added Voltage stabiliser
1110AAll-wheel drive control unit
1210ALeft gas discharge (xenon) bulb
135A2010-2014:
Operating unit in front of centre console
Electromechanical parking brake button
Oil level and oil temperature sender
Reversing light switch
High-pressure sender
Parking aid control unit
Interior mirror
Front camera for driver assist systems
2015-2022:
Added Adaptive cruise control unit
Park assist steering control unit
(Interior mirror updated to Automatic anti-dazzle interior mirror)
147.5A2010-2014:
Light switch
Trailer detector control unit
Control unit for electromechanical parking brake
ABS control unit
Brake light switch
Power steering control unit
Engine/motor control unit
Data bus diagnostic interface
Control unit in dash panel insert
2015-2022:
Light switch
Trailer detector control unit
ABS control unit
Power steering control unit
Engine/motor control unit
Data bus diagnostic interface
Control unit in dash panel insert
Oil level and oil temperature sender
Electromechanical parking brake button
1510AAuxiliary heater operation relay
Diagnostic connection
Front left headlight (not xenon)
Front right headlight (not xenon)
Control unit for cornering light and headlight range control
Switch and instrument illumination regulator
Air mass meter
1610ARight gas discharge (xenon) bulb
175A2010-2014:
Mobile telephone operating electronics control unit
Emergency call module control unit and communication unit
2015-2022:
Emergency call module control unit and communication unit
187.5A2010-2014:
Taxi alarm remote control, control unit
Data transmission control unit
–2015-2022:
–
19––
205AABS control unit
215A2010-2014:
2nd heat exchanger switch-off valve
2015-2022:
Added Electromechanical parking brake button
Selector lever
227.5ARain and light sensor
Diagnostic connection
Reversing camera system control unit
Light switch
237.5A2010-2014:
Selector lever sensors control unit
Electromechanical parking brake button
Climatronic control unit
Air conditioning system control unit
Operating and display unit for rear air conditioning system
Rear blower regulation sender
Remote control receiver for auxiliary coolant heater
2015-2022:
Selector lever
Electromechanical parking brake button
Climatronic control unit
Air conditioning system control unit
Operating and display unit for rear air conditioning system
Rear blower regulation sender
Remote control receiver for auxiliary coolant heater
2nd heat exchanger switch-off valve
247.5AEntry and start authorisation control unit
257.5AMechatronic unit for dual clutch gearbox
Selector lever
265AAir quality sensor
27––
2810ARear window wiper motor
2930A2010-2014:
12V socket
12V socket 3
Blocking diode
20A/30A2015-2022:
Cigarette lighter
12V socket
12V socket 2
12V socket 3
Blocking diode
Onboard supply control unit
# Terminal 75 diagnosis feedback
3030A2010-2014:
Cigarette lighter
12V socket 2
Onboard supply control unit
# Terminal 75 diagnosis feedback
2015-2022:
Cigarette lighter
12V socket 2
Blower relay
31 – 35––
3630A2010-2014:
Control unit for electromechanical parking brake
5A/20A2015-2022:
Two-way signal amplifier for mobile telephone/data services
Storage compartment with interface for mobile telephone
Control unit 1 for information electronics
3710A/25A2010-2014:
Two-way radio
Sliding sunroof adjustment control unit
25A2015-2022:
Sliding sunroof adjustment control unit
3810A/30A2010-2014:
Taximeter
Mirror taximeter
Front interior light button
Taxi sign switch
Taxi alarm active button
Sunroof roller blind control unit
30A2015-2022:
Sunroof roller blind control unit
397.5ASteering column electronics control unit
405A2010-2014:
Multimedia system control unit
2015-2022:
Two-way signal amplifier for mobile telephone/data services
Storage compartment with interface for mobile telephone
415ADash panel insert
4215AElectronically controlled damping control unit
4330ADriver seat lumbar support adjustment switch
Front passenger seat lumbar support adjustment switch
4425A2010-2014:
Fresh air blower relay
Heated rear window relay
25A/30A2015-2022:
Fresh air blower relay
Heated rear window relay
4530AFront passenger door control unit
Rear right sliding door control unit
4630ADriver door control unit
Rear left sliding door control unit
4710A2010-2014:
Taximeter
Mirror taximeter
Front interior light button
Taxi sign switch
Taxi alarm active button
2015-2022:
Interior light switch (taxi)
Taxi sign switch
Taxi alarm active button
4815AAlarm horn
Interior monitoring sensor
Onboard supply control unit
# Terminal 30, Anti-theft alarm supply
4930A2010-2014:
Control unit for electromechanical parking brake
7.5A2015-2022:
Relay for reducing agent metering system
Delivery unit for reducing agent metering system
5030AOnboard supply control unit (T52b/1)
# Terminal 30, Central locking supply
5130AHeated front seats control unit
5220A/30A2010-2014:
Headlight washer system relay
Headlight washer system pump
Rear fresh air blower
30A2015-2022:
Rear fresh air blower
5330ADC/AC converter with socket, 12V-230V
5410AControl unit for electronic steering column lock
5525A2010-2014:
Trailer voltage supply relay
All-wheel drive control unit
20A2015-2022:
All-wheel drive control unit
5630A2010-2014:
Trailer detector control unit
2015-2022:
Control unit for reducing agent metering system
5710A2010-2014:
Two-way radio
–2015-2022:
–
5825A2010-2014:
Special vehicle control unit
30A2015-2022:
Voltage stabiliser

Single Fuses

Location and Diagram

Fuses

Assignment of the single fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
140ARight sliding door control unit
230A2010-2014:
Driver seat adjustment operating unit
Driver seat adjustment control unit
Driver seat backrest adjustment switch
20A/30A2015-2023:
Added Driver seat lumbar support adjustment switch
330A2010-2014:
Front passenger seat adjustment operating unit
Front passenger seat backrest adjustment switch
20A/30A2015-2023:
Added Front passenger seat lumbar support adjustment switch

Relays Behind Dashboard

Location and Diagram (1)

Fuse and Relay Carrier 1 (SR1)

Fuses

Assignment of the fuses in the passenger compartment relay box (1)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A40AThermal fuse 2 -S362-
– Right sliding door control unit -J731-
B30AFrom May 2010:
Driver seat adjustment thermal fuse 1 -S44-
– Driver seat adjustment operating unit -E470-
– Driver seat adjustment control unit -J810-
– Driver seat backrest adjustment switch -E96-
30AFrom May 2017:
Added – Driver seat lumbar support adjustment switch -E176-
20AFrom July 2018:
(Same components as above)
C30AFrom May 2010:
Front passenger seat adjustment thermal fuse 1 -S46-
– Front passenger seat adjustment operating unit -E471-
– Front passenger seat backrest adjustment switch -E98-
30AFrom May 2017:
Added – Front passenger seat lumbar support adjustment switch -E177-
20AFrom July 2018:
(Same components as above)

Relays

Assignment of the relays in the passenger compartment relay box (1)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1From May 2010:
High heat output relay -J360- (Only models with auxiliary air heater; Only left-hand drive models)
From May 2017:
Terminal 15 voltage supply relay 2 -J681-
2Terminal 75 voltage supply relay 1-J680-
3From May 2010:
Terminal 15 voltage supply relay 2 -J681-
From May 2017:
High heat output relay -J360- (Only left-hand drive models)
4Heated windscreen relay -J47-
5From May 2010:
High heat output relay -J360- (Only models with auxiliary air heater; Only right-hand drive models)
From May 2017:
High heat output relay -J360- (Only right-hand drive models)
6–

Location and Diagram (2)

2010-2015

Relays

Assignment of the relays in the passenger compartment relay box (2) 2010-2015

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Terminal 50 voltage supply relay -J682- (Only models without start/stop system)
2Heated rear window relay -J9-
3From May 2010:
Auxiliary heater operation relay -J485- (Only models with auxiliary heater)
Low heat output relay -J359- (Only models with auxiliary heater)
From May 2012:
Auxiliary heater operation relay -J485- (Only models with auxiliary heater; Only left-hand drive models)
Low heat output relay -J359- (Only models with auxiliary air heater)
4 – 5–
6Fresh air blower relay -J13- (Only models with auxiliary heater)
7–
8From May 2010:
Additional coolant pump relay -J496- (Only models with a petrol engine; From May 2012, on relay carrier in engine compartment under E-box)
Dual tone horn relay -J4- (From May 2012, on relay carrier in engine compartment under E-box)
From May 2012:
–
9From May 2010:
Headlight washer system relay -J39- (From May 2012, on relay carrier in engine compartment under E-box low)
From May 2012:
–

2016-2023

Assignment of the relays in the passenger compartment relay box (2) 2016-2023

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1–
R2–
R3–
R4–
R5Blower relay -J323-
R6Heated rear window relay -J9-
R7–
R8Fresh air blower relay -J13- (Only left-hand drive models)
R9Low heat output relay -J359-
Auxiliary heater operation relay -J485- (Only left-hand drive models)

Luggage Compartment

Fuse Box Location

Fuse Box Diagram (D)

Fuses

Assignment of the fuses in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD140ALeft sliding door control unit -J558-
SD230ARear lid control unit -J605-
SD3 – SD430ATrailer detector control unit -J345-
SD5–From May 2010:
–
25AFrom May 2013:
Trailer voltage supply relay -J941-
SD6–From May 2010:
–
30AFrom May 2013:
Trailer detector control unit -J345-

Relays

Relay Carrier 2 (SR2)

Assignment of the relays in the luggage compartment

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
1Trailer voltage supply relay -J941-
2Relay for reducing agent metering system -J963-
3–
4–

Scroll to Top
