Volkswagen Transporter / Caravelle 2015-2019 Fuse Box Diagrams and Locations

Looking for Volkswagen Transporter / Caravelle fuse box diagrams? This article covers the sixth-generation (pre-facelift) Volkswagen Transporter / Caravelle (Model Code: T6), produced from 2015 to 2019, and includes detailed diagrams for Volkswagen Transporter / Caravelle (T6) 2015, 2016, 2017, 2018 and 2019, along with information about the location of the fuse panels inside the vehicle and a clear breakdown of the assignment of each fuse and relay (fuse layout).

Fuse Box Overview

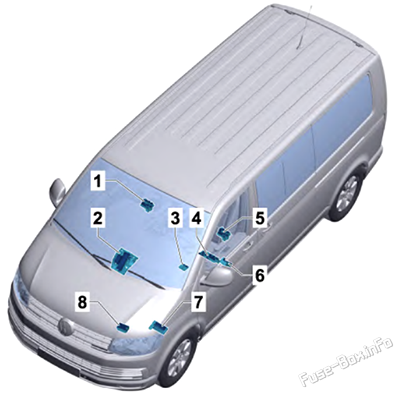

Fuse Box Location: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuse holder K -SK-
Fuse holder C -SC-, Fuse holder D -SD- and Fuse holder F -SF-, in centre of dash panel
Hot air blower single fuse -S25- and Window regulator thermal fuse
Fuse 1 -S131-, fuse 2 -S132-, fuse 3 -S133-, fuse holder H -SH- (-SH1- to -SH30-) and fuse holder J -SJ-, under the left seat box
Fuse holder H -SH- (-SH35- to -SH50-), under the seat-box on the left

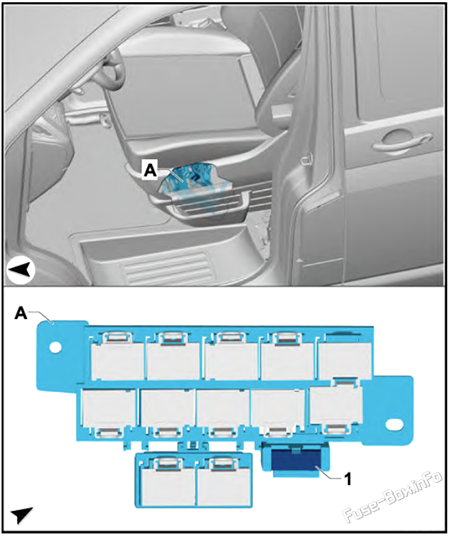

Fuse 31 in fuse holder H -SH31-, under the seat-box on the left

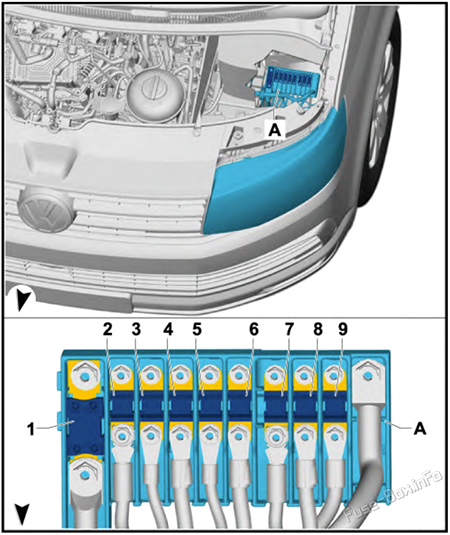

Fuse holder A -SA-, on left in engine compartment

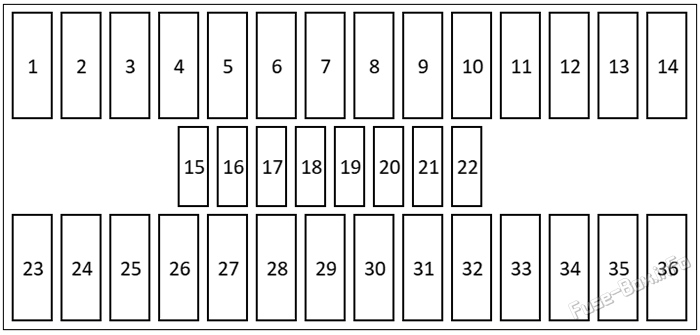

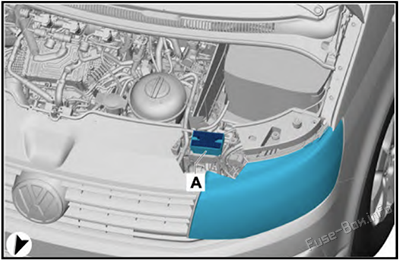

Fuse holder B -SB-, on left in engine compartment

Passenger Compartment

Fuse Box (K)

Fuse Box Location and Diagram

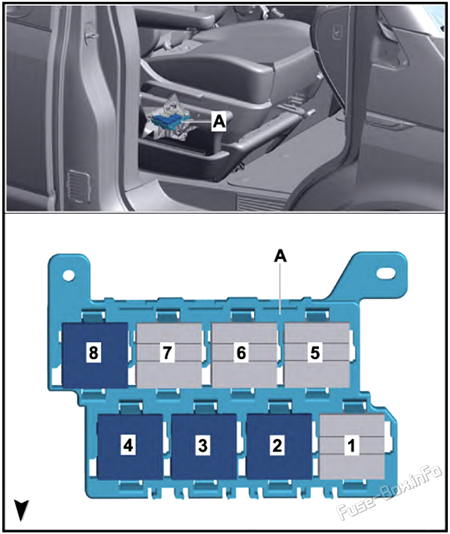

Fuse holder K -SK-: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuses

Assignment of the fuses in the passenger compartment fuse box (K)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	–	not assigned
2/1	–	not assigned
2/2	3 A	Multimedia system display unit 1 (only models with Rear Seat Entertainment)
2/3	3 A	Multimedia system display unit 1 (only models with Rear Seat Entertainment)
3-8	–	not assigned

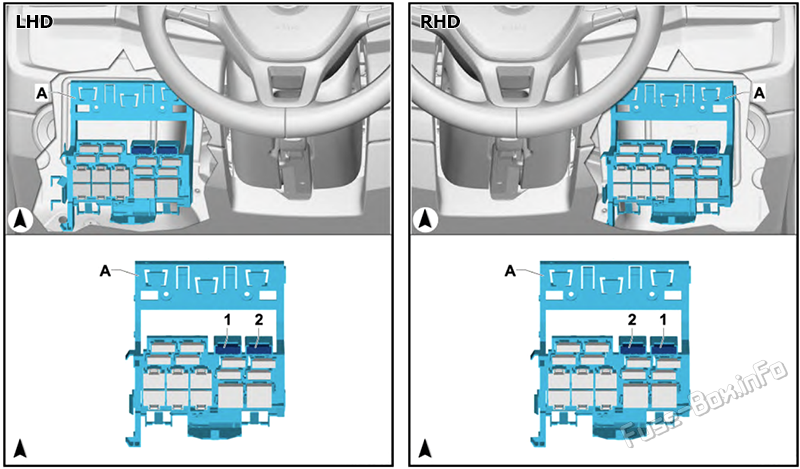

Single fuse (S25) and thermal fuse (S43)

Fuse Box Location and Diagram

Fuses

Assignment of the single fuses in the instrument panel fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	40 A	Hot air blower single fuse -S25-: Fresh air blower switch Air conditioning system control unit
2	30 A	Window regulator thermal fuse -S43-: Driver door control unit Front passenger door control unit

Fuse Box (C, D, F)

Fuse Box Location

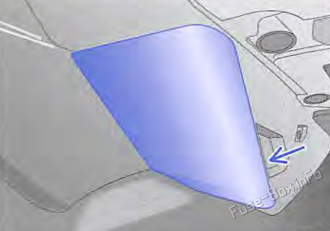

Grasp into the recess (arrow), and carefully open the cover;
Carefully pull the cover out of the mountings, and remove it.

Left-hand drive

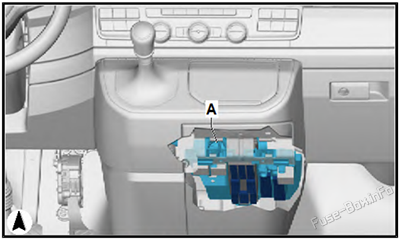

The location of the fuses in the instrument panel (LHD): Volkswagen Transporter T6 (2016-2019)

Right-hand drive

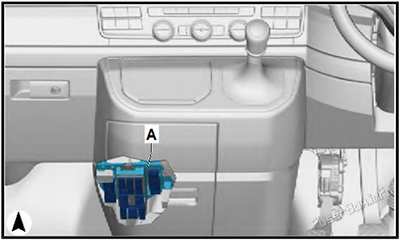

The location of the fuses in the instrument panel (RHD): Volkswagen Transporter T6 (2016-2019)

Fuse Box Diagram

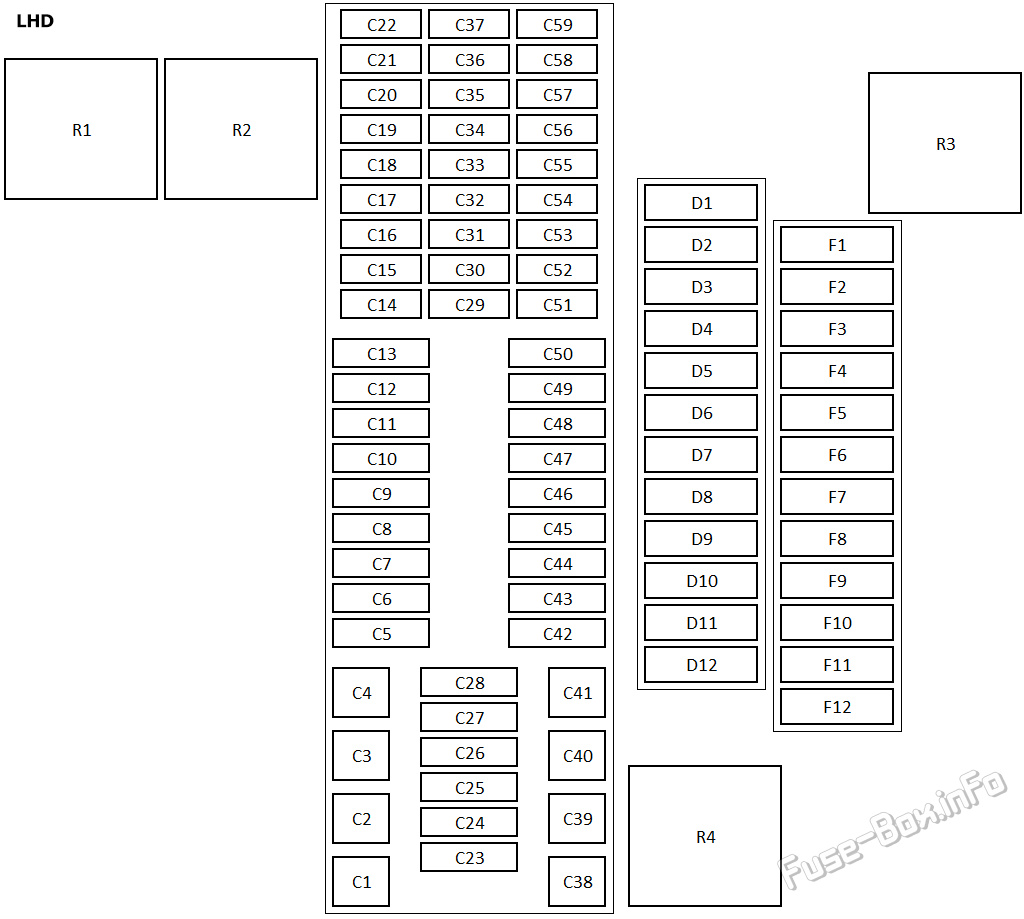

Left-hand drive

Right-hand drive

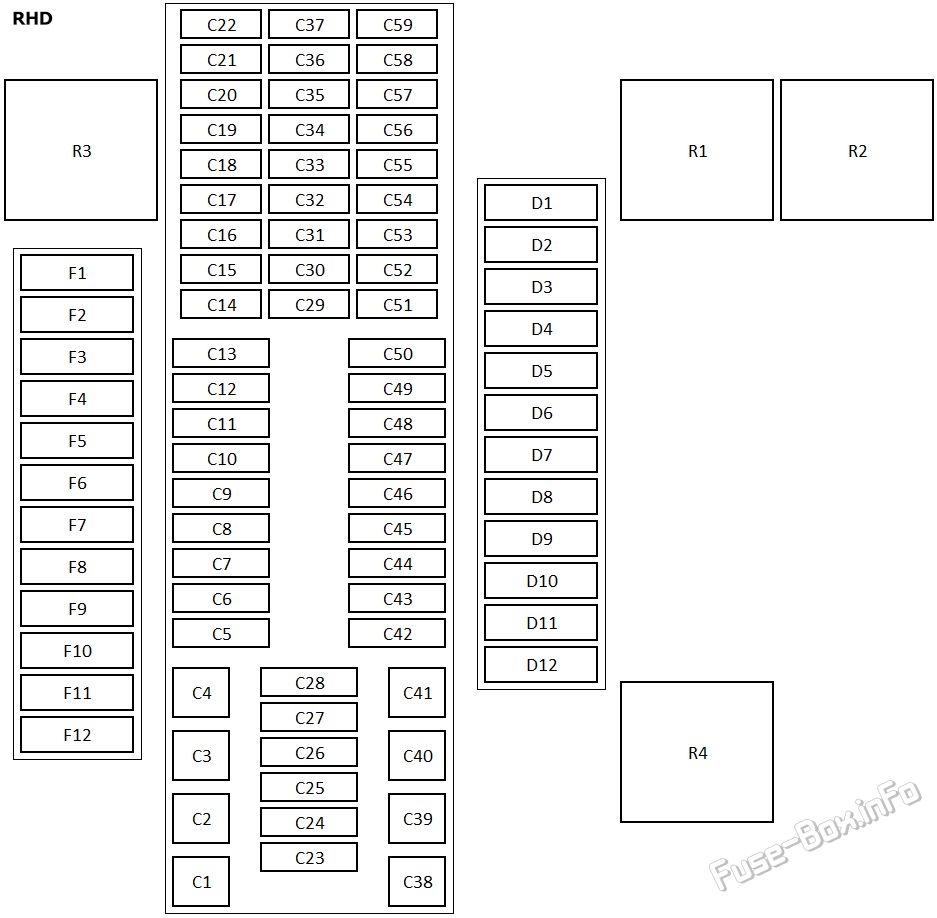

Instrument panel fuse box diagram (RHD): Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuses

Assignment of the fuses in the instrument panel fuse box (Fuse holders C, D and F)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
C1	40 A	Sender for front Bitron blower regulation Fresh air blower Auxiliary coolant heater relay Fresh air blower switch Air conditioning system control unit
C2	60 A	X-contact relief relay Positive connection (X), in interior wiring harness
C3	30 A	Onboard supply control unit
C4	40 A	Window regulator thermal fuse -S43- Fuses on fuse holder C: #18, 22, 57, 58, 59 Fuses on fuse holder D: #1-7, 9 Fuses in fuse holder F: 1, 2, 3, 5, 6, 7, 9, 10
C5	7.5 A / 15 A	Onboard supply control unit
C6	30 A	Onboard supply control unit
C7	30 A	Terminal 15 voltage supply relay Positive connection 2 (15) in interior wiring harness
C8	5 A	Light switch
C9	5 A	Steering column combination switch Headlight dipper and flasher switch Onboard supply control unit
C10	30 A	Control unit 1 for information electronics Radio
C11	30 A	Onboard supply control unit
C12	15 A	Onboard supply control unit
C13	30 A	Onboard supply control unit
C14	5 A	Differential lock control unit Isolation relay for powertrain CAN bus 16-pin connector (diagnostics)
C15	7.5 A	Fresh air and air recirculation flap switch Climatronic control unit Air conditioning system control unit
C16	5 A	Onboard supply control unit
C17	10 A	Onboard supply control unit
C18	7.5 A	USB hub Two-way signal amplifier for mobile telephone/data services Storage compartment with interface for mobile telephone Reversing camera
C19	7.5 A	Positive connection, in roof wiring harness
C20	7.5 A	Positive connection 1 (30a) in main wiring harness
C21	10 A	Onboard supply control unit Relay 1 for ignition bypass Interface for external use 6-pin connector X-contact relief relay
C22	5 A	Dash panel insert
C23	5 A	Interface for external use 10-pin connector Starter inhibitor relay
C23	30 A	Starter Starter inhibitor relay Starter relay 1 Starter relay 2
C24	7.5 A	Fresh air and air recirculation flap switch Rear fresh air blower switch Fresh air blower isolation relay
C25	10 A	Rear window wiper motor Rear left wing door window wiper motor Rear right wing door window wiper motor Left washer jet heater element Right washer jet heater element
C26	5 A	Terminal 75 voltage supply relay 1 Onboard supply control unit Interface for external use 6-pin connector
C26	15 A	Interface for external use 10-pin connector
C27	25 A	Heated front seats control unit
C28	5 A	Auxiliary coolant heater relay
C29	10 A	Airbag control unit Warning lamp for airbag deactivated on front passenger side
C30	10 A	Mirror adjustment switch Headlight range control regulator Accident data recorder button High-pressure sender Air quality sensor Oil level and oil temperature sender Trailer detector control unit Parking aid control unit Headlight range control unit Accident data memory Front left headlight Front right headlight 4-pin connector 10-pin connector Diagnostic connection Left headlight range control motor Right headlight range control motor Coolant shut-off valve relay Climatronic coolant shut-off valve Voltage supply relay 2 Parking aid control unit
C31	–	not assigned
C32	7.5 A	Light switch Operating and display unit for camping equipment Accident data recorder button Start/Stop operation button Tachograph Steering angle sender Electronically controlled damping control unit Multifunction steering wheel control unit Onboard supply control unit Accident data memory Main beam assist control unit Dash panel insert Automatic anti-dazzle interior mirror Headlight dipper and flasher switch Onboard supply control unit
C33	10 A	Rear differential lock switch Vacuum switch for rear differential lock All-wheel drive control unit Differential lock control unit Differential lock valve 1 Differential lock valve 2
C34	5 A	Operating and display unit for camping equipment Internet access control unit 10-pin connector Interface for external use 10-pin connector
C35	10 A	10-pin connector 12-pin connector
C35	15 A	Taximeter Mirror taximeter Taxi alarm remote control, control unit
C36	15 A	Intermittent wiper switch Rear wiper switch Washer pump switch (automatic wash/wipe and headlight washer system) Onboard supply control unit Washer pump Rear window wiper motor Windscreen and rear window washer pump Rear left wing door window wiper motor Rear right wing door window wiper motor
C37	5 A	Cruise control system switch Cruise control system (CCS) SET button Adaptive cruise control unit Lane change assist control unit Lane change assist control unit 2
C38	40 A	Ignition/starter switch
C39	20 A	Ignition/starter switch
C40	20 A	12 V socket 6
C40	30 A	Auxiliary heater relay Fresh air blower series resistor with overheating fuse
C41	30 A	Onboard supply control unit
C42	25 A / 30 A	Fresh air blower isolation relay Rear fresh air blower switch
C42	30 A	Rear blower regulation sender Rear fresh air blower
C43	30 A	Control unit for reducing agent heater
C44	15 A	Rear lid control unit
C44	20 A	Alarm horn Onboard supply control unit Rear lid control unit Left sliding door control unit Right sliding door control unit
C45	30 A	Amplifier
C46	20 A	Auxiliary heater control unit
C47	25 A	Onboard supply control unit
C48	25 A	Sliding sunroof adjustment control unit
C49	15 A	Cigarette lighter
C50	25 A	Headlight washer system relay Headlight washer system pump
C51	5 A	Steering angle sender
C52	5 A	Interior monitor send and receive module 1 Interior monitor send and receive module 2
C53	5 A	Rain and light sensor
C54	7.5 A	Operating and display unit for camping equipment Roof display unit Remote control receiver for auxiliary heater Remote control receiver for auxiliary coolant heater Residual heat relay Circulation pump
C55	5 A	Operating and display unit for camping equipment Onboard supply control unit Roof hydraulics control unit 10-pin connector Interface for external use 10-pin connector
C56	5 A	Starter inhibitor relay Engine/motor control unit Interfacefor external use 10-pin connector Interface for external use 10-pin connector
C57	5 A	Operating and display unit for rear air conditioning system
C58	10 A	Tachograph
C59	5 A	Taximeter Mirror taximeter
C59	10 A	Red cross light switch Red cross light bulb
C59	10 A	Rotating light switch Rotating light relay Rotating light motor

D1	5 A	Two-way radio button Front interior light (door contact) button Ignition bypass button Button for daytime running light switch-off
D1	5 A	Voltage supply relay 1 Voltage supply relay 2 Parking aid control unit
D1	15 A	Interior light switch (taxi) Taximeter Taxi alarm remote control, control unit Two-way radio
D1	20 A	All-wheel drive control unit
D2	30 A	Special vehicle control unit
D3	15 A	Onboard charging unit Internet access control unit
D3	15 A	Alarm horn relay Treble horn
D3	30 A	Rear lid power opening control unit
D4	10 A	Interior light relay Switch and instrument illumination regulator
D4	15 A	Alarm system relay 1 Onboard supply control unit Front left headlight
D5	15 A	Alarm system relay 1 Onboard supply control unit Front right headlight
D5	15 A	Electronically controlled damping control unit
D6	15 A	Interface for external use 10-pin connector
D6	25 A	10-pin connector
D7	5 A	Interface for external use 10-pin connector
D7	5 A	6-pin connector
D7	5 A	Interior light switch (taxi) Taxi sign switch
D8	5 A	Accident data memory
D8	5 A	Accident data memory 6-pin connector
D8	15 A	Interface for external use 10-pin connector
D9	10 A	Relay 1 for ignition bypass Relay 2 for ignition bypass
D9	25 A	Interface for external use 6-pin connector
D10	5 A	Interface for external use 10-pin connector 10-pin connector
D11	10 A	Accident data memory
D11	15 A	Accident data memory 10-pin connector
D11	15 A	Interface for external use 10-pin connector
D11	15 A	Accident data memory Interface for external use 10-pin connector
D12	3 A	10-pin connector Interface for external use 10-pin connector

F1	20 A	All-wheel drive control unit
F2	5 A / 10 A	Interior light relay Switch and instrument illumination regulator
F3	30 A	Driver seat adjustment control unit Switch module for front passenger seat Front passenger seat longitudinal adjustment motor Front passenger seat front height adjustment motor Front passenger seat rear height adjustment motor Front passenger seat backrest adjustment motor
F4	5 A	Emergency call module control unit and communication unit
F5	15 A	Electronically controlled damping control unit
F6	30 A	Driver seat adjustment control unit Switch module for front passenger seat Front passenger seat longitudinal adjustment motor Front passenger seat front height adjustment motor Front passenger seat rear height adjustment motor Front passenger seat backrest adjustment motor
F7	5 A	Accident data memory
F8	–	not assigned
F9	5 A	Diagnosis wire relay
F9	5 A	Voltage supply relay 1 Voltage supply relay 2 Parking aid control unit
F10	30 A	Rear lid power opening control unit
F11	20 A	12 V socket 6
F12	–	not assigned

Relays

Assignment of the relays in the instrument panel fuse box (Fuse holders C, D and F)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	X-contact relief relay
R2	Diagnosis wire relay
R2a	Voltage supply relay 1
R2b	Voltage supply relay 2
R3	Fresh air blower isolation relay
R4	Terminal 15 voltage supply relay

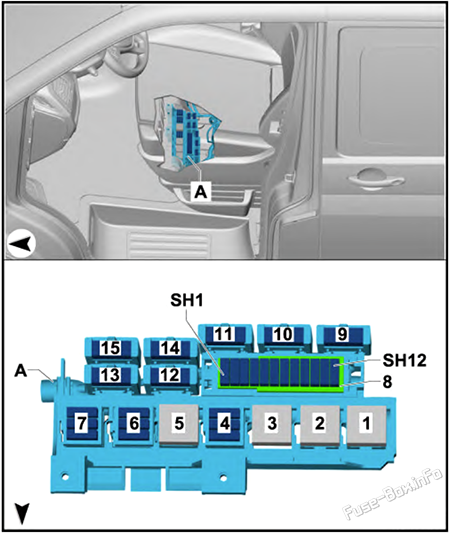

Fuse Box (H)

Fuse Box Location and Diagram

Fuse holder H -SH-: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuses

Assignment of the fuses in the passenger compartment fuse box (H)

Fuse Data

Full access is available to registered users — log in or register.

	No.	Amps	Description
1-7*	Fuse 1 -S131-	10 A	Right interior light Rear right interior light Kitchenette light 1 Kitchenette light 3
1-7*	Fuse 2 -S132-	15 A	12 V socket
1-7*	Fuse 3 -S133-	15 A	12 V socket 5 Kitchenette light 2 Front left reading light
4.1	Fuse 13 in fuse holder H -SH13-	7.5 A	Climatronic control unit
4.1	Fuse 13 in fuse holder H -SH13-	30 A	Auxiliary heater relay Fresh air blower series resistor with overheating fuse
4.1	Fuse 13 in fuse holder H -SH13-	30 A	Auxiliary heater relay Fresh air blower series resistor with overheating fuse
4.2	Fuse 14 in fuse holder H -SH14-	–	not assigned
4.3	Fuse 15 in fuse holder H -SH15-	30 A	Trailer voltage supply relay Trailer socket
5.1	Fuse 22 in fuse holder H -SH22-	–	not assigned
5.2	Fuse 23 in fuse holder H -SH23-	–	not assigned
5.3	Fuse 24 in fuse holder H -SH24-	–	not assigned
6.1	Fuse 16 in fuse holder H -SH16-	30 A	Onboard charging unit Light control relay Kitchenette light 4
6.2	Fuse 17 in fuse holder H -SH17-	30 A	Roof hydraulics control unit
6.3	Fuse 18 in fuse holder H -SH18-	10 A	Rear right reading light Right interior light Rear right interior light Kitchenette light 1 Kitchenette light 2 Kitchenette light 3
7.1	Fuse 19 in fuse holder H -SH19-	10 A	Refrigerator box
7.2	Fuse 20 in fuse holder H -SH20-	5 A	Water pump switch for shower Water pump switch Coolant pump
7.3	Fuse 21 in fuse holder H -SH21-	5 A	Operating and display unit for camping equipment
8.1	Fuse 1 in fuse holder H -SH1-	15 A	12 V socket 2
8.2	Fuse 2 in fuse holder H -SH2-	15 A	Onboard charging unit Map reading light bulb 12 V socket 12 V socket 3
8.3	Fuse 3 in fuse holder H -SH3-	10 A	Switch-over relay 1 for roof ventilator Switch for roof ventilator to ventilate load area Switch for roof ventilator to extract air from load area
8.3	Fuse 3 in fuse holder H -SH3-	15 A	12 V socket 4
8.4	Fuse 4 in fuse holder H -SH4-	15 A	Trailer detector control unit
8.5	Fuse 5 in fuse holder H -SH5-	20 A	Trailer detector control unit
8.6	Fuse 6 in fuse holder H -SH6-	20 A	Trailer detector control unit
8.7	Fuse 7 in fuse holder H -SH7-	15 A	End position button for cupboard light Cupboard light Reading light relay Left luggage compartment light Rear lid light Interior light Front left reading light Front right reading light Rear lid light 2 Kitchen background lighting
8.7	Fuse 7 in fuse holder H -SH7-	10 A	10-pin connector
8.8	Fuse 8 in fuse holder H -SH8-	–	not assigned
8.9	Fuse 9 in fuse holder H -SH9-	5 A	Electric torch
8.10	Fuse 10 in fuse holder H -SH10-	15 A	12 V socket
8.10	Fuse 10 in fuse holder H -SH10-	30 A	DC/AC converter with socket, 12 V – 230 V DC/AC converter with socket, 12 V -115 V
8.11	Fuse 11 in fuse holder H -SH11-	20 A / 25 A	Auxiliary heater control unit
8.12	Fuse 12 in fuse holder H -SH12-	15 A	Driver seat lumbar support adjustment switch Front passenger seat lumbar support adjustment switch
9-15*	Fuse 25 in fuse holder H -SH25-	40 A	Right sliding door control unit
9-15*	Fuse 26 in fuse holder H -SH26-	80 A	Second battery
9-15*	Fuse 27 in fuse holder H -SH27-	40 A	Left sliding door control unit
9-15*	Fuse 28 in fuse holder H -SH28-	30 A	Onboard charging unit
9-15*	Fuse 29 in fuse holder H -SH29-	40 A	Sender for front Bitron blower regulation Fresh air blower
9-15*	Fuse 30 in fuse holder H -SH30-	40 A	Interface for external use 6-pin connector

*1-7 and 9-15: fuse location depends on equipment level.

Relays

Assignment of the relays in the passenger compartment fuse box (H)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Switch-over relay 1 for roof ventilator
R2	Differential lock control unit
R3	Alarm system relay 1
R4	not assigned
R5	Trailer voltage supply relay
R6	Battery isolation relay
R7	Rotating light relay Taxi alarm remote control, control unit Terminal 75 voltage supply relay 1

Fuse Box (H) (SH31)

Fuse Box Location and Diagram

Fuse SH31 in fuse box H -SH31-

Fuse 31 in fuse holder H: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuses

Assignment of the fuse SH31 in the passenger compartment fuse box (H)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
SH31	15 A	12 V socket 6

Relays Box

Relays Box Location and Diagram

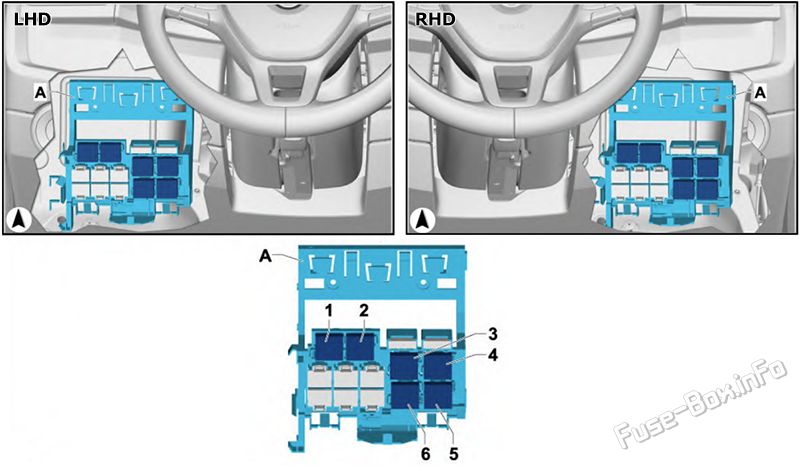

Relay carrier in engine compartment: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Relays

Assignment of the relays in the passenger compartment relays box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	not assigned
2a	Interior light relay
2b	not assigned
3a	Residual heat relay
3b	Auxiliary heater relay
4	Headlight washer system relay
5	Isolation relay for powertrain CAN bus
6	Auxiliary coolant heater relay

Engine Compartment

Fuse Box (A)

Fuse Box Location and Diagram

Fuse holder A -SA-: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Fuses

Assignment of the high voltage fuses in the engine compartment fuse box (A)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	225 A	Alternator
2	125 A	Fuse holder C -SC- (-SC1- to -SC17-)
3	50 A / 100 A	Battery isolation relay Second battery charging circuit relay Fuses in fuse holder H: #25, 27 Left sliding door control unit Right sliding door control unit
4	70 A	Positive connection (30) in engine compartment wiring harness
5	60 A / 80 A	ABS control unit
6	100 A	Heated windscreen relay Automatic glow period control unit
7	100 A	Radiator fan control unit
8	50 A / 100 A	Positive connection 1 (30) in interior wiring harness Positive connection 2 (30) in interior wiring harness Positive connection 3 (30), in main wiring harness
9	100 A	Fuse holder C -SC- (-SC38- to -SC54-)

Fuse Box (B)

Fuse Box Location

Fuse holder B -SB-: Volkswagen Transporter T6 (2016, 2017, 2018, 2019)

Open the bonnet;
If necessary, remove the battery cover. Turn the quick release catches 90 degrees;
Lift out the partition (1);
Turn both quick release catches 90 degrees;
Hold the fuse cover (3) at the front, and fold it upwards.

Fuse Box Diagram

Fuses

Assignment of the fuses and relays in the engine compartment (Fuse holder B)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	5 A	Radiator fan control unit
2	5 A	Additional coolant pump relay Residual heat relay Circulation pump
3	5 A	Heater element for crankcase breather (petrol, diesel Euro 5)
4	30 A	Voltage stabiliser Control unit 1 for information electronics Radio Fuses on fuse holder C: #22, 58
5	15 A	Selector lever Mechatronic unit for dual clutch gearbox Ignition key withdrawal lock solenoid
6	30 A	ABS control unit
7	5 A	Heater element for crankcase breather (diesel Euro 6)
8	30 A	Heated windscreen
9	5 A	Engine/motor control unit
10	10 A	Charge pressure control solenoid valve (petrol) Activated charcoal filter solenoid valve 1 (petrol) Camshaft control valve 1 (petrol) Turbocharger air recirculation valve (petrol) Intake manifold flap valve (petrol)
10	15 A	Charge pressure control solenoid valve (diesel) Exhaust flap valve (diesel Euro 5) Charge pressure control solenoid valve 2 (diesel Euro 6) Intake manifold flap valve (diesel Euro 6) Exhaust gas recirculation cooler changeover valve (diesel Euro 5) Turbine changeover valve (diesel Euro 6)
11	–	not assigned
12	10 A	Fuel pressure regulating valve (diesel Euro 5) Fuel metering valve (diesel)
13	7.5 A	Relay for reducing agent metering system (diesel Euro 6) Reducing agent tank (diesel Euro 6) Delivery unit for reducing agent metering system (diesel Euro 6)
14	5 A	Fuel pump relay (diesel) Electric fuel pump 2 relay (diesel Euro 5)
15	10 A	Reversing light switch
16	5 A	Brake light switch
17	5 A	TCS and ESP button Tyre Pressure Loss Indicator button Hill descent control button ABS control unit
18	5 A	Power steering control unit
19	5 A	Clutch pedal switch Clutch position sender Air mass meter (diesel)
20	5 A	Engine/motor control unit Air mass meter (petrol)
21	–	not assigned
22	–	not assigned
23	10 A	Relay for reducing agent metering system
24	5 A	Selector lever Mechatronic unit for dual clutch gearbox
25	20 A	Actuators 1-8 for camshaft adjustment
26	30 A	Heated windscreen
27	10 A	Continued coolant circulation pump (diesel Euro 5) Charge air cooling pump (diesel Euro 6) Pump for exhaust gas recirculation cooler (diesel Euro 6)
28	15 A	Control unit for sensor electronics (diesel Euro 6) Particulate sensor (diesel Euro 6) Control unit for NOx sender (diesel Euro 6) NOx sender (diesel Euro 6)
29	15 A	Valve for oil pressure control (diesel Euro 6) Coolant valve for cylinder head (diesel Euro 6) Auxiliary pump for heating (diesel Euro 6) Fuel shut-off valve switch-off relay (petrol) Fuel pressure regulating valve (petrol)
30	20 A	Fuel pump relay (diesel) Fuel system pressurisation pump (diesel) Electric fuel pump 2 relay (diesel Euro 5) Supplementary fuel pump (diesel Euro 5) Fuel pump control unit (petrol) Fuel system pressurisation pump (petrol)
31	15 A	Lambda probe Lambda probe heater Lambda probe after catalytic converter (petrol) Lambda probe 1 heater after catalytic converter (petrol)
32	30 A	Engine/motor control unit Ignition coils 1-4 with output stage (petrol)
33	5 A	Automatic glow period control unit (diesel) Additional coolant pump relay (petrol, diesel Euro 5) Fuel shut-off valve switch-off relay (petrol) Coolant pump relay (petrol) Continued coolant circulation pump (petrol)
34	5 A	Onboard supply control unit
35	5 A	Battery monitor control unit
36	30 A	Starter inhibitor relay Starter

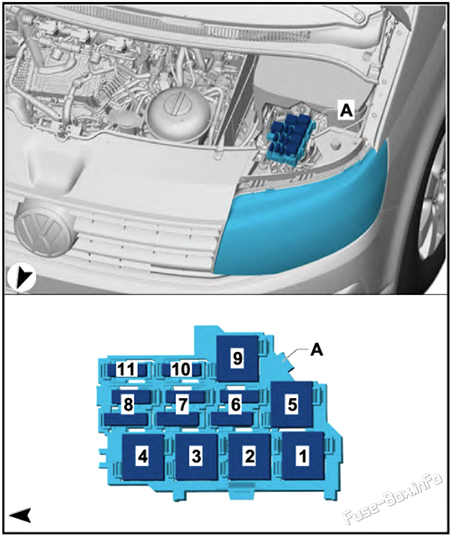

Relays Box

Relays Box Location and Diagram

Relays

Assignment of the relays in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Automatic glow period control unit (diesel)
1a	Fuel shut-off valve switch-off relay (petrol)
1b	Coolant pump relay (petrol)
2	Starter relay 2
3	Power steering control unit
4	Heated windscreen relay
5	Terminal 30 voltage supply relay
6	Starter inhibitor relay
7a	Electric fuel pump 2 relay (diesel)
7b	Coolant shut-off valve relay
8a	Additional coolant pump relay
8b	Fuel pump relay
9	Starter relay 1
10	not assigned
11	Relay for reducing agent metering system
