Looking for Volkswagen Transporter / Caravelle fuse box diagrams ? This article covers the seventh-generation Volkswagen Transporter / Caravelle (Model Code: T7) , produced from 2024 , and includes clear diagrams for Volkswagen Transporter / Caravelle T7 2024, 2025 and 2026 , along with information on the location of the fuse panels inside the vehicle and a breakdown of the assignment of each fuse and relay (fuse layout), making electrical troubleshooting straightforward.

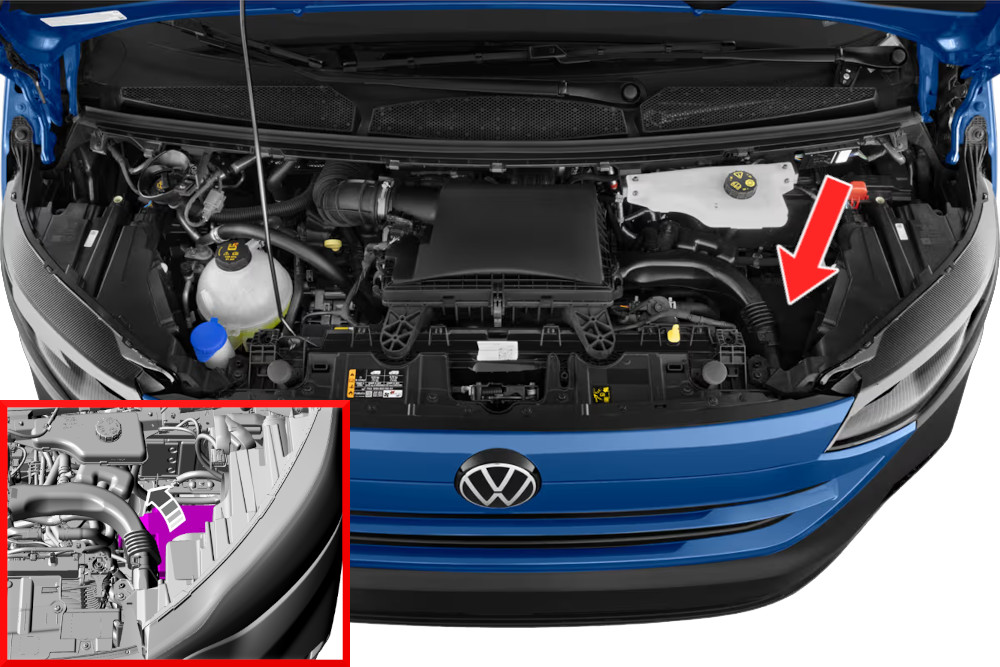

The fuse box is located under the bonnet in the engine compartment, near the driver-side headlamp. On diesel engines, it is in the same location, positioned under the air intake.

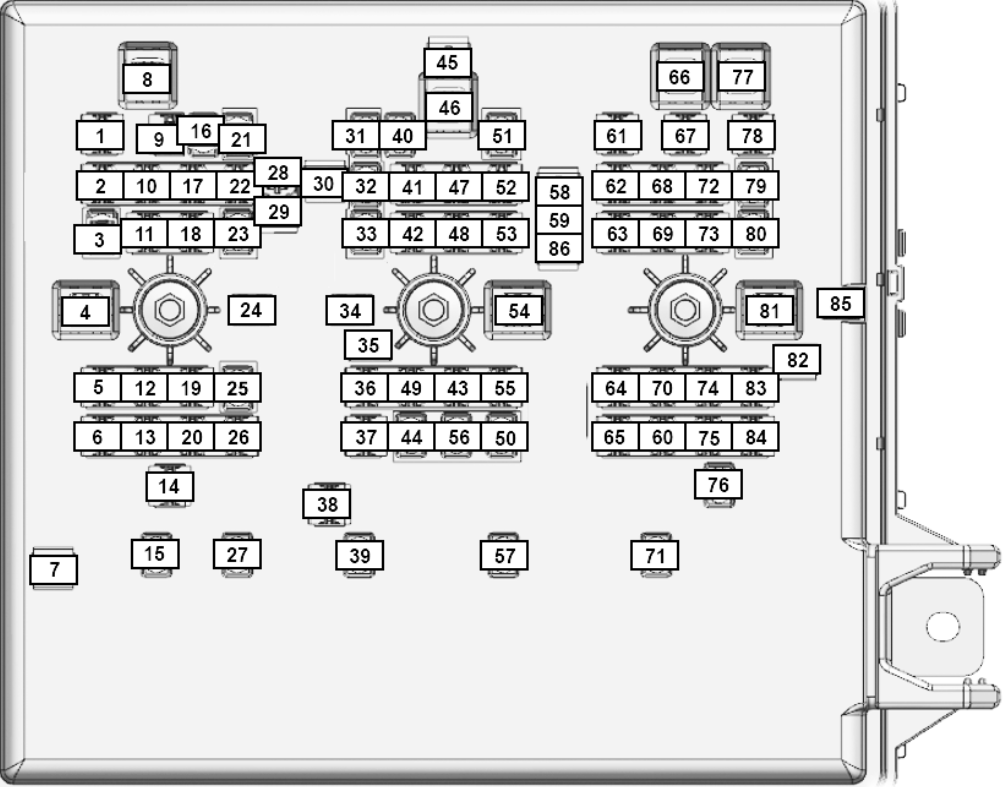

Assignment of fuses in the engine compartment for Diesel engines
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 15 A Rear washer motor 2 15 A Left-hand side rear heated seat 3 40 A Left-hand side front window defrost 4 40 A Auxiliary blower 5 – Not used 6 10 A Not used 7 15 A Power folding mirrors 8 40 A Blower motor 9 5 A Rain sensor 10 15 A Right-hand side rear heated seat 11 7 A Rev counter 12 5 A USB smart charger 3 13 10 A Not used 14 10 A Not used 15 40 A Positive temperature coefficient heater bank 3 16 30 A Upfitter 1 electronic control unit 17 7.5 A Rev counter 18 – Not used 19 5 A USB smart charger 1 20 10 A Not used 21 20 A Rear wiper 22 10 A Power steering module 23 20 A Right-hand heated rear window 24 60 A Anti-lock braking system valve / Electric brake booster valve 25 20 A Power point 1 power outlet / Cigar lighter 26 5 A USB smart charger 2 27 40 A Right-hand front window defrost 28 5 A Interior power distribution box run/start relay coil 29 10 A Heated mirror 30 5 A All-wheel drive control module 31 25 A Front wiper motor 32 15 A Transaxle gearbox oil pump 20 A Not used 33 30 A Left-hand heated rear window / Lift gate 34 60 A Anti-lock braking system control module / Electric brake booster pump 35 5 A USB smart charger 6 36 5 A USB smart charger 5 37 5 A USB smart charger 4 38 10 A Anti-theft horn / Battery backup alarm sounder 39 40 A Positive temperature coefficient heater bank 2 40 30 A Upfitter 4 electronic control unit 41 10 A Left-hand headlamp leveling motor / Right-hand headlamp leveling motor 42 10 A Not used 43 5 A Not used 44 20 A Power point 2, rear outlet 45 5 A Not used 46 50 A Not used 47 10 A ABS control module 48 15 A Heated steering wheel / Steering control module 49 – Not used 50 40 A Fuel filter heater 51 40 A All-wheel drive electronic control unit 52 10 A Gearbox / Transaxle electronic control unit 53 – Not used 54 60 A DC/AC 400W inverter 55 20 A Traffic horn 56 30 A Fuel pump / Fuel pump control module 57 40 A Positive temperature coefficient heater bank 1 58 20 A Right-hand headlamp 59 20 A Left-hand headlamp 60 – Not used 61 15 A Glow dosing module 62 10 A Powertrain control module 63 5 A Glow dosing module 64 25 A Transaxle oil pump 65 15 A Not used 66 30 A Upfitter 2 electronic control unit 67 – Not used 68 15 A Glow dosing module 69 5 A Not used 70 20 A Powertrain control module / Power supply voltage 1 71 30 A Starter motor 72 15 A Reductant tank heater 73 5 A Keep-alive power 74 15 A Power supply voltage 2 75 15 A Power supply voltage 5 76 – Not used 77 – Not used 78 – Not used 79 – Not used 80 – Not used 81 30 A Upfitter 3 electronic control unit 82 – Not used 83 20 A Power supply voltage 4 84 15 A Power supply voltage 3 85 – Not used 86 5 A Headlamp control electronic control unit
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment for EV
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 15 A Rear washer motor 2 15 A Left-hand side rear heated seat 3 40 A Left-hand side front window defrost 4 40 A Auxiliary blower 5 – Not used 6 10 A Inverter system controller 7 15 A Power folding mirrors 8 40 A Blower motor 9 5 A Rain sensor 10 15 A Right-hand side rear heated seat 11 7.5 A Rev counter 12 5 A USB smart charger 3 13 10 A Positive temperature coefficient heater 14 10 A Traction battery control module 15 40 A Positive temperature coefficient heater bank 3 16 30 A Upfitter 1 electronic control unit 17 7.5 A Rev counter 18 – Not used 19 5 A USB smart charger 1 20 10 A Coolant valve 21 20 A Rear wiper 22 10 A Power steering module 23 20 A Right-hand heated rear window 24 60 A Anti-lock braking system valve / Electric brake booster valve 25 20 A Power point 1 power outlet / Cigar lighter 26 5 A USB smart charger 2 27 40 A Right-hand front window defrost 28 5 A Interior power distribution box run/start relay coil 29 10 A Heated mirror 30 5 A Not used 31 25 A Front wiper motor 32 15 A Not used 20 A Transaxle gearbox oil pump 33 30 A Left-hand heated rear window / Lift gate 34 60 A Anti-lock braking system control module / Electric brake booster pump 35 5 A USB smart charger 6 36 5 A USB smart charger 5 37 5 A USB smart charger 4 38 10 A Anti-theft horn / Battery backup alarm sounder 39 40 A Positive temperature coefficient heater bank 2 40 30 A Upfitter 4 electronic control unit 41 10 A Left-hand headlamp leveling motor / Right-hand headlamp leveling motor 42 10 A Generator / Battery charger control module 43 5 A Not used 44 20 A Power point 2, rear outlet 45 5 A Not used 45 – Not used 47 10 A ABS control module 48 15 A Heated steering wheel / Steering control module 49 – Not used 50 40 A Not used 51 40 A All-wheel drive electronic control unit 52 10 A Inverter system controller 53 – Not used 54 60 A DC/AC 400W inverter 55 20 A Traffic horn 56 30 A Not used 57 40 A Positive temperature coefficient heater bank 1 58 20 A Right-hand headlamp 59 20 A Left-hand headlamp 60 – Not used 61 15 A Low voltage service disconnect / Battery energy control module 62 10 A Powertrain control module 63 5 A Glow dosing module 64 25 A Not used 65 15 A Not used 66 30 A Upfitter 2 electronic control unit 67 – Not used 68 15 A Cooling pump / Audible Vehicle Alert System 69 5 A Charge status indicator 70 20 A Powertrain control module / Power supply voltage 1 71 30 A Not used 72 15 A High-voltage battery cooling pump 73 5 A Keep-alive power 74 20 A Power supply voltage 2 75 15 A Power supply voltage 5 76 – Not used 77 – Not used 78 – Not used 79 – Not used 80 – Not used 81 30 A Upfitter 3 electronic control unit 82 – Not used 83 15 A Power supply voltage 4 84 15 A Power supply voltage 3 85 – Not used 86 5 A Headlamp control electronic control unit
This content requires JavaScript and a valid membership to view.

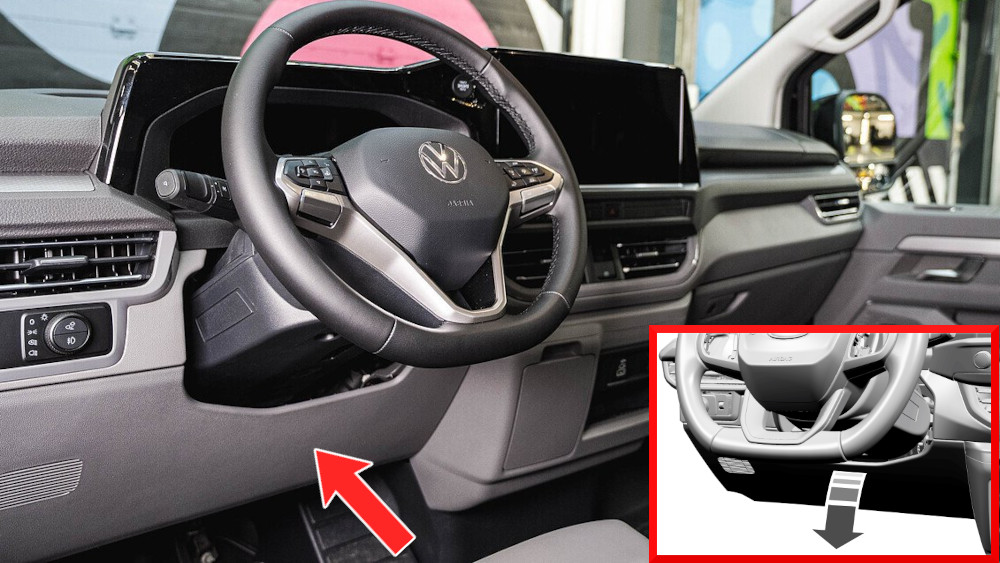

The interior fuse box is located under the steering wheel. Simply remove the plastic lid to access it.

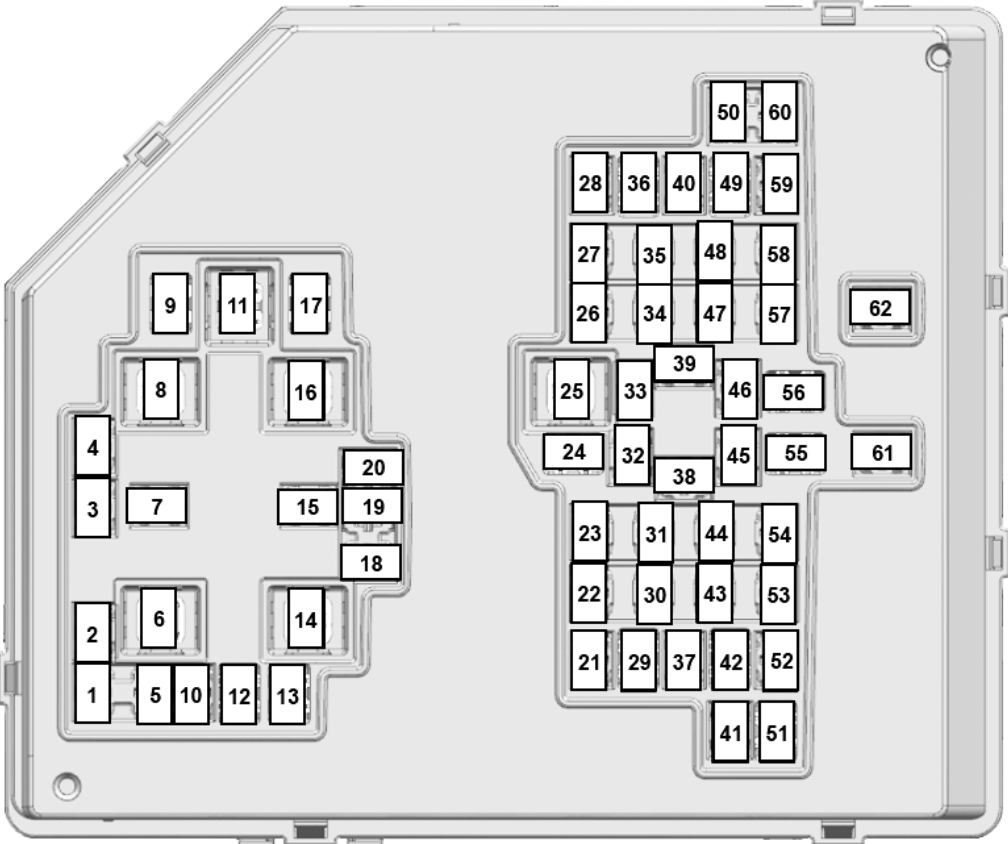

Assignment of fuses in the passenger compartment
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Amps Description 1 5 A Intrusion sensor / Inclination sensor.Handsfree / Rear climate control module 2 5 A Climate control electronic control unit 3 7.5 A Integrated rear view mirror camera / Integrated rear view mirror display 4 5 A Headlamp assembly switch 5 5 A Cargo/cabin camera 6 40 A Body control module 1 7 – Not used 8 40 A Body control module 2 9 – Not used 10 20 A Advanced driver assistance system module 11 40 A Trailer tow control module 12 30 A Right-hand side power sliding door 2 13 30 A Left-hand side power sliding door 2 14 40 A Body control module 3 15 15 A Upfitter connector / Smart fuse box 16 40 A Body control module 4 17 – Not used 18 7.5 A Power mirror switch / Wireless charger control module 19 7.5 A Brake on/off switch 20 7.5 A Steering wheel column control module / Cluster 21 10 A Upfitter switched earth 22 15 A Electric steering column lock 23 – Not used 24 40 A Right-hand door control module / Driver power window – right hand drive 25 40 A Trailer tow battery charge 26 10 A Upfitter connector / Smart fuse box 27 10 A Upfitter interface control module 28 15 A Amplifier 1 29 30 A Right-hand side power sliding door 30 10 A Wireless buckle monitoring 31 15 A Amplifier 2 32 10 A Enhanced central gateway electronic control unit 33 5 A Fuel fired heater remote control 34 – Not used 35 5 A Alcohol interlock 36 30 A Passenger seat control module 37 20 A Radio 38 5 A Instrument cluster display 39 15 A Phone / Voice control module 40 5 A Headlamp leveling control 41 – Not used 42 30 A Left-hand power sliding door 43 15 A Right-hand heated front seat 44 10 A Power windows switch 45 15 A Right-hand power sliding door latch 46 10 A Integrated control panel / Navigation display 47 15 A Left-hand heated front seat 48 – Not used 49 20 A Retractable towbar module 50 – Not used 51 30 A Driver seat control module 52 15 A Left-hand power sliding door latch 53 10 A On-board diagnostic port connector 54 30 A Front passenger power window 55 40 A Left-hand door control module / Driver power window – left-hand drive 56 20 A Fuel fired heater module 57 10 A Telematics control unit 58 5 A Mirror display 59 – Not used 60 – Not used 61 20 A Left-hand cargo latch release / Left-hand bottom release 62 20 A Right-hand cargo latch release / Right-hand bottom release
This content requires JavaScript and a valid membership to view.
