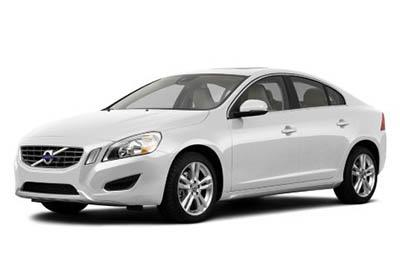

The second-generation Volvo S60 , before receiving its facelift, was produced from 2010 to 2014 . This version introduced Volvo’s modern design direction, with sleek Scandinavian styling, advanced safety systems, and a strong balance between sporty performance and everyday comfort. It quickly established itself as a serious contender in the premium compact executive sedan segment.
In this article, you will find fuse box diagrams for the Volvo S60, covering model years 2011, 2012, 2013 and 2014. These diagrams provide crucial guidance for identifying, checking, and replacing fuses and relays that support the vehicle’s electrical systems.
What’s Included:
Fuse Box Diagrams – Detailed visuals showing the fuse and relay arrangement.Fuse Panel Locations – Guidance on where to find the fuse panels inside your S60.Fuse Assignments – Complete descriptions of each fuse and relay to assist in troubleshooting and repairs.
Whether you’re dealing with a minor electrical issue or performing preventative maintenance, this guide will help you keep your Volvo S60 (2011–2014) running smoothly and reliably.
The fuse box is located under the lining.
Located behind the upholstery on the left side of the trunk.
Assignment of fuses in the engine compartment (2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 – 7 – 8 Headlight washers (Option) 20 9 Windshield wipers 30 10 11 Climate system blower 40 12 13 ABS pump 40 14 ABS valves 20 15 16 Active Bending Lights-headlight leveling (Option) 10 17 Central electrical module 20 18 ABS 15 feed 5 19 Speed-dependent steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 Vacuum pump I5T 5 23 Lighting panel 5 24 25 26 27 Relay – engine compartment box 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module (ECM), throttle 10 37 38 Engine valves 10 39 EVAP/heated oxygen sensor/fuel injection 15 40 41 Fuel leakage detection 5 42 43 Cooling fan 80 44 Electro-hydraulic power steering 100
This content requires JavaScript and a valid membership to view.
Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.
Assignment of fuses under the glove compartment (Fuse box A – 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker – infotainment system 40 2 3 4 5 6 Keyless drive (Option) (door handles) 5 7 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 Folding rear seat head restraints 15 16 Infotainment control module 5 17 Infotainment system, Navigation system(Option) display 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 21 Power moonroof (Option), Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated front passenger’s seat (Option) 15 24 Heated driver’s seat (Option) 15 25 26 Heated rear passenger’s seat (right) (Option) 15 27 Heated rear passenger’s seat (left) (Option) 15 28 Park assist (Option), Volvo Navigation System (Option), Park assist camera(Option) 5 29 All Wheel Drive(Option) control module 5 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fuse box B – 2011)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 2 3 Front courtesy lighting, power seat(s) (Option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Rear cental locking and fuel filler door 10 9 Washers 15 10 Windshield washer 15 11 Trunk unlock 10 12 – 13 Fuel pump 20 14 Remote key receiver, Alarm, Climate system 5 15 Steering wheel lock 15 16 Alarm, On-board diagnostic system 5 17 – 18 Airbag system, Occupant weight system 10 19 Adaptive cruise control front radar (Option) 5 20 Accelerator pedal, power door mirrors, Heated rear seats (Option) 7.5 21 Infotainment system, CD and radio 15 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 – 7 – 8 Headlight washers (Option) 20 9 Windshield wipers 30 10 – 11 Climate system blower 40 12 – 13 ABS pump 40 14 ABS valves 20 15 – 16 Active Bending Lights-headlight leveling (Option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 Vacuum pump (5-cylinder engine) 5 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module 10 37 Injection system, mass air meter 15 38 A/C compressor, engine valves, engine control module 10 39 EVAP valve, heated oxygen sensor 15 40 Vacuum pump/crankcase ventilation heater (5-cylin-der engine) 20 41 Fuel leakage detection 5 42 43 Cooling fan 60 (5- cyl. engi ne) 80 (6- cyl. engi ne) 44 Electro-hydraulic power steering 100
This content requires JavaScript and a valid membership to view.
Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.
Assignment of fuses under the glove compartment (Fuse box A – 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker – infotainmerit system 40 2 3 4 5 6 Keyless drive (Option) (door handles) 5 7 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 Folding rear seat head restraints 15 16 Infotainment control module 5 17 Infotainment system, Sirius satellite radio (Option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 – 21 Power moonroof (Option) , Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated rear seat (Option) (passenger’s side) 15 24 Heated rear seat(Option)(driver’s side) 15 25 – 26 Heated front passenger’s seat (option) 15 27 Heated driver’s seat (Option) 15 28 Park assist (Option), trailer hitch control module (Option), park assist camera (Option), Blind Spot Information System (BUS) (Option) 5 29 All Wheel Drive (Option) control module 5 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fuse box B – 2012)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLInk® Wireless Control System (Option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, occupant weight sensor 10 19 Collision warning system (Option) 5 20 Accelerator pedal, auto-dim mirror function, heated rear seats (Option) 7.5 21 – 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 7 8 Headlight washers (Option) 20 9 Windshield wipers 30 10 11 Climate system blower 40 12 13 ABS pump 40 14 ABS valves 20 15 16 Active Bending Lightsheadlight leveling (Option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 Vacuum pump (5-cylinder engine) 5 23 Lighting panel 5 24 25 26 27 Relay – engine compartment box 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module 10 37 Injection system, mass air meter, engine control module 15 38 A/C compressor, engine valves, engine control module (6-cyl.), solenoids (6-cyl. non-turbo only), mass air meter (5-cyl. only) 10 39 EVAP valve, heated oxygen sensor 15 40 Vacuum pump/crankcase ventilation heater (5-cylin-der engine) 10 41 Fuel leakage detection 5 42 43 Cooling fan 60 (5- cyl. engine) 44 Electro-hydraulic power steering 100
This content requires JavaScript and a valid membership to view.
Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.
Assignment of fuses under the glove compartment (Fuse box A – 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker – infotainmerit system 40 2 3 4 5 6 Keyless drive (Option) (door handles) 5 7 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive (Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 Folding rear seat head restraints 15 16 Infotainment control module 5 17 Infotainment system, Sirius satellite radio (Option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 – 21 Power moonroof (Option) , Courtesy lighting, climate system sensor 5 22 12-volt sockets 15 23 Heated rear seat (Option) (passenger’s side) 15 24 Heated rear seat (Option) (driver’s side) 15 25 – 26 Heated front passenger’s seat (Option) 15 27 Heated driver’s seat (Option) 15 28 Park assist (Option), trailer hitch control module (Option), park assist camera (Option), Blind Spot Information System (BUS) (Option) 5 29 All Wheel Drive control module (Option) 5 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fuse box B – 2013)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLInk Wireless Control System (Option) 7.5 4 Instrument panel information display 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 10 Windshield washer 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (Option) 10 13 Fuel pump 20 14 Climate system control panel, Alarm movement sensor’ 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, occupant weight sensor 10 19 Collision warning system (Option) 5 20 Throttle pedal, auto-dim mirror function, heated rear seats (Option) 7.5 21 – 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the engine compartment (2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker 50 2 Circuit breaker 50 3 Circuit breaker 60 4 Circuit breaker 60 5 Circuit breaker 60 6 – 7 – 8 Headed windshield (Option), driver’s side 40 9 Windshield wipers 30 10 – 11 Climate system blower 40 12 Headed windshield (Option), passenger’s side 40 13 ABS pump 40 14 ABS valves 20 15 Headlight washers 20 16 Active Bending Lights-headlight leveling (Option) 10 17 Central electrical module 20 18 ABS 5 19 Speed-dependent steering force (Option) 5 20 Engine Control Module (ECM), transmission, SRS 10 21 Heated washer nozzles (Option) 10 22 Vacuum pump (5-cylinder engine) 5 23 Lighting panel 5 24 – 25 – 26 – 27 Relay – engine compartment box 5 28 Auxiliary lights (Option) 20 29 Horn 15 30 Engine Control Module (ECM) 10 31 Control module – automatic transmission 15 32 A/C compressor 15 33 Relay-coils 5 34 Starter motor relay 30 35 Ignition coils 20 36 Engine Control Module 10 37 Injection system, mass air meter, engine control module 15 38 A/C compressor, engine valves, engine control module (6-cyl.), solenoids (6-cyl. nonturbo only), mass air meter (5-cyl. only) 10 39 EVAP valve, heated oxygen sensor 15 40 Vacuum pump/crank-case ventilation heater (5-cylinder engine) 10 41 Fuel leakage detection 5 42 – 43 Cooling fan 60 (5-cyl. engine) 44 Electro-hydraulic power steering 100
This content requires JavaScript and a valid membership to view.
Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.
Assignment of fuses under the glove compartment (Fuse box A – 2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 Circuit breaker for the infotainment system and for fuses 16-20 40 2 3 4 5 6 Keyless drive (Option) (door handles) 5 7 – 8 Controls in driver’s door 20 9 Controls in front passenger’s door 20 10 Controls in right rear passenger’s door 20 11 Controls in left rear passenger’s door 20 12 Keyless drive(Option) 7.5 13 Power driver’s seat (Option) 20 14 Power front passenger’s seat (Option) 20 15 Windshield washers 25 16 Infotainment control module 5 17 Infotainment system, SiriusXM™ satellite radio (Option) 10 18 Infotainment system 15 19 Bluetooth hands-free system 5 20 21 Power moonroof (Option), Courtesy lighting, climate system 5 22 12-volt sockets 15 23 Heated rear seat (Option) (passenger’s side) 15 24 Heated rear seat (Option) (driver’s side) 15 25 26 Heated front passenger’s seat (Option) 15 27 Heated driver’s seat (Option) 15 28 Park assist (Option), trailer hitch control module (Option), park assist camera (Option) Blind Spot Information System (BLIS) (Option) 5 29 All Wheel Drive (Option) control module 5 30 Active chassis system (Option) 10
This content requires JavaScript and a valid membership to view.
Assignment of fuses under the glove compartment (Fuse box B – 2014)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function A 1 2 3 Front courtesy lighting, driver’s door power window controls, power seat(s) (Option), HomeLInk® Wireless Control System (Option) 7.5 4 Instrument panel 5 5 Adaptive cruise control/collision warning (Option) 10 6 Courtesy lighting, rain sensor (Option) 7.5 7 Steering wheel module 7.5 8 Cental locking: fuel filler door 10 9 Electrically heated steering wheel (Option) 15 10 Electrically heated windshield (Option) 15 11 Trunk open 10 12 Electrical folding rear seat outboard head restraints (Option) 10 13 Fuel pump 20 14 Climate system control panel 5 15 16 Alarm, On-board diagnostic system 5 17 18 Airbag system, occupant weight sensor 10 19 Collision warning system (Option) 5 20 Accelerator pedal, auto-dim mirror function, heated rear seats (Option) 7.5 21 – 22 Brake lights 5 23 Power moonroof (Option) 20 24 Immobilizer 5
This content requires JavaScript and a valid membership to view.
Assignment of fuses in the cargo area
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
№ Function Amp 1 Electric parking brake (left side) 30 2 Electric parking brake (right side) 30 3 Heated rear window 30 4 Trailer socket 2 (Option) 15 5 – 6 7 Rear 12-volt socket 15 8 – – 9 – – 10 – – 11 Trailer socket 1 (option) 40 12 – –
