Volvo S60 Fuse Box Locations and Diagrams (2018-2025)

The third-generation Volvo S60, produced from 2018 to 2025, represents a new era in Volvo’s mid-size luxury sedan lineup. Built on the SPA (Scalable Product Architecture) platform, it introduced electrification options including Twin-Engine and Recharge Plug-in Hybrid variants, while maintaining Volvo’s strong focus on Scandinavian design, advanced technology, and world-class safety. Offering a range of efficient engines, luxury features, and cutting-edge driver assistance systems, the S60 stands as one of Volvo’s most refined and eco-conscious sedans.

In this article, you will find fuse box diagrams for the Volvo S60, covering model years 2018, 2019, 2020, 2021, 2022, 2023, 2024 and 2025. These diagrams are essential for identifying fuse layouts, enabling owners and technicians to locate, inspect, and replace fuses or relays as needed.

What’s Included:

Fuse Box Diagrams – Detailed visuals showing the arrangement of fuses and relays.
Fuse Panel Locations – Guidance on where to find fuse panels inside the Volvo S60.
Fuse Assignments – A full breakdown of each fuse and relay function to assist with diagnostics and repairs.

Whether you’re troubleshooting an electrical fault, replacing a blown fuse, or performing maintenance, this guide ensures your Volvo S60 (2018–2025) remains reliable, efficient, and safe.

Fuse Box Locations

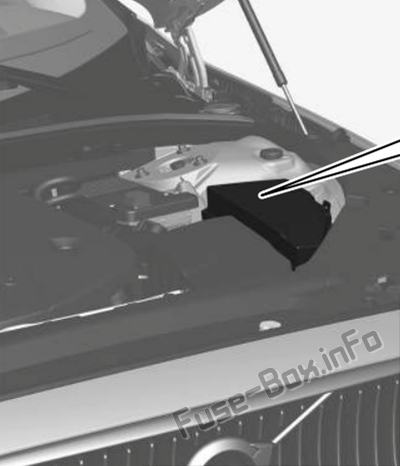

Engine compartment

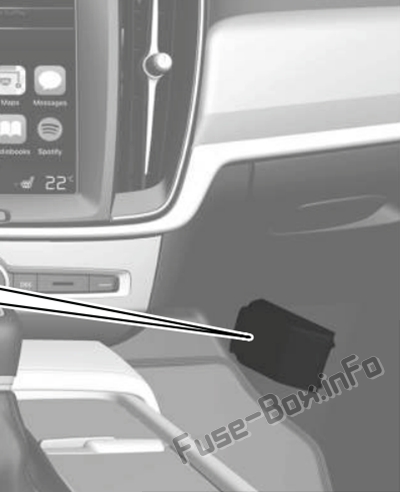

Passenger compartment

Luggage compartment

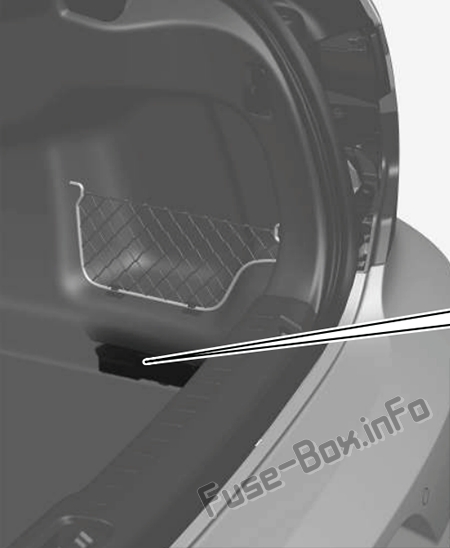

The location of the fuses in the trunk: Volvo S60 (2019)

Fuse Box Diagrams

2018, 2019

Engine compartment

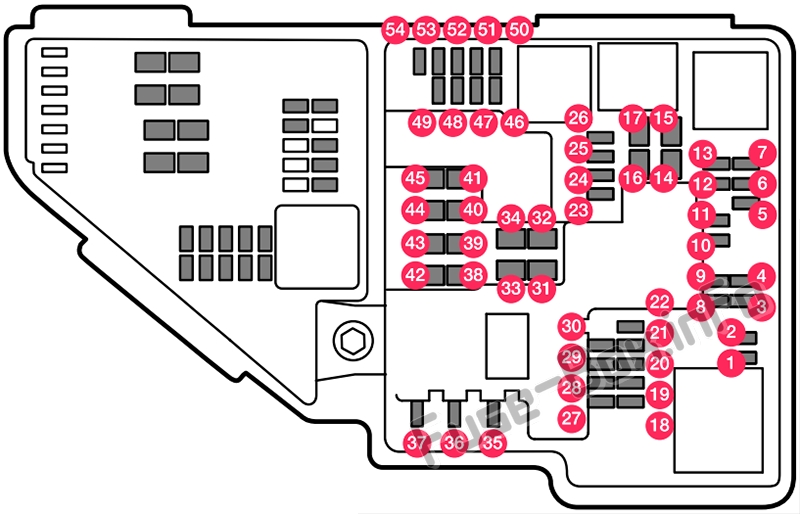

Assignment of fuses in the engine compartment (2018, 2019)

№	Amps	Function
1	–	Not used
2	–	Not used
3	–	Not used
4	15	Ignition coils (gasoline); spark plugs (gasoline)
5	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel)
6	7.5	Vacuum regulators; valve; valve for power pulse (diesel)
7	20	Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline)
8	5	Engine control module
9	–	Not used
10	10	Solenoids (gasoline); valve; Engine cooling system thermostat (gasoline); EGR cooling pump (diesel); glow control module (diesel)
11	5	Spoiler shutter control module; Radiator shutter control module; Relay windings for power pulse (diesel)
12	–	Not used
13	20	Engine control module
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	Not used
18	–	Not used
19	–	Not used
20	–	Not used
21	–	Not used
22	–	Not used
23	–	Not used
24	15	12 V outlet in tunnel console, front
25	15	12 V outlet in tunnel console between rear seats
26	15	12 V outlet in trunk/cargo compartment
27	–	Not used
28	15	Left-side headlight, some models with LED
29	15	Right-side headlight, some models with LED
30	–	Not used
31	–	Not used
32	–	Not used
33	25	Headlight washers
34	25	Windshield washer
35	15	Transmission control module
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
39	30	Wipers
40	–	Not used
41	–	Not used
42	20	Parking heater
43	–	Not used
44	–	Not used
45	–	Not used
46	5	Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module
47	–	Not used
48	7.5	Right-side headlight
48	15	Right-side headlight, some models with LED
49	–	Not used
50	–	Not used
51	5	Battery connection control module
52	5	Airbags
53	7.5	Left-side headlight
53	15	Left-side headlight, some models with LED
54	5	Accelerator pedal sensor

Engine compartment (Twin Engine)

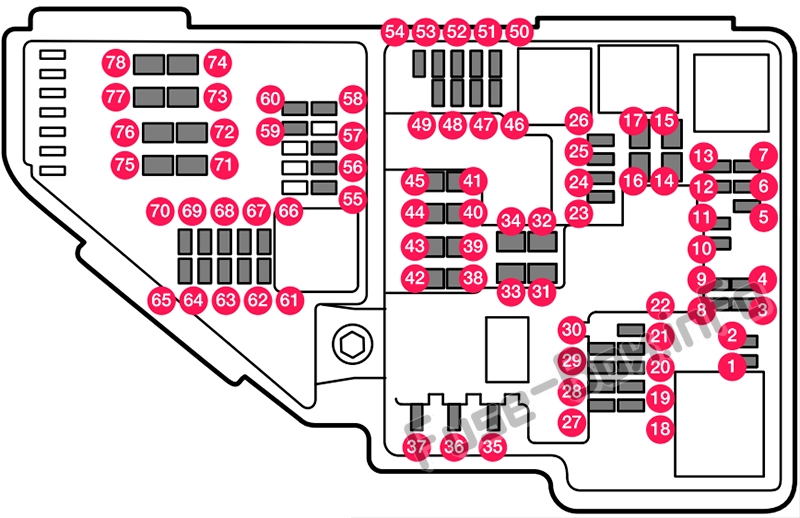

Under-hood fuse box diagram (Twin Engine): Volvo S60 (2019)

Assignment of fuses in the engine compartment (2018, 2019, Twin Engine)

№	Amps	Function
1	–	Not Used
2	–	Not Used
3	–	Not Used
4	5	Control module for actuator for engaging/changing gears, automatic transmission
5	5	High-voltage coolant heater control module
6	5	Control module for A/C; heat exchanger cut-off valve; cutoff valve for coolant through the climate system
7	5	Hybrid battery control module; high-voltage converter for combined high-voltage gener-ator/starter motor with 500 V-12 V voltage converter
8	–	Not Used
9	10	Converter for controlling feed to rear axle electric motor
10	10	Hybrid battery control module; high-voltage converter for combined high-voltage gener-ator/starter motor with 500 V-12 V voltage converter
11	5	Charge module
12	10	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13	10	Coolant pump for electric drive system
14	25	Hybrid component cooling fan
15	–	Not Used
16	–	Not Used
17	–	Not Used
18	–	Not Used
19	–	Not Used
20	–	Not Used
21	–	Not Used
22	–	Not Used
23	–	Not Used
24	15	12 V outlet in tunnel console, front
25	15	12 V outlet in tunnel console between second-row seats
26	15	12 V outlet in trunk/cargo compartment USB ports for iPad holders
27	–	Not Used
28	–	Not Used
29	–	Not Used
30	–	Not Used
31	–	Not Used
32	–	Not Used
33	25	Headlight washers
34	25	Windshield washer
35	–	Not Used
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
39	30	Wipers
40	–	Not Used
41	–	Not Used
42	20	Parking heater
43	40	Brake system control module (ABS pump)
44	–	Not Used
45	–	Not Used
46	5	Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47	5	Exterior vehicle sound (certain markets)
48	7.5	Right-side headlight
48	15	Right-side headlight, some models with LED
49	–	Not Used
50	–	Not Used
51	–	Not Used
52	5	Airbags
53	7.5	Left-side headlight
53	15	Left-side headlight, some models with LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; gear selector control module
56	5	Engine control module
57	–	Not Used
58	–	Not Used
59	–	Not Used
60	–	Not Used
61	20	Engine control module; actuator; throttle unit; turbo-charger valve
62	10	Solenoids; valve; engine cooling system thermostat
63	7.5	Vacuum regulators; valve
64	5	Spoiler shutter control module; radiator shutter control module
65	–	Not Used
66	15	Heated oxygen sensor, front; heated oxygen sensor, rear
67	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor (center)
68	–	Not Used
69	20	Engine control module
70	15	Ignition coils; spark plugs
71	–	Not Used
72	–	Not Used
73	30	Transmission oil pump control module
74	40	Vacuum pump control module
75	25	Transmission actuator
76	–	Not Used
77	–	Not Used
78	–	Not Used

Passenger compartment

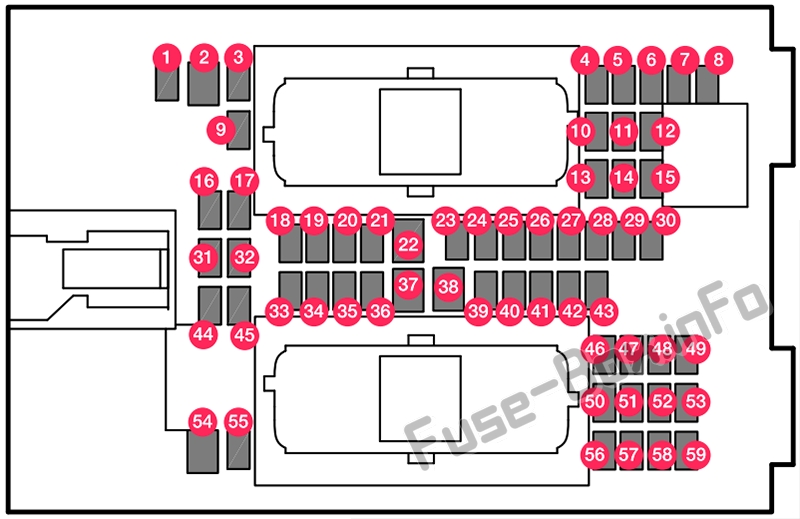

Interior fuse box diagram: Volvo S60 (2019)

Assignment of fuses under the glove compartment (2018, 2019)

№	Amps	Function
1	–	Not Used
2	30	Electrical outlet in tunnel console between rear seats
3	–	Not Used
4	5	Movement sensor
5	5	Media player
6	5	Instrument panel
7	5	Center console buttons
8	5	Sun sensor
9	–	Not Used
10	–	Not Used
11	5	Steering wheel module
12	5	Module for start knob and parking brake controls
13	15	Heated steering wheel module
14	–	Not Used
15	–	Not Used
16	–	Not Used
17	–	Not Used
18	10	Climate system control module
19	–	Not Used
20	10	Data link connector OBD-II
21	5	Center display
22	40	Climate system blower module (front)
23	5	USB HUB
24	7.5	Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right
25	5	Control module for driver support functions
26	20	Panoramic roof with sun curtain
27	5	Head-up display
28	5	Passenger compartment lighting
29	–	Not Used
30	5	Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31	–	Not Used
32	–	Not Used
33	20	Door module in right-side rear door
34	10	Fuses in the trunk/cargo compartment
35	5	Control module for Internet-connected vehicle; Control module for Volvo On Call
36		Door module in left-side rear door
37	40	Infotainment control module (amplifier)
38	–	Not Used
39	5	Multi-band antenna module
40	5	Front seat massage function
41	–	Not Used
42	–	Not Used
43	15	Fuel pump control module
44	–	Not Used
45	–	Not Used
46	15	Driver’s seat heating
47	15	Front passenger’s seat heating
48	7.5	Coolant pump
49	–	Not Used
50	20	Door module in left-side front door
51	20	Active chassis control module
52	–	Not Used
53	10	Sensus control module
54	–	Not Used
55	–	Not Used
56	20	Door module in right-side front door
57	–	Not Used
58	5	TV (certain markets only)
59	15	Primary fuse for fuses 52, 53, 57 and 58

Luggage compartment

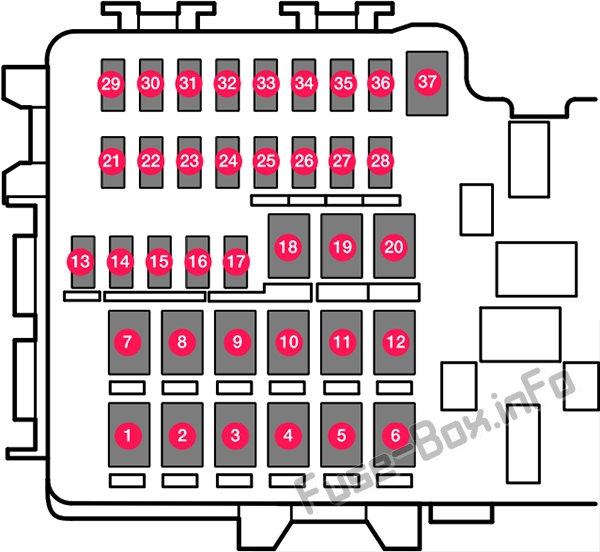

Trunk fuse box diagram: Volvo S60 (2019)

Assignment of fuses in the trunk (2018, 2019)

№	Amps	Function
1	–	Not Used
2	–	Not Used
3	40	Pneumatic suspension compressor
4	15	Lock motor for rear seat backrest, right side
5	–	Not Used
6	15	Lock motor for rear seat backrest, left side
7	20	Power front passenger seat, Door module right side, rear
8	–	Not Used
9	25	Power trunk release
10	20	Power front passenger seat, Door module right side, front
11	40	Towbar control module
12	40	Seat belt tensioner module (right side)
13	5	Internal relay windings
14	–	Not Used
15	5	Foot movement detection module for opening the power trunk release
16	–	USB hub/accessory port
17	–	Not Used
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat
20	40	Seat belt tensioner module (left side)
21	5	Park Assist Camera
22	–	Not Used
23	–	Not Used
24	–	Not Used
25	–	Not Used
26	5	Control module for airbags and seat belt tensioners
27	–	Not Used
28	15	Heated rear seat (left side)
29	–	Not Used
30	5	Blind Spot Information (BUS); Exterior reverse signal control module
31	–	Not Used
32	5	Modules for seat belt tensioners
33	5	Emissions system actuator (gasoline, certain engine variants)
34	–	Not Used
35	15	All Wheel Drive (AWD) control module
36	15	Heated rear seat (right side)
37	–	Not Used

2020

Engine compartment

Assignment of fuses in the engine compartment (2020)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	15	Ignition coils (petrol); Spark plugs (petrol); Exhaust sensor; Diesel particle sensor
5	15	Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, centre (petrol); Lambda probe, rear (diesel); Lambda probe, front (petrol/diesel)
6	7,5	Vacuum regulators; Valve; Valve for output pulse (diesel); Oil level/temperature sensor (diesel); Glow plugs (GCU) (diesel)
7	20	Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol)
8	5	Engine Control Module (ECM)
9	–	–
10	10	Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); Cooling pump for EGR (diesel); Glow control unit (diesel); Supercharger clutch (petrol); Crankshaft ventilation heater (diesel); Valve, gearbox oil cooler (diesel)
11	5	Control module for spoiler damper; Control module for radiator damper; Relay coils for output pulse (diesel)
12	15	Coolant pump
13	20	Engine Control Module (ECM)
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	–
18	5	Calculation unit
19	–	–
20	–	–
21	–	–
22	–	–
23	–	–
24	15	12 V socket in tunnel console, front
25	15	12 V socket in tunnel console, by legroom for second seat row
26	15	12 V socket in cargo area
27	–	–
28	15	Left-hand headlamp, LED
29	15	Right-hand headlamp, LED
30	–	–
31	Shunt	Heated windscreen, left-hand side
32	40	Heated windscreen, left-hand side
33	25	Headlamp washers
34	25	Washer fluid pump
35	15	Transmission control unit; Electric gear selector
36	20	Horn
37	5	Siren
38	40	Control module for brake system (valves, parking brake)
38	30	Brake control with 48V battery
39	30	Windscreen wipers
40	–	–
41	40	Heated windscreen, right-hand side
42	20	Parking heater
43	–	–
44	–	–
45	Shunt	Heated windscreen, right-hand side
46	5	Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module; Control module for brake system
47	–	–
48	15	Right-hand headlamp, LED
49	5	Alcohol lock
50	10	Transmission control module
51	5	Module for controlling battery engagement
52	5	Airbags; Passenger weight sensor
53	15	Left-hand headlamp, LED
54	5	Accelerator pedal sensor

Engine compartment (Twin Engine)

Under-hood fuse box diagram (Twin Engine): Volvo S60 (2020)

Assignment of fuses in the engine compartment (2020, Twin Engine)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	5	Control module for actuator for engagement/change of automatic gearbox gear positions
5	5	Control module for the high-voltage heater of the internal combustion engine’s coolant
6	5	Control module for air conditioning; Shut-off valve for heat exchanger; Shut-off valve for coolant that passes through the climate control system
7	5	Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500V-12V
8	–	–
9	10	Converter for control of the supply to the rear axle’s electric motor
10	10	Control module for hybrid battery; High voltage converter for combined high-voltage generator/starter motor with voltage converter 500V-12V
11	5	Charging unit
12	15	Shut-off valve for the hybrid battery’s coolant; Coolant pump 1 for hybrid battery
13	15	Coolant pump for electric drive system
14	25	Cooling fan for hybrid components
15	–	–
16	–	–
17	–	–
18	5	Calculation unit
19	–	–
20	–	–
21	–	–
22	–	–
23	–	–
24	15	12 V socket in tunnel console, front
25	15	12 V socket in tunnel console, by legroom for second seat row
26	15	12 V socket in cargo area, USB ports in head restraints right/left
27	–	–
28	15	Left-hand headlamp, LED
29	15	Right-hand headlamp, LED
30	–	–
31	Shunt	Heated windscreen, left-hand side
32	40	Heated windscreen, left-hand side
33	25	Headlamp washers
34	25	Windscreen washers
35	–	–
36	20	Horn
37	5	Siren*
38	40	Control module for brake system (valves, parking brake)
39	30	Windscreen wipers
40	–	–
41	40	Heated windscreen, right-hand side
42	20	Parking heater
43	40	Control unit for brake system (ABS pump)
44	–	–
45	Shunt	Heated windscreen, right-hand side
46	5	Supplied when the ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module
47	5	Exterior car noise (certain markets)
48	15	Right-hand headlamp, LED
49	5	Alcohol lock
50	–	–
51	–	–
52	5	Airbags; Passenger weight sensor
53	15	Left-hand headlamp, LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; Control module for gear selector
56	5	Engine Control Module (ECM)
57	–	–
58	–	–
59	–	–
60	–	–
61	20	Engine control module; Actuator; Throttle unit; Valve for turbocharger
62	10	Solenoids; Valves; Overpressure connection
63	7,5	Vacuum regulators; Valve for electric bypass: Valve for ventilation
64	5	Control unit, spoiler damper; Control unit, radiator damper
65	–	–
66	15	Lambda probe, front and rear
67	15	Solenoid for engine oil pump; Solenoid clutch A/C; Lambda probe, front, centre and rear
68	–	–
69	20	Engine Control Module (ECM)
70	15	Ignition coils; Spark plugs
71	–	–
72	–	–
73	30	Control module for transmission fluid pump
74	–	–
75	25	Actuator for transmission
76	–	–
77	—	—
78	—	—

Passenger compartment

Interior fuse box diagram: Volvo S60 (2020)

Assignment of fuses under the glove compartment (2020)

№	Amps	Function
1	10	Intermediate voltage module
2	30	Electrical socket in tunnel console, by legroom for rear seat
3	–	–
4	5	Movement detector
5	5	Media player
6	5	Driver display
7	5	Keypad in centre console
8	5	Sun sensor
9	–	–
10	–	–
11	5	Steering wheel module
12	5	Module for start knob and for parking brake control
13	15	Steering wheel module for heated steering wheel
14	–	–
15	–	–
16	–	–
17	–	–
18	10	Control module for climate control system
19	7,5	Steering lock
20	10	Diagnostic socket OBDII
21	5	Centre display
22	40	Fan module for climate control system, front
23	5	USB HUB
24	7,5	Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensor; Keypad in tunnel console, by legroom for rear seat; Power front seats; Control panels in rear doors; Fan module for climate control left/right
25	5	Control module for driver support functions
26	20	Panorama roof with sun blind
27	5	Head-up display
28	5	Passenger compartment lighting
29	–	–
30	5	Display in roof console (Seatbelt reminder/lndicator for airbag on the front passenger seat)
31	–	–
32	–	–
33	20	Door module in right-hand rear door
34	10	Fuses in cargo area
35	5	Control module for online car; Control module for Volvo On Call
36		Door module in left-hand rear door
37	40	Audio control device (amplifier)
38	–	–
39	5	Module for multi-band antenna
40	5	Modules for seat comfort (massage) front
41	5	Alcohol lock
42	–	–
43	15	Control module for fuel pump
44	5	Twin Engine: Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Integrated dynamo.
45	5	Opening the boot lid/tailgate with foot motion
46	15	Seat heating, driver’s side front
47	15	Seat heating, passenger side front
48	7,5	Coolant pump
49	–	–
50	20	Door module in left-hand front door Twin Engine: Power driver’s seat
51	20	Control module for suspension (active chassis)
52	–	–
53	10	Sensus control module
54	–	–
55	–	–
56	20	Door module in right-hand front door Twin Engine: Electrically operated front passenger seat
57	–	–
58	5	TV (certain markets)
59	15	Primary fuse for fuses 52, 53, 57 and 58

Luggage compartment

Trunk fuse box diagram: Volvo S60 (2020)

Assignment of fuses in the trunk (2020)

№	Amps	Function
1	30	Rear window defroster
2	–	–
3	40	Compressor for air suspension
4	15	Lock motor for backrest on rear right-hand side
5	–	–
6	15	Lock motor for backrest on rear left-hand side
7	20	Door module right-hand side rear
8	30	Control module for reduction of nitrous oxides (diesel)
9	–	–
10	20	Electrically operated front passenger seat Door module right-hand side front
11	40	Towbar control module
12	40	Seatbelt pretensioner module, right-hand side
13	5	Internal relay coils
14	15	Control module for reduction of nitrous oxides (diesel)
15	20	Door module left-hand side rear
16	5	Alcohol lock, USB hub/accessory port
17	5	Enhanced accessory module
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat Door module left-hand side front
20	40	Seatbelt pretensioner module, left-hand side
21	5	Parking camera
22	–	–
23	–	–
24	–	–
25
26	–	–
27	–	–
28	15	Seat heating left-hand side rear
29	–	–
30	5	Blind Spot Information (BLIS): control module, exterior reversing sound
31	–	–
32	5	Seatbelt pretensioner modules
33	5	Actuator for exhaust gases (petrol, certain engine variants)
34	–	–
35	15	All Wheel Drive (AWD) control module
36	15	Seat heating right-hand side rear
37	–	–

2021, 2022, 2023, 2024, 2025

Engine compartment

Under-hood fuse box diagram: Volvo S60 (2021)

Assignment of fuses in the engine compartment (2021, 2022, 2023, 2024, 2025)

№	Amps	Function
1	–	–
2	–	–
3	15	Lambda sensors; Electric charge pressure module
4	15	Ignition coils (gasoline); spark plugs (gasoline) Exhaust sensor; Diesel particulate sensor
5	15	Oil pump solenoid; A/C magnetic coupling; heated oxygen sensor, center (gasoline); heated oxygen sensor, rear (diesel); heated oxygen sensor, front (gasoline/diesel)
6	7.5	Vacuum regulator; Valve; Output pulse valve (diesel); Oil level/temperature sensor (gasoline/diesel); Glow plug (GCU) (diesel)
7	20	Engine control module; actuator; throttle unit; EGR valve (diesel); turbo position sensor (diesel); turbocharger valve (gasoline)
8	5	Engine control module
9	–	–
10	10	Solenoids (gasoline); Fuel leakage control valve; Engine cooling system thermostat (gasoline); EGR vacuum valve (diesel); Glow control module (diesel); Supercharger clutch (gasoline); Crankshaft ventilation heater (diesel); Transmission oil cooler valve (diesel)
11	5	Spoiler damper control module; Cooler damper control module; Relay coils for output pulse (diesel); Coolant valve Fuel leakage detection (gasoline)
12	15	Coolant pump
13	20	Engine control module
14	40	Starter motor
15	Shunt	Starter motor
16	30	Fuel filter heater (diesel)
17	–	–
18	5	Calculation module
19	–	–
20	–	–
21	15	ECM camera
22	–	–
23	7.5	Front USB port in tunnel console, rear
24	15	12 V outlet in tunnel console, front
25	–	–
26	15	12 V outlet in trunk/cargo compartment
27	–	–
28	15	Driver-side headlight, LED
29	15	Passenger-side headlight, LED
30	–	–
31	–	–
32	–	–
33	25	Headlight washers
34	25	Washer fluid pump
35	15	Transmission control module; Electric gear selector
36	20	Horn
37	5	Alarm siren
38	40	Brake system control module (valves, parking brake)
38	30	Brake control with 48 V battery
39	30	Wipers
40	–	–
41	–	–
42	20	Parking heater
43	–	–
44	–	–
45	–	–
46	5	Fed when ignition is on: engine control module, transmission components, electrical power steering, central electrical module, brake system control module
47	–	–
48	15	Passenger-side headlight, LED
49	–	–
50	10	Transmission control module
51	5	Battery connection control module
52	5	Airbags; Passenger weight sensor
53	15	Driver-side headlight, LED
54	5	Accelerator pedal sensor

Engine compartment (Recharge PHEV)

Assignment of fuses in the engine compartment (2021, 2022, 2023, 2024, 2025, Recharge PHEV)

№	Amps	Function
1	–	–
2	–	–
3	–	–
4	5	Control module for actuator for engaging/changing gears, automatic transmission
5	5	High-voltage coolant heater control module
6	5	Control module for A/C; heat exchanger cut-off valve; cut-off valve for coolant through the climate system
7	5	Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
8	–	–
9	10	Converter for controlling feed to rear axle electric motor
10	10	Hybrid battery control module; high-voltage converter for combined high-voltage generator/starter motor with 500V-12V voltage converter
11	5	Charge module
12	15	Cut-off valve for hybrid battery coolant; coolant pump 1 for hybrid battery
13	15	Coolant pump for electric drive system
14	25	Hybrid component cooling fan
15	–	–
16	–	–
17	–	–
18	5	Calculation module
19	–	–
20	–	–
21	–	–
22	–	–
23	7.5	Front USB port in tunnel console, front
24	15	12 V outlet in tunnel console, front
25	–	–
26	15	12 V outlet in trunk/cargo compartment
27	–	–
28	15	Driver-side headlight, LED
29	15	Passenger-side headlight, LED
30	–	–
31	–	–
32	–	–
33	25	Headlight washers
34	25	Windshield washer
35	–	–
36	20	Horn
37	5	Alarm siren
38	30	Brake system control module (valves, parking brake)
39	30	Wipers
40	–	–
41	–	–
42	20	Parking heater
43	–	–
44	–	–
45	–	–
46	5	Fed when ignition is on: Engine control module; transmission components, electrical power steering, central electrical module
47	5	Exterior vehicle sound (certain markets)
48	15	Passenger-side headlight, LED
49	–	–
50	–	–
51	–	–
52	5	Airbags; Passenger weight sensor
53	15	Driver-side headlight, LED
54	5	Accelerator pedal sensor
55	15	Transmission control module; gear selector control module
56	5	Engine control module
57	–	–
58	–	–
59	–	–
60	–	–
61	20	Engine control module; actuator; throttle unit; turbo-charger valve
62	10	Solenoids, Fuel leakage control valve; Overpressure coupling
63	7.5	Vacuum regulator; Electric bypass valve: Ventilation valve
64	5	Spoiler damper control module; Cooler damper control module Fuel leakage control pump
65	–	–
66	15	Heated oxygen sensor front and rear
67	15	Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor front, center and rear
68	–	–
69	20	Engine control module
70	15	Ignition coils; spark plugs
71	–	–
72	–	–
73	30	Transmission oil pump control module
74	–	–
75	–	–
76	–	–
77	–	–
78	–	–

Passenger compartment

Interior fuse box diagram: Volvo S60 (2021)

Assignment of fuses under the glove compartment (2021, 2022, 2023, 2024, 2025)

№	Amps	Function
1	10	Medium voltage module (Vehicles with 48 V support battery only)
2	–	–
3	–	–
4	5	Movement sensor
5	–	–
6	5	Instrument panel
7	5	Center console buttons
8	5	Sun sensor
9	–	–
10	–	–
11	5	Steering wheel module
12	5	Module for start knob and parking brake controls
13	15	Heated steering wheel module
14	–	–
15	–	–
16	–	–
17	–	–
18	10	Climate system control module
19	–	–
20	10	Data link connector OBD-II
21	5	Center display
22	40	Climate system blower module (front)
23	5	USB HUB
24	7.5	Instrument lighting; Interior lighting; Rearview mirror auto-dim function; Rain and light sensors; Rear tunnel console keypad, rear seat; Power front seats; Rear door control panels; Climate system blower module left/right
25	5	Control module for driver support functions
26	20	Panoramic roof with sun curtain
27	5	Head-up display
28	5	Passenger compartment lighting
29	5	Wireless charging pad
30	5	Ceiling console display (seat belt reminder/front passenger side airbag indicator)
31	–	–
32	–	–
33	–	–
34	10	Fuses in the trunk/cargo compartment
35	5	Control module for Internet-connected vehicle; Control module for Volvo On Call
36	20	Door module in left-side rear door
37	40	Infotainment control module (amplifier)
38	–	–
39	5	Multi-band antenna module
40	5	Front seat massage function
41	–	–
42	–	–
43	15	Fuel pump control module
44	5	Relay coil for transmission oil pump Converter medium voltage; Integrated starter motor
45	5	Opening trunk/tailgate with foot movement
46	15	Driver’s seat heating
47	15	Front passenger’s seat heating
48	7.5	Coolant pump
49	–	–
50	20	Door module in left-side front door Recharge PHEV: Power driver’s seat
51	20	Active chassis control module
52	–	–
53	10	Sensus control module
54	–	–
55	–	–
56	20	Door module in right-side front door Recharge PHEV: Power front passenger seat
57	–	–
58	5	TV (certain markets only)
59	15	Primary fuse for fuses 52, 53, 57 and 58

Luggage compartment

Trunk fuse box diagram: Volvo S60 (2021)

Assignment of fuses in the trunk (2021, 2022, 2023, 2024, 2025)

№	Amps	Function
1	30	Heated rear window
2	40	Central electrical module
3	–	–
4	15	Lock motor for rear seat backrest, right side
5	–	–
6	15	Lock motor for rear seat backrest, left side
7	20	Door module right side, rear (Only applies to vehicles with hybrid motors or 48 V support batteries)
8	–	–
9	–	–
10	20	Power front passenger seat Door module right side, front
11	40	Towbar control module
12	40	Seat belt tensioner module (right side)
13	5	Internal relay windings
14	–	–
15	20	Door module left side, rear
16	5	USB hub/accessory port
17	–	–
18	25	Towbar control module
18	40	Accessory module
19	20	Power driver seat Door module left side, front
20	40	Seat belt tensioner module (left side)
21	5	Park Assist Camera
22	–	–
23	–	–
24	–	–
25
26	–	–
27	–	–
28	15	Heated rear seat (left side)
29	–	–
30	5	Blind Spot Information (BLIS); Exterior reverse signal control module
31	–	–
32	5	Seat belt tensioner module, right
33	5	Emissions system actuator (gasoline, certain engine variants)
34	–	–
35	15	All Wheel Drive (AWD) control module
36	15	Heated rear seat (right side)
37	–	–

FAQ

What are the cigar lighter (power outlet) fuses in the Volvo S60?

Fuse #24 (front tunnel console), #25 (rear tunnel console), and #26 (trunk) in the engine compartment fuse box, plus fuse #2 (rear tunnel console outlet) under the glove compartment.
