BMW Z4 (E89) | 2009-2016 | Fuse Box Diagrams and Locations

Locate BMW Z4 fuse box diagrams for 2009–2016 models with fuse locations, panel layouts, and detailed electrical system information for the second-generation roadster. This article covers the second-generation BMW Z4 (Model Code: E89), available from 2009, and includes fuse box diagrams for BMW Z4 2009, 2010, 2011, 2012, 2013, 2014, 2015 and 2016, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

What’s Included

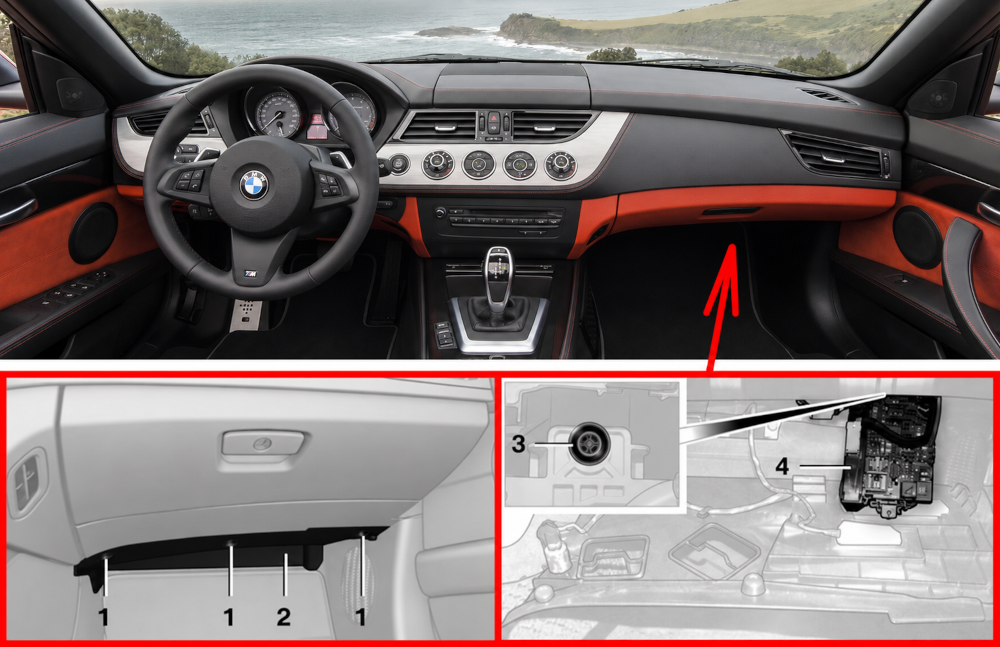

Fuse Box Location

The fuse box is situated beneath the glove compartment.

Fuse Box Access Instructions

To access the fuse box:

Remove the screws using the screwdriver from the onboard vehicle tool kit.
Remove the cover, carefully unwinding the footwell lamp cable if necessary.
Release the retaining fastener.
Fold the current distributor downward and pull it forward to access the fuse box.

Reinstall all components by following these steps in reverse order.

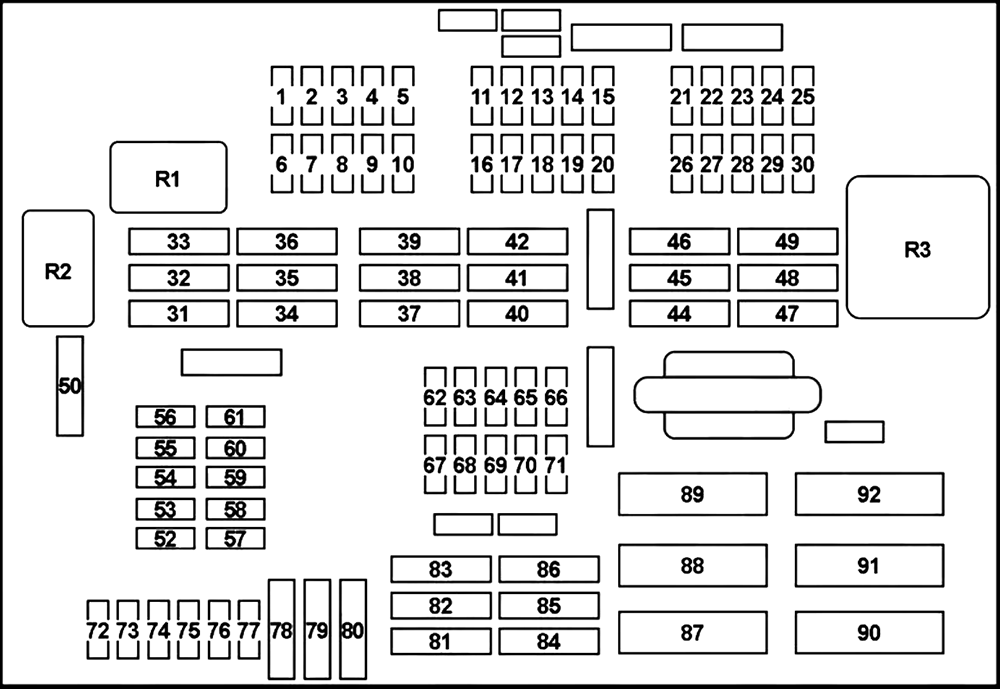

Fuse Box Diagram

Fuses

Assignment of the fuses in the BMW Z4 2009-2016 (E89)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
2	15A	On-board diagnostics (OBD)
3	20A	Heated seats
4	10A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Digital Motor Electronics (DME), Digital Diesel Electronics (DDE), Integrated Voltage Module (IVM)
5	10A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Steering column function control module
6	5A	Air conditioner system
7	5A	Parking sensors, Home link (garage door opener), Interior lights
8	20A	Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
9	5A	Electric mirrors, Telephone
10	5A	Heated seats
11	20A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
12	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
13	10A	Telephone
14	15A	HiFi Amp, TV tuner, Video module
15	20A	HiFi Amp, TV tuner, Video module
16	10A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
17	10A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
18	10A	Head-Up Display (HUD), HiFi Amp, TV tuner, Video module
19	5A	Head-Up Display (HUD), CD changer, Can Gateway module, HiFi Amp, TV tuner, Video module
20	10A	Seat adjustment
22	15A	Gear Indicator, Dynamic Stability Control (DSC), Sequential Manual Gearbox (SMG)
23	20A	Air suspension system, Heating, Independent aux. heater
25	20A	Sunroof / Panorama glass / Convertible top module, Convertible top module / Convertible relay
26	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
27	5A	Head-Up Display (HUD), HiFi Amp, TV tuner, Video module, Tire pressure
29	0	Sunroof / Panorama glass / Convertible top module
36	40A	START-STOP system
37	30A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
37	10A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
38	30A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
38	15A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
39	30A	Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
41	30A	Power windows with anti-trapping function
45	30A	Seat adjustment
46	30A	Seat adjustment
47	30A	Rear window defroster (defogger)
48	30A	Washer fluid heater, Windscreen washers, Headlight washing system
50	30A	Rear wiper relay
52	5A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
54	7.5A	Alarm
55	5A	START-STOP system
57	15A	Horn
59	5A	Telephone
61	5A	Door module, Automatic soft-close
62	7.5A	Main headlights, Rain sensor, Light sensor, Electronic ride height control, Alarm, Interior lights, Sunroof / Panorama glass / Convertible top module
63	5A	Air suspension system, HiFi Amp, TV tuner, Video module
64	5A	Gear Indicator, Dynamic Stability Control (DSC), Sequential Manual Gearbox (SMG)
65	10A	Gear Indicator, Dynamic Stability Control (DSC), Sequential Manual Gearbox (SMG)
66	7.5A	Electric mirrors, Power windows with anti-trapping function
68	20A	Heated seats
69	5A	HiFi Amp, TV tuner, Video module
70	20A	Fuel pump, Digital Motor Electronics (DME), Integrated Voltage Module (IVM)
71	5A	Electric fan
72	15A	Door module, Automatic soft-close
73	15A	Door module, Automatic soft-close
74	5A	On-board diagnostics (OBD), Instrument cluster
75	5A	Steering column function control module
76	5A	Head-Up Display (HUD), HiFi Amp, TV tuner, Video module
77	10A	Light module, Air conditioner system
78	30A	Power windows with anti-trapping function
79	30A	Horn, Door module, Automatic soft-close, Power windows with anti-trapping function, Rear wiper relay, Rear window defroster (defogger)
80	30A	Power windows with anti-trapping function
81	30A	Power windows with anti-trapping function
82	30A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Main headlights, Rain sensor, Light sensor, Electronic ride height control
84	40A	Main headlights, Rain sensor, Light sensor, Electronic ride height control
86	40A	Main headlights, Rain sensor, Light sensor, Electronic ride height control
87	40A	Electric fan
88	40A	Electric fan, Heating, Independent aux. heater, Air conditioner system
90	40A	ABS (Anti-lock Brake System), DSC (Dynamic Stability Control)
92	60A	Electric fan
