Lincoln Navigator (2003-2006)

Looking for Lincoln Navigator fuse box diagrams? This article covers the second-generation Lincoln Navigator, available from 2003, and includes fuse box diagrams for Lincoln Navigator 2003, 2004, 2005 and 2006, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Fuse Box Location

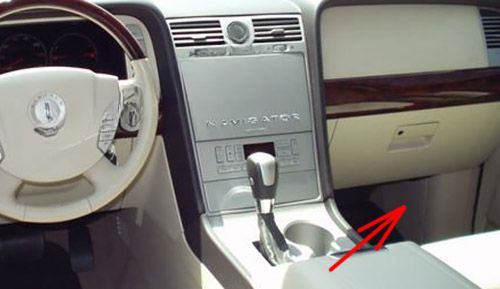

The Power distribution box is located in the passenger compartment under the right-hand side of the footwell.

To remove the trim panel:
Pull the panel toward you, then swing it outward away from the side and remove it.

To reinstall the trim panel:
Align the tabs with the grooves on the panel, then push it back into place until secure.

To remove the fuse box cover:
Place a finger behind the PULL tab and your thumb above it, then pull the cover off.

To reinstall the cover:
Position the top part of the cover on the fuse panel, then press the bottom until it clicks into place. Gently pull on the cover to ensure it is properly seated.

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1Mini Fuse2003-2004: 10 A
2005-2006: 7.5 A		Run/Accessory – Instrument cluster, Front wiper motor, Rear wiper motor, TPMS module
2Mini Fuse20 ABrake On/Off (stoplamp) switch, Turn signal/Hazard flasher, AdvanceTrac stoplamps relay, Stoplamps, Center High-Mounted Stoplamp (CHMSL), Turn signal lamps
3Mini Fuse7.5 APower mirror switch, Memory module (logic power), Driver seat switch (memory)
4Mini Fuse2003: 10 A
2004-2006: 15 A		Rear seat audio controls, DVD player, Navigation module, CDDJ (2003)
5Mini Fuse7.5 APowertrain Control Module (PCM) keep alive power, EATC control head, Body Security Module (BSM) keep alive power, Speed control deactivation switch, SecuriLock LED, 3rd row seat relay coils, Power liftgate module, Clock, Brake Shift Interlock (BSI) solenoid
6Mini Fuse15 AHeadlamp switch (parklamps and switch backlighting feed), Parklamps, License lamps, Foglamp relay coil, Trailer tow electric brake controller (illumination), BSM (autolamp parklamps), Floor console gear selector lighting, Foglamp indicator
7Mini Fuse2003-2004: 7.5 A
2005-2006: 5 A		2003: Radio, Power folding mirrors
2004-2006: Radio (Start signal)
8Mini Fuse10 ARear window defroster switch, Heated outside mirrors, Rear window defroster indicator
9Mini Fuse2003: 10 A
2005-2006: 15 A		2003: Alternator
2004: N/A
2005-2006: Transmission control module
10Mini Fuse20 ATrailer tow back-up lamps relay, Trailer tow 7-wire connector (back-up lamps), Trailer tow parklamps relay, Trailer tow 7- and 4-wire connectors (parklamps)
11Mini Fuse10 AA/C compressor clutch relay, A/C compressor clutch solenoid, 4×4 Integrated Wheel Ends (IWE) solenoid, Air suspension compressor relay (2004)
12Mini Fuse2003-2004: 10 A
2005-2006: 15 A		2003-2004: Speed control relay, Speed control servo
2005-2006: Fuel pump relay, Fuel pump shut-off switch, Fuel pump driver module, Fuel pump motor
13Mini Fuse10 A2003: EATC control head, Manual climate control head
2004-2006: Rear window defroster relay coil, A/C refrigerant containment/de-icing switch, DEATC control head/solenoids/blower controller, Trailer tow battery charge relay coil
14Mini Fuse10 A2003: Climate control blend door actuator, DRL relays, DTRS back-up lamp
2004-2006: Daytime Running Lamps (DRL) ignition relay coil, Digital Transmission Range Sensor (DTRS back-up lamps), Trailer tow back-up lamps relay coil, Electrochromatic mirror
15Mini Fuse5 AAdvanceTrac (with RSC) switch, Instrument cluster (Run/Start feed)
16Mini Fuse10 AABS/AdvanceTrac (with RSC) module (Run/Start feed)
17Mini Fuse15 AFog lamps
18Mini Fuse10 AAuxiliary A/C temperature blend door actuator, Auxiliary A/C front auxiliary control, Park brake release relay coils, Turn signal flasher, Electrochromatic mirror, Auxiliary mode motor, Climate controlled seat modules (2003-2004)
19Mini Fuse10 ARestraints Control Module (RCM)
20Mini Fuse30 A2003-2004: Air suspension module, 4×4 module
2005-2006: BSM (door locks, liftgate glass release relay), Liftgate glass release motor, Left front window motor, Door/Liftgate lock motors
21Mini Fuse15 AInstrument cluster (B+), Interior (courtesy) lamps, TPMS module, Park brake release relays/motor, Puddle lamps
22Mini Fuse10 AMoonroof switch illumination, Flip window switch/relays/motors, Electronic Hidden Antenna Module (EHAM), Radio (delayed accessory feed), Left front window motor, Navigation module
23Mini Fuse10 ARH low beam
24Mini Fuse15 AInterior demand lamps, Battery saver relay coil/power, Heated Positive Crankcase Ventilation (PCV) valve and relay (2005-2006)
25Mini Fuse10 ALH low beam
26Mini Fuse20 AHorn relay, Horns
27Mini Fuse5 ABrake shift interlock (BSI) solenoid, Overdrive cancel switch, Reverse park aid module, Air suspension module (Run/Start), Compass module
28Mini Fuse5 APCM relay coil, SecuriLock transceiver, Speed control relay coil (2004), Heated PCV valve relay coil (2005-2006)
29Mini Fuse30 ATrailer tow electric brake controller, Trailer tow 7-wire connector (electric brake)
30Mini Fuse2003-2004: 30 A
2005-2006: 25 A		2003-2004: BSM (door locks), Liftgate glass release relay/motor, Left front smart window motor, Parklamps/Headlamps relay
2005-2006: PCM (4×4 transfer case clutch), Air suspension module (air spring solenoids and height sensors)
31Mini Fuse2003: 25 A
2004-2006: 20 A		Radio (B+), Subwoofer, Navigation radio audio amplifier
32Mini Fuse15 ACatalyst Monitor Sensors (CMS), Transmission solenoids, HEGO sensors, Canister vent solenoid, Vapor Management valve (VMV) solenoid, A/C compressor clutch relay coil, CMCV, VCT actuators (2004-2006)
33Mini Fuse20 A2003-2004: HEGO sensors, EGR vacuum regulator (EVR) solenoid, Intake Manifold Tuning valve (IMTV), Canister vent, VMV solenoid, A/C clutch relay coil
2005-2006: N/A
34Mini Fuse2003-2004: 20 A
2005-2006: 15 A		PCM, Idle Air Control (IAC) solenoid, Mass Air Flow (MAF) sensor, Fuel injectors, Fuel pump relay/switch/motor (2003-2004)
35Mini Fuse20 AHigh beam headlamps, Instrument cluster high beam indicator
36Mini Fuse10 ATrailer tow right turn/stop lamps
37Mini Fuse20 ACargo area power point
38Mini Fuse25 ARear wiper motor, Washer pump (rear window wash)
39Mini Fuse20 AConsole power points
40Mini Fuse20 ADRL relays/foglamps, Headlamp switch, Multifunction switch (flash-to-pass), BSM (autolamp headlamps relay), High beam relay coil, LH/RH low beam fuses
41Mini Fuse20 ACigar lighter, OBD II diagnostic connector
42Mini Fuse10 ATrailer tow left turn/stop lamps
101Maxi Fuse30 AStarter motor relay, Starter motor solenoid
102Maxi Fuse30 AIgnition switch power
103Maxi Fuse30 AABS/AdvanceTrac with RSC module (pump motor)
104Maxi Fuse30 ALH 3rd row seat relay, LH 3rd row seat switch, LH 3rd row seat motor
105Maxi Fuse30 APower liftgate module, Power liftgate motors, Power running boards control
106Maxi Fuse30 ATrailer tow battery charge relay, Trailer tow 7-wire connector (battery charge)
107Maxi Fuse30 AAuxiliary A/C blower relay, Auxiliary A/C blower motor
108Maxi Fuse30 APassenger seat motor switch, Passenger seat lumbar switch and motor
109Maxi Fuse30 ADriver seat lumbar switch and motor, Memory module, Power memory mirrors, Adjustable pedals switch and motor
110Maxi Fuse30 APower/Deployable running boards
111Maxi Fuse50 AAir suspension solid state relay / compressor relay, Air suspension compressor
112Maxi Fuse30 AABS/AdvanceTrac with RSC module (valves)
113Maxi Fuse30 AFront wiper motor, Washer pump (windshield wash)
114Maxi Fuse40 ARear window defroster relay, Rear window defroster grid, Heated mirrors (Fuse 8)
115Maxi Fuse30 A4×4 module, Transfer case shift motor, 4×4 relays
116Maxi Fuse40 AFront blower motor relay, Front blower motor
117Maxi Fuse30 ARH 3rd row seat relay, RH 3rd row seat switch, RH 3rd row seat motor
118Maxi Fuse30 ADriver and passenger climate control seat module

Relays

Assignment of the relays in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R01Starter relay, Starter motor solenoid
R02Delayed accessory relay (Fuse 22, CB 401, Power windows, Moonroof, Flip windows, Radio, DVD/Navigation modules)
R03Hi-beam relay (Fuse 35, Hi-beam headlamps, Hi-beam indicator, DRL relays)
R04Rear window defrost relay (Fuse 8, Rear window defroster, Heated outside mirrors, Defroster indicator)
R05Trailer tow battery charge relay (Trailer tow 7-wire connector)
R06Front blower relay (Front blower motor, Blower motor speed control)
R201Trailer tow park lamp relay (Trailer tow 7- and 4-wire connectors)
R202Fog lamp relay (Front fog lamps)
R203PCM relay (Fuses 32-34, Fuel pump relay, PCM solenoids and sensors)
R301Trailer tow back-up lamp relay (Trailer tow 7-wire connector, Electrochromic mirror)
R3022003-2004: Speed control relay (Electric cooling fan clutch, Speed control servo)
2005-2006: Heated PCV valve relay
R303Fuel pump relay (Fuel pump shut-off switch, PCM fuel pump monitor, Fuel pump, Fuel pump driver module)
R304Battery saver relay (Roof rail lamps, Vanity mirror lamps, Map/Dome lamp, Glove box lamp, Cargo area lamp, Puddle lamps, Instrument cluster)
R305Horn relay (Dual note horn)

Circuit Breaker

Assignment of the circuit breaker in the passenger compartment fuse box

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeDescription
401Circuit Breaker30 A – Power windows, Main window switch, Window motors, Window switches, Moonroof module, Front window switch (2003)
