Lincoln Navigator (1998-2002)

Looking for Lincoln Navigator fuse box diagrams? This article covers the first-generation Lincoln Navigator, available from 1998, and includes fuse box diagrams for Lincoln Navigator 1998, 1999, 2000, 2001 and 2002, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

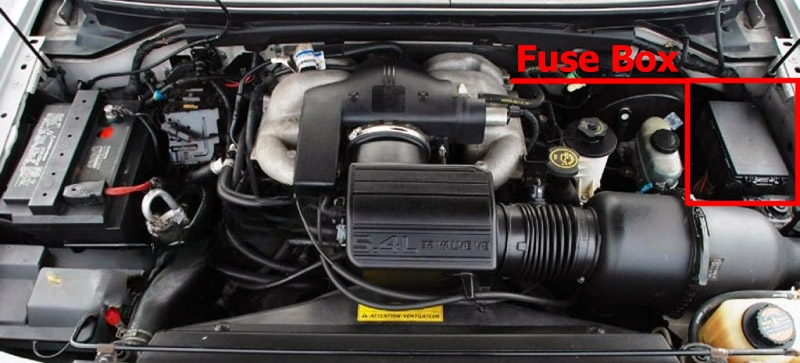

Fuse Box Location

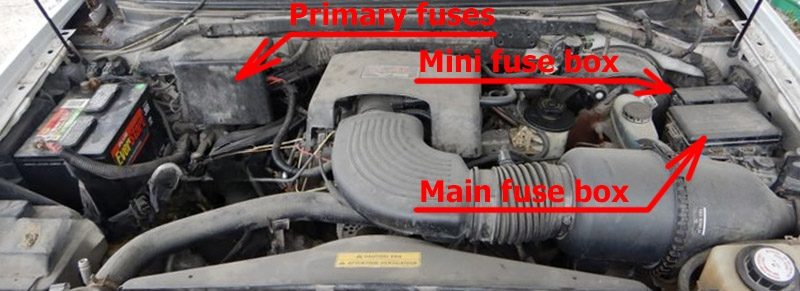

The power distribution box is located in the engine compartment on the driver’s side.

1998

1999-2002

Fuse Box Diagram

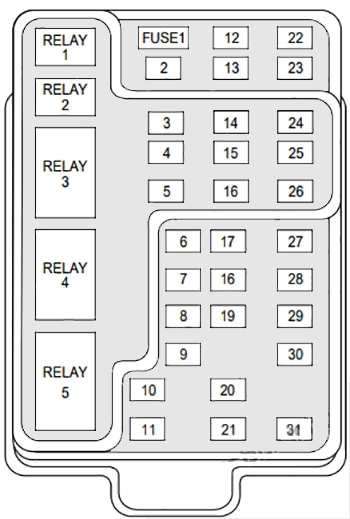

1998

Main Fuse Box
Fuses

Assignment of the fuses in the Power distribution box (1998)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
115AFlasher Relay
25AInstrument Cluster, Overhead Trip Computer (OTC) Module, Redundant Steering Control Module, Electronic Automatic Temperature Control (EATC) Module, Clock
325ACigar Lighter
45APark Lamp Relay, Headlamp Relay, Autolamp Module, Remote Anti-theft Personality (RAP) Module, Power Mirror Switch, Memory Seat and Mirror Module, Driver Power Seat Control Switch, Memory Seat Switch
515ADigital Transmission Range (DTR) Sensor, Daytime Running Lamps (DRL) Module, Speed Control Servo/Amplifier Assembly, EATC Clutch Relay
65AShift Lock Actuator, Generic Electronic Module (GEM), 4 Wheel Air Suspension 4WAS Module, Compass Sensor, Steering Wheel Rotation Sensor, Heated Grid Relay, Overhead Trip Computer (OTC) Module
75AAuxiliary A/C Relay, Console Blower Motor
85ARadio, Main Light Switch, Remote Anti-theft Personality (RAP) Module, Generic Electronic Module (GEM), Ignition Switch, Clock
9–Not used
10–Not used
1130AWasher Pump Relay, Wiper Run/Park Relay
125AData Link Connector (DLC)
1315ABrake On/Off (BOO) Switch, Brake Pressure Switch
1415ABattery Saver Relay, Interior Lamp Relay
155AGeneric Electronic Module (GEM), SecuriLock
1620AInstrument Cluster (W/O DRL), Daytime Running Lamps (DRL) Module, Hi-Beam Headlamps (Power supplied through Multi-Function Switch)
1710AHeated Backlite Switch, Left Power/Heated Signal Mirror, Right Power/Heated Signal Mirror
185AMain Light Switch, Generic Electronic Module (GEM), Instrument Illumination, (Power supplied through Main Light Switch), Park Lamp Relay, Trailer Electronic Brake Control, Trailer Tow Running Lamp Relay, Left Side Marker Lamps, Right Side Marker Lamps, Left Front Park/Turn Lamp, Right Front Park/Turn Lamp, Left Stop/Park/Tum Lamp, Right Stop/Park/Tum Lamp, Left License Lamp, Right License Lamp
1910AInstrument Cluster, Air Bag Diagnostic Monitor
205A4 Wheel Air Suspension 4WAS Generic Electronic Module (GEM), Memory Seat and Mirror Module
2115ADigital Transmission Range (DTR) Sensor, Junction Box Fuse/Relay Panel (Fuse 20)
2210AAir Bag Diagnostic Monitor, Ignition Swatch
2310ATrailer Tow Battery Charge Relay, 4X4 Center Axle Disconnect Solenoid, 4X2 Center Axle Disconnect Solenoid, Electronic Day/Night Mirror, Rear Integrated Control Panel, Auxiliary A/C Mode Actuator, Auxiliary A/C Control Module, Auxiliary A/C Blend Actuator Flasher Relay
2410AElectronic Automatic Temperature Control (EATC) Module, Console Blower Relay, Auxiliary A/C Relay
255A4 Wheel Anti-Lock Brake System (4WABS) Module 4WABS Relay
2610ADaytime Running Lamps (DRL) Module, Right Headlamp (Powder supplied through Multi-Function Swatch)
275AMain Light Swatch, Fog Lamp Relay
2810ALeft Headlamp
295AAutolamp Module, Instrument Cluster, Transmission Control Swatch (TCS)
3030ARadio Noise Capacitor, PCM Power Diode, Coil on Plugs, PCM Powder Relay, SecuriLock
31–Not Used

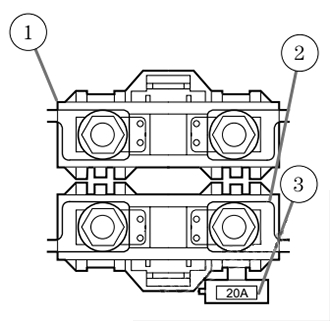

Battery Fuse Box
Fuses

Assignment of the fuses in the engine compartment battery fuse box (1998)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1175Power Network Box Megafuse
2175Alternator Megafuse
320Alternator Field Minifuse

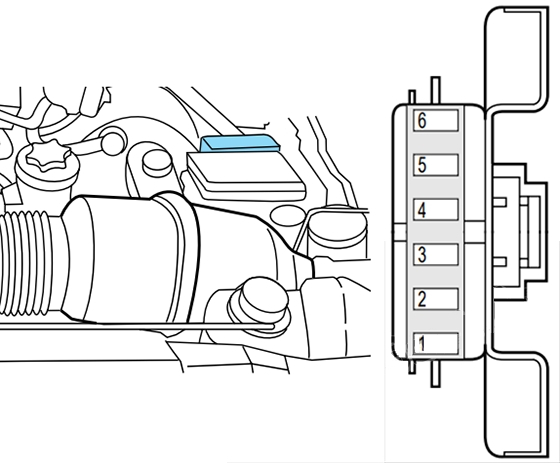

Mini Fuse Box
Fuses

Assignment of the fuses in the engine compartment mini fuse box (1998)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
15APowertrain Control Module (PCM)
220ATrailer Tow Stop/Turn Lamps
310AAudio Rear Integrated Control Panel (RICP), Compact Disc Changer, Radio
410ARunning Board Lamps
520AAmplifier, Subwoofer Amplifier
6—Not Used

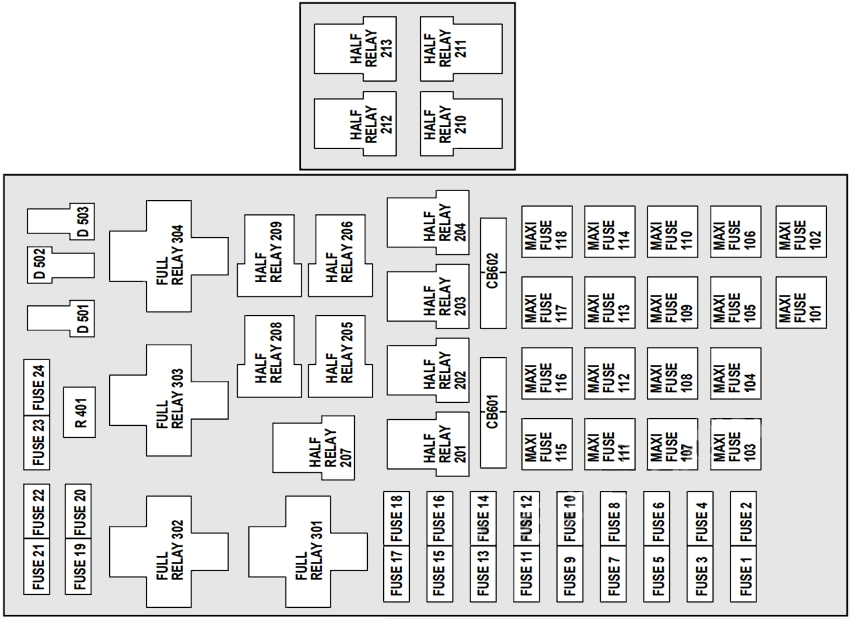

1999-2002

Fuses

Assignment of the fuses in the engine compartment Power distribution box (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.TypeAmpsDescription
1Mini1999: 25 A
2000-2002: 20 A		Power Point
2Mini30 APowertrain Control Module
3Mini30 AHeadlamps/Autolamps
4Mini1999: 25 A
2000-2002: 20 A		Console Power Point
5Mini20 ATrailer Tow Backup/Park Lamps
6Mini15 A1999: Parklamps/Autolamps
2000-2002: Parklamps/Autolamps, Feeds Passenger Compartment Fuse 18
7Mini20 AHorn
8Mini30 APower Door Locks
9Mini15 ADaytime Running Lamps (DRL), Fog Lamps
10Mini20 AFuel Pump
11Mini20 AAlternator Field
12Mini10 ARear Wipers
13Mini15 A1999: N/A
2000-2002: A/C Clutch
14MiniN/AN/A
15Mini10 ARunning Board Lamps
16MiniN/AN/A
17Mini10 ADelayed Accessory (Audio, Moonroof)
18Mini15 APowertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor
19Mini10 ATrailer Tow Stop and Right Turn Lamp
20Mini10 ATrailer Tow Stop and Left Turn Lamp
21MiniN/AN/A
22MiniN/AN/A
23Mini15 A1999: Powertrain Control Module, HEGO Sensors, Canister Vent
2000-2002: HEGO Sensors, Canister Vent, Transmission, CMS Sensor
24Mini15 A1999: Powertrain Control Module, Transmission, CMS Sensor
2000-2002: N/A
101Maxi30 ATrailer Tow Battery Charge
102Maxi50 AFour Wheel Antilock Brake Module
103Maxi50 AJunction Box Battery Feed
104Maxi30 A4×4 Shift Motor & Clutch
105Maxi40 AClimate Control Front Blower
106MaxiN/AN/A
107Maxi30 APassenger Power Seat
108Maxi30 ATrailer Tow Electric Brake
109Maxi50 AAir Suspension Compressor
110Maxi30 A1999: Moonroof, Flip Windows and Heated Seats
2000-2002: Heated Seats/CCS
111Maxi1999: 50 A
2000-2002: 40 A		Ignition Switch Battery Feed (Run and Start Circuits)
112Maxi30 AMemory (Drivers Seat, Adjustable Pedals, Mirrors), Drivers Seat Lumbar
113Maxi1999: 50 A
2000-2002: 40 A		Ignition Switch Battery Feed (Run and Accessory Circuits)
114Maxi30 AClimate Control Auxiliary Blower
115MaxiN/AN/A
116Maxi40 ARear Window Defroster, Heated Mirrors
117MaxiN/AN/A
118MaxiN/AN/A

Relays

Assignment of the relays in the engine compartment Power distribution box (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
201Trailer Tow Park Lamp Relay
202Front Wiper Run/Park Relay
203Trailer Tow Backup Lamp Relay
204A/C Clutch Relay
2051999: Horn Relay
2000-2002: Rear Wiper Down
206Fog Lamp Relay
207Front Washer Pump Relay
208Rear Washer Pump Relay
2091999: Front Wiper Hi/Lo Relay
2000-2002: Rear Wiper Up Relay
210N/A
211N/A
2121999: Rear Wiper Up Relay
2000-2002: N/A
2131999: Rear Wiper Down Relay
2000-2002: N/A
301Fuel Pump Relay
302Trailer Tow Battery Charge Relay
3031999: N/A
2000-2002: Front Wiper Hi/Lo Relay
304Powertrain Control Module Relay
401N/A

Diodes

Assignment of the diodes in the engine compartment Power distribution box (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
501Powertrain Control Module Diode
502A/C Clutch Diode
5031999: N/A
2000-2002: Automatic Park Brake Release Diode

Circuit Breakers

Assignment of the circuit breakers in the engine compartment Power distribution box (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
60130 A1999: Delayed Accessory (Power Windows, Flip Windows, Radio)
2000-2002: Delayed Accessory (Power Windows, Flip Windows, Radio, Moonroof)
602N/AN/A

Passenger Compartment

Fuse Box Location

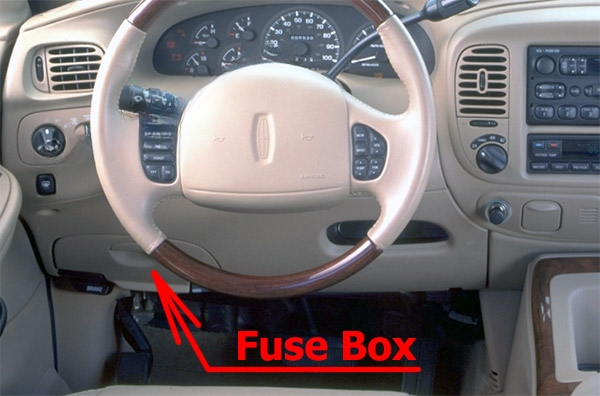

The fuse panel is located below and to the left of the steering wheel behind the lid.

Fuse Box Diagram

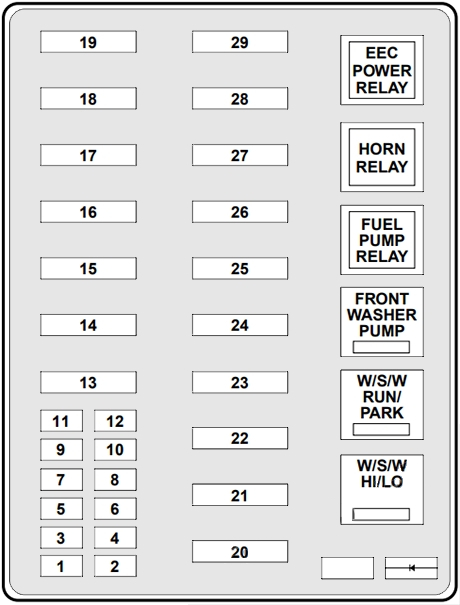

1998

Fuses

Assignment of the fuses in the passenger compartment (1998)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
120ATrailer Tow Running Lamp Relay, Trailer Tow Backup Lamp Relay
210AAir Bag Diagnostic monitor
330AAll Unlock Relay, All Lock Relay, Driver’s Unlock Relay
415AAir Suspension Sendee Switch
520AHorn Relay
630ARadio, Premium Sound Amplifier, CD Changer, Rear Integrated Control Panel, Sub-Woofer power
715AMain Light Switch, Park Lamp Relay
830AMain Light Switch, Headlamp Relay, Multi-Function Switch
915ADaytime running lamps (DRL) Module, Fog Lamp Relay
1025AI/P Auxiliary Power Socket
1125AConsole Auxiliary Power Socket
1210ARear Wiper Up Motor Relay, Rear Wiper Down Motor Relay
1330AAuxiliary A/C Relay
1460A4 Wheel Anti-Lock Brake System (4WABS) Module
1550AAir Suspension Solid State Compressor Relay
1640ATrailer tow battery Charge Relay, Mini Fuse Block (fuse 2), Trailer Tow Right Turn Relay, Trailer tow Left Turn Relay
1730ATransfer Case Shift Relay, Torque on Demand Relay
1830AMemory Seat Module
1920AFuel Pump Relay
2050AIgnition Switch
2150AIgnition Switch
2250AJunction Box Fuse/Relay Panel Battery Feed
2340AI/P Blower Relay
2430APCM Power Relay, Mini Fuse Block (fuse 1), Powertrain Control Module
2530A (CB)Junction Box Fuse/Relay Panel, ACC Delay Relay
2630APassenger Power Seat Control Switch
2740AJunction Box Fuse/Relay Panel, Heated Grid Relay
2830ATrailer Electronic Brake Control
2930ARPO Relay Block, Vent Window/Moonroof Relay

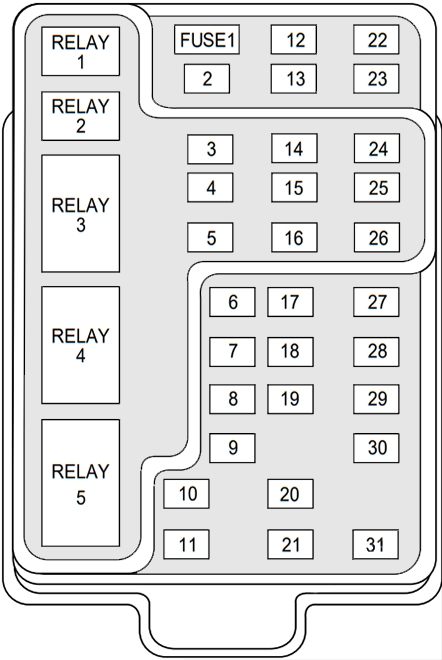

1999-2002

Fuses

Assignment of the fuses in the passenger compartment (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
125 AAudio
25 AClock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster, Navigation
320 ACigar Lighter, OBD-II Scan Tool Connector
41999: 15 A
2000-2002: 7.5 A		1999: Autolamp Module, Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Air Suspension Switch
2000-2002: Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Drivers Seat, Power Fold Mirrors
515 A1999: AC Clutch Relay, Speed Control Module, Reverse Lamp, EVO Module, Climate Mode Switch, Daytime Running Lamp Relay
2000-2002: Speed Control Module, Reverse Lamp, Daytime Running Lamp Relay, Reverse Sensing System, Autolock, E/C Mirror, Navigation
65 A1999: Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module
2000-2002: Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module, Heated Mirror, Rear Defroster, Reverse Sensing System, Automatic Park Brake Release
75 AAux A/C Blower Relay, Console Blower
85 ARemote Entry Module, Cell Phone, Clock, GEM Module, Navigation
9N/AN/A
10N/AN/A
1130 AFront Washer Pump Relay, Wiper Run/Park Relay, Wiper Hi/Lo Relay, Windshield Wiper Motor, Rear Washer Pump Relay
1215 A1999: N/A
2000-2002: Air Suspension Switch
1320 AStop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module
1415 ARear Wipers, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Moonroof, Flip Windows, Audio), Homelink
155 A1999: Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module
2000-2002: Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module, Autolock, Air Suspension Module
1620 AHeadlamps (Hi Beams), Cluster (Hi Beam Indicator)
1710 AHeated Mirrors/Rear Window Defroster Indicator
185 AInstrument Illumination (Dimmer Switch Power), Clock (Dimmer), Navigation Screen
19N/AN/A
205 A1999: Audio, Four Wheel Air Suspension (4WAS) Module, Memory Module, GEM Module, Digital Transmission Range Selector
2000-2002: Audio, Air Suspension Module, Memory Module, GEM Module
2115 A1999: Starter Relay, Fuse 20
2000-2002: Starter Relay, Fuse 20, Digital Transmission Range Selector
2210 A1999: Air Bag Module
2000-2002: Air Bag Module, EATC, EATC Blower Relay, Feeds Fuse 7
2310 AElectrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Turn/Hazard Flasher, Console Blower Door Actuator
AWD: 4×4 Clutch Relay, 4 Wheel Anti-Lock Brake System (4WABS) Module
2410 A1999: Climate Mode Switch (Blower Relay), EATC (via fuse 7), EATC Blower Relay
2000-2001: N/A
2002: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch, Feeds fuse 7
255 A1999: 4 Wheel Anti-Lock Brake System (4WABS) Module
2000-2002: N/A
2610 ARight Side Low Beam Headlamp
275 AFoglamp Relay and Foglamp Indicator
2810 ALeft Side Low Beam Headlamp
295 AAutolamp Module, Transmission Overdrive Control Switch
3030 APassive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay
3110 ARear Integrated Control Panel (Audio), CD Player, Cell Phone

Relays

Assignment of the relays in the passenger compartment (1999, 2000, 2001, 2002)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
Relay 1Interior Lamp Relay
Relay 2Battery Saver Relay
Relay 3Rear Window Defroster Relay
Relay 4One Touch Down Window Relay
Relay 5ACC Delay Relay
