Lincoln Navigator (2022-2024) Fuse Box Diagrams and Locations

Looking for Lincoln Navigator fuse box diagrams? This article covers the facelifted fourth-generation Lincoln Navigator (also called Lincoln Navigator L), available from 2022, and includes fuse box diagrams for Lincoln Navigator 2022, 2023 and 2024, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

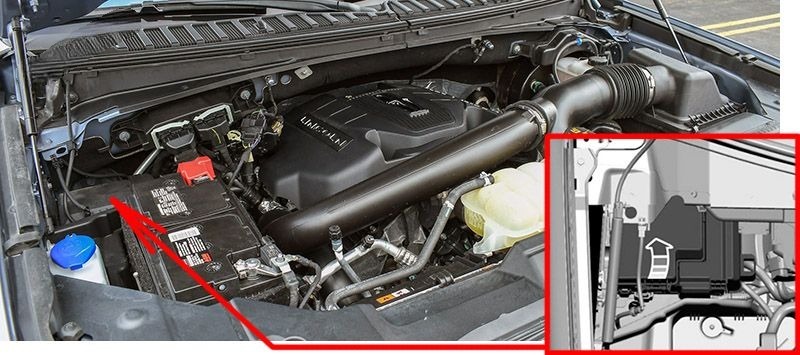

The power distribution box is located in the engine compartment on the passenger side.

Fuse Box Diagram

Fuses

Assignment of the fuses in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	30A	Body control module 1.
3	30A	Body control module 2.
4	30A	Fuel pump.
5	5A	Powertrain control module relay.
6	20A	Vehicle power 1.
7	25A	Vehicle power 2.
8	20A	Vehicle power 3.
9	20A	Vehicle power 4.
11	30A	Starter relay.
13	40A	Front blower motor.
15	20A	Horn.
16	20A	Windshield washer pump.
22	10A	Electronic power assist steering run/start feed.
23	10A	Anti-lock brake system run/start feed.
24	10A	Powertrain control module. Transmission control module.
25	10A	Rear view camera. Air quality sensor run/start feed.
28	50A	Anti-lock brake system pump.
29	50A	Anti-lock brake system valves.
30	30A	Driver seat motors.
31	30A	Passenger seat motors.
32	20A	Power point 1.
33	–	Not used.
34	20A	Power point 3.
35	20A	Power point 4.
36	40A	Inverter.
37	30A	Climate controlled seats – passenger side.
38	30A	Climate controlled seats – driver side.
39	20A	Second row seat module.
40	40A	Power running boards.
41	30A	Powered liftgate module.
42	30A	Trailer brake control module.
43	5A	Lincoln star lamp.
45	20A	Power point 5.
47	50A	Electric fan 1.
49	50A	Electric fan 2.
50	40A	Heated rear window.
54	40A	Electronic limited slip differential.
55	30A	Trailer tow parking lamps relay.
58	10A	Trailer tow backup lamps.
59	20A	Rear multi-contour seats.
64	25A	Four-wheel drive module 1.
67	15A	Transmission run/start.
69	30A	Left-hand side wiper motor.
71	20A	Rear window wiper relay.
73	50A	Power folding seat module – third row.
82	25A	Four-wheel drive module 2.
88	40A	Auxiliary blower.
91	20A	Trailer tow lighting module power.
100	30A	Left-hand headlamp.
101	30A	Right-hand headlamp.
107	30A	Trailer battery charge.
108	20A	Not used (spare).
120	15A	Fuel injectors.
124	5A	Rain sensor module.
125	5A	USB smart charger 1.
128	7.5A	Family entertainment system.
134	20A	Multi-contour seats relay.
137	20A	Advanced driver-assistance systems module. Connected camera.
139	5A	USB smart charger 2.
140	5A	USB smart charger 3.
142	5A	USB smart charger 5.
147	40A	Not used (spare).
160	10A	Smart data link connector.
181	5A	Headlamp control module.
182	60A	Driver door control module.
183	60A	Passenger door control module.
210	30A	Body control module start stop.

Relays

Assignment of the relays in the engine compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R04	Electric fan 1 relay.
R06	Electric fan 3 relay.

Passenger Compartment

Fuse Box Location

The fuse panel is under the right-hand side of the instrument panel.

To remove the trim panel, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut.

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	—	Not used.
2	10A	Driver seat switch.
3	7.5A	Driver door unlock.
4	20A	Speaker amplifier.
5	—	Not used.
6	10A	Smart datalink connector logic.
7	10A	Rear audio control module. Head up display.
8	5A	Wireless accessory charger. Hands-free liftgate module.
9	5A	Keypad. Combined sensor module.
10	—	Not used.
11	—	Not used.
12	7.5A	Instrument cluster.
13	7.5A	Steering column control module. Smart datalink connector logic. Climate control module. Gear shift module.
14	15A	Brake switch.
15	15A	SYNC.
16	—	Not used.
17	7.5A	Headlamp control module.
18	7.5A	Not used (spare).
19	5A	Telematics control unit module. Bluetooth low energy module.
20	5A	Not used (spare).
21	5A	In-vehicle temperature and humidity sensor.
22	5A	Electrochromic mirror. Second row heated seat module.
23	30A	Left-hand front door zone module. Power window switch. Power mirror switch. DVD player.
24	30A	Moonroof logic.
25	20A	Speaker amplifier 2.
26	30A	Right-hand front door zone module.
27	30A	Left-hand rear door zone module.
28	30A	Right-hand rear door zone module.
29	15A	Adjustable column and pedal memory module.
30	5A	Trailer tow control module.
31	10A	Rear climate control module. Drive mode switch module. Terrain management system switch. Radio frequency transceiver module.
32	20A	Audio control module. Rear seat entertainment module. Rear audio control module.
33	—	Not used.
34	30A	Run/start relay.
35	5A	Not used (spare).
36	15A	Image processing module A. Automated park assist module. Continuous control damping module. Air particulate matter sensor.
37	20A	Heated steering wheel.
38	30A Circuit Breaker	Left-hand rear power window. Right-hand rear power window.
