Lincoln Navigator (2007-2014) Fuse Box Diagrams and Locations

Looking for Lincoln Navigator fuse box diagrams? This article covers the third-generation Lincoln Navigator (also called Lincoln Navigator L) before the facelift, available from 2007, and includes fuse box diagrams for Lincoln Navigator 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

What’s Included

Engine Compartment

Fuse Box Location

The power distribution box is located in the front of the engine compartment.

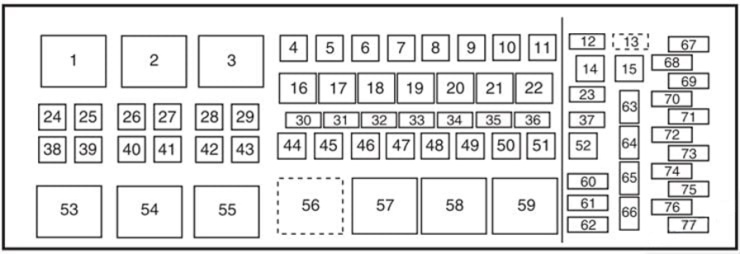

Fuse Box Diagram

2007-2008

Fuses

Assignment of the fuses in the Engine compartment (2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
4	Cartridge Fuse	30 A	Third row seats (driver side)
5	Cartridge Fuse	2007: 40 A 2008: 30 A	Trailer tow connector (electric brake)
6	Cartridge Fuse	60 A	ABS (valves)
7	Cartridge Fuse	40 A	Power running boards
8	Cartridge Fuse	40 A	Heated/cooled seats
9	Cartridge Fuse	60 A	ABS (pump)
10	Cartridge Fuse	20 A	Rear console power point
11	Cartridge Fuse	30 A	Auxiliary blower
12	Mini Fuse	25 A	Trailer tow connector (park lamps)
13	Mini Fuse	30 A	Trailer tow connector (battery charge)
23	Mini Fuse	15 A	Heated mirrors
24	Cartridge Fuse	40 A	Blower motor
27	Cartridge Fuse	30 A	Power liftgate
28	Cartridge Fuse	40 A	Rear window defroster, Heated mirror
29	Cartridge Fuse	30 A	Passenger seat
30	Mini Fuse	10 A	A/C clutch
31	Mini Fuse	15 A	Brake lamps
32	Mini Fuse	20 A	Fuel pump
33	Mini Fuse	20 A	Back-up lamps
34	Mini Fuse	25 A	Trailer tow connector (stop/turn lamps)
35	Mini Fuse	20 A	4×4 module
36	Mini Fuse	10 A	Powertrain Control Module (PCM) – Keep alive power, Canister vent
37	Mini Fuse	15 A	Transmission B+
38	Cartridge Fuse	30 A	Third row seats (passenger side)
39	Cartridge Fuse	2007: 50 A 2008: 60 A	Air suspension pump
40	Cartridge Fuse	30 A	Starter motor
41	Cartridge Fuse	20 A	IP/Console power point
44	Cartridge Fuse	20 A	Driver side HID low beam headlamp
45	Cartridge Fuse	30 A	Driver seat
46	Cartridge Fuse	40 A	Run/Start bus bar
47	Cartridge Fuse	30 A	Air suspension – solenoids
48	Cartridge Fuse	20 A	Passenger side HID low beam headlamp
49	Cartridge Fuse	30 A	Front wipers/washer
50	Cartridge Fuse	30 A	PCM – bus bar
51	Cartridge Fuse	20 A	Cargo power point
52	Cartridge Fuse	20 A	Cigarette lighter
63	Mini Fuse	15 A	Trailer tow connector (back-up lamp)
65	Mini Fuse	10 A	Air suspension logic
67	Mini Fuse	10 A	Blower coil
69	Mini Fuse	30 A	Run/Start – passenger-compartment fuse panel
70	Mini Fuse	20 A	PCM (sensors) – EFC, A/C clutch coil
71	Mini Fuse	5 A	Fuel coil, ISP-R
72	Mini Fuse	20 A	PCM (ignition coils)
73	Mini Fuse	5 A	Transmission ignition
74	Mini Fuse	20 A	PCM (sensors) – HEGO/CMS, MAFS, EVMV, CMCV, Speed deactivation switch, VCT
75	Mini Fuse	5 A	4×4 Integrated Wheel Ends (IWE) solenoid
76	Mini Fuse	20 A	PCM – VPWR
77	Mini Fuse	10 A	ABS logic, Heated PCV

Relays

Assignment of the relays in the Engine compartment (2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Blower relay
3	Rear window defroster relay
16	A/C clutch relay
17	Driver side HID low beam headlamp relay
18	Fuel pump relay
19	Back-up relay
20	Trailer tow connector relay (left turn signal)
21	Trailer tow connector relay (right turn signal)
22	Passenger side HID low beam headlamp relay
53	Air suspension relay
54	Starter relay
55	Trailer tow connector relay (park lamp)
56	Trailer tow connector relay (battery charge)
57	Run/Start relay
59	PCM relay

Diodes

Assignment of the diodes in the Engine compartment (2007, 2008)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
60	2007: N/A 2008: One-touch Start diode
61	2007: A/C clutch diode 2008: N/A
62	Fuel pump diode

2009-2014

Fuses

Assignment of the fuses in the Engine compartment (2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
11	Cartridge Fuse	40 A	Power running board
12	Cartridge Fuse	40 A	Run/Start relay
13	Cartridge Fuse	30 A	Starter relay
14	Cartridge Fuse	40 A	2009: N/A 2010-2014: Electronic fan
15	Cartridge Fuse	20 A	Right hand high intensity discharge (HID) headlamp relay
16	Cartridge Fuse	2009: 20 A 2010-2014: 40 A	2009: N/A 2010-2014: Electronic fan
17	Cartridge Fuse	20 A	Left hand high intensity discharge (HID) headlamp relay
18	Cartridge Fuse	30 A	Trailer brake
19	Cartridge Fuse	60 A	2009-2013: Rear air suspension relay feed 2014: N/A
21	Cartridge Fuse	30 A	Trailer tow battery charge
22	Cartridge Fuse	30 A	Passenger power seat
26	Mini Fuse	15 A	2009-2011: Transmission control module (TCM) keep-alive power 2012-2014: N/A
27	Mini Fuse	20 A	4×4
28	Mini Fuse	25 A	Trailer tow park lamp relay feed
29	Mini Fuse	20 A	Backup lamps, Integrated wheel end (IWE) solenoid
30	Mini Fuse	10 A	A/C clutch relay
32	Cartridge Fuse	40 A	Blower motor relay feed
33	Cartridge Fuse	40 A	2009-2010: N/A 2011-2014: 110-volt AC power point
34	Cartridge Fuse	30 A	Auxiliary blower motor
35	Cartridge Fuse	30 A	Powertrain control module (PCM) relay
36	Cartridge Fuse	30 A	Power liftgate
41	Mini Fuse	10 A	Powertrain control module (PCM) keep-alive power
43	Mini Fuse	2009: 15 A 2010-2014: 5 A	Brake on/off switch
44	Mini Fuse	20 A	Fuel pump relay
45	Mini Fuse	25 A	Trailer tow stop/turn lamps relay feed
48	Cartridge Fuse	30 A	2009-2013: Rear air suspension module 2014: N/A
50	Cartridge Fuse	30 A	Front wiper motor relay
51	Cartridge Fuse	40 A	Rear window defroster / heated mirror relay
52	Mini Fuse	10 A	Anti-lock brake system (ABS) run/start feed
53	Mini Fuse	10 A	2009-2013: Rear air suspension module run/start feed 2014: N/A
54	Mini Fuse	5 A	2009-2011: Transmission control module (TCM) run/start feed 2012-2014: N/A
55	Mini Fuse	5 A	Fuel pump relay coil run/start feed
56	Mini Fuse	30 A	Passenger compartment fuse panel run/start feed
57	Mini Fuse	10 A	Blower motor relay coil run/start feed
58	Mini Fuse	15 A	Trailer tow backup lamps
59	Mini Fuse	15 A	Heated mirrors
63	Cartridge Fuse	25 A	2009: N/A 2010-2014: Electronic fan
64	Cartridge Fuse	30 A	Moonroof
65	Cartridge Fuse	20 A	Auxiliary power point (instrument panel)
66	Cartridge Fuse	20 A	Auxiliary power point (rear of center console)
67	Cartridge Fuse	40 A	Front row climate controlled seats
68	Cartridge Fuse	60 A	Anti-lock brake system (ABS) valves
69	Cartridge Fuse	60 A	Anti-lock brake system (ABS) pump
70	Cartridge Fuse	2009-2010: 40 A 2011-2014: 30 A	Third row power fold seat
71	Cartridge Fuse	20 A	Auxiliary power point/cigar lighter
72	Cartridge Fuse	20 A	Auxiliary power point (right rear quarter panel)
74	Cartridge Fuse	30 A	Driver power seat
75	Mini Fuse	20 A	Vehicle power 1 – powertrain control module (PCM)
76	Mini Fuse	20 A	Vehicle power 2 – powertrain control module (PCM)
77	Mini Fuse	15 A	Vehicle power 4 – ignition coils
79	Mini Fuse	20 A	Vehicle power 3 – powertrain control module (PCM)

Relays

Assignment of the relays in the Engine compartment (2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
1	Powertrain control module (PCM) relay
2	Starter relay
3	2009: N/A 2010: Electronic fan 2 relay 2011-2014: Blower motor relay
4	2009: Trailer tow relay 2010-2014: Trailer tow battery charge relay
5	Fuel pump relay
6	2009: Trailer tow park lamp relay 2010-2014: Electronic fan 1 relay
7	Rear window defroster / heated mirror relay
8	2009: N/A 2010-2014: Electronic fan 3 relay
9	Run/Start (R/S) relay
10	2009-2013: Rear air suspension (RAS) relay 2014: N/A
20	N/A
23	A/C clutch relay
24	2009: N/A 2010-2014: Trailer tow park lamp relay
25	Right hand high intensity discharge (HID) headlamp relay
31	N/A
37	Trailer tow left hand stop/turn relay
38	Trailer tow right hand stop/turn relay
39	Backup lamps relay
40	2009-2010: Blower motor relay 2011-2014: Electronic fan 2 relay
42	N/A
46	N/A
47	N/A
49	N/A
62	Left hand high intensity discharge (HID) headlamp relay
73	N/A
78	N/A
80	N/A
81	N/A
82	N/A
83	N/A
84	N/A
85	Wiper motor relay

Diodes

Assignment of the diodes in the Engine compartment (2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
60	2009-2010: One-touch Start diode 2011-2014: N/A
61	Fuel pump diode

Passenger Compartment

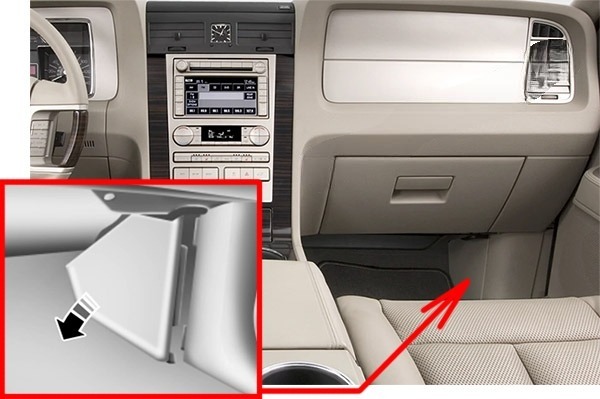

Fuse Box Location

The fuse panel is located in the passenger’s compartment footwell.

To remove the trim panel:
Pull the panel toward you, then swing it outward and remove it.
To reinstall the trim panel:
Align the tabs with the grooves, then push the panel back into place until secure.
To remove the fuse box cover:
Press the tabs on both sides of the cover and pull it off.
To reinstall the cover:
Place the top of the cover onto the fuse panel, then press the bottom until it clicks into place. Gently pull on it to ensure it is properly secured.

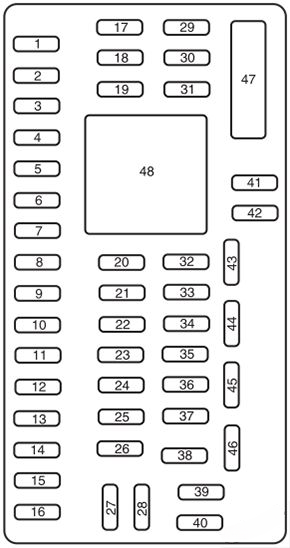

Fuse Box Diagram

Fuses

Assignment of the fuses in the Passenger compartment (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
1	30 A	Driver window
2	15 A	Driver side memory module
3	15 A	2007: FES 2008: FES, Audio rear seat controls, SDARS 2009-2014: Audio rear seat controls, Satellite radio, SYNC
4	30 A	Passenger window
5	10 A	Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), SPDJB
6	20 A	Turn signals
7	10 A	Low beam headlamps (left)
8	10 A	Low beam headlamps (right)
9	15 A	Interior lights
10	15 A	Switch backlighting, Cargo lamps, Puddle lamps
11	10 A	2007: 4×4 2008-2014: N/A
12	7.5 A	Power mirror switch, Driver side power seat memory, Driver side power fold mirror relay motor
13	2007-2008: 7.5 A 2009-2014: 5 A	2007: Power fold mirror motor, Digital Signal Processing (DSP) 2008-2014: N/A
14	10 A	Clock, Power liftgate module – keep-alive power, Power running board module – keep-alive power
15	10 A	2007-2009: Climate control 2010-2014: Climate control, Global positioning satellite module
16	15 A	2007: Electronic parking brake release 2008-2014: N/A
17	20 A	All lock motor feeds, Liftgate release, Liftglass release
18	20 A	2007-2008: N/A 2009-2014: Second row heated seats
19	25 A	Rear wiper
20	15 A	Adjustable pedals, Datalink
21	15 A	Fog lamps, Cornering lamps
22	15 A	Park lamps
23	15 A	High beam headlamps
24	20 A	Horn
25	10 A	Demand lamps, Glovebox, Visor
26	10 A	Instrument panel cluster
27	20 A	Ignition switch
28	5 A	Radio
29	5 A	Instrument panel cluster
30	5 A	N/A
31	10 A	2007-2008: Compass, Automatic dimming rear view mirror 2009-2014: N/A
32	10 A	Restraints control/Airbag module
33	10 A	2007: Ebrake 2008-2014: N/A
34	5 A	N/A
35	10 A	2007: Rear park assist, 4×4 2008-2010: Rear park assist, 4×4, rear video camera 2011-2014: Rear park assist, 4×4, Rear video camera, 2nd row heated seats
36	5 A	PATS (Passive anti-theft system) transceiver
37	10 A	Climate control
38	20 A	2007: Subwoofer/Amp (Audiophile radio) 2008-2014: Subwoofer/Amp (Audiophile radio), THX Amp/DSP
39	20 A	Radio
40	20 A	2007: Instrument panel amp, DSP, Radio, 4×4 module 2008-2009: THX Amp/DSP 2010: Navigation system 2011-2014: THX amplifier
41	15 A	2007: Radio 2008: N/A 2009-2010: Power windows, Power vents, Power moonroof, Auto dimming rear view mirror 2011-2014: Power windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110-volt AC power point
42	10 A	2007: Upfitter relay coil, Trailer tow, Battery charge coil 2008-2009: Trailer tow battery charge coil 2010-2014: N/A
43	10 A	2007-2008: Rear wiper logic 2009-2014: Rear wiper logic, Rain sensor
44	10 A	2007: Customer access feed 2008: N/A 2009-2014: Trailer tow battery charge relay coil
45	5 A	Front wiper logic
46	7.5 A	2007: N/A 2008-2014: Climate control, Auxiliary relay control

Circuit Breaker

Assignment of the circuit breaker in the Passenger compartment (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Amps	Description
47	30 A	Power windows, Moonroof

Relay

Assignment of the relay in the Passenger compartment (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
48	Delayed accessory relay

FAQ

Where are the cigar lighter / power outlet fuses located (by year)?

They are all in the engine compartment fuse box, with differences by year:
2007–2008: #10 – Rear console power point
#41 – Instrument panel / console power point
#51 – Cargo power point
#52 – Cigarette lighter
2009-2014: #33 – 110V AC power point (2011–2014)
#65 – Instrument panel power point
#66 – Rear of center console power point
#71 – Power point / cigar lighter
#72 – Right rear quarter panel power point
