Discover Nissan Pathfinder fuse box diagrams for 2005–2012 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the third-generation Nissan Pathfinder (Model Code: R51), available from 2005 to 2012 , and includes fuse box diagrams for Nissan Pathfinder 2005, 2006, 2007, 2008, 2009, 2010, 2011 and 2012 , along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).
NEED A REPLACEMENT?
Looking for the right fuse or relay?
Search common fuse types, fuse kits and relay options for your vehicle.
Find Fuses & Relays
→

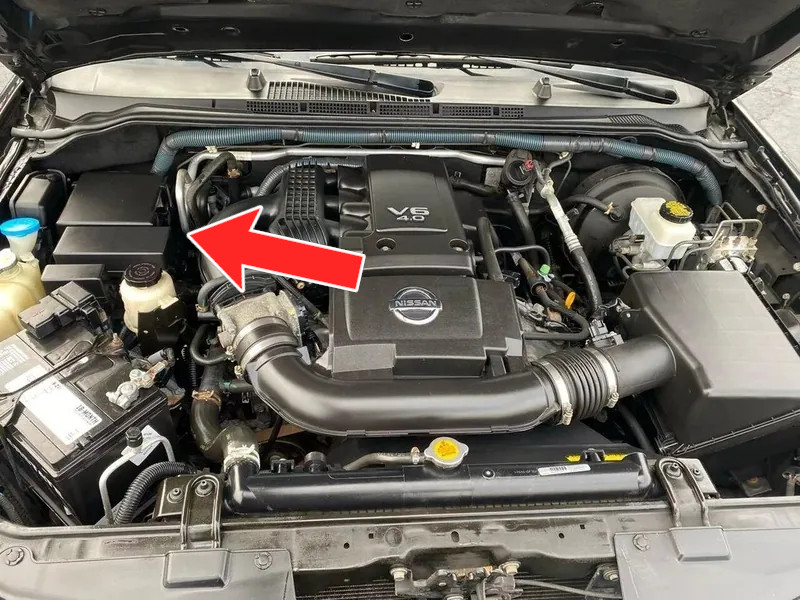

The fuse and relay boxes are located in the engine compartment on the passenger side, near the windshield washer reservoir.

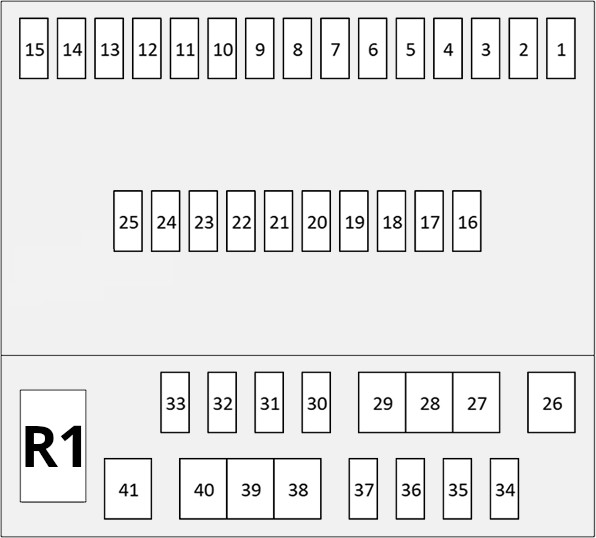

Assignment of the fuses in the engine compartment fuse box (Version No.1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 20A (FR FOG LAMP) Front fog lights 2 MINI 15A (INJECTOR) Fuel injectors 3 MINI 10A (02 SENSOR) Oxygen sensor 4 MINI 20A EGI 5 MINI 20A (ETC) Electronic throttle control 6 MINI 10A (REVERSE LAMP) Backup lights 7 MINI 10A (ABS ECU) Anti-lock braking system 8 MINI 10A (A/T ECU) Automatic transmission controller 9 MINI 15A (FUEL PUMP) Fuel pump 10 MINI 15A (RR DEF) Rear window defogger 11 MINI 15A (RR DEF) Rear window defogger 12 MINI 10A (DTRL) Daytime running lights 13 MINI — Not Used 14 MINI 15A (HEATER MIRROR) Mirror heater 15 MINI 10A (A/C COMP) Air conditioning compressor 16 MINI 15A (H/LAMP LO RH) Right-hand headlight low beam 17 MINI 15A (H/LAMP LO LH) Left-hand headlight low beam 18 MINI 30A (FR WIPER) Front wipers 19 MINI 10A (H/LAMP WASHER) Headlight washer 20 MINI 10A (TAIL LAMP) Tail lights 21 MINI 10A (ILLUMINATION) Illumination 22 MINI 10A (H/LAMP HI LH) Left-hand headlight high beam 23 MINI 10A (H/LAMP HI RH) Right-hand headlight high beam 24 MINI — Not Used 25 MINI — Not Used 26 FMX/JCase 40A (IGN SW) Ignition switch 27 MPF — (RAD FAN MTR) Radiator fan 28 MPF — Not Used 29 MPF — (BCM, POWER WINDOW) Body control module; Power windows 30 MINI 15A (FRONT BLOWER MTR) AC blower motor 31 MINI 20A (POWER SOCKET) Cigar lighter / power outlet 32 MINI 10A (A/T CONTROL UNIT) Automatic transmission controller 33 MINI 15A (FRONT BLOWER MTR) AC blower motor 34 MINI 30A (PTC HEATER) Additional heater 35 MINI 15A Horn 36 MINI 20A (RADIO, AMP) Audio system 37 MINI 30A (PTC HEATER) Additional heater 38 MPF — (ABS SOL, GLOW) Anti-lock braking system solenoid; Glow plug heater 39 MPF — Not Used 40 MPF — (ABS MTR) Anti-lock braking system 41 FMX/JCase 40A (ABS SOL) Anti-lock braking system solenoid
This content requires JavaScript and a valid membership to view.
Assignment of the relays in the engine compartment fuse box (Version No.1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 Horn Relay
This content requires JavaScript and a valid membership to view.

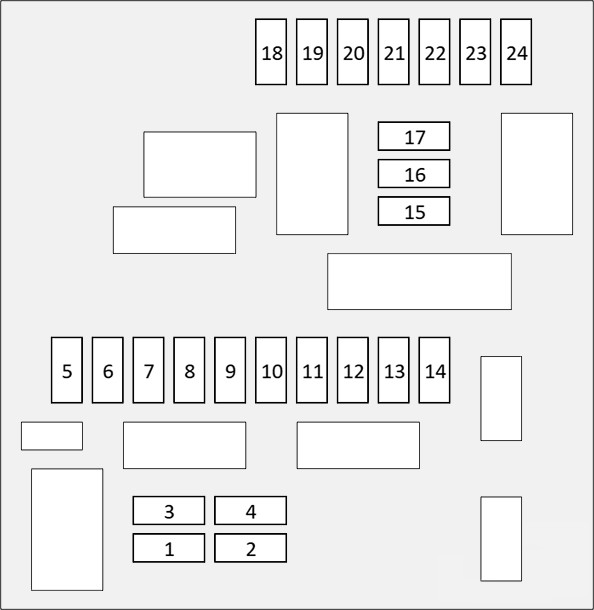

Assignment of the fuses in the engine compartment fuse box (Version No.2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 15A Rear Window Defogger Relay 2 MINI 10A Daytime Light Relay 1 3 — — Not Used 4 MINI 10A Trailer Tow 5 MINI 15A Heated Mirror Relay 6 MINI 30A Front Wiper Relay 7 MINI 10A Rear Combination Lamps, License Plate Lamps, Switch Illumination 8 MINI 10A Air Conditioner Relay 9 MINI 10A Front Combination Lamps 10 MINI 20A Front Fog Lamps 11 MINI 15A Headlamp LH (Low), Daytime Light Relay 2, Auto Light System, Vehicle Security System 12 MINI 15A Headlamp RH (Low), Auto Light System, Vehicle Security System 13 MINI 10A Headlamp LH (High), Auto Light System, Vehicle Security System 14 MINI 10A Headlamp RH (High), Auto Light System, Vehicle Security System 15 MINI 15A Injectors 16 MINI 10A Back-Up Lamp Relay (automatic transmission), Trailer Tow 17 MINI 15A Air Flow Sensor, Heated Oxygen Sensor 18 MINI 15A Fuel Pump Relay 19 MINI 10A Automatic Transmission Assembly, Clutch Interlock Switch, Interlock Cancel Switch, Clutch Interlock Cancel Relay 2 20 MINI 10A ABS 21 MINI 10A Back-Up Lamp Relay (automatic transmission), Back-Up Lamp Switch (manual transmission), Sonar System, Audio 22 MINI 30A Spare 23 MINI 20A Throttle Control Motor Relay 24 MINI 20A Engine Control Module (ECM) ECM Relay, NVIS
This content requires JavaScript and a valid membership to view.
Assignment of the fuses in the engine compartment relay box (Version No.1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 20A TF CONT 1 2 MINI 20A TF CONT 2 3 MINI 10A TF CONT 3 4 MINI 15A TRAIL TURN
This content requires JavaScript and a valid membership to view.

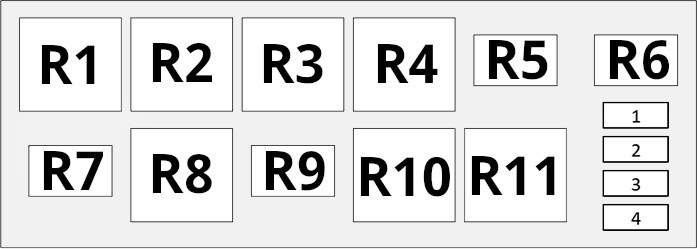

Assignment of the relays in the engine compartment relay box (Version No.1)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 CLUTCH I/L CANCEL2, REV LAMP R2 (DTRL 1) Daytime running lights R3 (STOP LAMP) Stop lights R4 (DTRL 2) Daytime running lights R5 TRANSFER POWER 2 R6 TRAIL TURN RH R7 TRAIL TURN LH R8 TRANSFER ACTR 1 R9 TRANSFER POWER 1 R10 TRANSFER ACTR 2 R11 (FRONT BLOWER) AC blower motor
This content requires JavaScript and a valid membership to view.
For 4WD – 2.5L Motors.
For 4WD – 2.5L Motors. Assignment of the fuses in the engine compartment relay box (Version No.2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI — Not Used 2 MINI 10A TRANS CONT 3 3 MINI 30A TRANS CONT 2 4 MINI 20A TRANS CONT 1
This content requires JavaScript and a valid membership to view.

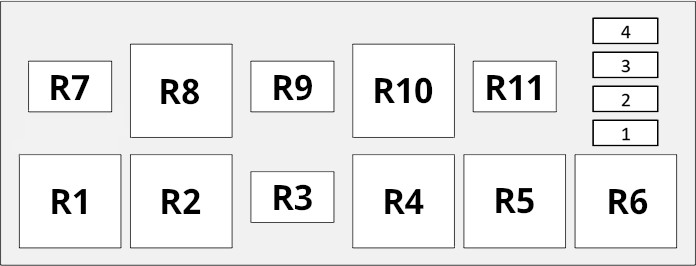

Assignment of the relays in the engine compartment relay box (Version No.2)
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Description R1 (RR BLOWER RLY) AC blower motor R2 (T/F RLY 1) 4WD transfer case shift R3 TECU SSOFF RLY R4 (T/F RLY) 4WD transfer case shift R5 (RR BLOWER RLY) AC blower motor R6 Not Used R7 (REV LAMP RLY) Backup lights R8 T/F SELF SHUT RLY 1 R9 T/F SELF SHUT RLY 2 R10 (DTRL RLY) Daytime running lights R11 (H/L WASHER RLY) Headlight washer
This content requires JavaScript and a valid membership to view.

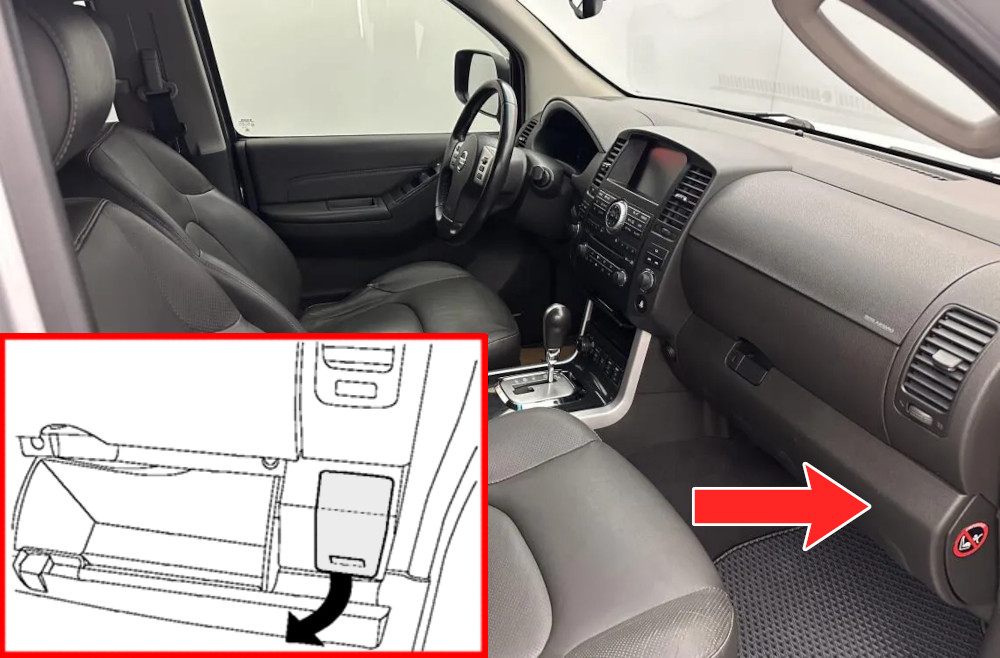

The fuse box is located beneath the glove box door. Open the glove box and pull off the cover to access the fuses.

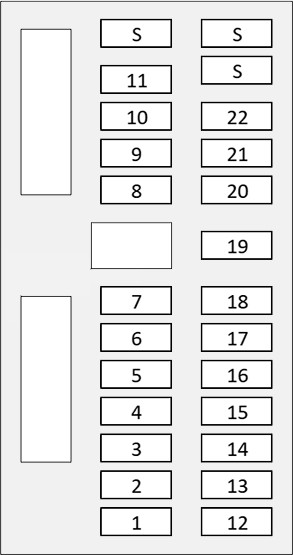

Assignment of the fuses in the passenger compartment fuse box
Fuse Data
Full access is available to registered users — log in or register.
Log in or register
No. Type Amps Description 1 MINI 10A (IGN) ECU 2 MINI 10A (ST) STARTER SIGNAL 3 MINI 10A (IGN) RR DIFF LOCK 4 MINI 10A (ACC) AUDIO 5 MINI 15A (ACC) POWER SOCKET 6 MINI 10A (ACC) MIRROR 7 MINI 15A (ACC) CIGAR LIGHTER 8 MINI 10A (IGN) AIR CON 9 MINI — Not Used 10 MINI — Not Used 11 MINI — Not Used 12 MINI 10A (IGN) ELECTRONIC PARTS 13 MINI 10A (IGN) AIR BAG 14 MINI 10A (IGN) METER 15 MINI 10A (IGN) WASHER 16 MINI 10A (IGN) HEATER SEAT 17 MINI 15A DOOR LOCK BACKUP 18 MINI 10A (BAT) ELECTRONIC BACKUP 19 MINI 10A (BAT) ELECTRONIC PARTS 20 MINI 10A (BAT) STOP LAMP 21 MINI 10A (BAT) ROOM LAMP 22 MINI 10A (BAT) KEY SW
Note: S – Spare Fuses (10A/15A/20A)
This content requires JavaScript and a valid membership to view.
