Nissan Pathfinder (R52) | 2013-2020 | Fuse Box Diagrams and Locations

Explore Nissan Pathfinder fuse box diagrams for 2013–2020 models with fuse locations, panel layouts, and detailed electrical system and fuse assignment information. This article covers the fourth-generation Nissan Pathfinder (Model Code: R52), available from 2013 to 2020, and includes fuse box diagrams for Nissan Pathfinder 2013, 2014, 2015, 2016, 2017, 2018, 2019 and 2020, along with details about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse (fuse layout).

Engine Compartment

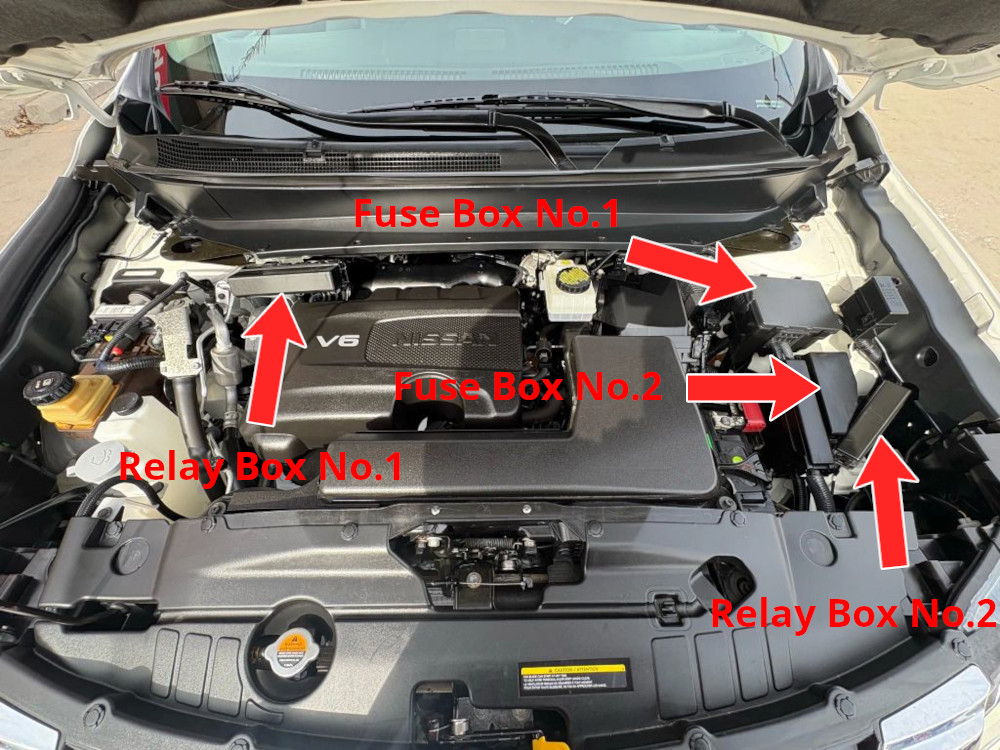

Fuse Box Locations

There are two fuse boxes labeled No. 1 and No. 2, along with two relay boxes. Refer to the image below for their locations. To access the fuses and relays, press the tab and lift the fuse box cover off.

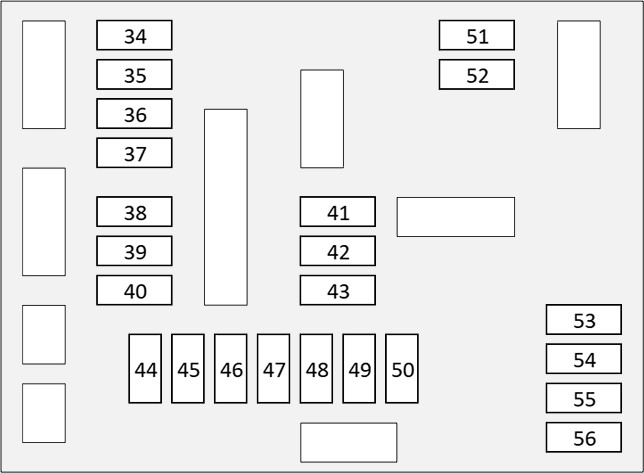

Fuse Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment fuse box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
34	MINI	10A	Right Headlamp (High Beam)
35	MINI	10A	Left Headlamp (High Beam)
36	MINI	15A	Right Headlamp (Low Beam)
37	MINI	15A	Left Headlamp (Low Beam)
38	MINI	10A	Engine Control Module (ECM), VIAS Control Solenoid Valve, EVAP Canister Vent Control Valve, Throttle Control Motor Relay
39	MINI	10A	Engine Control Module (ECM), EVAP Canister Purge Volume Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Intake Valve Timing Intermediate Lock Control Solenoid Valve, Exhaust Valve Timing Control Solenoid Valve, Mass Air Flow Sensor
40	MINI	15A	Heated Oxygen Sensors, Air Fuel Ratio Sensors
41	MINI	30A	Front Wiper Relay
42	MINI	15A	Front Fog Lamp Relay
43	MINI	10A	Daytime Running Light Relay
44	MINI	15A	Ignition Coils, Condenser, Engine Control Module (ECM)
45	MINI	10A	Fuel Injectors, Engine Control Module (ECM)
46	MINI	10A	Transmission Range Switch, Transmission Control Module (TCM), Primary Speed Sensor, Input Speed Sensor, Output Speed Sensor
47	MINI	15A	Fuel Pump Relay
48	MINI	10A	Cooling Fan Relay, Headlamp Aiming Motors, Headlamp Aiming Switch, Transmission Range Sensor
49	MINI	10A	All-Wheel Drive (AWD) Control Unit, Power Steering Control Module, ABS Solenoid Valve Relay, ABS Motor Relay, Steering Angle Sensor, Yaw Rate/Side/Decel G Sensor
50	MINI	10A	Front and Rear Washer System, Combination Switch
51	MINI	10A	Tail Lamps, License Plate Lamps, Trailer Tow Relay No.1, Headlamp Aiming Switch, Glove Box Lamp, Illumination
52	MINI	10A	Parking Lamps, Side Marker Lamps
53	MINI	10A	A/C Relay
54	—	—	Not Used
55	MINI	15A	Throttle Control Motor Relay
56	MINI	10A	Engine Control Module (ECM)

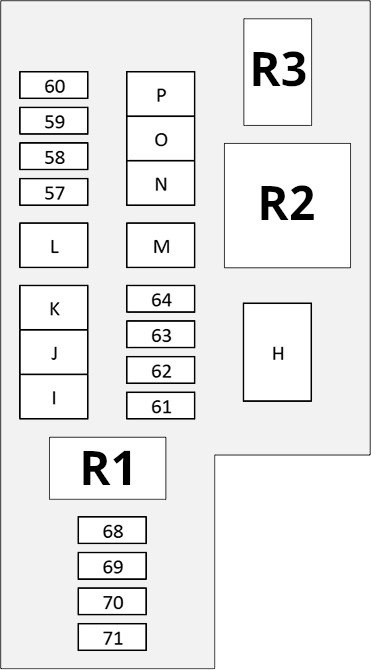

Fuse Box Diagram (No.2) Ver.1

Fuses

Assignment of the fuses in the engine compartment fuse box No.2 (Version 1)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
57	MINI	10A	ALT
58	MINI	10A	WOOFER
59	MINI	30A	PTC HEATER 1
60	MINI	30A	PTC HEATER 2
61	MINI	30A	TOWING (BAT)
62	MINI	10A	4WD
63	MINI	15A	HORN
64	MINI	30A	FLIP UP SEAT
65	MINI	—	Not Used
66	MINI	—	Not Used
67	MINI	—	Not Used
68	MINI	15A	SEAT LH HEAT
69	MINI	15A	INVERTER
70	MINI	20A	RR BLOWER
71	MINI	20A	3RD BLOWER
G	FLF/PAL 293	60A	PWM FAN
I	MPF2	—	F/L VDC MTR
J	MPF2	—	F/L VDC SOL
K	MPF2	—	F/L IGN SW
L	FMX/JCase	30A	F/L PSB LH
M	FMX/JCase	30A	F/L PSB RH
N	MPF2	—	F/L PWR BACK DOOR
O	MPF2	—	F/L BCM
P	MPF2	—	F/L H. LAMP WASHER

Relays

Assignment of the relays in the engine compartment fuse box No.2 (Version 1)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	HORN
R2	PWM FAN
R3	OIL COOLER FAN

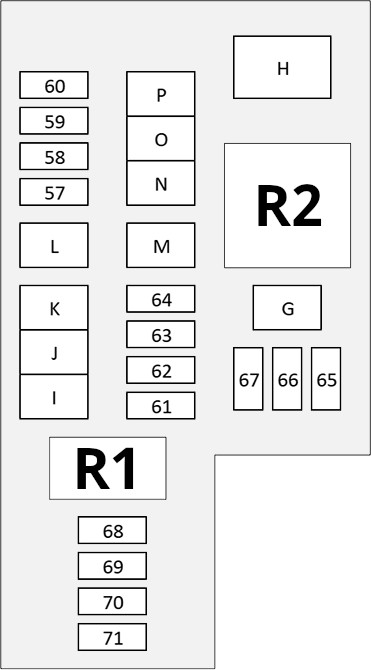

Fuse Box Diagram (No.2) Ver.2

Fuses

Assignment of the fuses in the engine compartment fuse box No.2 (Version 2)

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
57	MINI	10A	Alternator, Anti-Theft Horn Relay
58	MINI	10A	BOSE Audio System
59	MINI	30A	PTC Relay №1 (PTC Heater)
60	MINI	30A	PTC Relay №2 (PTC Heater)
61	MINI	30A	Trailer Tow Relay №2 (Trailer Receptacle)
62	MINI	10A	All-Wheel Drive (AWD) Control Unit
63	MINI	15A	Horn Relay, Intelligent Key System
64	MINI	30A	Seatback Power Return Control Unit
65	MINI	10A	Accessory Relay №2 (AV Control Module, Satellite Radio Tuner, A/C and AV Switch Assembly, Bluetooth Control Unit, Power Seat, Around View Monitor Control Unit, Video Distributor, Rear Auxiliary Input Jacks, Telematic Control Unit (TCU), Telematics Switch, Power Mirror Remote Control Switch, Combination Meter)
66	MINI	15A	Climate Controlled Seat, Heated Seat (Passenger Side)
67	MINI	10A	Trailer Tow Relay №1 (Trailer Receptacle)
68	MINI	15A	Climate Controlled Seat, Heated Seat (Driver Side)
69	MINI	30A	Inverter System
70	MINI	20A	Rear Blower Motor Relay
71	MINI	20A	Rear Blower Motor Relay
G	FMX/JCase	30A	Electric Brake (Trailer)
H	FLF/PAL 293	60A	Cooling Fan Relay
I	MPF2	—	ABS (Motor Relay)
J	MPF2	—	ABS (Solenoid Valve Relay)
K	MPF2	—	Ignition Relay №2 (Fuses: 28, 29, 30, 31, 32), Starter Relay, Starter Control Relay
L	FMX/JCase	30A	Pre-Crash Seat Belt System (Driver Side)
M	FMX/JCase	30A	Pre-Crash Seat Belt System (Passenger Side)
N	MPF2	—	Automatic Back Door System
O	MPF2	—	Body Control Module (BCM), Auto Light System, Automatic Back Door System, Back-Up Lamp, CVT Shift Lock System, Daytime Light System, Front Fog Lamp, Front Wiper and Washer System, Headlamp, Headlamp Aiming System, Heated Steering Wheel, Illumination, Intelligent Key System/Engine Start Function, Intelligent Key System, Interior Room Lamp, IVIS, Moonroof System, Parking Lamps, License Plate Lamps, Tail Lamps, Power Door Lock System, Power Seats, Power Window System, Rear Window Defogger, Rear Wiper and Washer System, Tire Pressure Monitoring System, Trailer Tow, Turn Signal and Hazard Warning Lamps, Vehicle Security System, Warning Chime System, Automatic Drive Positioner, Tilt & Telescopic Steering Column

Releys

Assignment of the relays in the engine compartment fuse box No.2 (Version 2)

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Horn Relay
R2	Cooling Fan Relay

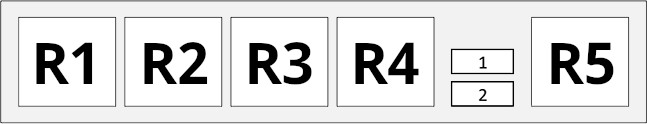

Relay Box Diagram (No.1)

Fuses

Assignment of the fuses in the engine compartment relays box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps
1	MINI	15A	Trailer Tow Turn Relay (Left), Trailer Tow Turn Relay (Right)
2	MINI	10A	Trailer Back-Up Relay

Relays

Assignment of the relays in the engine compartment relays box No.1

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	PTC No.1
R2	Accessory No.2
R3	Intelligent Cruise Control (ICC) Brake Hold
R5	PTC No.2

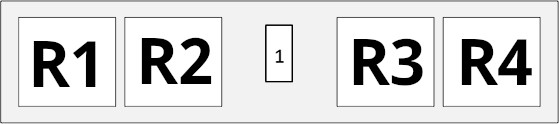

Relay Box Diagram (No.2)

Fuses

Assignment of the fuse in the engine compartment relays box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	MINI	10A	Driver Assistance System

Relays

Assignment of the relays in the engine compartment relays box No.2

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Daytime Running Light Relay
R2	Not Used
R3	Not Used
R5	Not Used

Passenger Compartment

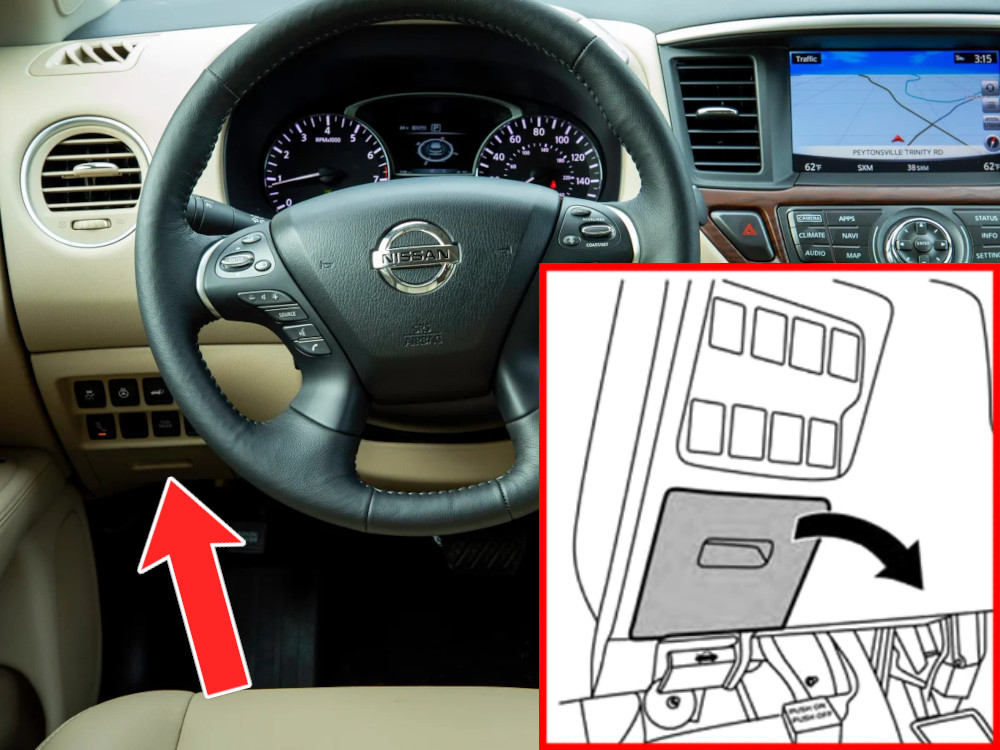

Fuse Box Location

The fuse box is positioned to the left of the driver, beneath the steering wheel. To access it, pull off the fuse box cover.

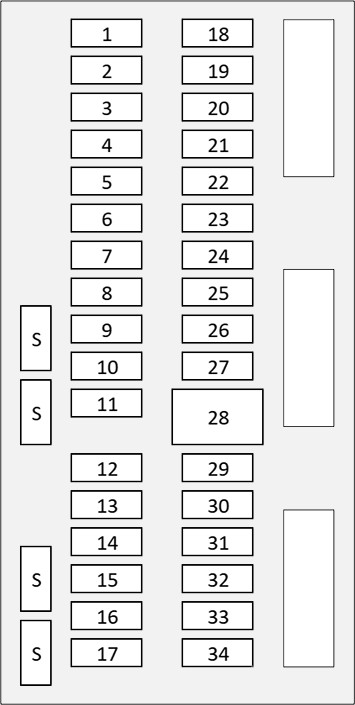

Fuse Box Diagram

Fuses

Assignment of the fuses in the passenger compartment fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Type	Amps	Description
1	MINI	15A	Blower Motor
2	MINI	—	Not Used
3	MINI	20A	Power Socket (ACC-1)
4	MINI	20A	Power Socket (ACC-3)
5	MINI	20A	Power Socket (ACC-2)
6	MINI	10A	Heated Mirror
7	MINI	15A	Rear Defogger
8	MINI	15A	Rear Defogger
9	MINI	10A	Electronic Parts (BAT-2)
10	MINI	5A	Illumination
11	MINI	15A	Blower Motor
12	MINI	15A	Heated Seats
13	MINI	5A	Electronic Parts (IGN-1)
14	MINI	10A	Electronic Parts (IGN-2)
15	MINI	5A	Meter (IGN)
16	MINI	10A	Air Bag
17	MINI	10A	Engine Management System
18	MINI	10A	Room Lamp
19	MINI	15A	Rear Wiper
20	MINI	15A	Front Door Lock
21	MINI	15A	Rear Door Lock
22	MINI	20A	Power Window (rear right)
23	MINI	20A	Power Window (driver)
24	MINI	20A	Power Window (passenger)
25	MINI	20A	Power Window (rear left)
26	MINI	20A	Power Socket (CARGO B+)
27	MINI	10A	Stop Lamp
28	—	—	Extended Storage Switch
29	MINI	15A	Audio Amplifier
30	MINI	15A	Audio Amplifier
31	MINI	10A	Meter (BAT)
32	MINI	5A	Electronic Parts (BAT-1)
33	MINI	15A	Audio
34	MINI	5A	BCM

Note: S – Spare Fuses.

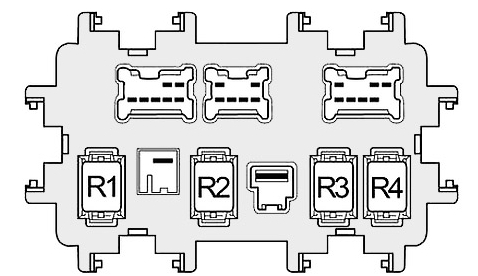

Relay Box Diagram

Several relays are located on the back of the fuse box.

Relays

Assignment of the relays in the passenger compartment on the back of the fuse box

Fuse Data

Full access is available to registered users — log in or register.

No.	Description
R1	Ignition 2
R2	Electric fan motor
R3	Rear window heater
R4	Accessory 1
