Volkswagen Passat (2014-2019)

Looking for Volkswagen Passat fuse box diagrams? This article covers the eighth-generation Volkswagen Passat (Model Code: B8) before the facelift, produced from 2014 to 2019, and includes fuse box diagrams for Volkswagen Passat (B8) 2014, 2015, 2016, 2017, 2018 and 2019, along with information about the location of the fuse panels inside the vehicle and a clear explanation of the assignment of each fuse and relay (fuse layout).

Engine Compartment

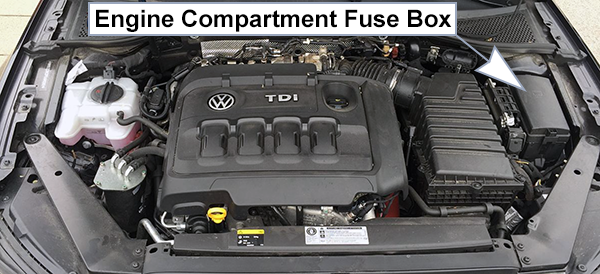

Fuse Box Location

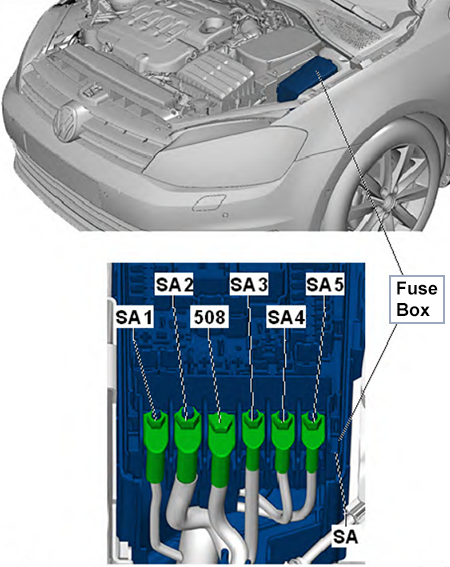

Fuse Box Diagram (-SA-)

High Voltage Fuses

Assignment of the high voltage fuses in the engine compartment fuse box (SA)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1125Abattery at front:
Supply for fuse holder C – Terminal 30_1, Fuses 2, 4 to 14, 22, 31, 38 to 39, 41, 42, 46, 51, 53, Relay for power sockets, Terminal 15 voltage supply relay
80Abattery at rear:
Radiator fan
SA2400AAlternator
SA380Abattery at front:
Power steering control unit
SA480Abattery at front:
Supply for fuse holder C – Fuses 1, 3, 15 to 21, 23 to 28, 43 to 45, 50

battery at rear:
Power steering control unit
SA550Abattery at front:
Radiator fan

battery at rear:
Supply for fuse 4 on fuse holder A – Power steering control unit

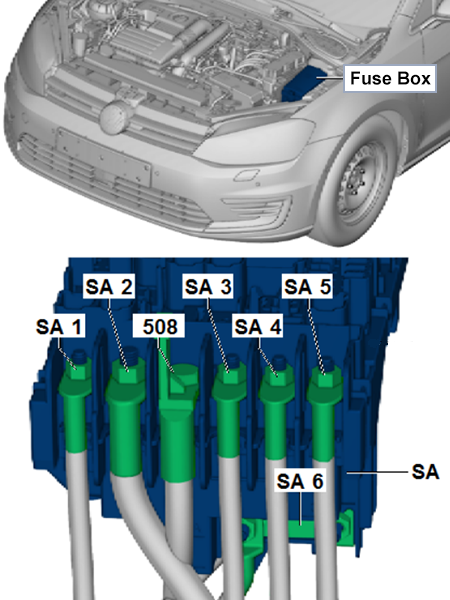

Fuse Box Diagram (-SA-) Hybrid

High Voltage Fuses

Assignment of the high voltage fuses for Hybrid drive vehicles in the engine compartment fuse box (SA)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SA1125ASupply for fuse holder C – Terminal 30_1, Fuses 2, 4 to 14, 22, 31, 38 to 39, 41 to 42, 46, 51, 53, Relay for power sockets, Terminal 15 voltage supply relay
SA2400AAlternator
Power and control electronics for electric drive
SA380APower steering control unit
SA480ASupply for fuse holder C – Terminal 30_2, Fuses 1, 3, 15 to 21, 23 to 28, 43 to 45, 50
SA580ARadiator fan
SA650AMechatronic unit for dual clutch gearbox (Dual clutch gearbox ODD)

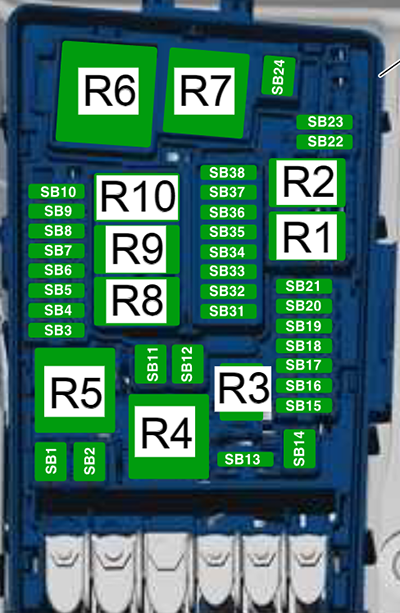

Fuse Box Diagram (-SB-)

Fuses

Assignment of the fuses in the engine compartment fuse box (SB)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SB1up to Apr 2017:
40A
from May 2017:
25A		ABS control unit
SB240AABS control unit, ABS hydraulic pump
SB315A (petrol, hybrid)
30A (diesel)		Engine/motor control unit
SB410A (petrol+ACT, 1.8-2.0L petrol, hybrid)
up to June 2018:
5A (diesel)
from July 2018:
7.5A (petrol, diesel+SCR)		Radiator fan, Oil level and oil temperature sender, Relay for reducing agent metering system, High and low heat output relay, Charge pressure positioner, Activated charcoal filter solenoid valve 1, Exhaust camshaft control valve 1, Camshaft control valve 1, Valve for oil pressure control, Inlet and exhaust cam actuator for cylinder 2 and 3, Fuel cooling valve, Exhaust gas recirculation cooler changeover valve, Charge pressure control solenoid valve
from Feb 2015: Intake manifold flap valve, Turbocharger air recirculation valve, Power steering control unit (1.8-2.0L petrol)
SB510AFuel pressure regulating valve, Fuel metering valve, Camshaft control valve 1
from Feb 2015: Exhaust cam actuator A and B for cylinder 1 to 4 (1.8-2.0L petrol), Injector cylinder 1 to 4 (1.8-2.0L petrol), Engine component current supply relay (1.8-2.0L petrol), Coolant valve for gearbox (hybrid), Coolant pump for high-voltage battery (hybrid), Coolant pump for high-temperature circuit (hybrid)
SB6up to June 2018:
5A
from July 2018:
7.5A		Brake light switch
SB710A (petrol, diesel)
15A (diesel+SCR, hybrid)
7.5A (1.8-2.0L petrol)		Fuel metering valve, Circulation pump, Radiator blind control motor, Coolant valve for cylinder head, Valve for oil pressure control, Exhaust gas recirculation cooler changeover valve, Charge pressure positioner, Charge air cooling pump, Auxiliary pump for heating
from Feb 2015: Coolant pump for high-temperature circuit, Coolant valve for gearbox, Coolant shut-off valve, Gearbox oil cooling pump, Fuel pressure regulating valve (hybrid), Coolant changeover valve 1 and 2 (hybrid), Coolant pump for low-temperature circuit (hybrid)
SB810A (petrol)
15A (diesel, 1.8-2.0L petrol, hybrid)		Lambda probe 1 before and after catalytic converter, Lambda probe heater before and after catalytic converter, NOx sender
from July 2018: Particulate sensor (Euro 6 AG/H/I)
SB920A (petrol, hybrid)
10A (1.8-2.0L petrol)
up to June 2018:
5A (diesel)
from July 2018:
7.5A (diesel)		Ignition coil 1 to 4 with output stage, Heater element for crankcase breather, Automatic glow period control unit, Air mass meter
from Feb 2015: Charge air cooling pump, Activated charcoal filter solenoid valve 1, Exhaust camshaft control valve 1, Camshaft control valve 1
SB1020A (depending on equipment)
10A / 15A (depending on equipment, hybrid)		Fuel pump control unit
SB1140AAuxiliary air heater element
SB1240AAuxiliary air heater element
SB1330A
15A		up to June 2018:
Mechatronic unit for dual clutch gearbox (0CW, 0GC, 0D9), Auxiliary hydraulic pump 1 for gearbox oil
7.5A (hybrid)from July 2018:
Brake servo (hybrid)
SB1440A / 30A (depending on equipment)Heated windscreen relay
SB1515AHorn relay
SB1620A (1.8-2.0L petrol)
10A (hybrid)		from Feb 2015:
Engine component current supply relay, Power and control electronics for electric drive, Charging unit 1 for high-voltage battery
SB177.5AMain relay (petrol), Terminal 30 voltage supply relay (diesel), Engine/motor control unit, ABS control unit, Heated windscreen relay
SB18up to June 2018:
5A
from July 2018:
7.5A		Battery monitor control unit (battery at front), Data bus diagnostic interface
SB1930AWiper motor control unit
SB2010Aup to June 2018:
Alarm horn
–from July 2018:
Not Assigned
SB2130Aup to June 2018:
Heated windscreen relay 2
15Afrom July 2018:
Mechatronic unit for dual clutch gearbox (0CW, 0GC, 0D9), Auxiliary hydraulic pump 1 for gearbox oil
SB22up to June 2018:
5A
from July 2018:
7.5A		Engine/motor control unit, Special vehicle fuse
SB2330AStarter
SB2440AAuxiliary air heater element, Brake servo (hybrid, from Feb 2015)
SB25 – SB31––
SB3230Afrom July 2018:
Heated windscreen (battery at rear)
SB3315A
30A (hybrid, 0GC)		Mechatronic unit for dual clutch gearbox (0DL, 0GC), Brake system pressure accumulator (hybrid)
SB345Aup to June 2018 (from Feb 2015):
Brake servo (hybrid)
30Afrom July 2018:
Heated windscreen (battery at front)
SB3530A (battery at rear)
7.5A (hybrid)		Wiper motor control unit, Air conditioning system relay (hybrid, from Feb 2015)
SB36 – SB38––

Relays

Assignment of the relays in the engine compartment fuse box (SB)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Starter relay 1
R2Starter relay 2
R3Horn relay
R4High heat output relay (auxiliary air heater)
R5Main relay (petrol)
Terminal 30 voltage supply relay (diesel)
R6Automatic glow period control unit (diesel)
Coolant shortage indicator control unit (hybrid)
R7Low heat output relay (auxiliary air heater)
R8Air conditioning system relay (hybrid)
Engine component current supply relay (1.8-2.0L petrol, from Feb 2015)
R9-R10Heated windscreen relay / Heated windscreen relay 2

Passenger Compartment

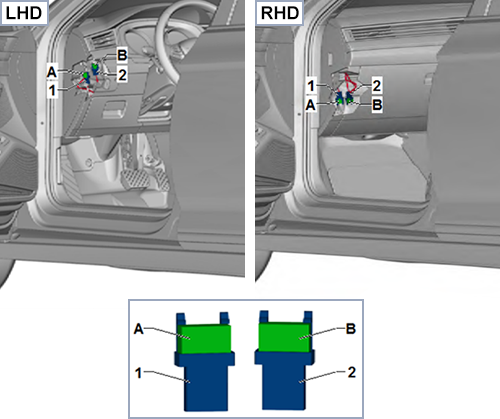

Fuse Box Location

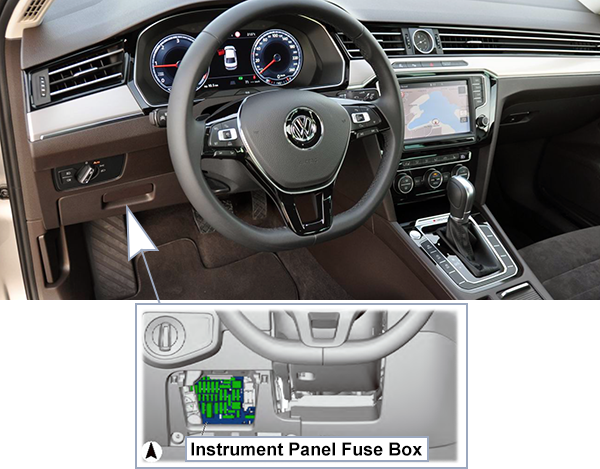

Left-Hand Drive

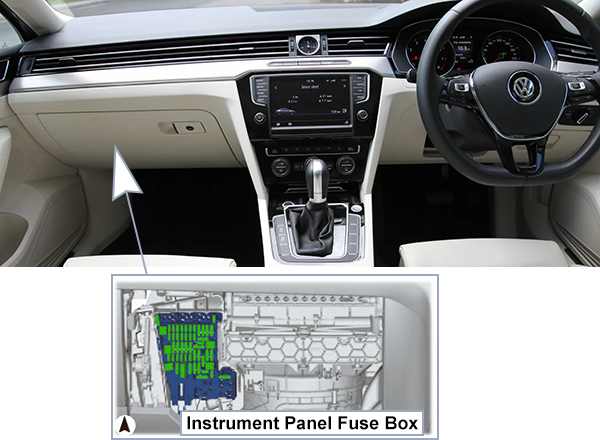

Right-Hand Drive

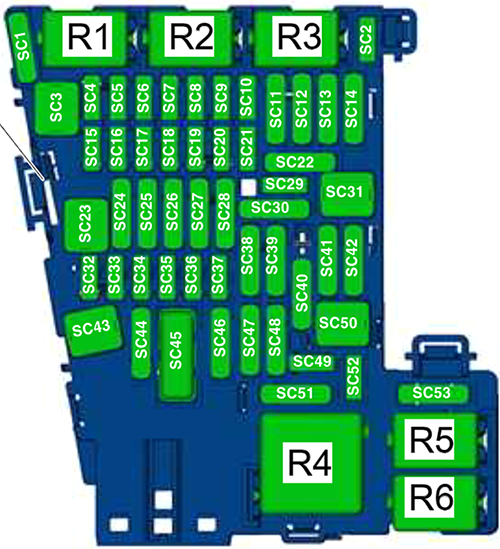

Fuse Box Diagram (-SC-)

Fuses

Assignment of the fuses in the passenger compartment fuse box (SC)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SC1up to Oct 2017:
30A
from Nov 2017:
30A / 20A (depending on equipment)		Control unit for reducing agent heater
SC210ASteering column electronics control unit (heated steering wheel)
SC3–up to Oct 2015:
Not Assigned
–Nov 2015 to Oct 2016:
Special vehicle fuse
–from Nov 2016:
Not Assigned
SC4–up to Jun 2018:
Not Assigned
7.5Afrom Jul 2018:
Alarm horn
SC5up to Oct 2017:
5A
from Nov 2017:
7.5A		Data bus diagnostic interface
SC65Aup to Oct 2015:
Anti-theft alarm sensor
up to Oct 2017:
5A
from Nov 2017:
7.5A		from Nov 2015:
Selector lever
SC710Aup to Oct 2015:
Heater and air conditioning controls, Selector lever, Remote control receiver for auxiliary coolant heater, Heated rear window relay, Analogue clock, Operating and display unit for rear air conditioning system, Tyre Pressure Monitoring System control unit
10Afrom Nov 2015:
Heater and air conditioning controls, Remote control receiver for auxiliary coolant heater, Heated rear window relay, Analogue clock, Operating and display unit for rear air conditioning system, Magnetic clutch relay (depending on equipment), Tyre Pressure Monitoring System control unit (depending on equipment)
SC810Aup to Oct 2015:
Rotary light switch, Electromechanical parking brake button, Rain and light sensor, Diagnostic connection, Front interior light (depending on equipment), Left and right dashboard background lighting (depending on equipment), Front and rear door contour lighting (depending on equipment)
10ANov 2015 to Oct 2016:
Rotary light switch, Electromechanical parking brake button, Rain and light sensor, Diagnostic connection, Anti-theft alarm sensor, Front interior light (depending on equipment), Left and right dashboard background lighting (depending on equipment), Front and rear door contour lighting (depending on equipment)
up to Oct 2017:
10A
from Nov 2017:
7.5A		from Nov 2016:
Rotary light switch, Electromechanical parking brake button, Rain and light sensor, Diagnostic connection, Anti-theft alarm sensor, Front interior light (depending on equipment), Left and right dashboard background lighting (depending on equipment), Front and rear door contour lighting (depending on equipment), Control unit for cornering light and headlight range control (depending on equipment)
SC9up to Oct 2015:
1A
Nov 2015 to Oct 2017:
5A
from Nov 2017:
7.5A		Steering column electronics control unit
SC1010Aup to Oct 2015:
Display unit for front information display and operating unit control unit, TV tuner
7.5ANov 2015 to Oct 2016:
Display unit for front information display and operating unit control unit, TV tuner, Special vehicle fuse
7.5ANov 2016 to Oct 2017:
Display unit for front information display and operating unit control unit, Control unit for Head-up Display
up to Jun 2018:
7.5A
from Jul 2018:
10A		from Nov 2017:
Display unit for front information display and operating unit control unit, Control unit for Head-up Display (depending on equipment), TV tuner (depending on equipment), CD player (depending on equipment)
SC1125Aup to Oct 2017:
Control unit for front left belt tensioner
40Afrom Nov 2017:
Onboard supply control unit – Front left headlight
SC12up to Oct 2017:
20A (depending on equipment)
5A (radio Composition Colour)
from Nov 2017:
20A (depending on equipment)
7.5A (radio Composition Colour)		Control unit 1 for information electronics
SC1315Aup to Oct 2017:
Electronically controlled damping control unit
25Afrom Nov 2017:
Control unit for front left belt tensioner
SC14up to Oct 2016:
30A
from Nov 2016:
40A		Fresh air blower control unit
SC1510AControl unit for electronic steering column lock
SC167.5Aup to Oct 2015:
Two-way signal amplifier for mobile telephone/data services, Storage compartment with interface for mobile telephone, USB hub, Chip card reader
7.5ANov 2015 to Oct 2016:
Two-way signal amplifier for mobile telephone/data services, Storage compartment with interface for mobile telephone, USB hub, Chip card reader, Control unit for Head-up Display
7.5Afrom Nov 2016:
Two-way signal amplifier for mobile telephone/data services, Storage compartment with interface for mobile telephone, USB hub, Chip card reader, TV tuner, Special vehicle fuse
SC175Aup to Oct 2015:
Dash panel insert
5A
7.5A (hybrid)		Nov 2015 to Oct 2017:
Dash panel insert, Emergency call module control unit and communication unit (hybrid)
7.5Afrom Nov 2017:
Dash panel insert, Emergency call module control unit and communication unit (hybrid), Telematics control unit for real-time monitoring (depending on equipment)
SC187.5AReversing camera, Rear lid handle release button, Control unit for overhead view camera, Rear overhead view camera
SC197.5AInterface for entry and start system
SC20up to Oct 2017:
7.5A
from Nov 2017:
7.5A / 10A (depending on equipment)		Relay for reducing agent metering system
SC2115AAll-wheel drive control unit
SC2215ATrailer detector control unit
SC2340Aup to Oct 2017:
Onboard supply control unit – Front right headlight
up to Jun 2018:
30A
from Jul 2018:
20A		from Nov 2017:
Sliding sunroof adjustment control unit
SC2430Aup to Oct 2017:
Sliding sunroof adjustment control unit
40Afrom Nov 2017:
Onboard supply control unit – Front right headlight
SC2530ADoor control units (driver, front passenger, rear left), Rear left window regulator motor
SC2630AOnboard supply control unit – Seat heating
SC27up to Oct 2015:
30A
Nov 2015 to Oct 2017:
40A		up to Oct 2017:
Digital sound package control unit
30Afrom Nov 2017:
Onboard supply control unit
SC28up to Oct 2015:
20A
from Nov 2015:
25A		Trailer detector control unit
SC29–up to Oct 2015:
Not Assigned
–Nov 2015 to Oct 2016:
Special vehicle fuse
–from Nov 2016:
Not Assigned
SC30–up to Oct 2015:
Not Assigned
10Afrom Nov 2015:
High-voltage battery 1 (hybrid), Maintenance connector for high-voltage system (hybrid)
SC3140Aup to Oct 2017:
Onboard supply control unit – Front left headlight
–Nov 2017 to Jun 2018:
Not Assigned
30Afrom Jul 2018:
Rear lid control unit
SC327.5A
10A (blind spot monitor)		Front camera for driver assist systems, Adaptive cruise control unit, Parking aid control unit, Park assist steering control unit, Blind Spot Monitor control unit
SC33up to Oct 2017:
5A
from Nov 2017:
7.5A		Airbag control unit, Warning lamp for airbag deactivated on front passenger side
SC347.5AElectromechanical parking brake button, Interior mirror, Relay for power sockets, Pedestrian protection warning lamp, Switch module 2 in centre console, Pressure sender for refrigerant circuit, External air quality and air humidity sensor
SC35up to Oct 2017:
10A
from Nov 2017:
7.5A		Diagnostic connection, Headlight range control and instrument illumination regulator, Control unit for cornering light and headlight range control, Front left and right headlight (and range control motors)
SC36up to Oct 2017:
5A
from Nov 2017:
7.5A		Front right headlight – Output module 1 for right LED headlight
SC37up to Oct 2017:
5A
from Nov 2017:
7.5A		Front left headlight – Output module 1 for left LED headlight
SC3825ATrailer detector control unit
SC3930ADoor control units (driver, front passenger, rear right), Rear right window regulator motor
SC4020ACigarette lighter, 12 V sockets 1, 2, and 3
*Note: Factory supplied via terminal 15. Can be reconnected to terminal 30, but ensure consumers are disconnected when engine is off to prevent battery discharge.
SC4125AControl unit for front right belt tensioner
SC4240AOnboard supply control unit – Central locking
SC4330Aup to Oct 2017:
Onboard supply control unit
40Afrom Nov 2017:
Digital sound package control unit
SC4415ATrailer detector control unit
SC4515ADriver seat lumbar support adjustment switch, Driver seat adjustment operating unit, Driver seat adjustment control unit, Operating unit for front left seat adjustment, Massage control unit, Front left seat cushion and backrest fan 1
SC4630ADC/AC converter with socket, 12 V – 230 V
SC4715A
7.5A		Rear window wiper motor, Rear roller blind control unit
SC48–up to Oct 2015:
Not Assigned
7.5Afrom Nov 2015:
Engine sound generator control unit (hybrid)
SC495Aup to Oct 2017:
Clutch position sender, Starter relay 1 and 2
from Nov 2015: High-voltage battery 1 (hybrid)
7.5Afrom Nov 2017:
Clutch position sender, Starter relay 1 and 2, High-voltage battery 1 (hybrid)
SC5040ARear lid control unit
SC5125AOperating and display unit for rear air conditioning system
SC52–up to Oct 2017:
Not Assigned
15Afrom Nov 2017:
Electronically controlled damping control unit
SC5330AHeated rear window relay

Relays

Assignment of the relays in the passenger compartment fuse box (SC)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.Description
R1Relay for reducing agent metering system
R2Magnetic clutch relay
R3–
R4Terminal 15 voltage supply relay
R5Heated rear window relay
R6Relay for power sockets

Fuse Box Diagram (Thermal Fuse)

Seat adjustment thermal fuse behind fuse holder -SC-.

Fuses

Assignment of the thermal fuse in the passenger compartment behind fuse box (SC)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
A15AFront passenger seat adjustment thermal fuse 1 -S46-:
– Operating unit for front right seat adjustment -EX34-
– Front right lumbar support adjustment switch -E753-
– Front right seat cushion fan 1 -V518-
– Front right seat backrest fan 1 -V516-
B––

Luggage Compartment

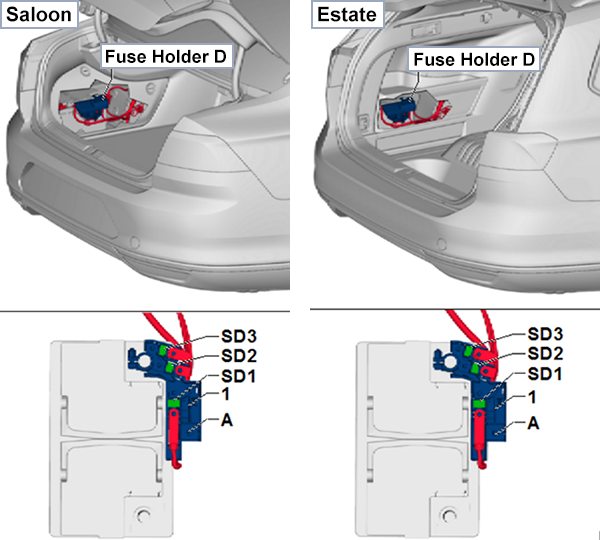

Location and Diagram (-SD-)

Only for models with battery in luggage compartment.

Fuses

Assignment of the fuses in the luggage compartment fuse box (SD)

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD180ASupply for fuse 4 on fuse holder A (Terminal 30)
SD2110ASupply for fuse holder C – Terminal 30_2, Fuses 1, 3, 15 to 21, 23 to 28, 43 to 45, 50
SD3110ASupply for fuse holder C – Terminal 30_1, Fuses 2, 4 to 14, 22, 31, 38 to 39, 41 to 42, 46, 51, 53, Relay for power sockets, Terminal 15 voltage supply relay

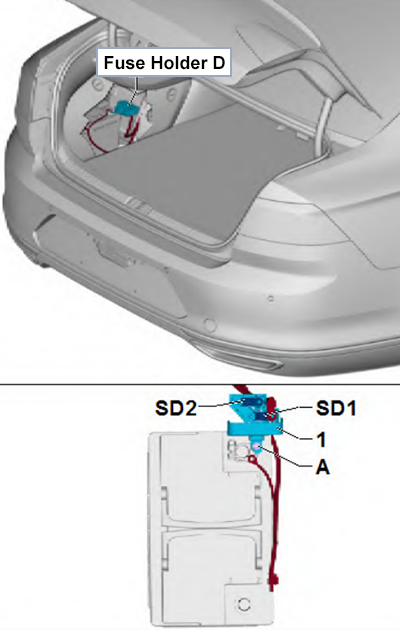

Location and Diagram (-SD-) Hybrid Drive

Fuses

Assignment of the fuses in the luggage compartment fuse box (SD) for hybrid drive vehicles

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
SD1200A(508) Threaded connection (30), on E-box
SD2––

Additional Fuses (Hybrid)

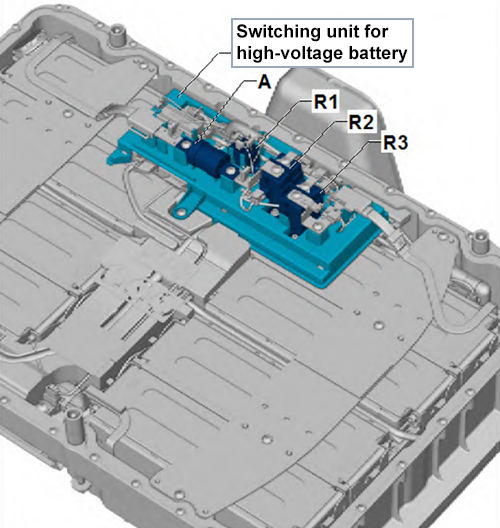

Switching Unit Location and Diagram

Location and diagram of switching unit for high-voltage battery -SX6-.

Fuses

Assignment of the fuses in the switching unit fuse box for hybrid drive vehicles

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

No.AmpsDescription
1350AHigh-voltage system fuse 1 -S350-:
– High-voltage battery power contactor 1 -J1057-
R1Precharge contactor for high-voltage battery -J1044-
R2High-voltage battery power contactor 1 -J1057-
R3High-voltage battery power contactor 2 -J1058-

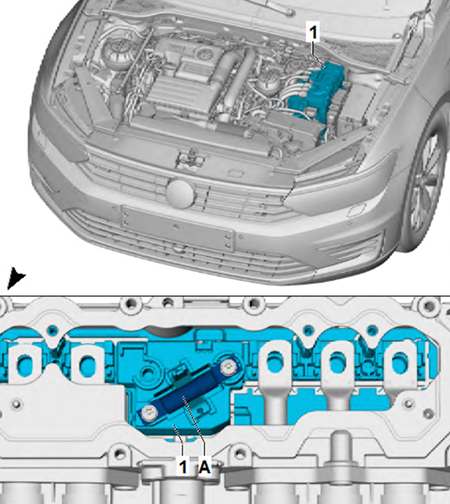

Power/Control Location and Diagram

Power and control electronics for electric drive.

Fuse

Assignment of the additional fuse in the engine compartment fuse box for hybrid drive vehicles

Fuse Data
Full access is available to registered users — log in or register.
Log in or register

ID.AmpsDescription
A80AHigh-voltage system fuse 3 -S353-
– Power and control electronics for electric drive -JX1-

Scroll to Top
